Automatic Systems Jalgaon, MH

We manufacture high quality Lid Pressing Machine . This machine conveniently performs functions of pressing, stamping and dotting. It performs pressing of the top lid of the container for closing purpose. Our machine easily executes ink stamping of price, batch number, expiry date etc. by a rubber stereo on the vertical wall of the container. We can give suitable stamp bodies to suit either cylindrical or conical wall. Our machine also performs shade dotting on the bottom surface to show the shade of color. Specific Advantages Saving in labour cost since only one operator is required to carryout all 3 operations Saving in price stamping cost since only indelible ink is used against the costly sticker labels This machine can be used in explosion prone area since only compressed air at 5 kg/cm2 is required for operation of the machine and no electricity supply involved Containers of size varying from 0.5 to 5 liters can be used on this machine No loss of production as changeover time for settings is around 15 minutes The capital cost involved is less since indigenous and appropriate technology is adopted Optional Features The container must be filled with desired quantity of paint The lid must be properly placed (manually) over the mouth of the container The container and lid together has to be located against locating bracket (manually) provided on the machine The foot switch should be pressed and released Click here for more details

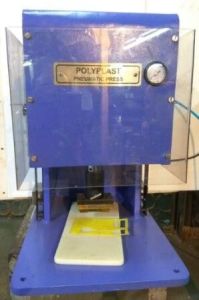

We offer high quality Knuckle Press Machine. Our machine is developed to cater to the needs of manufacturers who make small pressed parts. It is ideal for that work which requires maximum force for over a small distance. It provides perfect unit for blanking, bending, coining, riveting, punching, piercing, marking and its accurate repetitive qualities and perfectly controlled force makes it ideal for light assembly work. Our Knuckle Press Machines are designed to be portable so that they can be easily located and re-located wherever needed. Setting up procedures is simplified and it requires very little effort. Silent Features Due to knuckle mechanism the cylinder size is small and hence the consumption of compressed air is minimum Due to lesser number of parts this machine is cheaper as compared to conventional flywheel type presses and also reduces the maintenance Both Stroke and Shut height are easily adjustable to suit the tooling and the process Two Hand push button station for operator safety Optional Features Electro pneumatic control for continuous operations Adjustable .dwell at bottom of stroke Stroke counters (electronic or mechanical) Safety guards Cabinet type base for floor mounting Maximum stroke from 10 to 60 mm Non-standard shut height, table size and type Tooling to suit the job Special frame sizes, strokes and press Capacities can be manufactured to customer's special requirements Click here for more details

Use our efficient Wire Stripping Machine for fast and clean removal of enamel insulation from round wire. Our Wire stripping Machine is developed to remove the enamel coated insulation of round wire dia. 0.8 to 3.5 mm. Our machine is directly mounted on the motor shaft to reduce the vibrations. Moreover, three self-centering High Speed Steel (HSS) precision ground blades rotating at 2800 RPM strips enamel coating from the surface of the wire. Wire diameter to be stripped can be set by easy adjustment of these blades. While rotating, cutting edge of these blades creates the conical cavity which enables wire’s entry easily. Ordinarily, blades need re-sharpening periodically. We supply a blade holding fixture for the same. Re-sharpening can be done on any surface grinding mc. Our tool is manufactured from high quality material along with required heat treatment. Our Wire Stripping Machine is reasonably priced to meet the diversifying needs of various industries. Specifications Wire size : Dia. 0.8 to 3.5 mm Strip length : 12 mm approx Mounting : Can be fixed on table Motor specification : 0.25 HP, 1Ph, 220 VAC, 50 Hz 2800 RPM Optional Accessories Electrical foot switch Blade set of Carbide material Spare blade set of HSS Click here for more details .
