Inlog Micro System Co., Ltd.

New Taipei City, Taiwan

• MOQ 1 pc Box
• Brand NameINLOG
• Operating Temperature-25 degree C~75 degree C
• Dissipation Power0.8 W/Typical
• ApplicationIndustrial Remote Control Module
• Blueas yours specification
• ItemRS-485 of EDAM-8017
• Country of OriginMade in Taiwan
• Model NumberEDAM-8017
• Number Of FlowerRemote Control Module

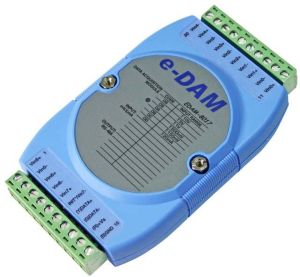

EDAM-8017, 8-ch Isolated Analog Input Module. Features: Protocol Modbus RTU, ASCII Command, Support 8 channels Isolated Analog Input. Fully Photo-Isolation 3750 Vrms, Wide Supply Voltages (10-30V). Specifications RS-485, Protocol: Modbus RTU and ASCII Command. Baute Rate (bps): 1200, 2400, 4800, 9600, 19.2K, 38.4K, 115.2K. LED indication: LED for Power and link status. Isolation Voltage: 3000VDC. Analog Input: Effective Resolution: 16-bit. Input Channels: 1 channel. Input Type: Voltage Current. Input Range: +-10v, +-5v, +-2.5v, +-1v, +-500mV.. Isolation Voltage:2000V. Sample Rate: 10 Samples Second. Input lmpedance: 20M ohm. Accuracy:+-0.05% or better. Zero Drift: +-20uVdegree C. Span Drift: 25 ppm degree C. CMRR: 5060 Hz: 92db. Over Voltage Protection: +-60V.

• MOQ 1 pc Box
• Ethernet 10/100 Based-T CommunicationIsolated 6-DO (NPN).
• blueas yours specification
• 12 DIModbus/TCP,TCP/IP,UDP,ICMP,ARP
• Blueas yours specification

• MOQ 1 pc Box
• MaterialPlastic and electricity
• CertificationCE, ROHS, FCC
• Brand NameInlog
• Model NumberEDAM-5015
• FunctionMulti-Interface RTD Input Module
• Country of OriginTaiwan
• Number Of FlowerRS 485 / RS 232 and Ethernet
• Storage ConditionEthernet with USB and RS 232 / RS 485
• Blueas yours specification

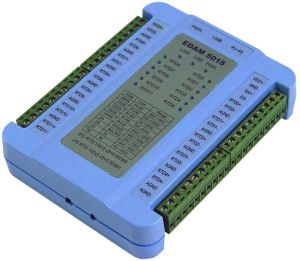

EDAM-5015, Multi-Interface Ethernet USB 2.0 RS 232 RS 485 12 * RTD Modbus. of Module. CAN bus optional, standard Modbus RTU protocal, Protocals TCP UDP DHCP ARP Modbus TCP ASCII commands. User friendly status LED's power USB and Ethernet link. 12 channel RTD input (23-4 wires). PT100PT1000 BALCO 500NI RTD, isolation voltage 2kV, 10 samples, accuracy 0.05% or better, USB powered (400mA ) +10.30~1.5. DIN-Rail or wall mount. Inlog.

• MOQ 1 pc Box
• Brand NameInlog
• Output TypeSource Output up to 30Vdc/3A (max)
• Country of OriginMade in Taiwan
• MODBUS TCP ASCII CommandSupport Isolated Input Channels
• Blueas yours specification
• Model NumberEDAM-5028
• Number Of FlowerInput type: Voltage or Switch on /off; Output type:Source output up to 30Vdc/3A (max)
• RS485/232C, CAN (Optional)Protocol USB2.0 TCP/IP, MODBUS RTU,
• Fully Photo-Isolation 3750VrmsWide Supply Voltages (10~30V)
• Total Carbohydrate1 year

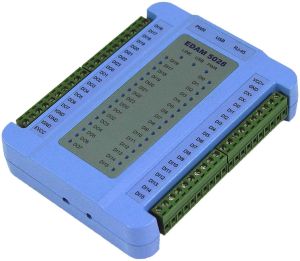

Specifications Interface: Communication USB 2.0, 10100 Ethernet, Protocol TCP, UDP, DHCP, ARP, MODBUS RTU, LED Indication LED for Power and link status Isolation Voltage 3000VDC Support USB 2.0, 10100 Ethernet, RS485232C, CAN(optional) Protocol USB2.0 TCPIP, MODBUS RTU, MODBUS TCP ASCII Command Support Isolated Input Channels Power Requirement : Consumption 1.5W Typical, 2Wmax Power Input USB powered (400mA max.) or Digital Input: Input Channels 24 Channels Input Type Voltage or Switch OnOff Block Diagram MODBUS TCP ASCII Command Humidity 5 ~ 95% RH, non-condensing A04 RS485232C, CAN (Optional) Output Channel 8 Channels Output Type Source Output up to 30Vdc3A(max) Isolation Voltage 2000V external unregulated +10 ~ +30VDC Input Module Digital Output: Wide Supply Voltages (10~30V) Fully Photo-Isolation 3750Vrms Logic Low for 3Vdc maximum, Logic High for 5Vdc minimums Isolation Voltage 2000V

• MOQ 1 Piece(s)

Interface: -Communication RS-485, 2 wires -Baute rate (bps) 1200, 2400, 4800, 9600, 19.2K, 38.4K, 115.2K -Protocol EDAM ASCII(default) and Modbus-RTU protocol Analog input: -Input channels 1 input channel with differential input -Resolution 16-bit -Voltage range +/-15mV , +/-50 mV , +/- 100mV, +/- 500mV, +/- 1V, +/-2.5V -Current measurement +/-20mA (with external 125 ohms shunt resistor) -Thermocouple type -J: -210°C~760°C -K: -270°C~1372°C -T: -0270°C~400°C -E: -0270°C~1000°C -R: 0°C~ +1768°C -S: 0°C~ +1768°C -B: 0°C~ +1820°C -N: -270°C~1300°C -C: 0°C~2320°C -Sample rate 10 samples/sec -Bandwidth 5.24Hz -Zero drift 0.5uV/°C -Span drift 25ppm/°C -Accuracy +/- 0.5% or better -CMRR 150 dB min. @50/60Hz -NMRR 100 dB min. @50/60Hz -Input impedance 20M ohms -Isolation voltage 3000VDC -Photo-isolation 3750Vrms Digital input: -Input channel 1 -Logical level 0 +1V max -Logical level 1 +3.5V to +30V -Event counter: Band width 50Hz max, pulse width 1ms min. Digital output: -Input channel 2 -Output type Open collector output (30VDC max. ) = -Sink current 300mA max. Watchdog function: -Timer 200ms -Power failure threshold 4.65V -Safety value 2 digital output channels -Host programmable 100ms~25.500sec Display: -LED indication LED 6 digit for displaying analog input voltage or host control (for 8011D) Power: -Power supply +10VDC ~ +30VDC -Over voltage protection +/- 35V -Power consumption 1.4W(EDAM-8011) , 2.0W(EDAM-8011D) Ordering information -EDAM-8011 Without 6-digit LED display -EDAM-8011D With 6-digit LED display

• MOQ 1 Piece(s)

-Power requirement Unregulated +10 to +30 VDC with protection from power reversals -Accessories (Supplied) NYLON DIN-rail mounting adapter SECC panel mounting bracket -Plug-in screw terminal wiring Accepts AWG 1-#12 to #22 (0.5 to 2.5 mm) wires -Baud rate (bps) 1200, 2400, 4800, 9600, 19.2 K, 38.4 K, 57.6 K, 115.2 K -Isolation voltage 3000 VDC -RS-422/RS-485 connector Plug-in screw terminal -Case ABS with captive mounting hardware -Power consumption 0.7W

• MOQ 1 Piece(s)

-Power requirement Unregulated +10 to +30 VDC with protection from power reversals -Converted signals RS-232 to RS-422 or RS-485 auto switching (jumperless) -Accessories (Supplied) NYLON DIN-rail mounting adapter SECC panel mounting bracket -Plug-in screw terminal wiring Accepts AWG 1-#12 to #22 (0.5 to 2.5 mm) wires -Auto baud rate (bps) 300 ~115.2 K -Data activity Transmission and receiving LED indicator -Isolation voltage 3000 VDC -Isolation Side RS-232 -R-S-232 interface connector Female DB-9 -RS-422/RS-485 connector Plug-in screw terminal -Case ABS with captive mounting hardware -Power consumption 1.2 W

• MOQ 1 Piece(s)

-USB controller USB 1.1 -USB interface connector USB type B -Isolation side RS-232/ 422/485 -Converted signals RS-232/RS-422 or RS-485 auto switching (jumperless) -Handshake RS-232 RTS & CTS -Auto baud rate (bps) 300 ~115.2 K -Data activity LED indicator -Isolation voltage 3000 VDC -RS-232/RS-422/RS-485 connector Plug-in screw terminal -Accessories (Supplied) NYLON DIN-rail mounting adapter SECC panel mounting bracket -Plug-in screw terminal wiring Accepts AWG 1-#12 to #22 (0.5 to 2.5 mm) wires -Power requirement USB bus power -Case ABS with captive mounting hardware -Power consumption 0.65 W

• MOQ 1 Piece(s)

-USB controller USB 1.1 -USB interface connector USB type B -Isolation side RS-422/RS-485 -Converted signals RS-422 or RS-485 auto switching (jumperless) -Handshake RS-422 RTS & CTS -Auto baud rate (bps) 300 ~115.2 K -Data activity LED indicator -Isolation voltage 3000 VDC -RS-232/RS-422/ -RS-485 connector Plug-in screw terminal -Accessories (Supplied) NYLON DIN-rail mounting adapter SECC panel mounting bracket -Plug-in screw terminal wiring Accepts AWG 1-#12 to #22 (0.5 to 2.5 mm) wires -Power requirement USB bus power -Case ABS with captive mounting hardware -Power consumption 0.5 W

• MOQ 1 Piece(s)

Interface: -Communication RS-485, 2 wires -Baute rate (bps) 1200, 2400, 4800, 9600, 19.2K, 38.4K, 115.2K -Protocol EDAM ASCII protocol Analog input: -Input channels 1 single-ended channel -Resolution 16-bit /12bit -Input range +/- 150mV, +/- 500mV, +/- 1V, +/- 5V, +/- 10V and +/-20mA(with external 125 ohms shunt resistor) -Sample rate 10 samples/sec or 100 sample/second -Bandwidth 5.24Hz(16bit) or 52.4Hz(12bit) -Zero drift 0.03uV/C -Span drift 25ppm/C -Accuracy 0.05% or better -CMRR 150 dB min. @50/60Hz -Over voltage protection +/- 10V -LED indication LED 5 1/2 digit for displaying analog input voltage(for 8012D) -Photo-isolation 3750Vrms -Isolation voltage 3000VDC Digital input: -Input channel 1 -Logical level 0 +0 to +1.0V -Logical level +3.5V to +30V Digital output: -Input channel 2 -Output type Open collector output -Max. loading 30V@30mA load max. Power: -Power consumption 1.5W(EDAM-8012) , 2.0W(for EDAM-8012D) -Power supply +10VDC ~ +30VDC -Over voltage protection +/- 40V -Compatible I-7012(D) /ADAM 4012 Ordering information EDAM-8012 Without 7-seg LED display EDAM-8012D With 7-seg LED display

• MOQ 1 Piece(s)

Interface: -Communication RS-485, 2 wires -Baute rate (bps) 1200, 2400, 4800, 9600, 19.2K, 38.4K, 115.2K -Protocol EDAM ASCII protocol Analog input: -Input channels 1 single-ended channel -Resolution 16-bit /12-bit -Input range +/- 150mV, +/- 500mV, +/- 1V, +/- 5V, +/- 10V and +/- 20mA(with external 125 ohms shunt resistor) -Sample rate 10 samples/sec or 100 sample/sec -Bandwidth 5.24Hz(16bit) or 52.4Hz(12bit) -Zero drift 5uV/C -Span drift 25ppm/C -Accuracy 0.05% or better -CMRR 150 dB min. @50/60Hz -Over voltage protection +/- 10V -LED indication LED 5 1/2 digit for displaying analog input voltage (for E-8014D) -Photo-isolation 3750Vrms -Isolation voltage 3000VDC -Excitation voltage output +15VDC/30mA Digital input: -Input channel 1 -Logical level 0+0 to +1.0V -Logical level 1+3.5V to +30V -Event counter: Band width 50Hz max., Pulse width 1ms min. Digital output: -Input channel 2 -Output type Open collector output -Max. loading 30V@30mA load max. Power: -Power consumption 1.5W(EDAM-8014) , 2.0W(for EDAM-8014D) -Power supply +10VDC ~ +30VDC -Over voltage protection +/- 35V -Power consumption 2.0W -Compatible -7014D / ADAM 4014 Ordering information EDAM-8014 Without 7-seg LED display EDAM-8014D With 7-seg LED display

• MOQ 1 Piece(s)

Interface: -Communication RS485 - Protocol MODBUS RTU and ASCII Command - Baute rate (bps) 1200, 2400, 4800, 9600, 19.2K, 38.4K, 115.2K - LED indication LED for Power and link status - Isolation voltage 3000VDC Analog input: - Effective resolution16-bit - Input channels 6 channel RTD input (2-wires, 3-wires) - RTD type Pt100α=0.00385 Pt100α=0.002916 Ni120 Pt1000α=0.00385 Cu100α=0.00421 Cu100α=0.00427 Cu1000α=0.00421 - Input range PT100, PT1000, Balco 500, NI604, NI1000 - Isolation voltage 2000V - Sampling rate 12 Samples / Second - Input Impedance 20M ohm - Accuracy ±0.05% or better - Zero drift ±0.5uV/ °C - Span drift ±20uV/ °C - CMRR 50/60 Hz: 92 dB - Burn-out Wire burn-out auto detection - Over voltage protection ±60V Power requirement: -Consumption 0.8 W/Typical -Power input +10 ~ +30 VDC -Humidity 5 ~ 95% RH, non-condensing

• MOQ 1 Piece(s)

Interface: -Communication RS-485, 2 wires -Baute rate (bps) 1200, 2400, 4800, 9600, 19.2K, 38.4K, 115.2K -Protocol EDAM ASCII (default) and Modbus-RTU protocol Analog input: -Input channels 6 differential and 2 single-ended or 8 differential -Resolution 16-bit/12-bit -Voltage range +/- 10V, +/-5V, +/-1V, +/-500mV, +/-150mV -Current measurement +/-20mA (with external 125 ohms shunt resistor) Sample rate -10 samples/sec (16-bit) for normal mode -60 samples/sec (12-bit) for fast mode -Bandwidth 15.72Hz (normal mode), 78.6Hz (fast mode) -Zero drift 0.03 uV/C -Span drift 25 ppm/C -Accuracy 0.1% or better (normal mode) -CMRR 92 dB min. @50/60Hz -Photo-isolation 3750Vrms -Isolation voltage 3000VDC Power: -Power supply +10VDC ~ +30VDC -Over voltage protection +/- 35V -Power consumption 1.4W -Compatible I-7017(F) / ADAM 4017

• MOQ 1 Piece(s)

Interface: -Communication RS-485, 2 wires -Baud rate (bps) 1200, 2400, 4800, 9600, 19.2K, 38.4K, 115.2K -LED indication LED for power and communication Analog input: -Input channels 6 differential + 2 single-ended or 8 differential -Resolution 16-bit /12-bit -Accuracy +/- 0.1% -Voltage range +/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V -Current measurement +/-20mA (with external 125 ohms shunt resistor) -Thermocouple type -J:-210°C~760°C -K:-270°C~1372°C -T:-0270°C~400°C -E:-0270°C~1000°C -R:0°C~ +1768°C -S:0°C~ +1768°C -B:0°C~ +1820°C -N:-270°C~1300°C -C:0°C~2320°C Sample rate -10 samples/sec (16-bit) for normal mode -60 samples/sec (12-bit) for fast mode -Bandwidth 15.72Hz (normal mode), 78.6Hz (fast mode) -Zero drift 0.03 uV/C -Span drift 25 ppm/C -Accuracy 0.1% or better (normal mode) -CMRR 92 dB min. @50/60Hz -Photo-isolation 3750Vrms -Isolation voltage 3000VDC Power: -Power supply +10VDC ~ +30VDC -Over voltage protection +/- 35V -Power consumption 1.8W Others: -Compatible I-7018(F) / ADAM 4018

• MOQ 1 Piece(s)

-Interface 485, 2 wires -Speed (bps) 1200, 2400, 4800, 9600, 19.2K, 38.4K, 115.2K. -Protocol EDAM ASCII format and Modbus- RTU protocol Analog output -Output type mA, V -Analog Channels Numbers 4 -Analog Resolution 14 bits -Output Range 0~20 mA, 4~20 mA, 0~+5V, ±5V, 0~+10V and ±10V -Programmable 0.125 to 2048 mA/Second 0.0625 to 1024 V/Second -Current Load Resistor External 24V/1050 ohms -Voltage Output 5mA max. -Accuracy -±0.1% of FSR for current output -±0.2% of FSR for voltage output -Zero Drift Voltage output : ±30μV/°C -Current output ±0.2μA/°C -Span Temperature Coefficient ±25 ppm/°C -Isolation voltage 3000VDC -Isolation digital input Channel 4 -Logical Level 0+1V max, -Level 1 10V to 30V. -Isolation voltage 3750Vrms Watchdog Function: -Module internal watchdog timer 200 ms -Power failure threshold 4.65 V -Safety value 2 digital output channels -Host programmable watchdog 100 ms ~ 25.500 sec -LED display 5 1/2 digits display (8024D only) -Isolation voltage 3000VDC -Overvoltage protection ±40V -Consumption 2.4W(E -8024), 3.0W(E-8024D) Ordering information -EDAM-8024 Without 7-seg LED display -EDAM-8024D With 7-seg LED display
