Shanghai Baudcom Communication Device Co.Ltd

shanghai, United Arab Emirates

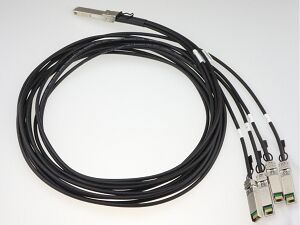

the sfp+ passive cable assemblies are high performance, cost effective i/o solutions for 10g ethernet and 10g fiber channel applications. Sfp+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed gigabit ethernet and fiber channel industry standard requirements for performance and reliability.

featuressupport for multi-gigabit data rates up to 10.5gbps1m3m5m reachdata rates backward compatible to 1gbpshot-pluggable sfp 20pin footprinti/o connector designed for high speed differential signal applicationsimproved pluggable form factor(ipf) compliant for enhanced emi/emc performancecompatible to sfp+ msatemperature range: 0 70 crohs compatible

description:

the g703e1 balun convertersupporting g.703e1 data rates to 2.048 mbps, the bic-c1-c receives 75 ohm signals and converts them to 120 ohm for transmission over a network or reception by a cpe. The signals output by the balun converter are scaled to match the pulse shape requirements specified by the ccitt g.703 standard. The balun converter can perform 120 ohm to 75 ohm signal conversion as well, giving the device a dual role.

features:

• data rates to 2.048 mbps
• dual coax 75 ohm to 120 ohm twisted pair rj45
• bi-directional signal conversion
• no ac power or batteries needed
• male bnc cable available, the cable length is 15cm
• ultra-miniature enclosure

functionsthevoice(fxs/fxo)phone over fiber multiplexerispoint to point fiber transmitting equipment, which realizes 1port 10/100m ethernet and 4 channel analog voice phone over fiber transmission. Its merits include complete warning function, high integration, low consumption, stable performance and convenient usage.

the gpon poe ont is type poe (pse) product, with 4 fixed 10/100/1000mbps auto-adapted poe ports. it supports ieee802.3af 15.4w and ieee802.3at 30w poe standards.it can auto discovery the power receiving devices which support ieee802.3af/at standard and supply power to it.

to the connected devices which not support poe, it will auto stop supplying power. The gpon poe onu supports to work with ip camera, ip phone, wireless ap and other network devices, and supply power to these devices. The poe ont workswith central device olt to implement integrated management, long-distance fault location and decrease maintenance workload. The gpon poe ont is metal casing design and suitable for fttb/ftth.

it is mainly applied to security surveillance, smart city, tunnel monitoring, coal mine network etc. The ont can be installed on desk or wall.

feature

• apply to itu-t g.984/g.988
• support auto discovery and auto register (real-time operation)
• support dba and multi types sla
• support ieee802.1d rstp
• support igmp snooping v2 multi-broadcast function
• support emi and esd identification
• support vlan
• support user end auto time synchronization based at sntp
• support powerful oam and remote management
• support port speed limit, loop detection and port vlan
• support state detection and fault location
• support power failure alarm
• each poe port supports to auto discovery the standard power receiving devices
• support ieee802.3af 15.4w and ieee802.3at 30w poe standards

Description:

BIC-C16 G.703 rack mount 16E1 balun panelsolve the mismatch between UTP and coaxial cable.BIC-IC16 can achieve a maximum of 16 channel conversion.Operating in compliance with the CCITT G.703 specification, the BD-IC16 occupies only 1U of vertical rack space in a 19 (48.3 cm) rack-allowing for efficient multiport matching.

Features:

• Connects 75 ohm dual coax to 120 ohm twisted pair (or visa versa)
• Bi-directional signal conversion according to CCITT G.703
• Data rates up to2.048 Mbps
• Low profile design
• Mounts in standard 19 (48.3 cm) Rack
• No AC power or batteries required
• Female coax BNC connectors

description:

the coax to rj4524 e1balun panel provides 75ohm coax (1.6/5.6 connector) to 120ohm twisted pair (rj45 connector) conversion. the 24ports balun panel matches 24sets of dual 75ohm (female 1.6/5.6 connector) to 120ohm (rj45 connector) converter. This feature allows network & datacom equipment manufacturers who are selling equipment for use incoswith only 120ohm telco interface to offer their equipment to g.703 countries using 75ohm connections.

the 24e1 g.703 impedance matching balun panel solve the mismatch between utp and coaxial cable. The balun can be used for internal network connectivity t1/e1/cpe network transmission equipment and other applications.

the balun matches not only signal impedance, but also the pulse shapes of the signals according itu-t g.703 standard. The 24port balun panel mounts in a standard 19 inch(48.3cm) rack, occupies only 1u of rack.

features:

• data rates to 2.048 mbps
• 75 ohm (1.6/5.6 connector) to 120 ohm twisted pair (rj45)
• bi-directional signal conversion
• 1u high enclosed chasiss
• mounts in a standard 19 inch(48.3cm) rack
• no ac power or batteries needed
• 24 female 1.6/5.6 connector available

description:

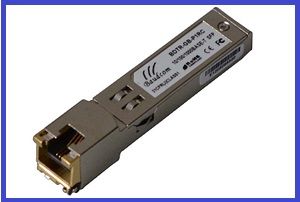

baudcoms bdtr-gb-pxrc copper small form pluggable (sfp)transceivers is high performance, cost effective module compliant with the gigabit ethernet and 1000- base-t standards as specified in ieee 802. 3-2002 and ieee 802.3ab, which supp- orting 1000mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports1000 mbps full duplex data-links with 5-level pulse amplitude modulation (pam) signals. All four pairs in the cable are used with symbol rate at 250mbps on each pair. The module provides standard serial id information compliant with sfp msa, which can be accessed with address of a0h via the 2wire serial cmos eeprom protocol. The physical ic can also be accessed via 2wire serial bus at address a0h.

features:

• up to 1.25gbps bi-direction data links
• 100m transmission over unshielded twistedpair (utp) category 5 cable
• support intelligent auto-negotiation 1000base-t operation in host systems with
• sgmii interface
• hot-pluggable capability
• sfp/gbic form with compact rj-45 connector
• very low emi and excellent esd protection
• +3.3/5v single power supply

Features:

1.Integrated design, smart and rugged.

2.Small and light, easy to carry.

3.1625nm online detection module with filter is available as a option for a online FTTx/PON detection.

4.Multi-measuring modes, simple to use, finish measurement by just one button.

5.Realtime measuring function, convenient to monitor the splicing process.

6.Internal large power visual laser source for accurate positioning the closer fault point.

7.Internal stable laser source.

8.Optical power meter function is offered as a option.

9.Warnning function could prevent module of OTDR damaged by optical signal.

10.Integrated with Screenshot function.

11.PC Remote access and control function is available via RJ45 interface.

12.Support multi-language display and input, friendly interface, visual keyboard capable.

13.Integrated with large internal memory.

14.Provide data simulation software to process, generate and print report.

15.Battery indicator function.

16.IP65 protection level, outdoor enhanced.

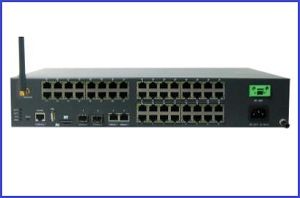

The Serial server can implement the conversion between 1channel RS232/RS485/RS422 serial ports and 10/100M Ethernet ports, and two models are available: complete machine and embedded module. It can be extensively used for data collection of supervision and control system for power in machine room and base station of operators, automatic supervision and control for plant, automation of medical treatment and medicine, networking control of electromechanicalinstrument, networking control of attendance checking, networking control of security/access control and other occasions.

the serial server can implement the conversion between 1channel rs232/rs485/rs422 serial ports and 10/100m ethernet ports, and two models are available: complete machine and embedded module. It can be extensively used for data collection of supervision and control system for power in machine room and base station of operators, automatic supervision and control for plant, automation of medical treatment and medicine, networking control of electromechanicalinstrument, networking control of attendance checking, networking control of security/access control and other occasions.

general description:

the live fiber identifier allows you to detect traffic and measure signals anywhere onsinglemode fibers without having to disconnect them . It also lets you check for signal presence before rerouting or maintenance , perform continuity tests and verify cable labeling. Based on non-destructive macrobending technology, the fiber identifier doesnt disrupt traffic, damage or overstress the fiber, enabling efficient, accurate and reliable data acquisition

features:

indicate the signal directions in fiber;

indicate the signal presence or absence(live or dark fiber);

detect tones 270hz, 1khz and 2khz to verify the modulated signal type;

suitable for 0.25, 0.9, 2.0, 3.0mm fiber, and no need to replace the clamp block,

more convenient than others

build in vfl 1mw or 10mw optional

battery low indication;

powered by 2 units of 1.5v aa batteries;

one-year warranty and three-year recommended calibration interval

Video

Number of channels : 1 channel with loopout

Input/out put Connector : BNC 75

Input/output voltage: 1.0 Volt p-p

Video Bits Rate: Max 3.2Gb/s

Video SDI Standards:270Mbps(SD-SDI)

1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)

Fiber Optic

Number of Optical port : 1 SFP

Connector : Simplex LC

Transmission Distance:Single-mode 20Km

Single-mode:1310/1550nm, 1490nm(Option)

Connectors

Video : BNC 75

Fiber Optical : Simplex LC

Stand-alone power: DC JACK

Rack power: AC line cord

description

1ch 3g-sdi with loopout fiber video converter, 20km, tx/rx.

system design

fiber optic video transmitter & receiver

sdi series can transmission 1-channel

3g-sdivideo over 1 single core fiber.

single-mode

3g-sdiunit is designed to support lc /pc optical connector

we will offer free patch cord + adaptor for your request for sc/pc or st/pc or fc/pc optical connector.

the transmission distance range according to the optical budget.

manufacturers default standard is single mode 20km .

According to the Next Generation Broadcasting (NGB) planning and PON standards, 1550nm is defined as the transmission wavelength for HFC downstream.

The high cost of 1550nm external modulated transmitter and dispersion effects of 1550nm directly modulated make network transformation difficult. Thus we create the 1550nm directly modulated optical transmitter with electronically controlled dispersion compensation.

It supports up to 1.2GHz band and DOCSIS 3.1 system. With two RF inputs and high isolation, it enables the signal transmission of QAM and IPQAM smoothly. Support a transmission distance of 50KM with electronically controlled dispersion compensation. Built-in CWDM is optional for multi-wavelength networking.

Performance Characteristics

• 1.2GHZ band, support DOCSIS 3.1 system.
• The AGC and MGC gain control modes are optional.

• Two inputs with 50dB isolation for high quality RF insertion.
• Dual power supply; hot backup; a variety of power supply options are available, optional AC220V and DC48V.
• Laser output power, bias current and cooling current are detected in real time.
• Optional CWDM for optical signal insertion.
• Electronically controlled dispersion compensation can support a transmission distance of 50KM.
• Low-cost solution is comparable to the performance of external modulated transmitter.
• ITU standard wavelength is optional.

• It takes the PTMP (point to multipoint)network topology, effectively collects and converges scattered Ethernet services, and provides the 10/100/1000M Ethernet standard RJ45 interface, smoothly interconnects with existing networks.
• The Dynamic Bandwidth Allocation (DBA) mechanism enables all users to share the 1Gbps bandwidth reasonably, guaranteeing a reliable QoS.
• Supports IGMP multicast, effective use of broadband;
• Supports multicast VLAN;
• Full management through an Operation Administration Maintenance (OAM) protocol based on IEEE802.3ah, including configuration, alarm, performance monitoring, fault isolation and security management, etc. It supports remote management through OLT and local console management as well.
• Supports FEC and DBA;

• Supports IEEE802.1Q VLAN protocol;

• Supports IEEE 802.1p protocol;

• Supports remote loopback and network status diagnosis

• Supports flow statistics

• Supports storm control;
• Support NAT;
• Support PPPOE;
• Support DHCP Server Client;
• Support Route;

Features:

1.Integrateddesign, smartandrugged.

2.Smallandlight, easytocarry.

3.1625nmonlinedetectionmodulewithfilterisavailableasaoptionforaonlineFTTx/PONdetection.

4.Multi-measuringmodes, simpletouse, finishmeasurementbyjustonebutton.

5.Realtimemeasuringfunction, convenienttomonitorthesplicingprocess.

6.Internallargepowervisuallasersourceforaccuratepositioningthecloserfaultpoint.

Description:BAUDCOM 5000 series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; The 5000 series is specially designed for that kind of application. Its economic, having outstanding performance.The ODTR is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes ODTR more smart and compact and multi-purpose.Whenver you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, the ODTR can be your best assistant.

Features:1. Integrated design, smart and rugged.2. Small and light, easy to carry.3. 1625nm online detection module with filter is available as a option for a online FTTx/PON detection.4. Multi-measuring modes, simple to use, finish measurement by just one button.5. Realtime measuring function, convenient to monitor the splicing process.6. Internal large power visual laser source for accurate positioning the closer fault point.7. Internal stable laser source.8. Optical power meter function is offered as a option.9. Warnning function could prevent module of OTDR damaged by optical signal.10. Integrated with Screenshot function.11. PC Remote access and control function is available via RJ45 interface.12. Support multi-language display and input, friendly interface, visual keyboard capable.13. Integrated with large internal memory.14. Provide data simulation software to process, generate and print report.15. Battery indicator function.16. Long working hours for outdoor operation.

bd-ptn-1000 series are ptn devices (packet transport network) designed and produced by baudcom, providing strong capacity, high port-density, and kinds of ports with very compact chassis.

with 1u high and 4 service slots, 10ge/ge/fe/e1 ports are supported. The bd-ptn-1000 series focus on edge of providers ip/mpls transport network.

they are very suitable for delivering l2vpn based on mpls-tp, and ces services for customers with end-to-end guaranteed availability, reliability and qos to the key client. They are designed to help providers overcome challenges over resources, costs and services at the metro access layer, to bring values to both providers and their customers. Baudcom self-owned unified nms platform - ezview is offered for bd-ptn-1000 series oam.

The BD-VDSL-V75 is 5-port FE VDSL router with wifi and USB.

The VDSL Router is a versatile, high-speed remote router for home and the small office.

overview

the chassis have 12slots for the voice phone cards. Every card can realize 30pots (fxo/fxs), 14channel g.703 e1 and 14 channel100methernet over fiber transmission, every card can work with the remote standalone30voice fiber multiplexerby point to point application. The voice phone chassis total capacity is 360 pots (fxo/fxs).the chassis also can support snmp management.

features

212slots for voice phone card, 2slots for power, 1slot for management card (option)

2the voice phone card support 30channel phone, 4*100methernet (option), 4 channel e1 (option);

2voice port support pots( fxo/ fxs), also can offer 2/4 wire e&m for option;

2ethernet port 10/100m, full/half duplex auto-adaptable and supports vlan;

2ethernet port supports auto-mdix (twisted cable and straight cable auto-adaptable);

2maximum capacity is 360 channel voice connection, supports calling indication;

2configuration: point to point appliation;

2voice port supports o port and s port, o port connects switch and s port connects users phone;

optical interface supports sc/fc interface and supports single fiber interface

Applications:

• WDM systems
• CATVDescription:

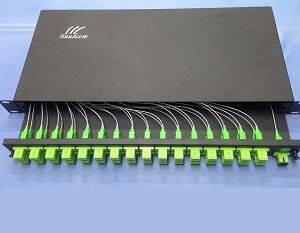

  Optical fiber splitteris used to split the fiber optic light into several parts at a certain ratio . The fiber optic splitter is an important passive component used in PON FTTX networks.1310/1550nm WDM can be used to combine or split 1310nm and 1550nm optical signals, which double the fiber transmission capability and ensure bi-direction communication in the single fiber. It is widely used for fiber communication systems upgrading to expand the system capacity. The isolation of regular 1310/1550nm WDM couplers are usually about 17dB within ?15nm bandwidth. Baudcom offers monolithic HWDM coupler with isolation higher than 30 dB. The HWDM can replace the high isolation WDM coupler modules. It features high isolation and the compact package size.

Overview:
BIC-C1 is a Dual Coax to RJ48Balun Adapterwhich realize 75 Ohm coax to 120 Ohm RJ45impedance converter.Description:Theimpedance matching G703 E1balun solve the mismatch between UTP and coaxial cable. The E1balun can be used for internal network connectivity T1/E1/CPE network transmission equipment and other applications.The balun adapter support E1 data rates to 2.048 Mbps, theE1 blaunadapterreceives 75 ohm signals and converts them to 120 ohm for transmission over a network or reception by a CPE. The signals output by the BIC-C1 are scaled to match the pulse shape requirements specified by the CCITT G.703 standard. The BIC-C1balun convertercan perform 120 ohm to 75 ohm signal conversion as well, giving the device a dual role.

Features:

• Data Rates to 2.048 Mbps
• 2xCoax to 1xRJ45
• 75ohm to 120ohm balunconverter, 75ohm BNC to 120ohm RJ48c E1 adapter
• Bi-Directional Signal Conversion
• No AC Power or Batteries Needed
• Male or Female Coax BNC Connectors Available
• Ultra-Miniature Enclosure

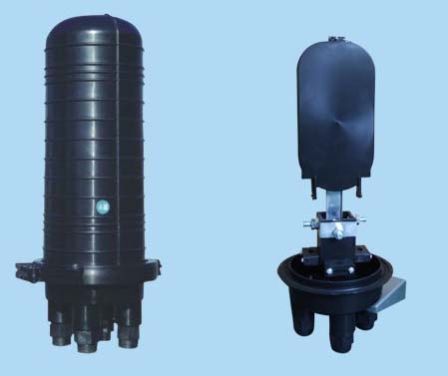

Applications:It can be used in outside plant, underground, aerial, pedestal and direct buried applications. The device allows for direct jointing and bifurcated jointing. It also protects fiber optic splices from the elements while providing fast and easy no-cost reentry.
Features:

• Circle numbers of tortility : max. 436
• Cable number of : max.8-out and 8-in
• Tortility loss: 0.03dB
• Anti-bump capacity : 16N m three times , no leak & no rip
• Max.voltage : 15KV DC
• Atmospheric pressure : defense level ( EN60529 ): IP54 , IP58
• Fire-resistance level : UL94 VO 70Kpa-106Kpa

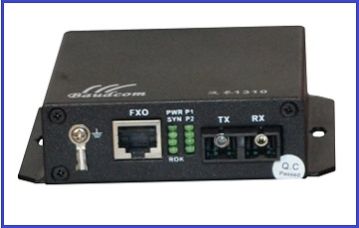

functionsthevoice(fxs/fxo)phone over fiber modemrealizesone channel voice phone over fiber transmission. This is cost-effective phone over fiber minidevice, which is suitable for onechannel voice, low cost application field.its merits include complete warning function, high integration, low consumption, stable performance and convenient usage.

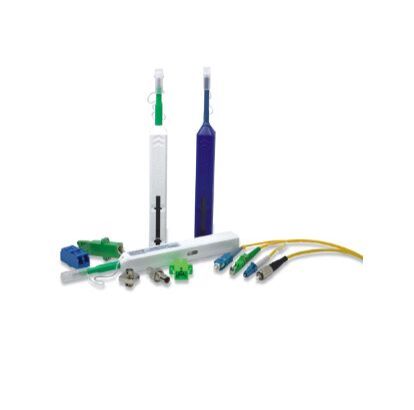

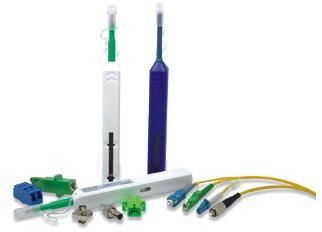

The fiber optica cleaner is mini Designed to specially work well with the SC, FC, and ST connectors, this instrument cleans the ferrule end faces removing dust, oil, and other debris without nicking or scratching the end face.

Feature:

Easy pushing motion engages connector and initiates cleanerDisposable with 800+ cleanings per unitMade from anti static resinCleaning micro fibers are densely stranded and debris freeExtendable tip reaches recessed connectorsCleaning system rotates 180 for a full sweepAudible click when engaged

Application:

Fiber network panels and assembliesOutdoor FTTX applicationsCable assembly production facilityTesting laboratoriesServer, switches, routers and OADMS with SC and LC interface

Description:

The fiber terminal is used to connect the fiber in the house and it can be hanged on the wall or fixed on the floor. the body is made of steel plate with rot-resistant coating.For meeting the new development of communication network, the products considered to be new small distribution cabinets, it is applied for remote module offices, BTS, etc. DDF, ODF modules are integrated in the same equipment, so the original functions are realized and do save space and be easy to manage.

Features:

• Mounted against wall to save space
• Patch cords management is clear and neat
• Enough optic fiber storing space, curvature ratio of fibers is very well guaranteed
• Reliable groud protection

Model

ODN-1

ODN-2

Applicable Cable

2.03.1mmdrop cable & indoor cable

810.5mmoutdoor cable

Capacity1 fiber (SC) or

2 fibers (duplex LC)

2 fibers (SC) or

4 fibers (duplex LC)

Dimension (HWD)868625mmFiber Modesingle mode & multi-modeInsertion Loss0.2dB (1310nm & 1550nm)

features:features:

uniform power splitting

compact package dimension

low polarization dependent loss

good channel-to-channel uniformity

environmentally and mechanically stable

low insertion loss and high return loss

wide operating wavelength range from1260nm to 1650nm

standard:

telcordia gr-1209 and gr-1221

application:

telecommunication networks

fttx, ftth (fiber to the home)

pon (passive optical network)

lan & wan

catv

features

hd-sdisfptransceiveravailable

sd-sdisfptransceiveravailable

3g-sdisfptransceiveravailable

smpte297-2006compatible.

metalenclosureforloweremi

1310nmdfblaserandpinphotodetector

compliantwithsfpmsaandsff-8472withduplexlcreceptacle

digitaldiagnosticmonitoring:

compatiblewithrohs

+3.3vsinglepowersupply

operatingcasetemperature:

standard:0to+70c

industrial:-40to+85c

applications

smpte297-2006compatibleelectrical-to-opticalinterfaces.

hdtv/sdtvserviceinterfaces.

features

hd-sdisfptransceiveravailable

sd-sdisfptransceiveravailable

3g-sdisfptransceiveravailable

smpte297-2006compatible.

metalenclosureforloweremi

1310nmdfblaserandpinphotodetector

compliantwithsfpmsaandsff-8472withduplexlcreceptacle

digitaldiagnosticmonitoring:

compatiblewithrohs

+3.3vsinglepowersupply

operatingcasetemperature:

standard:0to+70c

industrial:-40to+85c

the 100ge qsfp28 to 4x 25ge sfp28 passive cable assemblies are high performancecost effective for sfp28 and qsfp28 equipment interconnects . The hybrid cables are compliant with sff-8402 and sff-8665 specifications. it is offer a low power consumptionshort reach interconnect applications. The cable each lane is capable of transmitting data at rates up to 25gb/s, providing an aggregated rate of 100gb/s

features

• supporting 100 gbps to 4 x 25 gbps
• support data rates : 25.78gb/s (per channel)
• ieee 802.3bj100gebase-cr4 and p802.3by compliant
• compatible to sfp28 msa and qsfp28 msa
• compatible tosff-8402, sff-8432and sff8665
• maximum aggregate data rate: 100gb/s (4 x 25gb/s)
• high-density qsfp2838-pin and 4x sfp28 20-pin connector
• temperature range: 0 70 c
• copper link length up to 3m
• power supply :+3.3v
• low crosstalk
• i2c based two-wire serial interface for eeprom signature which can be customized
• operating temperature: 0 70 c
• rohs compliant

1.product features

• support 10base-t / 100base-tx
• hot-pluggable sfp footprint
• compact rj-45 connector assembly
• rohs compliant and lead-free
• single +3.3v power supply
• 10/100base-tx fast ethernet over cat 5 cable
• ambient operating temperature: -40c to +85c

2.product description

Water-proof design with IP-66 Protection level.

Integrated with splice cassette and cable management rods.

Manage fibers in a reasonable fiber radius condition.

Easy to maintain and extend the capacity.

Fiber bend radius control more than 40mm.

Suitable for the fusion splice or mechanical splice.

2 pcs of 1*8 Splitter can be installed as an option.

Efficient cable management.

16 ports cable entrance for drop cable.

bd900series of optical time domain reflectometer hasexcellent deadzone performance and widedynamic range.there are four models to choose from and that canbetterlymeet the customersspecific measurementrequirements. Combined with the visual faultlocator, it can easily findthe breaks, bends, splices, faulty connectors, andother causes of signal loss.

learned from the operation mode of tablet computer and smartmobile phone, bd900series otdr has simple operation interface and windows-like gui, and this ensures a short learn curve for the customer.with a 7-inch enhanced capacitive touchscreen, it deliversan unprecedented user experience with no special trainingrequired. Itissmall, lightweight, portable, ruggedand durable, and is more suitable for outdoor environment.

keyfeatures

• 7-inch capacitive touch screen;outdoor-enhanced simple andfriendly operation interface;support zoom in and zoom out the test tracethrough gesture; support one-touch measurement and analyze the test trace automatically and intelligently.
• optimizedmeasurement
• for network opening: high speed test modefor network maintenance: accurate test mode
• multiple combinations ofdifferentdynamic rangesand wavelengthsare available
• support real-timemeasurement mode and average measurement mode
• support line light alarm function andmaximize theprotection of the optical device
• the optical module has self-test function, and can automaticallydetect its performanceandstate
• support chinese and english input. Have friendly input interfaceandmobilephone-likeinput style
• large-capacity lithium battery with over-currentprotection, over-temperatureprotection andovervoltage protection; more than 10 hours workingtime
• usb interface can easily transfer databetween the device and the pc
• portable, hand-heldandhigh cost-effective

Description:

The4U/16port rack(BD-CH04) can support for 16 interface fiber card. every card could work independently and different types of interface converter card can be inserted in one rackthe system power supply is separated from interface converter by communication insulation technology, so that the reliability of the system can be ensured.

Feature:

Support kinds ofPDH fiber optical multiplexercards (1E1, 2E1, 4E1, 8E1, 16E1,

1E1+100MEthernet, 2E1+100MEthernet, 4E1+100MEthernet, 8E1+100MEthernet, 16E1+100MEthernet)

Support kinds of E1 interface cards (E1 to Ethernet converter,

E1 to V.35 converter, 4E1 to Ethernet converter),

Compact 4U high, 19inch rackmount units

Support maximum 18 cards, 2 slots for power supply module, 16slots for service cards(15service cards+1 network management card)

Realize SNMP management by central chassis

every function card supporting hot plug;

There are two power supply slots, can support double power or single power.

General Description:

The 2Q Series Optical Laser Source is an advanced version of Optical Laser Sources, with more calibrated wavelengths.

Auto-wavelength Recognition:

The 2Q Series Optical Laser Source transmits with a wavelength-identification digital encrypted protocol, enabling Optical Power Meter to automatically use the proper calibration wavelength. This feature reduces the need for communication between the two technicians and decreases the possibility of making mistakes.
The Optical Laser Source offers excellent stability and portability for accurate fiber optic testing.
Two output ports provide stable laser power at four wavelengths. The compact unit operates in either continuous wave (CW) mode or modulated mode. A low battery indicator reminds the user of replacing the battery.

Features:

• Easy-to-use, straight forward operation
• Eye-catching handheld appearance
• LCD backlight for easy operation in dark environment
• Rechargeable battery inside
• Four wavelengths available for multi-purpose testing
• One-year warranty and recommended calibration interval

Feature:

Systemization: Products of various capacities can meet multiple application requirements. We also offer optical accessories for outdoor cross-connect cabinet, patchcords, pigtails, adaptors, splitters for example, and provide turnkey solutions for installation, splicing, and testing.

Modular design: 12 fibers Splice and Distribution Integrated Trays and splitter trays are adopted for easy installation and maintenance. All components are in the form of modules to achieve flexible configuration. Components of different models are interchangeable, which shortens delivery time, reduces costs, and simplifies installation and maintenance.

Features:

1 Low insertion loss and back reflection loss

2 High return loss

3 High reliability and stability

4 UL-rated plastic housing

Application:

fiber optic communication network

fiber broadband access network

CATV , fiber instruments, fiber LAN.
