Our Products

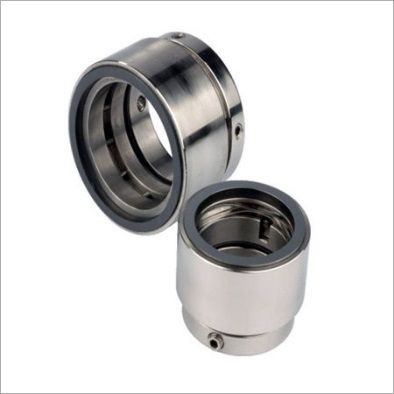

Our Complete range of products are Agitated Nutsche Filters Mechanical Seal, SINGLE COILS SEALS, Wilo Pump Seals, oil hydraulic seals and Non-Clog Mechanical Seal.
| FEATURE | OPERATING | MATERIAL | APPLICATION |
|---|---|---|---|
| Single acting | Size – 18 to 100mm | Seal Face – Carbon, SIC, TC | Chemical and Pharmaceutical Ind. |
| Unbalance as well as balance design | Pressure – up to 10 bar for Unbalance up to 30 bar for Balance | St. Seat Face – SIC, TC | Petrochemical Industries. |
| Inside Mounted | Temperature – up to 280 0 C (Depend upon elastomer ) | Elastomer – FKM, Silicon, Aflas, EPDM, NBR, FFKM, STV, PTFE | Pulp and Paper Industries |
| Independent of direction of rotation | Speed – 2900 rpm23 m/s | Metal Parts – SS316, SS316L, Hast-C, Alloy-20 | Water & Waste water technology |
| Food and Beverage Industries | |||
| Water and Waste water Sewage Pump |
| FEATURE | OPERATING | MATERIAL | APPLICATION |
|---|---|---|---|
| For Plain Shaft | Size – 18 to 100mm | Seal Face – Carbon, SIC,TC | Chemical and Pharmaceutical Ind. |
| Single acting | Pressure – up to 10 bar for Unbalance up to 30 bar for Balance | St. Seat Face – SIC, TC | Petrochemical Industries. |
| Inside Mounted | Pressure – up to 12 bar for unbalance up to 25 bar for balance | St. Seat Face – SIC, TC, Ceramic | Petrochemical Industries. |
| Unbalance as well as balance design | Temperature – up to 180 0 C for unbalance up to 220 0 C for balance | Elastomer – FKM, Silicon, Aflas, EPDM, NBR, FFKM, STV, PTFE | Pulp and Paper Industries |
| Inside Mounted | Speed – 2900 rpm | Metal Parts – SS316, SS316L, Hast-C, Alloy-20 | Water & Waste water technology |
| Independent of direction of rotation | Food and Beverage Industries | ||
| Water and Waste water Sewage Pump |
| FEATURE | OPERATING | MATERIAL | APPLICATION |
|---|---|---|---|
| Cartridge Construction | Size – 20 to 100mm | Seal Face – Carbon, SIC,TC | Chemical and Pharmaceutical Ind. |
| Pre-Assembled | Pressure – up to 25 bar | St. Seat Face – SIC, TC | Pulp and Paper Industries |
| Static Compression Unit | Temperature – up to 220 0 C | Elastomer – FKM, Silicon, Aflas, EPDM, NBR, FFKM, STV, PTFE | Slurries |
| Balanced | Speed – 2900 rpm | Metal Parts – SS316, SS316L, Hast-C, Alloy-20 | Water & Waste water technology |
| FEATURE | OPERATING | MATERIAL | APPLICATION |
|---|---|---|---|
| Multi / Wave Spring | Size – 25 to 75mm | Seal Face – Carbon, SIC, TC | Muddy Water |
| Balanced Seal | Pressure – up to 25 bar | St. Seat Face – SIC, TC | Pulp and Paper Industries |
| Non-Clog Design | Temperature – up to 220 0 C | Elastomer – FKM, Silicon, Aflas, EPDM, NBR, FFKM, STV, PTFE | Slurries |
| Speed – 2900 rpm | Metal Parts – SS316, SS316L, Hast-C, Alloy-20 | Sugar Syrup |
| FEATURE | OPERATING | MATERIAL | APPLICATION |
|---|---|---|---|
| Metal free contact | Size – 25 to 150mm | Seal Face – Carbon, SIC,TC | Chemical and Pharmaceutical Ind. |
| Reverse balance design | Pressure – up to 25 bar | St. Seat Face – SIC, TC,Ceramic | Petrochemical Industries. |
| Outside mounted | Temperature – up to 180 0 C | Elastomer – FKM, Silicon, Aflas, EPDM, NBR, FFKM, STV, PTFE | Pulp and Paper Industries |
| Can tolerate pressure reversal | Speed – 2900 rpm | Metal Parts – SS316, SS316L, Hast-C, Alloy-20 | Water & Waste water technology |
| Substitutes PTFE Bellow Seal at higher pressure and temperature | Food and Beverage Industries | ||
| Water and Waste water Sewage Pump |
| FEATURE | OPERATING | MATERIAL | APPLICATION |
|---|---|---|---|
| Outside mounted | Size – 19 to 100mm | Bellow – GFT + PTFE Composite | Chemical and Pharmaceutical Ind. |
| No dynamic elastomer | Pressure – up to 6 bar | Seal Face – Carbon, SIC,GFT | Petrochemical Industries. |
| Hydraulically Balance | Temperature – up to 120 0 C | St. Seat Face – SIC,Ceramic | Pulp and Paper Industries |
| Integral / Replaceable Seal face | Speed – 2900 rpm | Elastomer – PTFE, GFT | Water & Waste water technology |
| Metal Parts – SS316, Hast-C, Alloy-20 | Food and Beverage Industries | ||
| Water and Waste water Sewage Pump |
| FEATURE | OPERATING | MATERIAL | APPLICATION |
|---|---|---|---|
| Unbalance as well as balance design | Size – 12 to 100mm | Seal Face – Carbon, SIC,TC | Chemical and Pharmaceutical Ind. |
| High strength | Pressure – up to 10 bar for Unbalance up to 15 bar for Balance | St. Seat Face – SIC, TC | Petrochemical Industries. |
| Easy to fit | Temperature – up to 180 0 C | Elastomer – FKM, Silicon, Aflas, EPDM, NBR, FFKM, STV, PTFE | Pulp and Paper Industries |
| Speed – 2900 rpm | Metal Parts – SS316, SS316L, Hast-C, Alloy-20 | Water & Waste water technology | |
| Food and Beverage Industries | |||
| Water and Waste water Sewage Pump |
