Our Products
Our products are tested on various parameters during the production process to ensure their adherence to the industrial quality standards. Placed in Mumbai(India), we share space with the top-notch Suppliers, domestically and offer top-of the line array of in the market.
Steel Tubes.Lighter and Stronger AISI 4130 - steel. A low alloy steel is used in oil patch applications and used widely as an aircraft steel. 4130 is an oil and gas steel grade with a lower carbon content than 4140 giving 4130 improved weldability, the trade off is reduced through thickness strength. 4130 has a low resistance to corrosion. 4130 can also be used to make car connecting rods, shafts, fittings, and engine mounting lugs, bushes, gears, axles, bolts, gas cylinders, airframe components, hydraulic lines and nitrided machinery parts. Typical range of hardness is 90-96 Rockwell B.
The 41xx family of steel includes chromium and molybdenum and are often referred to as chromoly steel or chrome-moly. Chromoly steels have an excellent strength to weight ratio but do not contain sufficient quantities to provide the levels of corrosion resistance found in stainless steels. These steel are often used in aircraft parts also frequently used within the gas and oil industry also in Chassis of F car.
Approximate equivalents : 25CrMo4, DIN 1.7218, 30CrMo, 708A25, 708M25, 30CrMo, SCM430
Formulae to Calculate weight of 4130 Tube or Pipe :
Weight of S.S. Pipe :
O.D. ( mm ) – W Thick ( mm ) X W.Thick ( mm ) X 0.024866 = Wt. Per Mtr.
O.D. ( mm ) – W Thick ( mm ) X W.Thick ( mm ) X 0.00756 = Wt. Per Mtr.
For Tubing Selection in BAJA , SUPRA and other Competitions
Standard conversion factors
Inch = 25.4 Millimetre
FOOT = 0.3048 Metre
Yard = 0.9144 Metre
Mile = 1.6093 Kilogram
Acre = 0.4047 Hectare
Pound = 0.4536 Kilogram
Degree Fahrenheit X 5/9 – 32 = Degree Celsius
Millimetre= 0.0394 Inch
Metre = 3.2808 Foot
Metre = 1.0936 Yard
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : METAL BOX AND WOODEN BOX PACKING WITH PVC COVER ON TOP
Delivery Time : READY STOCK

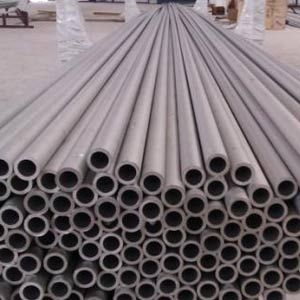

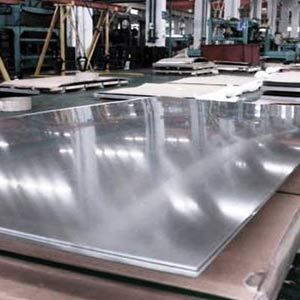

Grade 409 is a titanium stabilised ferritic stainless steel. Although regarded as a general-purpose chromium stainless steel the primary application for Grade 409 is automotive exhaust systems.Its applications are those where appearance is a secondary consideration to mechanical properties. Grade 409 resists atmospheric and exhaust gas corrosion. A light surface rust will form in moist atmospheres; this rust retards further corrosion but makes the surface undesirable for decorative applications. The corrosion resistance is about the same as that of 3CR12 and the 12% chromium martensitic grades such as 410, and inferior to the 17% chromium grade 430. Generally 409 is classified as resistant to scaling in intermittent service up to 815°C and up to 675°C in continuous service, but these temperatures are dependent upon the exact service environment. Annealing - heat to 790-900°C and air cool. This grade cannot be hardened by thermal treatment. More highly stabilised versions of 409 are useful where 409 has been proven marginal - these grades S40910, S40920 and S40930 are stabilised with titanium, niobium or both titanium and niobium.
Applications :
Details :
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union, ,
Packaging Details : WOODEN + METAL PACKING
Delivery Time : READY STOCK
Checklist For Stainless Steel Grade PH 630
| Material Suitable For | Material Not Suitable For |
|---|---|
| Automotive Exhaust System | Decorative Application |
| Moderate Corrosion Resistance | Cannot Be Harden |
| High Strength | High Reactive Chemicals |
| Tempreture Range upto 815 Degree Celsius | - |
Standard
|
AISI (USA) |
409 |
|---|---|
|
AFNOR(FRANCE) |
Z 3 CT 12 |
|
DIN 17006 (GERMANY) |
X2 CrTi 12 |
|
W.N 17007(GERMANY) |
1.4512 |
|
UNI (ITALY) |
- |
|
JIS (JAPAN) |
SUS 409 |
|
GOST(RUSSIA) |
- |
|
UNE (SPAIN) |
- |
|
SIS (SWEDEN) |
- |
|
BSI (UK) |
- |
|
EURONORM (EUROPEAN UNION) |
- |
|
UNS |
S17400 |
Specifications 01
| C | Si | Mn | P max | S | N | Cr | Mo | Ni | Others |
|---|---|---|---|---|---|---|---|---|---|
| ≤0,030 | ≤1,00 | ≤1,00 | 0.040 | ≤0,015 | - | 10,50 - 12,50 | - | - | Ti: min: (6x(C+N)); max: 0,65 |
Specifications 02
| DENSITY | MODULUS OF ELASTICITY | MEAN COEFFICIENT OF THERMAL EXPANSION | THERMAL CONDUCTIVITY | SPECIFIC HEAT | ELECTRICAL RESISTIVITY | |
|---|---|---|---|---|---|---|
| at 20oC | at 20oC | [10-6*1/K] | at 20oC | at 20oC | at 20oC | |
| [kg/dm3] | [kN/mm2] | 20oC - 200oC | 20oC - 400oC | [W/(m*K)] | [J/(kg*K)] | [(Ohm*mm2)/m] |
| 7,7 | 220 | 11,0 | 12,0 | 25 | 460 | 0,60 |
Specifications 03
| PRODUCT FORM | THICKNESS | HEAT TREATMENT | HARDNESS | PROOF STRENGTH | |
|---|---|---|---|---|---|
| (1) | max | (5)(13) | HRB max | HB or HV max | Rp0,2 [MPa] min. (14)(15) |
| - | [mm] | - | - | (transverse) | |
| C | 8,0 | A | 75(30) | - | 220(*) |
| H | 13,5 | A | 75(30) | - | 220(*) |
Specifications 04
| TENSILE STRENGTH | ELONGATION AFTER FRACTURE | IMPACT ENERGY (ISO-V) | |
|---|---|---|---|
| Rm | A80mm [%] min (2) |
A [%] min (3) |
KV [J] min th>10mm |
| [MPa] | th<3mm (tr. and long.) | th>=3mm (tr. and long.) | (longitudinal) |
| 380 - 560 | 25 | 25 | - |
| 380 - 560 | 25 | 25 | - |
Our material handling procedure is very well managed by a team of experts and thus we ensure zero damage of the stored products stocked in our capacious warehousing unit. We make certain that the offered array of products is sternly tested for the raw material as well. This makes our offered array of products completely reliable and genuine.
| Grade | A.D. g/cc | Mesh ASTM (+100) | Mesh ASTM (-100+200) | Mesh ASTM (-200+325) | Mesh ASTM (-325) | Specific Gravity | Potential Application |
|---|---|---|---|---|---|---|---|
| zn221 | 2.2 g/cc | Traces | 5-15 | Balance | 65-75% | 6.8-7.1 | Sintering Application, Lubricants, Chemical formulation |
| zn222 | — | — | Traces | 10-15% | Balance | 6.8-7.1 | Protective coatings, Paints, Brake linings |
| zn223 | — | — | — | zn223 | 94% | 6.8-7.1 | Chemical formulation, Paints, Protective coatings, Match tips |
|
Color |
Purity |
APS |
Hardness |
Mg |
H2O2 Insoluble |
Boron soluble in water |
Moisture |
|
|
Pure Boron Powder |
Brown |
>99.9999% |
≤1um |
9.5 |
/ |
/ |
/ |
/ |
|
Boron Powder |
Brown |
95-97% |
≤2um |
9.5 |
≤2% |
≤1 |
<0.5% |
<0.5% |
Boron Powder Health & Safety Information
| Signal Word | Warning |
|---|---|
| Hazard Statements | H228-H302+H332-H335 |
| Hazard Codes | N/A |
| Precautionary Statements | P210-P261-P280-P240-P241-P304+P340-P301+P312-P312-P405-P501a |
| Flash Point | Not applicable |
| Risk Codes | N/A |
| Safety Statements | N/A |
| RTECS Number | ED7350000 |
| Transport Information | DOT |
| Nickel Base Alloy Powder | Composition (%) | O (%) | A.D.g/cm3 | Particle Size | ||||
|---|---|---|---|---|---|---|---|---|
| CNPC-Inconel 718 | Ni50-55,Cr17-21,Mo2.8-3.3,Nb+Ta4.75-5.5, | 0.05-0.1 | 3.8-5.0 |
15-45um, 20-63um, 45-150um D50 10-15um, D50 1-2um, D50 0.5-1um. |
||||
| CNPC-Inconel 625 | Cr20-23, Mo8-10 | |||||||
| CNPC-Hastelloy X | Cr20.5-23, Mo8-10, Fe17-20 | |||||||
| CNPC-Hastelloy C | Cr15-16.5, Mo15-17, Fe40,W3-4.5,Co1.5-2.5 | |||||||
| CNPC-Invar | Ni35-37,Fe Bal | 3.5-4.5 | ||||||
| CNPC-Kovar | Ni28.5-29.5, Co16.8-17.8, Fe BalCu3-5, | 3.0-4.5 | ||||||
| Moly Brown Oxide | MoO2 |
|---|---|
| High Purity | , 99.9995% Mo |
| Moly TriOxide | MoO3 |
|
Standard Purity |
99.95% Mo |
| Molecular Weight | 95.94 |
| Appearance | Silvery |
| Melting Point | 2623 °C |
| Boiling Point | 4639 °C |
| Density | 10.28 g/cm ³ |
| Solubility in H2O | N/A |
| Electrical Resistivity | 0.25 kJ/kg K |
| Electronegativity | 1.9 Paulings |
| Heat of Fusion | 37.8 kJ/mol |
| Heat of Vaporization | 598 kJ/mol |
| Poisson’s Ratio | 0.31 |
| Specific Heat | 0.25 kJ/kg K |
| Tensile Strength | 485-690 MPa |
| Thermal Conductivity | 138 W/m K |
| Thermal Expansion | (25 °C) 4.8 µm·m-1·K-1 |
| Vickers Hardness | 1530 MPa |
| Young’s Modulus | 329 GPa |
We can supply Molybdenum Disilicide Powder to meet customer specific requirements.
| CAS # | EC Number | Hill Formula | Molar Mass |
|---|---|---|---|
| 7439-98-7 | 231-107-2 | Mo | 95.94 g/mol |
|
Item No. |
Item Name |
Purity |
|
ME42-2N |
Molybdenum Metal Powder |
99% |
|
ME42-2N5 |
Molybdenum Metal Powder |
99.5% |
Molybdenum Powder Health & Safety Information
| Signal Word | Warning |
|---|---|
| Hazard Statements | H228 |
| Hazard Codes | N/A |
| Precautionary Statements | P210-P280-P240-P241-P370+P378 |
| Flash Point | Not applicable |
| Risk Codes | N/A |
| Safety Statements | N/A |
| RTECS Number | QA4680000 |
| Transport Information | UN 3089 4.1/PG 2 |
| Compound Formula | BN |
|---|---|
| Molecular Weight | 24.82 |
| Appearance | Black powder |
| Melting Point | 2973 °C |
| Boiling Point | N/A |
| Density | 2.1 g/cm3 (h-BN); 3.45 g/cm3 (c-BN) |
| Bulk Density | 0.3 g/cm3 |
| True Density | 2.25 g/cm3 |
| Average Particle Size | ~70 nm |
| Specific Surface Area | ~20 m2/g |
| Morphology | nearly spherical |
| Solubility in H2O | Insoluble |
| Refractive Index | 1.8 (h-BN); 2.1 (c-BN) |
| Crystal Phase / Structure | N/A |
| Electrical Resistivity | 13 to 15 10x Ω-m |
| Poisson’s Ratio | 0.11 |
| Specific Heat | 840 to 1610 J/kg-K |
| Thermal Conductivity | 29 to 96 W/m-K |
| Thermal Expansion | 0.54 to 18 µm/m-K |
| Young’s Modulus | 14 to 60 GPa |
| Content | BN | Ba2O3 | Moistrue | Particle size |
| BN-1 | ≥99% | ≤0.20% | ≤0.20% | 0~15um |
| BN-2 | ≥99% | ≤0.20% | ≤0.20% | 5~10um |
| BN-3 | ≥98.5% | ≤1.00% | ≤0.50% | 0~5um |
| Packing |
1kg/vacuum aluminum foil bag 50kg/drum |
|||
Boron Nitride Powder Health & Safety Information
| Signal Word | Warning |
|---|---|
| Hazard Statements | H319-H335 |
| Hazard Codes | Xi |
| Risk Codes | 36/37 |
| Safety Statements | 26-36 |
| RTECS Number | ED7800000 |
| Transport Information | N/A |
| Signal Word | Danger |
|---|---|
| Hazard Statements | H314-H335 |
| Hazard Codes | Xi |
| Risk Codes | 36/37/38 |
| Safety Statements | 26-37/39 |
| RTECS Number | N/A |
| Transport Information | N/A |
| Item |
BF-WC01 |
BF-WC02 |
BF-WC03 |
|
Ti |
32±0.5 |
39.5±1.5 |
24.0±0.5 |
|
W |
56±1.0 |
47.0±1.5 |
65.0±1.5 |
|
T.C |
11.2±0.2 |
12.4±0.3 |
10.2±0.5 |
|
F.C |
≤0.2 |
≤0.5 |
≤0.4 |
|
Fe |
0.10 |
0.10 |
0.10 |
|
Mo |
0.10 |
0.10 |
0.10 |
|
Si |
0.005 |
0.005 |
0.005 |
|
Co |
0.005 |
0.005 |
— |
|
Na |
0.005 |
0.005 |
0.005 |
|
K |
0.005 |
0.005 |
0.005 |
|
Ca |
0.007 |
0.007 |
0.007 |
|
Particle Size(μm) |
2.0-4.0 |
2.0-4.0 |
2.0-4.0 |
