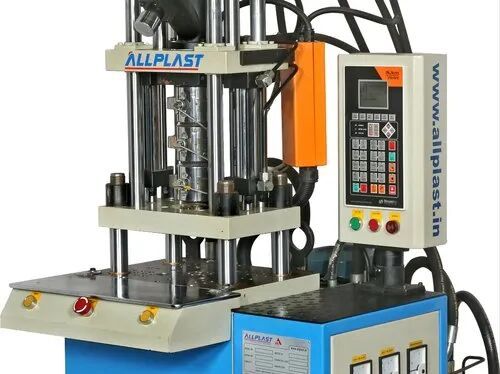

When it comes to overmoulding inserts, precision is a premium. With its compact, variable machine concept and vertical clamping unit, the ALLPLAST insert is the ideal solution. To meet every mould requirement, this model range is available with a vertical or a horizontal injection unit. Plus, as the ALLPALST insert, available with a servo-powered and featuring the innovative hydraulic ALLPLAST ecodrive as a standard, it will achieve even more precision.individual injection moulding machine available in the single, rotary & shuttle variants, depending on the mould area requirementsminimal footprint ergonomically optimised working height without operator platform & short design especially with a vertical injection uniteasy accessibility efficient protection of the open work area by means of a light curtainclamping force from 15 to to 250 ton

Vertical Clamping Horizontal Injection MachineModel ABS 4L Series Vertical clamp Vertical injectionClamp tonnages 25 350 tonsInjection capacity 25 4000 GramStandard FeaturesVertical 4 post clamp Vertical injectionHeavy duty frame designWider distance between tie barsAdjustable injection unit positionProportional hydraulics for quick and easy set upStandard PLC interface by Keba. Optional Lnc & TechmationStandard fixed platen, front to back, left to right shuttle or rotary table.Highly effective for any insert molding application or setup in automated work cell

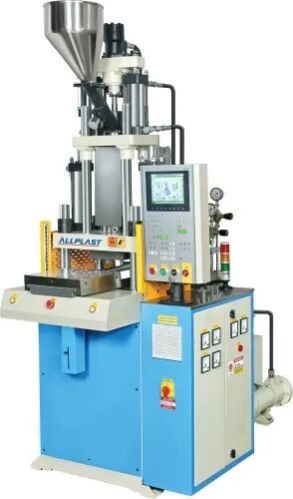

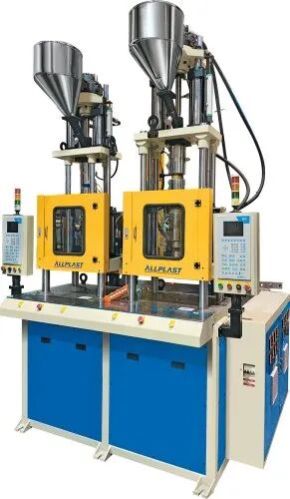

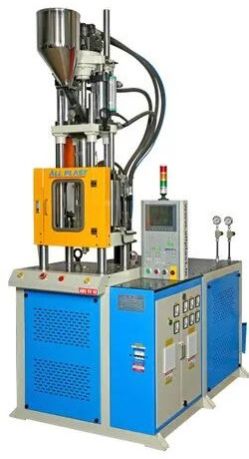

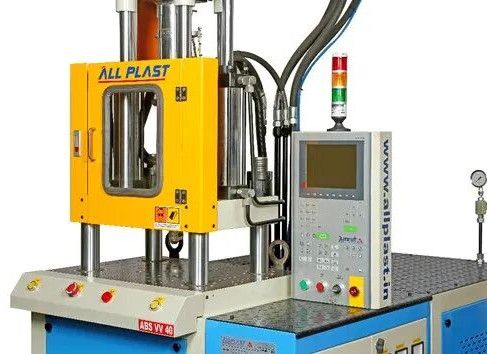

ABS-VV Vertical injection machine by ALLPLAST> ABS-VV Range start from 15 ton to 250 ton.> Fix table, single slide & double slide, Rotary type machine.ABS Vertical injection horizontal closed by ALLPLAST> ABS range start from 7 ton to 100 ton. > Vertical injection horizontal hydraulic closed. ABST Vertical injection horizontal toggle closed by ALLPLAST> ABST range start from 25 ton to 250 ton. > Vertical injection horizontal toggle closed.

Attribute:-Vertical four column robust clamping and vertical screw type injection.Injection hydraulic cylinder for smooth and balanced injection.Large LID ratio for homogenous optimum melt for all type of engineering plastics.Programmable single sliding for suitable insert moulding process.Hydraulic ejector after sliding table out position.High end PLC HMI for controlling and programming function.Hand protection safety features.Power saving high tech hydraulic circuit.

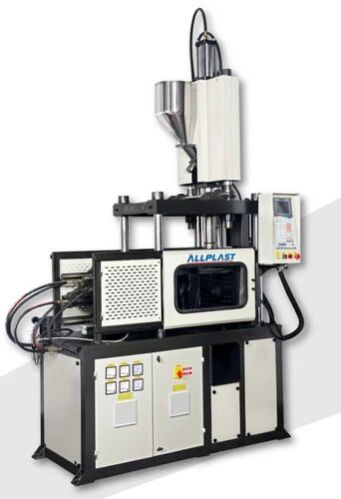

All Plast Service once again in their attempt to offer practical solution to the industry people have indigenously developed fully automatic vertical Injection moulding machine. The Injection machine model that is small, compact yet efficient to cater to needs of the industry.Vertical Injection machine model has very small footprints, is fully automatic and available with option for working with single phase or 3 phase power. Machine is very simple to operate and user friendly eliminating the need for high skill manpower to operate it.Equipped with special designed screw for homogeneous mixing of polymer melt and toggle system for positive mould locking. The Programmable Logic controller (PLC) offer control precision for better quality and consistent output. The injection machine model can accommodate max mould size of 260x2600 mm and offers shot weight of 60 grams.We at All Plast Service have designed this Injection moulding machine with intention to offer solutions to following industry requirementsMaster Batch colour testing and colour chip moulding: Saving of polymer material, colour pigments and also low material wastage in colour changeover cleaning / purging during moulding of colour chips and colour testing. Also useful in additives testing, compounding, Prototyping and other such applications.Commercial production of small plastic parts at low cost of production and resources: Ideal for medium production scale of 4-5 lakhs pieces per month. Flexibility to be installed in office, go-downs others. Cost efficiency in large factories for producing small components on small machine.

Horizontal Clamping Vertical Injection MachineHigh speed clamping with low pressure for mould safety.Rigid injection unit with twin balancing cylinder.Compact oil tank design with low noise fix pump.Moveble injection unit for matching sprue center.Center hydraulic force for better clamping.Long lasting maintance free machine.
