Filter disc, also named wire mesh filter disc, screen filter disc, is made of metal wire mesh, such as galvanized wire mesh, phosphor bronze wire mesh, stainless steel wire mesh, black iron cloth. The operation principle of filter discs is to separate or screen one substance from another. Thus, you can remove unwanted contaminants from fluid, air, or solid. We offer filters of different materials, different shapes, different layers, different weaving methods, different wrapping edge materials, different filter precision, etc. The overall dimensions can be produced to satisfy your specific requirements, such as filter particles size, flow rate, contact liquid, physical space limitations.Filter disc materials: black wire, stainless steel wire, copper wire, phosphor bronze wire, brass wire, galvanized steel wire, aluminum wire, etc.Wire diameters: 0.01 - 6.00 mm.Disc diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).Disc shapes: round (diameter 44 - 600 mm), ring (inner diameter 18 - 250 mm, outer diameter 50 - 350 mm), rectangular (length 60 mm - 400 mm, width 50 mm - 100 mm), crescent, semicircle, square, oval, abnormal shape, etc.Weaving types: plain weave, twilled weave, dutch weave, plain dutch, twilled dutch, etc.Layers: single layer or multiple layers.Edge processing methods: spot welding, wrapping edge or no edge processing.Marginal materials: stainless steel, copper, aluminum, rubber, etc.Filter precision: 0.1 - 300 m

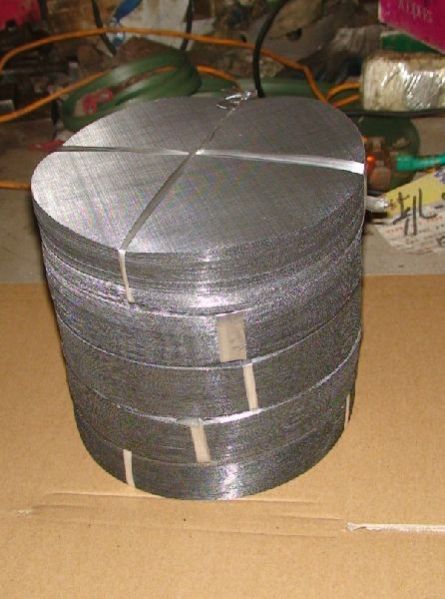

Black Wire Cloth Filter Disc with Uniform Holes Black wire cloth filter disc, also named iron wire mesh filter disc or black wire mesh filter disc, is one type of the metal filter discs. Black wire cloth filter disc is made of low carbon steel and its weaving type includes plain weave, twill weave and dutch weave. With superior quality, black wire mesh filter discs are widely used in rubber industry, plastic industry, oil industry, grain industry, etc. Specification Filter material: low carbon steel.Wire diameters: 0.12 - 0.60 mm.Discs diameters: 10 mm - 580 mm.Disc shapes: round, ring, rectangular, oval, crescent, semicircle, etc.Weaving types: plain weave, twill weave, dutch weave, etc.Filter disc layer: single layer or multiple layers.Marginal materials: copper, aluminum, stainless steel, rubber, etc.Withstand high temperature and harsh conditions.Uniform mesh holes.Neat and flat mesh surface.Long service life.Applications Black wire cloth filter discs, the same as stainless steel filter discs and sintered filter discs, are mainly used in chemical industry, medicine, machinery, metallurgy, plastic industry, rubber industry, industrial filtration, petroleum filtration, grain industry filtration, etc.

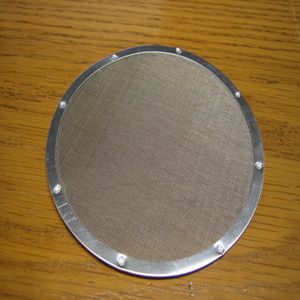

Stainless steel filter disc, also called stainless steel wire mesh filter disc, is one type of the metal filter discs. We classify the manufacture process into three steps. First, we choose high quality stainless steel wire. Second, stainless steel wire would be weaved or punched. Then, according to customers' special requirements, we will select different material to wrap the edge. What's more, in the manufacture process, we can provide stainless steel filter discs with different sizes, different shapes and different weaving methods. All can be produced according to your specific requirements. Stainless steel filter disc features excellent acid and alkali resistance and can be used in very harsh conditions, especially suitable for sour gas filtration.Specifications Wire materials: SUS302, SUS304, SUS304L, SUS310S, SUS316, SUS316L, SUS321, etc.Wire diameters: 0.01 mm - 5 mm.Disc diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).Weaving methods: plain weave, twill weave, dutch weave, etc.Layer: single layer or multiple layers.Filter disc shapes: round, rectangular, square, crescent and semicircle, etc.Marginal materials: copper, aluminum, stainless steel, rubber, etc.Filtration precision: 0.2 m - 100 m.
