Material
Stainless Steel
-
Compressor Type
SCROLL
-
Country of Origin
Made in India
-
Minimum Order Quantity
1 Piece
-
Capacity
30
-
Model Name/Number
FMWCSGLY-30-407

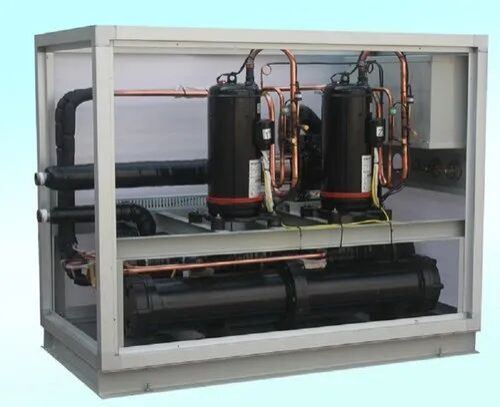

Sr.No. Parameter 1 Model Details FMWCSGLY-30-407 2 Cooling Capacity 102KW / 30 TR 3 Power Supply 400V-50Hz 4 Refrigerant R410A 5 Refrigerant Control Thermostatic Expansion 6 Evaporating SST -7C 7 Condensing SDT 38C 8 Glycol Working Temperature Range Glycol Temperature -10 TO +10 -3 C 9 3000 LPH Glycol Chilled Flow Milk Flow Milk Temperature 2000 LPH 2C 10 Condenser Water Flow 15 M3/hr11 Compressor Types Scroll 12 Compressor power 32 KW 13 Start mode Star Delta 14 Capacity control -- 15 Evaporator Types BPHE 16 Evaporator pipe connection 2 17 Evaporator MOC SS + Copper 19 Condenser types Shell and tube 20 Condenser Pipe Connection 2 21 Condenser Shell Moc MS. Powder Coted 22 Condenser tube Copper (IGT) 23 Safety Protection Inner Thermostat for compressor motor, unit overload relay, high and low pressure switch , reverse phase protection relay, discharge gas thermostat, flow switch , Antic Freeze protection 24 Electric control panel HMI, PLC, protection relay, contactor, MCB, preventer, pressure transmeter, timer. 24 Dimension(length/width/height) 2000 mm 1200 mm 1600 mm 25 Running weight 1100 kg 26 Glycol Tank Component Specification Volume 300 Litres Material SS-304, 2 mm thick Insulation 25 mm PUF Fittings Inlet, outlet, drain, level gauge, overflow vent Mounting Floor mounted 27 Gasket PHE Stage Duty Stage 1 Pre-cooling using chilled water Stage 2 Final chilling with glycol (-2C) Component Specification Type Gasketed Plate Heat Exchanger Plates SS-316, EPDM/NBR Gaskets Surface Area 8 m Flow Capacity 2000 LPHTemperature Drop 40C 2C Ports Dairy fittings Component Specification Flow 4.0 m/h 28 Glycol Circulation Pump Head Type 2.5 bar SS-304 Centrifugal Pump Motor 2.2 kW Product 1. Make compressor 2. Bitzer Evaporator 3. Fidem condenser 4. Fidem Electric panel 5. Fidem Flow switch 6. Castle Pressure Switch 7. Danfoss Expansion valve 8. Danfoss Filter 9. Dryall Solenoid valve 10. Danfoss Electronic components 11. Schneider Glycol tank 12. Fidem BPHE
