Ascon Engineering Industries

Focal Point, RAJPURA, Punjab

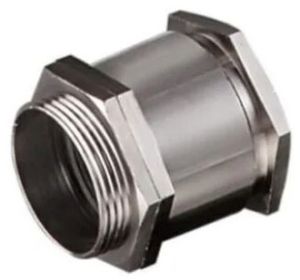

• Gland MaterialElectro Nickel Plated Brass (general)
• Threads: E.T.,NPT & METRIC
• Number Of FlowerSINGLE COMPRESSION
• Seal MaterialRUBBER
• Accessories (optional)Shroud, Earth Tag, Blank plugs,, Adaptor/Reducer, Entry Thread Seal
• Design SpecificationIS 12943-1990

Compression Type Aluminium Terminal Ends For Crimping to Aluminium Conductors

• MaterialE-Copper
• FinishElectro Tinned/Bare Copper

• MaterialCopper Tube to BS1977
• SurfaceTin Plated

with Insulating Sleeve Material: E-Copper Finish: Electro Tin Plated

This jointing compound is Designed for Aluminium Crimped connections, which is made from grease and zinc dust. The grease acts as a corrosion inhibitor and the zinc and thickener act as a surface breaking current bridge in the joint. The jointing compound should be applied immediately after brushing to remove any oxide. Recommended Practice for Resistance to Corrosion Whilst aluminum withstands weathering without protection during many years of service, the use of a corrosion inhibiting compound is recommended where conditions are particularly aggressive, such as chemical of salt-laden atmospheres, or where inspection and cleaning are likely to be irregular. Such an inhibitor must : 1) Not affect electrical properties of the compression joint. 2) Be non-corrosive to Aluminium, copper, steel, tin, zinc and combinations of these: 3) Not deteriorate on exposure to atmosphere at conductor operating temperatures: 4) Have good sealing properties against moisture and contaminating substances in the atmosphere. 5) Have a high temperature drop point: This corrosion inhibiting Compound ‘ ascon ’ made as per British Standards Institution Specification, is recommended for application over the prepared end of the conductor and inside the Ferrules/LugTerminal End, Before Crimping.

• Design SpecificationBS 6121:Part:1989, IS 2148
• Threads: E.T.,NPT & METRIC
• Protection ClassIP 65 (IS 12063)
• Number Of FlowerSINGLE COMPRESSION
• Operating Temperature-30°C to 90°C

• ApplicationFor Connection of Cables to electrical equipment
• Voltage RangeAluminium alloy

• MaterialE-Copper
• SurfaceElectro-Tinned/ Un-Tinned

• MaterialAluminium Alloy
• ApplicationFor Connection of Cables
