Harman sales pvt ltd

Mira Bhayandar, Thane, Maharashtra

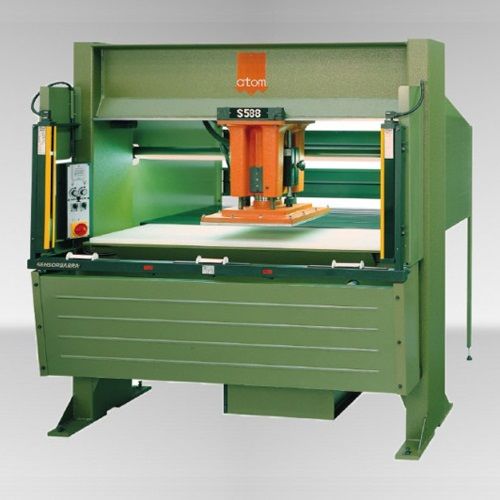

Our Dynamic Travelling Head Cutting Presses - the 588 Series are the best performing cutting presses available today. Their most important features are:High Trolley Displacement SpeedLow Energy ConsumptionOutstanding Reliability and Cutting QualityFeatures that have always marked ATOM products as the World Leaders. The wide range of models, options and configurations make our Travelling Head Cutting Press able to satisfy any production need in a wide range of industrial applications

configurations, Full Beam presses are the perfect solution to cut components for Automotive, Gaskets, Packaging, Filters, Abrasives, Foam, Insulation, Toys, Leather Goods and many other industries.ATOM have sold well over 250 from this vast range into the UK over the last 30 years, most popular is the Foam, Leather & Gasket industry.Like the Swing Beams these are also available with two different cutting modes, 'timed' & 'stroke-end', but each beam press comes with them both, not just one.

High production and cutting accuracy are the features of the Speedy Models. They have changed the idea of cutting tables that are traditionally designed just for designing and small production and have made them perfect for Footwear and Leather Goods. Available in a number of configurations complete with options such as handling material in roll and sheets in single or multiple layers.

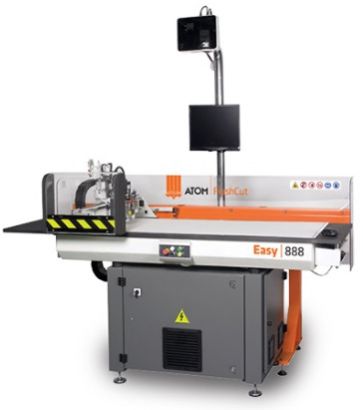

A model for any need, from sample departments to production. The easy FlashCut can fast and accurately cut any type of material, from Leather to Man-Made Materials, up to thick Leather for Soles.Compact and Ergonomic, easy to use, they fully meet the Footwear and Leather goods cutting requirements anre the best choice for those companies who want to make their cutting process automatic.

Flexible operation interfaceHigh performance step motorImported axletreeFour balance straight-line slide-wayPerfect optical systemMultiplicate data transmission modeHumanization working table, advance DPS digital-control techque, convenient USB transaction apply, large area working table is to realize large area cutting processing and engraving requirements, movement system adopted straight guide rail and precision gear transaction to ensure processing precision and movement speed.

Excellent sewing effects and first class quality thanks to vertical rotating hook and link take-up lever. Lockstitch with drop feed can promise a smooth sewing quality on either thin of thick materials. easily adjustable stitch length variation. Backtracking only with gentle press on the backtracking bar, convenient operation.TY-810: Single needle: Easy guiding of work when sewing on closed shoe uppers, e.g. children's, because the post is arranged to the right of the needle. Change the roller pressure foot accessories into the flat pressure foot accessories, could stitch the cap and wig.Suitable for spons shoes, ladies shoes. jackboots. bags, caps, wigs etc.

Upper roller, lower wheel and needle feeding mechanism ensure smooth sewing at all lime even Join other material for overlap sewing. Needle feeding ensures constant supply of thin and thick material no matter It moves straight or makes turns. Also suitable for sewing spongy material, no crinkle or transform will be occurred, Instead, the stitch Is very smooth and neat. Low friction between the parts because ball and needle bearings are used. Suitable for stitching high quality leather materials such as shoes, bags etc.

GC18365M-L - Left post, 265mm post heightGC18365M-R - Right post, 265mm post heightGC18365-L - Left post, 443mm post heightGC18365-R - Right post, 443mm post heightSingle needle, super high post bed, compound feed with walking foot, standard rotary hook, lockstitch sewing machine. Specially designed needle plate can sew small materials, extra high post and large working space is easy for sewing large products. Suitable for sewing boots, luggage, suitcase, etc

Driven roller presser foot suitable for sewing arc and irregular products.Design with ball and needle bearing. easy maintenance.Built-in bobbin winder.Standard vertical hook

Equipped with full range of partsAccording to the real demand of product: It could apply presser foot or presser foot for sewing. It could apply normal moccasin stitch or cordinsert moccasin stitch. Needle guage could apply 7.5mm or 6.35mm or 5.0mm for sewing.Ornamental sewing (Moccasin stitch) for Shoes. Bags, Leather goods, etc

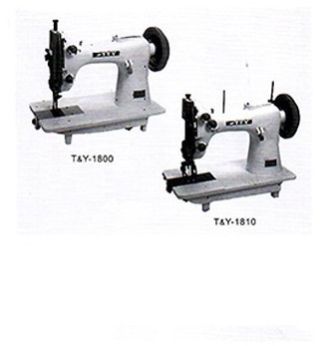

For sewing medium to heavy weight materials such as leather, vinyl, synthetics and laminated and coated materials.Suitable for sewing such as automobile upholstery, tarpaulins, covers, awnings, tents, umbrellas handbags, luggage, travelware accessories, sports and camping equipment and wearing apparel outdoor clothing

For stitching shoe hems, purses, belts, bags sewing and for shaping sport apparatus, etc.

This machine is suitable for general material, equipped with a needle bar fixing mechanism to prevent needle bar from wavering, which will allow perfect zigzag stitches as well as straight stitches. This zigzag width 12mm adnd can be adjusted either by knee lifter or manual operation. Prepared automatic bobbin system, convenient operator.

Wide tacking length from 13mm to 26mm (up to 1 full inch)Simple mechanical adjustmenets of tacking length and widthHeavy duty construction and quality components deliver consistent stitch quality at high speedsFactory set clamp of just over an inch covers the entire tack length (no other feet required)Complete and Fully Set Up with NEW Table Top, Stand and 110 Volt MotorSimple and efficient.

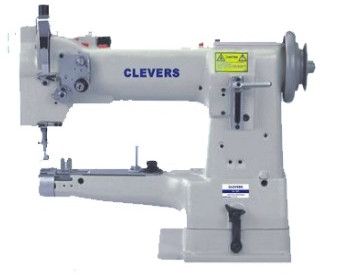

This series machines are equipped with the large hook, high working efficiency. The small diameter cylinder(80mm)ensures the small tubular products sewing application. 1, 2 and 3steps zigzag stitches achieved by changing the cams. Also, the binder as the option. Suitable or sewing medium to heavy weight materials, such as shoes, bags, gloves etc

This series machines are the post-bed zigzag machine(180mmheight post), large hook, high working efficiency. Suitable for sewing medium to heavy duty material, such as shoes, caps, golf bags, etc.

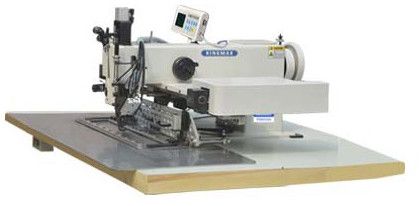

These series machines are the computer-controlled pattern machines with the large shuttle hook, professional designed machines for heavy duty and extra heavy duty materials with the thick thread, which the regular pattern machines can not stitch. The unique structure provides the large working space and sewing area for the sizeable products.Programmable intermediate presser foot with the higher foot clearance, pneumatic clamp lift, simple and small panel with the USB pattern transfer, simple pattern edit software. Burner device as the option. Suitable for sewing heavy duty and extra heavy duty materials with the thick thread, such as shoes, slings, belts etc.

This machine is one computer-controlled ornamental stitches machines, 1&2 needle controlled by the rotary needle bar, top&bottom feed(roller feet as the option), large shuttle hook with large bobbin capacity, small and simple panel with the easy reading, 200 different patterns available(1&2 needle), the pattern edit software provided extra patterns function. Suitable for sewing heavy duty and extra heavy duty materials with the thick thread, such as sofa, shoes, car upholstery, bags etc.

This is one high speed computer-controlled pattern sewing machine. Equipped with the extra large rotary hook and large bobbin capacity, its highest speed can up to 1200RPM. Special designed for the heavy duty material with the thick threadat the higher speed. Large needle bar stroke, high programmable intermediate presser foot. Durable stepping motor for X&Y direction driving, high-torque servo motor as the main driving motor. Large screen touchable panel with USBpattern transfer function, professional pattern edit software. Suitable for sewingmedium and heavy weight materials, such as big bags, container bags, safety belts etc.

Insoling machine for calitomia style athetic shoes, Also suitable for sewing working Gloves, furs of medium thickness diving suits, and children shoes. Automatic lubrication for longer service life, no oil leakage problems due to special design. Better handling due to extra large clearance under front cup arm. Easy adjustment of stitch length by push button. Designed for easy operation.

Our machines are studied and manufactured accordingly to three basic principles: Quality and Accuracy: Accuracy of the materials used and of the production process undertaken in the manufacturing of each single components in order to guarantee excellence in performances; Ergonomy and Flexibility in operating and manteining our machines in order to increase productivity, limit idle time and reduce operational costs (such as less working stress for operators, reduced machine stops for maintenance and bandknife substitution, fast switching settings); Reliability and Solidity of single components and complete machines in order to provide our customers with top performances stable over decades (proved by the thousands of machines still perfectly working even after 25-30 years) The constant search for improvements through technical innovations (with several deposited patents) along with a special attention to the smallest details are the "secrets" of our achievements and, unfortunately, of the too many imitations

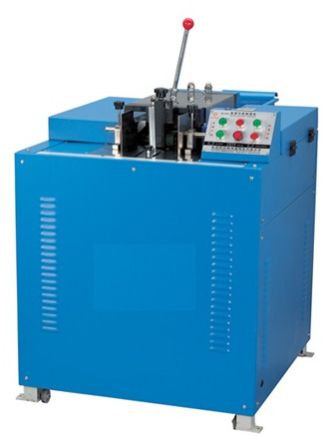

It can be used for skiving dages and skiving thinner of surfaces of all kinds of shoes, leather shoes, handbags and which made of fur, leather and rubber.

The latex becomes nebulized after passing the special nozzle and paints on material surface homogeneoursly.Latex stored in pressurized barrel.Rinse the nozzel with water from the pressure barrel after latex spraying in case of jam and in convenient of next use.Flying bebulized lates molecules are absorbed into the plate through draught fan and solidify, which avoids environment pollution and improves working conditions.Installed with switch for water and larex spraying, which is wasy to operate.

This machine is conceived to attach any type of thermoadhesive of any thickness, on to the upper by mean of heat & pressure. ElectroneumaticAdjustable TempratureDigital Controls

Automatic Thermo Cementing & Folding Machine for shoe. This machine is applicable for the folding and French binding purpose for leather products such as shoes and bags. The temperature of the glue tank and glue delivery temperature may be set with digital display. The glue feeding quantity may be set on the panel according to the folding width and speed to ensure secure folding and save glue consumption. The speed automatically slows down and thins at the outer curve. The folding width is adjustable and reinforcing band can be also wrapped inside automatically. Designed with jaw positioning function, it makes sure the jaw is under the maximal opening after each stop to ensure the loading of work pieces and easy operation. The folding lines are clear and beautiful.

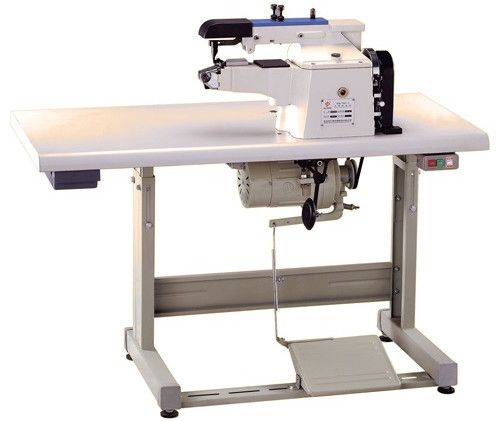

Thermocementing and folding machine for insole covering, complete with table and clutch motor. RP 68 TE uP is equiped with a foot holder adjustable in height and a foot that can run into its own housing so that to process eassily, with some further optional parts, the anatomic insoles as well. RP 68 TE uP STP Thermocementing and folding machine for insole covering, complete with table and 230 Volt 50/60 Hz single-phase brushless motor with automatic positioning.

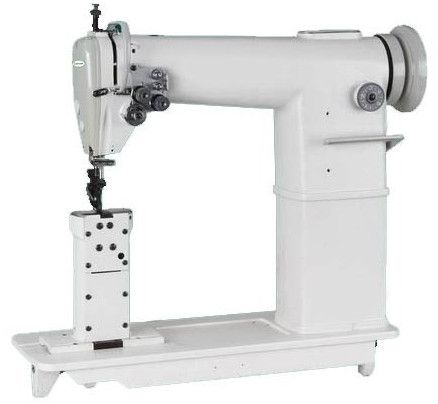

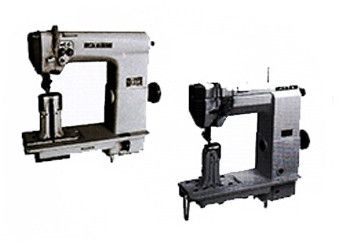

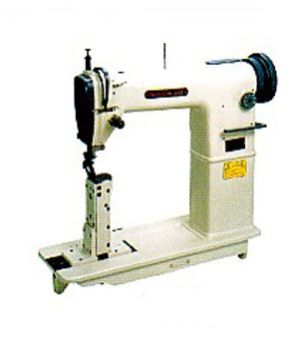

We are betrothed in offering our clients an excellent quality variety of Post Bed Double Needle Machine. At the vendors' base, these double needle machines are manufactured as per the set production norms using quality accepted basic material. In line with clients' needs, we are providing these double needle machines in a variety of specifications as. After procurement, our quality superintendents perform a series of tests on the entire range. FeaturesExcellent performanceZero maintenanceStrong design

Suit for Bags, boots, travel cases, etcSpeed depends on materials and type of operationHigh performance machine which is the most suitable for attaching of sleeve, tubular items, tape bindingSuitable for sleeve attaching and sewing for tubular items of heavy-weight materials, such as leather, man-made heather or viny(BM-8, BM-8B).No feed type (BM-1) is easily moved materials and sewn the points only necessitate for quilting, darming of over-coat, Various types of binding (2, 3 and 4folds) are available by Synchronizing binder device (BM-8V, BM-8BV)Ideal for stitching tubular and curved work of shoe uppers, bags&sleeves, etcSince unison feed is adopted, the uniform and very beautiful seams can be obtained.Only a slight touch to the back tacking lever is required when stitches must be reversed

Driven roller presser foot suitable for sewing arc and irregular products.Design with ball and needle bearing. easy maintenance.Built-in bobbin winder.Standard vertical hook.

The strip cutter arbor moves up and down to trim the surface of shoe throat together with sharp blade.The conical cutter plate supports shoe cover while trimming edges with strip cutter arbor.

Through the combination of mechanical action and heat it warps the fibres of the material being processed and lastingly stabilized them in the shaped position. The processed parts remain crimped thus making easier the pulling of the upper at the lasting operation.

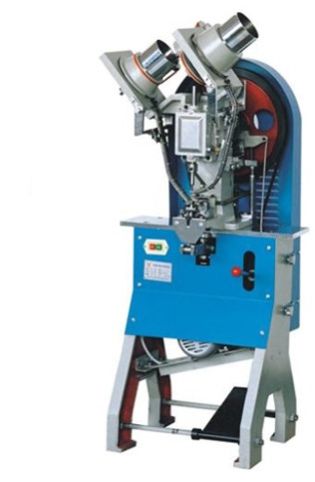

The machine adapts to riveting the double-side eyelets on punched upper of leather shoes, canvas rubber shoes, leathers, clothing and box. CharactersticsThe machine has reasonable design and exact positioning, the riveting of eyelets is neat and cannot be out of shape.The reliable performance ensures the riveting quality of products.Beginner can master it easily.The efficiency is 4-8 times of manual operation.

Processing quality can be automatically recorded by counter. No mannual memory is needed.Heating temprature can be set to guarantee golding quality.Paper belt with gold powder is driven by transmission mechanism.Molding plate with designs makes the powder adhere to leather surface firmly by heating, which will never fade or fall off.

Processing quality can be automatically recorded by counter. No mannual memory is needed.Heating temprature can be set to guarantee golding quality.Paper belt with gold powder is driven by transmission mechanism.Molding plate with designs makes the powder adhere to leather surface firmly by heating, which will never fade or fall off.

The Mod: Hercules 80 is a new revolving 8 stations moulding machine with heated aluminium lasts suitable for mocassin & clogs uppers. It is built with: Softening device with superheated stram. It softens the upper perfectly without wetting it.Pneumatic pounding Hand Tool with 6500 blows per minute. 450 Gr of weight and 100 lt per minute air consumption. Its power is adjustable. This roof ensures better quality and higher productivity.Each station is Equipped with an independent regulator to adjust the stretching of the uppers according to their type and size

The upper molding plate softens leather material by heating Heating and pressing time can be set and adjusted as required Convenient and safe draw-out working table is adopted Duplex oil cylinder booster mechanism is adopted, which has a high pressurizing speed, large pressure and low energy consumption.

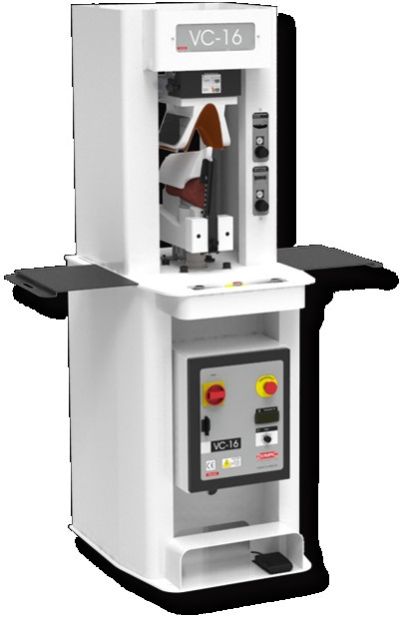

In the recent years the VC-16 has started a revolution in 3d shaping and became a best seller since it consists a precious tool for most shoe productions. The VC-16 improves the final look of the shoe and fascilitates the fitting of the upper on the last during forepart lasting. The VC SERIES crimps, combines & irons the finished upper in order to have perfect fitting on the last. No more wrinklesNo deformation of the uppersThe mould is universal, suitable for any design of upper (men's, women's, children's)Thanks to the simple adjustments the procedure of the upper crimping can be variable and very easy.Easy placing of the upper without pincersThanks to the pneumatically adjustable hardness of the cushion, a wider range of angles can be achieved.The machines are suitable for finished uppers, boots, vamps and sandals

The machine is designed for tubular moccasin sewing. 12 sewing patients can be set according to operator's requirement.All parts were manufactured by HAAS CNC machines, high precision machining parts.Using electronic speed motor speed can be flexible. stop the needle position by computer control.

The Splitting machines of our Production are available in the following versions Hand Splitting Machine, Size mm. 150, Head onlyHand Splitting Machine, size mm. 200, Head onlySplitting Machine complete with column and motor, Size mm.150Splitting Machine complete with column and motor, Size mm 200

Semiautomatic splitting-leveling machine suitable for processing soles in leather, tunit and other similar materials with thickness 2 to 8 mm. The machine is fitted with a fixed blade with 200 mm working surface. The piece which is to be processed is loaded manually. Working and unloading are automatic.

Automatic roughing and levelling machine designed to operate on hide soles. A rotary tool, in a single operation first sharps roughly then trims the sole. Thanks to the automatic feeder, the operator needs only load the machine with the soles which are to be worked. The machine model CU10 can be used also when the sole is thinner than desired.

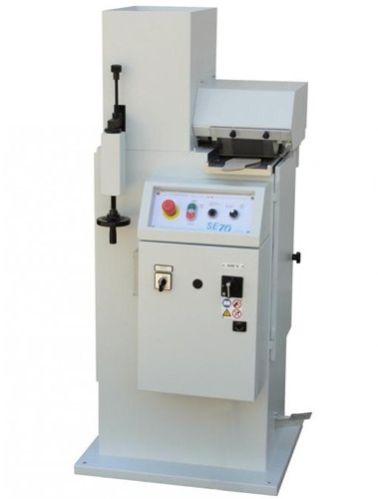

Semi-automatic roughing machine for leather soles or other similar materials. sole-roughing-machThe routhing is carried out by a rotating abrasive band mounted on two rubber rollers which absorb any imperfections on the piece to be roughed. The abrasive band can be easily changed so that the right coarseness can be chosen according to the material used. The piece to be roughed is manaully inserted, on contrary the roughing and ejection are carried out automatically. The machine is equipped with an electronic speed variator and a rotating brush which removes any residue of material

Semi Automatic machine for roughing or other similar items. The roughing soles or other similar items. The roughing is carried out by a rotating abrasive strip mounted on two rubber rollers which absorb any imperfections on the piece being roughed.

This outsole milling machine adapts to make the edge of outsole straight, lean, single arc. half arc and double arc according to desired craftwork of outside appearance of high quality leather shoes, which make the edge of leather shoes more beautiful and elegant.

Coloring or inking machine with two 150 chromed rollers for coloring men's and women's flat soles, heel covers, strips of leather or skins etc. with perfect results, using water, alcohol, or wax based inks. Dosing is very simple and colouring results are perfect. Stainless steel extractable ink tank making colour change and cleaning rapid and easy. The two upper drive rollers are easily extracted

The upper molding plate softens leather material by heating. Heating and pressing time can be set and adjusted as required. Convenient and safe draw-out working table is adopted

Automatic roughing machine for covered insoles , with edge and with stiffener and orthopaedic insoles. With speed variation adjustable separately on the tools and on the transport with electronic slackening of speed on the top and on the heel, CS3 performs a perfect roughing. CS3 - SAMPLES - Samples of covered insoles on different thickness worked with Mod. CS3WORKING DETAIL

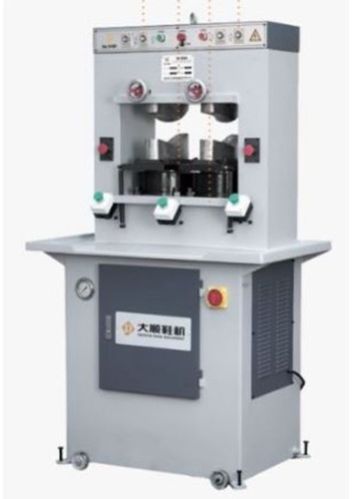

DS-606A Time Control Insole Molding Machine for shoe. This machine is suitable for molding the insole of high, medium, and low-heeled man and lady shoes. Designed of the advanced dual oil cylinder pressure, it ensures rapid pressure rise, high pressure achievement, and low energy consumption. The molding time is controlled by the time relay. The mold for insole with varied spring may be customized for easy replacement, and the two-hand operation ensures high security.

The automatic uppers roughing machine, essential for executing roughing on lined uppers with different stitches and thickness before the lasting phase. The processing is executed either by a roughing roller or by diamond roughing or by widia milling cutter, which automatically rises in proximity of the stitches in order to avoid thread breaking. It is possible to adjust the inclination and the width of the roughing surface

Automatic grooving machine with changeable heads for multiples processes on pretrimmed soles. The machine can automatically perform the following operations: Grooving and channel on trimmed solesCutting one or two visible grooves in trimmed solesHollowing out compound soles; one sole has the bottom thickness and the other the welt thickness. So, you obtain simultaneously a sole with insole and welt.Removing the welt around the heel seatMarking and ornamentBending the trim for jourdan processingDouble channel for goodyear workChannel and sole ornament silmultaneously

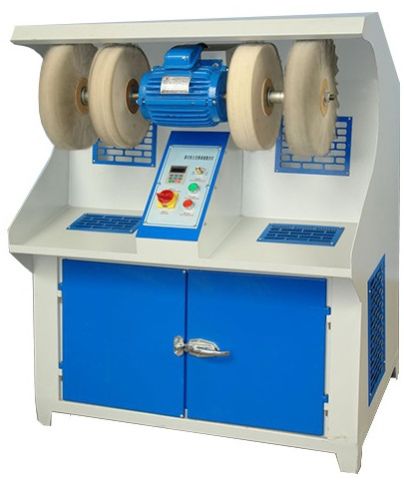

Box Type Cleaning Frequency Conversion Timing Polishing Machine (Double Head) Feature : This machine are mainly for after-processing's polishing (surface decoration, waxing, coloring, filling etc), also can be applicable for other industry's light polishing

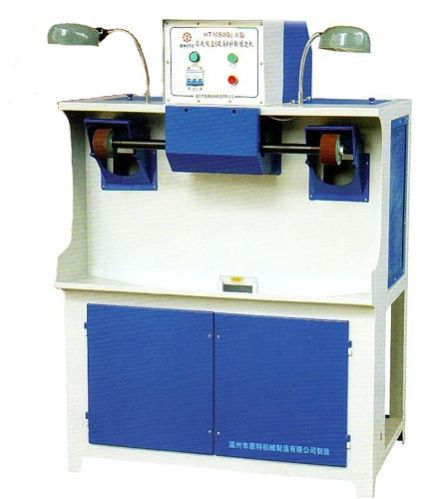

The machine is mainly used for grinding shoe upper and napping. This machne is innovated and designed on basis of HT1030S.X machine, for productivity improvement and turnover increase. This machine takes belt to drive to increase spindle strength, advance technology, with a strong environmental consciousness and beautiful appearance, conforming to human-machine engineering

Automatic sole edging painting machine with electronic speed variation, to paint the edge of the sole by a shaped roll that must have the shape of the sole edge to be inked. Two speed variation and automatic slackening of speed during the painting of the top and the heel. It's possible to adjust the position of the painting roll in order to have a uniform ink and to replace it by other ones on every shape of sole. M93 is suitable to paint any type of sole with thickness from 1 to 15 mm., with or without welt, leather or synthetic material. It's also possible to colour the profile and the welt or the grain at the same time, for a maximum width of 4-5 mm

Our MAV 3024 cementing machine is suitable for cementing by neoprene adhesives or rubber solutions, the following: upper edgesinsole edges for Ideal manufacturing methodsole edgessole edges for pretrimmed soleany type of weltleather or fabric straps.Three guides of different types easily applicable to the machine allow to carry out these operations by adiusting the width of the cementing edge up to 24 mm. By request the machine can carry out 44 mm. wide edges. The machine can be also provided with head only with three-phase motor of different voltages; by request single-phase motors are fitted

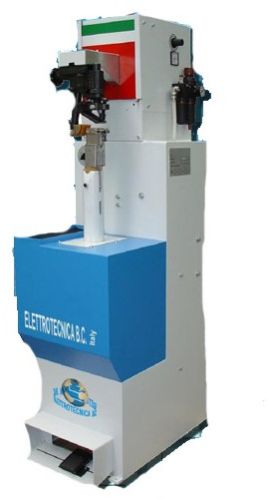

Pneumatic Semiautomatic heel nailing machine for Lady Shoes, Nailing in Sequence.

Heel Nailing Pneumatic Machine, Electronic with programmable sequence Shoe support that can move for boot useCan be used for any kind of shoes for man, woman, babyPossibility to adjust the height of the small hammers and the pressure of the fix system for a better nailing

The P 62 model is suitable for grinding the sole, the welt and the heel applied to the sole. The oscillating abrasive belt system and the electronic adjustable-speed drive from 0 to 4000 revs., reduces the usage of the abrasive belt and emery wheel, obtaining a uniform lapping without scratches. The adjustment of the abrasive belt tension and the unload is pneumatic. Furthermore, the adjustable workbench allows to work on any inclination. On the P 62 model it is possible to mount, in addition to the abrasive belt, both 80 to 200 mm diameter grinding wheels and special shaped grinding wheels for different profiles. Components and Accessories SOLE ROUGHINGSOLE-HEEL ROUGHINGFLUCTUATING BAND

The F808 model is essential for automatic roughing operations on the heel seat of every type of sole and sole thickness. The adjustable roller height allows to process soft materials, too. Thanks to the electronic speed controller, the F808 model can rough every kind of material (leather, tunit, etc.) without replacing the cutter tool, considerably increasing the production. Being equipped with truing up and roughing length measuring tools, the F808 model can also be used to perform the complete sole roughing

Our Dynamic Travelling Head Cutting Presses - the 588 Series are the best performing cutting presses available today. Their most important features are: High Trolley Displacement SpeedLow Energy ConsumptionOutstanding Reliability and Cutting QualityFeatures that have always marked ATOM products as the World Leaders. The wide range of models, options and configurations make our Travelling Head Cutting Press able to satisfy any production need in a wide range of industrial applications.

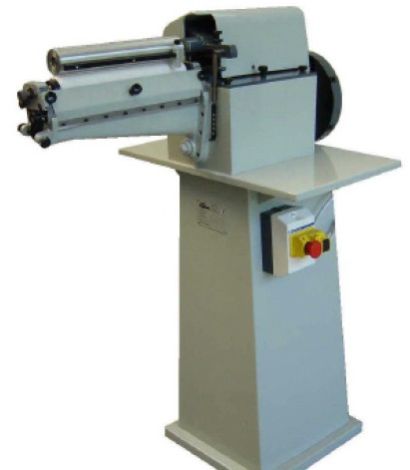

Our MAV 3300 cementing machine is suitable for cement every type of sole also with not uniform thicknesses and already attached heels by neoprene, polyurethanic adhesives or rubber solutions. The transport roller equipped with bayonet joint is easily extractable. The soft spreading roller is easily extractable, too and can be replaced with a brush roller for spreading shanks with steel plates used for insoles. Rollers with different softness are avaiable for neoprene or polyurethanic adhesive The useful cementing widht is of 300mm. The machine can be also supplied with head only with three-phase, single phase motor or variable speed by means of inverter

Glue automatic circulation means and sealant chamber, glueLess volatile or dry.The machine is suitable for the thickness of 1mm or more in the bottom of shoes, slippersBeach shoes, purses, belts, luggage and other materials on plastic operations.The glue can be adjusted, even moderate.Simple operation and reliable performance.

Machine very noiselless, il permits a production higher than any other in trade, for its approach speed of the pistons. The dimension of the pistons, with large diameter, permit high power in tons without high-pressure working, therefore with a greater safety of employement. Its hydraukic system, easy and pratical, is the better warranty of elimination of any trouble and obstacle.

For milling normal rounded insoles. Available in Extra-Cee or Cee versions (with all C.E.E. anti-injury devices). Equipped with a speed variator, it allows to increase or decrease production depending on the operator's capacity. Milling is done by means of a 20-knot disk (or 15-25-30 knives on request) that can be easily removed to allow sharpening. Supplied with built-in dust extractor or easy to connect to company vacuum cleaners.

Cross projection lamp can help get right position setting. Scan cutter is equipped, while shaping, fold the outer edge of shoe cover inward in convenience of shoe sides binding. During the heating make-up, rubber mold and aluminum mold can both heat up and the temperature is adjustable. The shoe sides thus can be softened quickly. The rubber mold is made from silica gel material, which has a long performance life. The moving length of pincer catch can be adjusted as required. Shoe cover, main heel and inner leather is level so shoe cover and aluminum can better tally with each other.

Rotating cushion system with integrated wipersDivided Indipendent PincersInclined hot station pincersMultiform4 is a backpart moulding machine dedicated to the production of high quality shoes. Designed and created to be the initial and most powerful tool for shoemakers aiming to perfection. MULTIFORM4 shapes with the same ease high quality women's, men's and children's uppers, as well as boots, moccasins, and mini counters

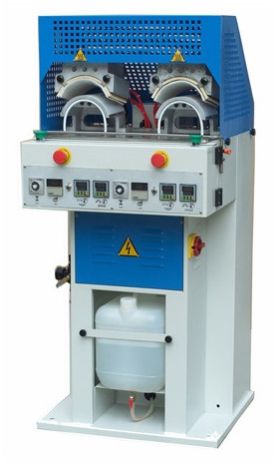

The machine is used for humidifying and softening the hot glue sheet of leather tip, purpose of upper biding made by upper binding machine. The normal temprature is 100-120 degree and the time is subject to set upon material, ranging from 10-20 seconds

The machine is used for humidifying and softening the hot glue sheet of leather tip, purpose of upper biding made by upper binding machine. The normal temprature is 100-120 degree and the time is subject to set upon material, ranging from 10-20 seconds

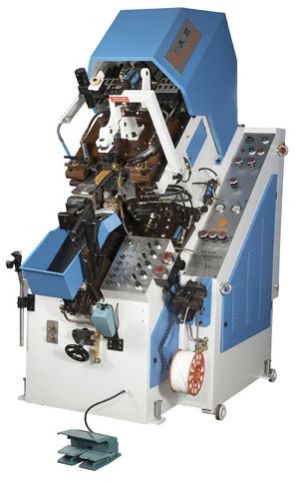

DescriptionDS618AM Automatic Toe Lasting Machine with Cementing is a clamping shoe vamp with nice claws molding machine, designed for shoe sole molding. Make use of this machine to manufacture your products, which can meet the demand of attaching shoe vamp with the shoe last smoothly. The machine is featured with convenient operation, high efficiency, steady quality, easy maintenance, and suit for manufacturing the children shoes, sports shoes, lady shoes, men shoes, riding boot, gentlemen shoes and other special work shoes, mountaineering shoes and so on.

Machine to moisten and reactivate heel and cut side before mounting. the steam is produced in a special stainless steel chamber. The action of the steam produced in high temperature softens and moistens the heel and the side of the cut in a homogeneous way and in reduced times.

DescriptionIt is used massage heel, side lasting, vamp, toe cap and toe line for purpose of eliminating wrinkle and getting a disticnt corner. The electro-thermal device will make the effect better. The toe cap, heel and side lasting are massaged in stage and the electro-thermal device will make the effect better.

Thermoironing machine with pounding hammer, with hot air and steam, with double ironing roller, variable-speed air flow, pedal for steam only ironing, electronic set of the temperature and digital read, stainless steel boiler - Patented Series 270 is the new line of thermoironing for footwear to 2 placed side by side emplacements. The firts emplacement is equipped of rolls heats from one mixture of hot air and steam, fundamental for being able to iron and to eliminate the wrinkles of the footwear. Through the drive of a pedal it is possible to obtain only steam in orderto soften the skin. Once release the pedal can be come to the hot air newly in order to continue with the ironing. The second emplacement is equipped of a pounding hammer, automatically set in action second the necessity of the operator, in order to increase to the quality of the footwear reducing the effort and the times of workimg. New line 270 has one nice aesthetic with a greater ergonomic rendering from the sepecial curving of the base in order to facilitate the working of all the types of boots

Thermoironing machine with pounding hammer, hot air and steam, with ironing roller, electronic set of the temperature and digital read, stainless steel boiler - Patented Series 270 is the new line of thermoironing for footwear to 2 placed side by side emplacements. The firts emplacement is equipped of rolls heats from one mixture of hot air and steam, fundamental for being able to iron and to eliminate the wrinkles of the footwear. Through the drive of a pedal it is possible to obtain only steam in orderto soften the skin. Once release the pedal can be come to the hot air newly in order to continue with the ironing. The second emplacement is equipped of a pounding hammer, automatically set in action second the necessity of the operator, in order to increase to the quality of the footwear reducing the effort and the times of workimg. New line 270 has one nice aesthetic with a greater ergonomic rendering from the sepecial curving of the base in order to facilitate the working of all the types of boots. Regulation of the steam amount until 4 m3/hAir temperature adjustable on display until 550oC (1022oF) in times expresses.Consumptions reduced in operating case of absence.Dispositive saves resistance in lack case or reduction of the air

Thermoironing machine with hot air and steam, with ironing roller, pedal for steam only ironing, electronic set of the temperature and digital read, stainless steel boiler - Patented Series 270 is the new line of thermoironing for footwear to 2 placed side by side emplacements. The firts emplacement is equipped of rolls heats from one mixture of hot air and steam, fundamental for being able to iron and to eliminate the wrinkles of the footwear. Through the drive of a pedal it is possible to obtain only steam in orderto soften the skin. Once release the pedal can be come to the hot air newly in order to continue with the ironing. The second emplacement is equipped of a pounding hammer, automatically set in action second the necessity of the operator, in order to increase to the quality of the footwear reducing the effort and the times of workimg. New line 270 has one nice aesthetic with a greater ergonomic rendering from the sepecial curving of the base in order to facilitate the working of all the types of boots. Regulation of the steam amount until 4 m3/hAir temperature adjustable on display until 550oC (1022oF) in times expresses

This machine will use high temperature steam and hot air form drying to mould the upper softly and effectively in speedy manner. It can save power energy and last.It is provided with special stainless in the chamber can relieve the stress inside the upper and make it more closed to the last. It has throughly altered the conventional process with heating parts baking the upper unscientifically so as not to influence the flexibilty and glossiness.The adjustable temperature controller can set the optional temperature in light of shoe materials.The speed can be controlled by regulation of timer.*This Machine is subject to manufacture according to different sizes to adapt to the specific requirements of users

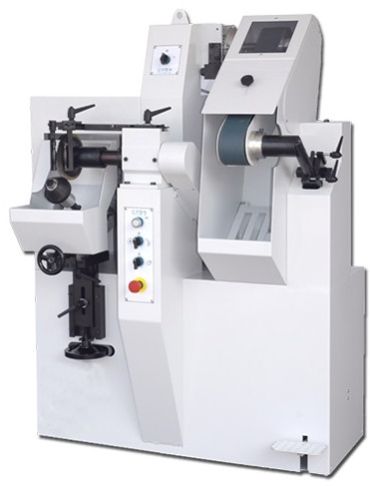

This machine performs the roughing of the lasted shoe, works with a circular steel brush, that is set in order to work tangentially ti the lasting, near to the brush, you can find two guides; if suitably adjusted, they allow to obtain a more less deep roughing. The section of the brush wire changes according to the hides to be roughed from mm 0, 15 to mm 0, 40 max. The machine is equipped with an abrasive band, whose length is mm 1340 and whose eidth is mm 80; it is on the right of the machine and it serves for the roughing of the top and heel. The machine is without exhauster and it must be connected to a suction central system or to an outer one.

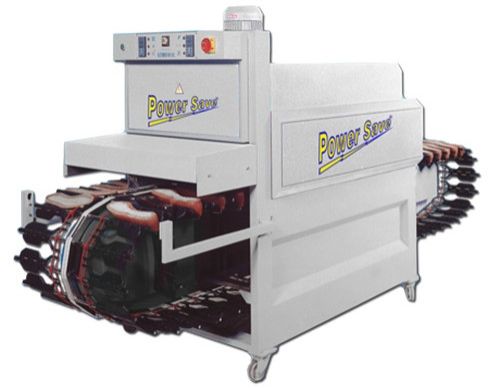

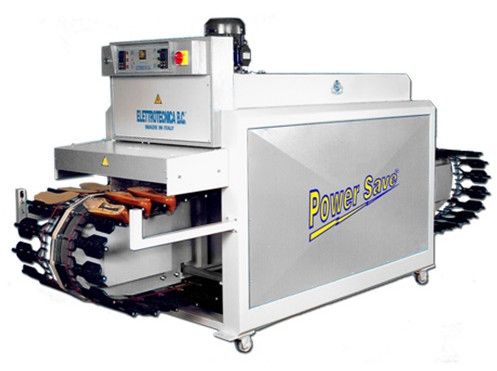

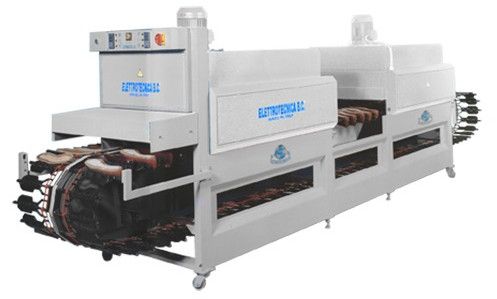

Cement drying machine production: 88 pairs per hourThe cemented surfaces are dried and reactivated in 2-3 minutes as opposed to 25-30 minutes in the past. In addition to substantial time saving this also reduces the number of last required. The specially designed conveyor enables soles and shoes/boots to travel in pairs thus easing assembly work by the operator. Moreover, the conveyor is adapted to any type of sole or shoe/boot.Rink system compatibleReactivation is effected by special quartz heating elements :Independent temperature control is provided for soles and shoes/boots.Transport speed can be adjusted according to output requirements.An appropriate drain pipe discharges waste solvents.Should processing problems arise, precision safety systems will prevent overheating of soles and shoes.Models 409-411 can also be fitted with a air heater for drying water-based adhesives

Cement drying machine production: 188 pairs per hourThe cemented surfaces are dried and reactivated in 2-3 minutes as opposed to 25-30 minutes in the past. In addition to substantial time saving this also reduces the number of last required. The specially designed conveyor enables soles and shoes/boots to travel in pairs thus easing assembly work by the operator. Moreover, the conveyor is adapted to any type of sole or shoe/boot.Rink system compatibleReactivation is effected by special quartz heating elements :Independent temperature control is provided for soles and shoes/boots.Transport speed can be adjusted according to output requirements.An appropriate drain pipe discharges waste solvents.Should processing problems arise, precision safety systems will prevent overheating of soles and shoes.Models 409-411 can also be fitted with a air heater for drying water-based adhesives

Cement drying machine production: 275 pairs per hour with 1 cement hand 175 pairs per hour with 2 cement handsThe cemented surfaces are dried and reactivated in 2-3 minutes as opposed to 25-30 minutes in the past. In addition to substantial time saving this also reduces the number of last required. The specially designed conveyor enables soles and shoes/boots to travel in pairs thus easing assembly work by the operator. Moreover, the conveyor is adapted to any type of sole or shoe/boot.Rink system compatibleModel 415 can be used in the following modes: :Double adhesive application, for an output of approx. 1400 pairs per 8 hour shiftSingle adhesive application, for an output of approx. 2200 pairs per 8 hour shift

Cement drying machine for water based and solvent cement, with double reactivation flash/quartz, laser sensor for reactivation temperature check, humidity sensor in drying chamber, auto program system personalized. Production: 188 pairs per hour - PatentedThe cemented surfaces are dried and reactivated in 23 minutes, as apposed to 2530 minutes in the past. In addition to substantial time saving this also reduces the number of last required. The specially designed conveyor enables soles and shoes/boots to travel in pairs thus easing assembly work by the operator. Moreover, the conveyor is adapted to any type of sole or shoe/boot. Rink system compatible.

The jet air chamber design use the hot air using recycle and to save energyThis machine use 5-8 minutes dry and activation is equal to 25-30 minutes traditional dry method. Save the shoe tree, reduce the cost and increase the producing efficiencyThe temperature of dry and activation for the vamp and sole can be controlled separately. The activations element get the better activation.With the new-style automatic adjusting shelf, it can suit foe any size of shoe style.

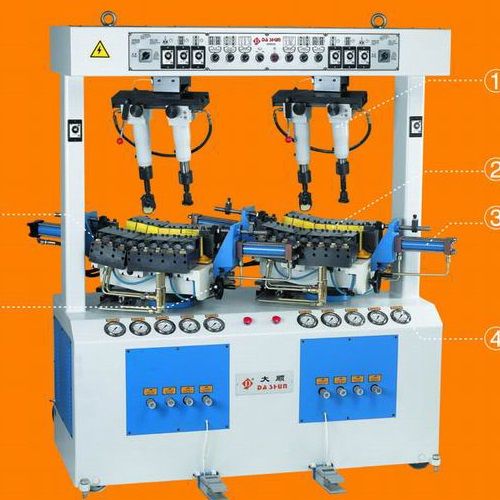

Hydraulic sole attaching press with self-adjusting pad-boxes suitable for any kind of shoes.

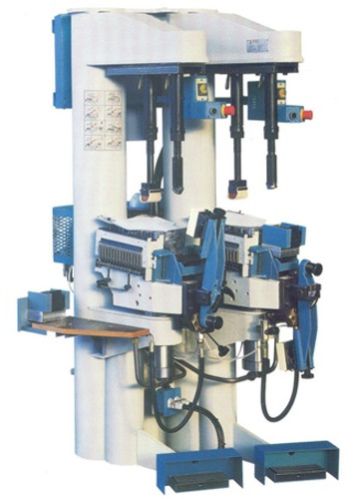

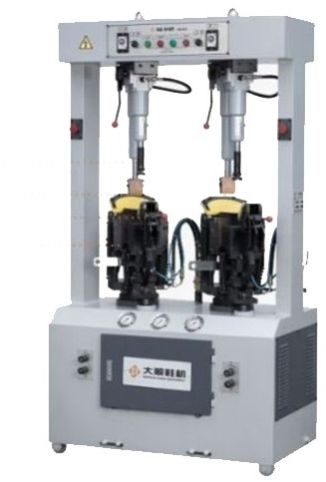

DS-603 Universal Sole Attaching Machine for shoeThis machine is applicable for the adhesion and bonding of molding insole and combined outsole of all kinds of man and lady shoes.The pressure head achieves automatic balance with the hydraulic connector to ensure uniform pressing force in the front and at the back.The encircling back support achieves automatic adjustment so that the heel doesn't move during bonding process.The spring of the bonding table at the toe cap is freely adjustable.The hinge-type front seat and the height-adjustable rubber insert will adapt to the bonding of man & lady shoe with any heel height under the spring force and ensure even pressure and secure bonding at the same time.

Automatic operations and fast compressingComprehensive copying compressingApplicable for compressing all types of shoesMulti-safe-device to protect operator safety

Comprehensive copying compressingApplicable for compressing all types of shoes

Pneumatic nail polishers, manual for woman working with 5-cylinder sequential nailing and 7-nail mobile platform. S81 / MDV is equipped with a hydropneumatic lock cylinder with second pressed regulator. Sequential nailing (1 nail at a time) occurs after having actuated the two-knob command. For this nail polish a wide range of posters is available. This machine complies with accident prevention and occupational hygiene rules.

The conditioning unit permits rapid cooling, after the sole pressing, of all the footwear previously heat-treated, resolving problems deriving from very rapid work cycles.It accelerates stabilisation times of the footwear and the polymerisation times of the water based cements, guaranteeing perfect sealing.It rapidly cools and stabilises the soles and shoes produced by the p.u. machines rink system compatible.

This machine adopts advanced technology and imported compressor and components.The conveying belt made of special material provided with refrigeration regulation device can accelerate stabilization and aggregation of aqueous glue to ensure perfect jointing and keep optimal shape after delasting and is free of mold growth.Double side concentrated heat insulation material used in the shell has good heat preservation performance and can reduce energy consumption.The large power refrigerating system with dual track cooling air and double auto-doors is equipped with automatic unfreezing device has the features of short refrigerating time and good molding result, which will expedite the turnover of last and decrease production cost.The powerful refrigerating system and high rotation speed air circulation system will reach up to -20oC instantly.This machine is subject to manufacture according to different sizes to adapt to the specific requirements of users.

Last pulling machine production: 300 pairs per hourWith fully machine with fully adjustable pad for maximum adherence to all types of materials and shoes styles.Fully automatic pad height adjustement.High outputinclined last peg for boots.

This machine mainly is used for shoe making industry and the leather industry for spraying the surface to beautify the vamp. Through the function of convulsions and current, it can remove the exceptional chemical smell and the toxic substances when working to make sure the working circumstance avoid from the pollution.

The new series of boots iron planned Irom Elettrotecnica B.C., it is born with the idea to help the shoe factory to increase the quality of the product, reducing to the rnaximurn all the times of change working (es. fast substitution of the leg). AII the models are equipped of digital thermocontrol (in order to guarantee the maxirnurn precision in maintaining the set up temperature) Independent regulation of the leg pressure openingMechanical detention adjustable leg opening, in order not to delorm the leg with delicate materialsEquipped of PLC that manages the cycle machine, and that it guarantees reliability and easy. The mod. 450 and 452 are equipped of motorized system leg spin. Single or simultaneous spin of the leg, selectable through a button. The motorized spin allows in beyond stopping itsell in whichever point of the 360o, to take part on the leg in order then to decide to leave again in hour or counter-clockwise sense. Elettrotecnica B.C. has inserted the maximum expression of innovative technology in model 452 adding in this machine a revolutionary system of ironing by air of the leg studied and patented in order to guarantee the principie rendered with the minimal effort and therefore reduced times. In fact in the final part of the heat blower we have inserted the check so as to manage the ironing without use any pedals. For the production of the warm air / steam has used the technology of the thermoironing machine known and appreciated in all the markets of the world. Optional for al! the models:The new leg with draft in heel (Patented)Kit attack leg Cogliati type.

It adopts advanced technology and imported components. Fast opening of upper and lower boot moulds, automatic balancing, size adjustable and electronic control of temperature 360 degreee rotation of boot tube coordinated with roller of constant temperature will make the seams and folds of boots more smooth. High temperature steam nozzle is easy for operation. It is an ideal equipment required by perfect boot processing. Constant temperature iron is used for wrinkle removal and make boots more smooth and perfect.

Machine to form the edge and the top of the quarter, vertical position, with iron silicon system with 2 hot stations and 2 cold stations, with anticondensation system on cold moulds.Particularly suitable for ladies shoes with any height of heel, the machine is also interesting for men's when the producer wants to enphasize the shoe appearance.Electronic control with digital visualization of heated moulds temperatures.The moulds are constructed according to the shape of customer's last.

This is a model of dual working station one c-ld and one hotParticularly suitable for ladies shoes with any height of heel, the machine is also interesting for men's when the producer wants to enphasize the shoe appearance.This machine is applicable to final molding and finishing. Before last removing and packing, melt the glue of the heel which is deformed with electric heating and then cool down for molding. The heel after molding will have a straight and perfect shape. In addition, the heating and cooling will remove the damp so as to keep it from mold growth.The temperature of hot last and heating time may be regulated freely upon the material of vamp.For cold last, it cools down very quickly and the cooling time can be adjusted up to -15oC. It has a good moulding effect.
