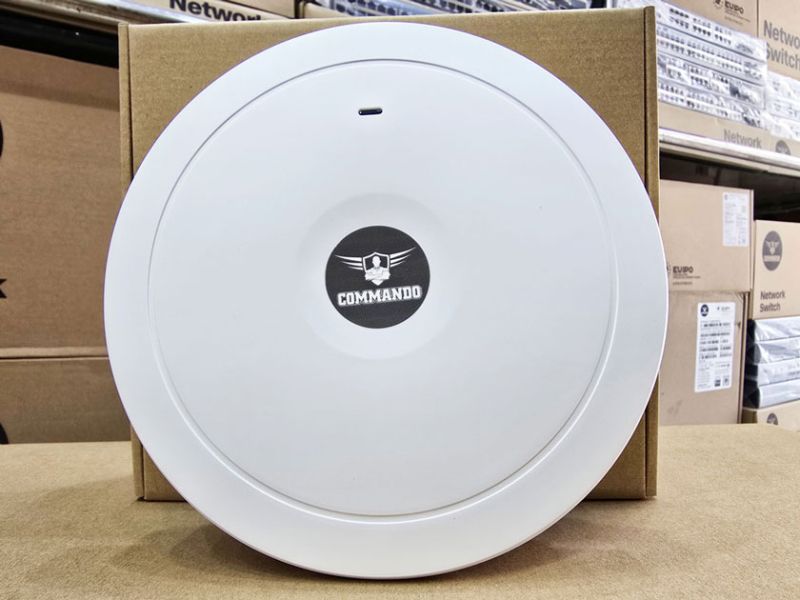

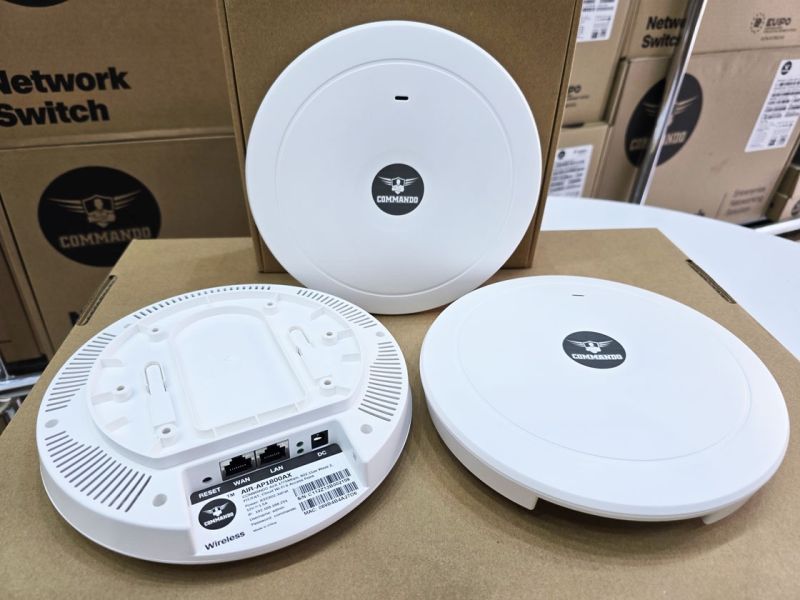

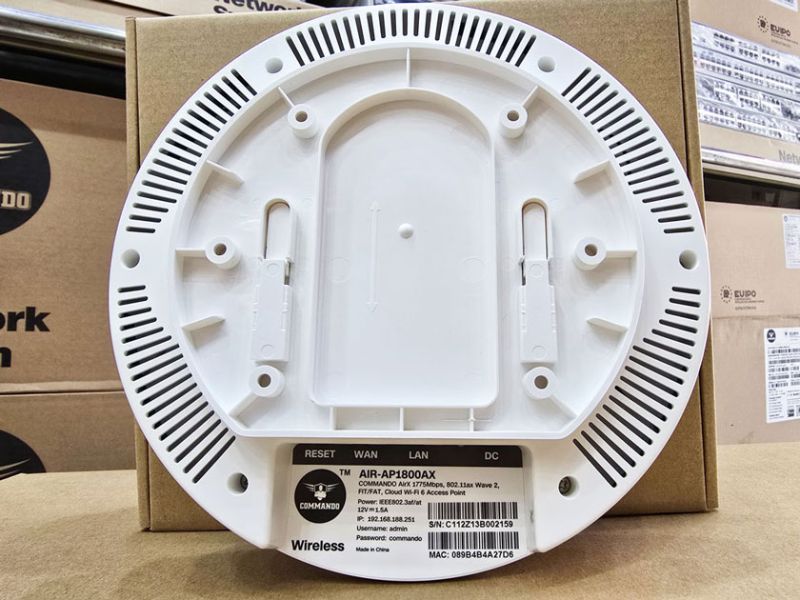

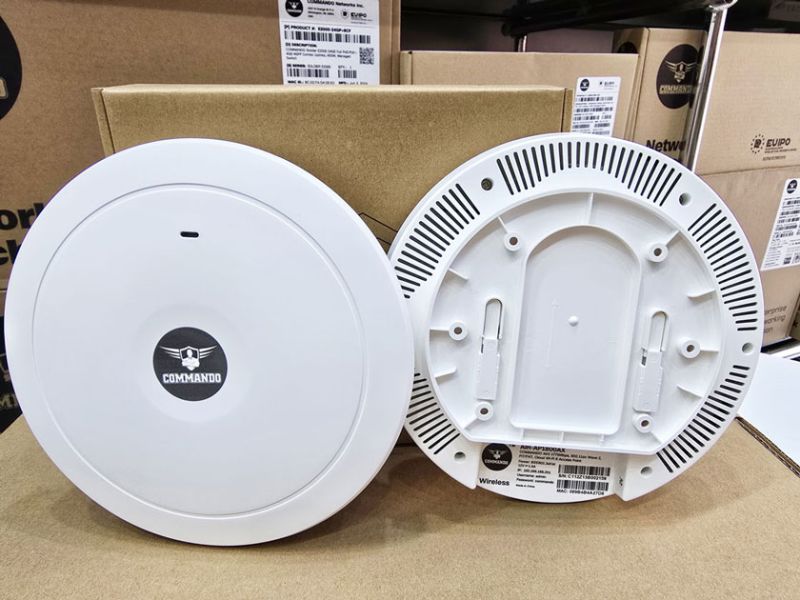

product highlights

• supports wireless rf power adjustable as per user movements from ap with data rate up to 2976mbps.
• access end users up to 80 max, with concurrent end users up to 80.
• 80mhz large bandwidth, 2x2 space flow.
• supports fit/fat mode of operation with commando routex controllers.
• multi ssid up to 8 with inbuilt wi-fi channel analysis.
• supports ieee 802.11ax/ac/b/g/n/a with backward compatibility for wireless clients, 2.4ghz+5ghz wireless dual band.
• with the function of the built-in firewall, ip filter, url filter, and mac filter.
• wireless dual band with radio rf power up to 20dbm (2.4g max), 19dbm (5g max).
• 1g high-rate uplink network port with link integrity check.
• management with the help of commando routex controller as well as from cloud portal.
• supports custom ap on/off scheduling and scheduled reboot.
• supports independent setting of signal strength and channel.
• intelligent control of terminals based on airtime fairness.
• high-density application optimization.
• supports band steering automatically moves to wider 5g band for faster connections, intelligent load balance based on users.
• supports tag vlan and vlan management.
• supports advance security by mac acl, static dhcp, flow control, url mapping, ip/mac/url filters, port mapping and dmz.
• supports seamless roaming, ofdma, 1024-qam.
• supports 5g priority access and fast roaming.
• supports ssid vlan, divide vlan for ssid.
• supports intelligent ac management, ap 1-click upgrade, centralized management.
• supports custom ap open time period and scheduled restart.
• supports independent setting of signal strength and channel.
• supports wireless roaming, experience a better network on the move.
• dual purposes wan or ieee 802.3af/at port (poe/poe+) port supporting 10/100/1000mbps and dedicated lan ports 1x 10/100/1000mbps.
• supports wi-fi client distance 20 meters and more depending on surrounding conditions.
• dual input for power either poe/poe+ via wan port or dc power inputs 12v, 1.5a.
• supports open or encryption like wpa-psk / wpa2-psk /wpa-psk+wpa2-psk.
• complies with ieee 802.3az standard.
• plug and play design simplifies installation with self-adaption.
• compact, silent design perfect for noise sensitive environments.
• with zero touch provisioning: plug and play and no setup. affordable, easy-to-use ap for all sized business networks, with zero configuration required.
• comes with one-year default warranty optionally extendable up to 3 years.

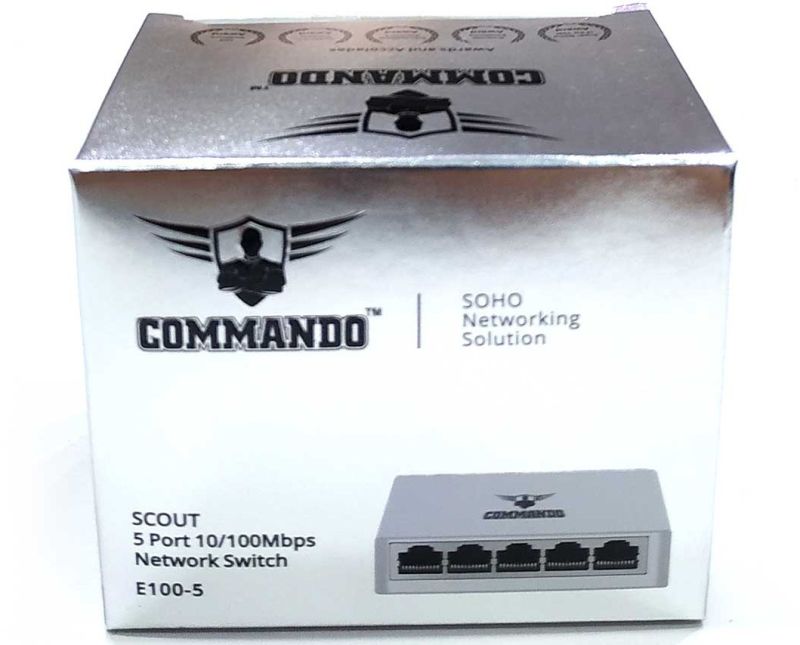

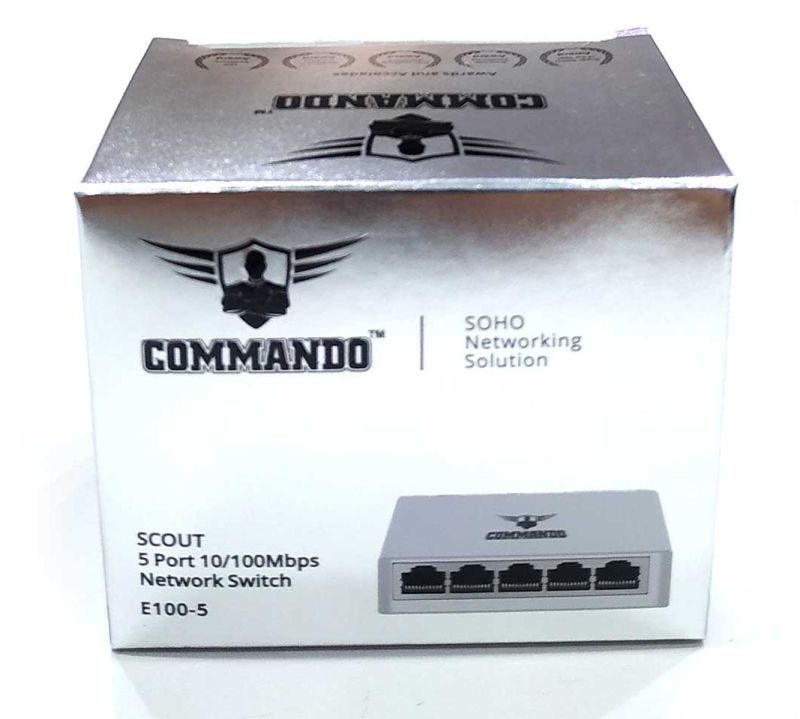

HARDWARE HIGHLIGHTS

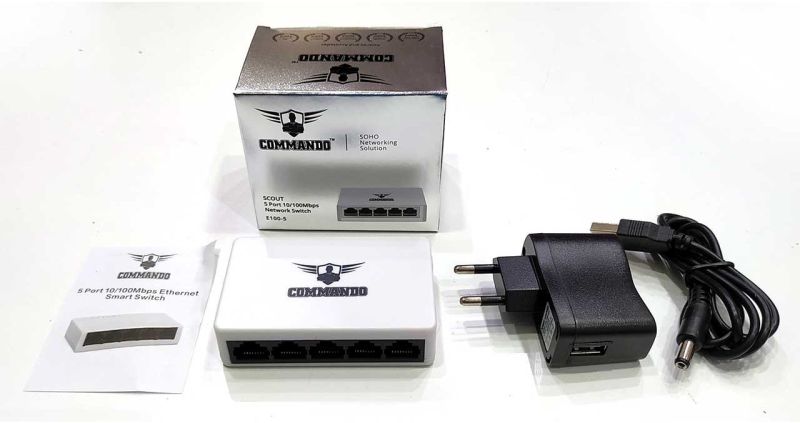

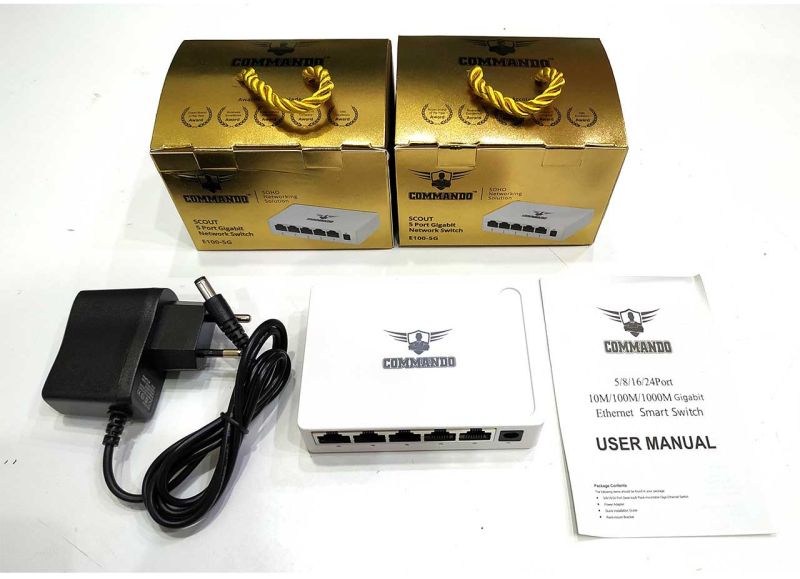

• 5 x 10/100Mbps Ethernet ports
• Switching Capacity: 1 Gbps
• Thunder Protection: 2 KV
• Power: 5W
• Power Supply: DC
• DC: 5V-1A Adapter with Cable
• Fast Ethernet Unmanaged Switch (Plastic Casing)
• 1 Year Warranty

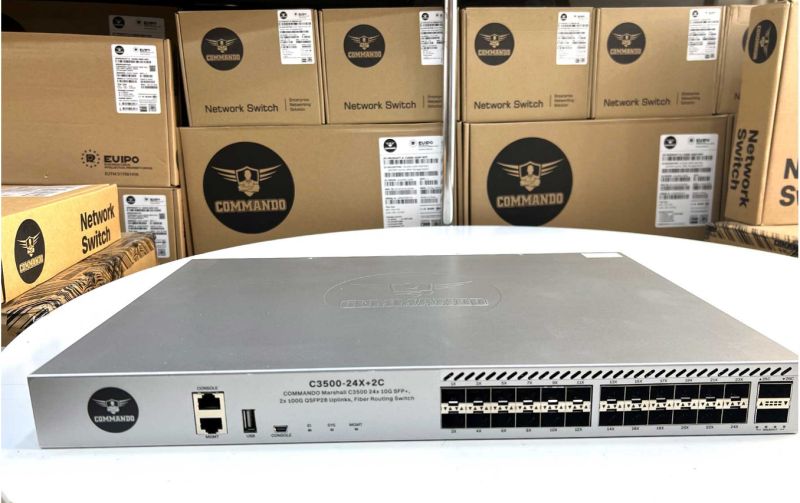

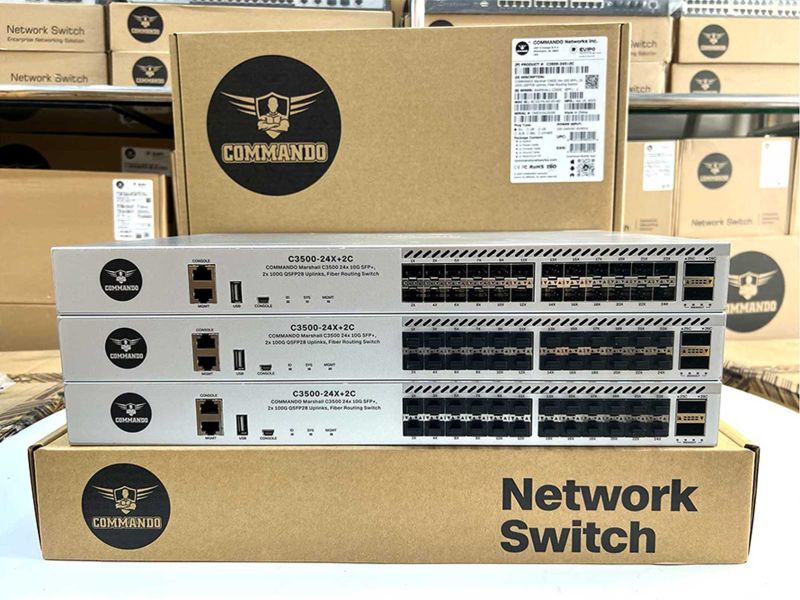

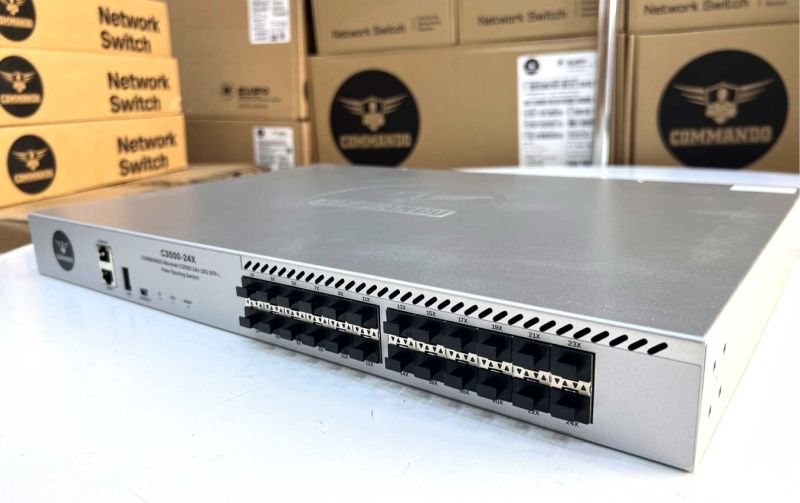

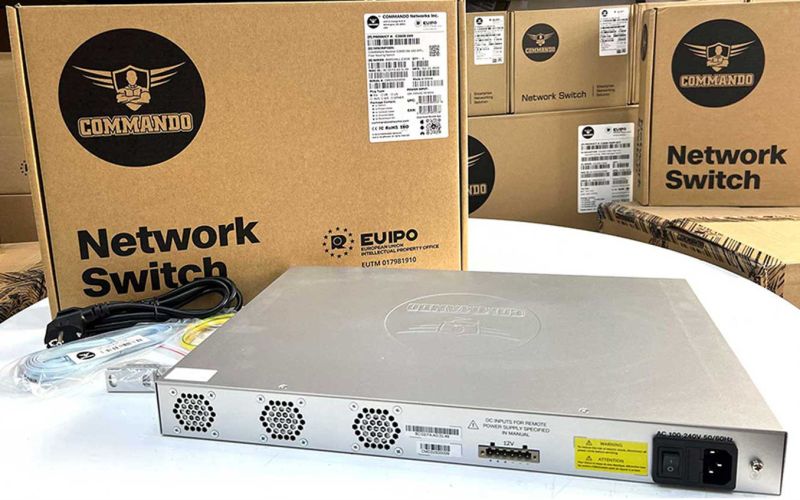

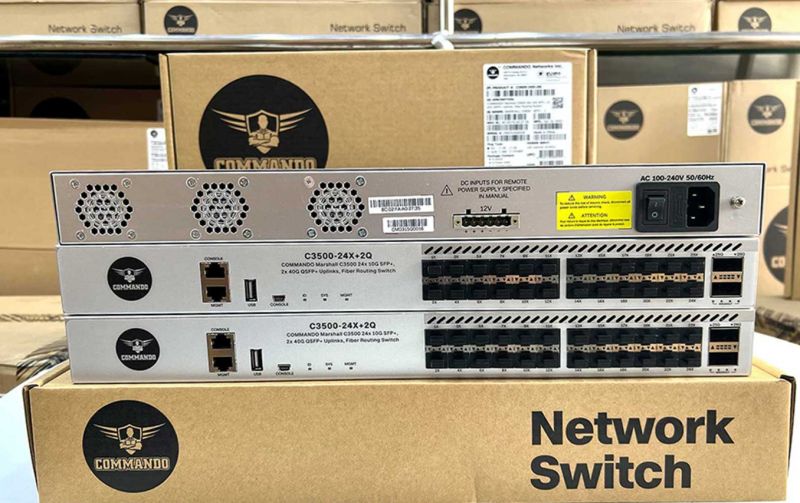

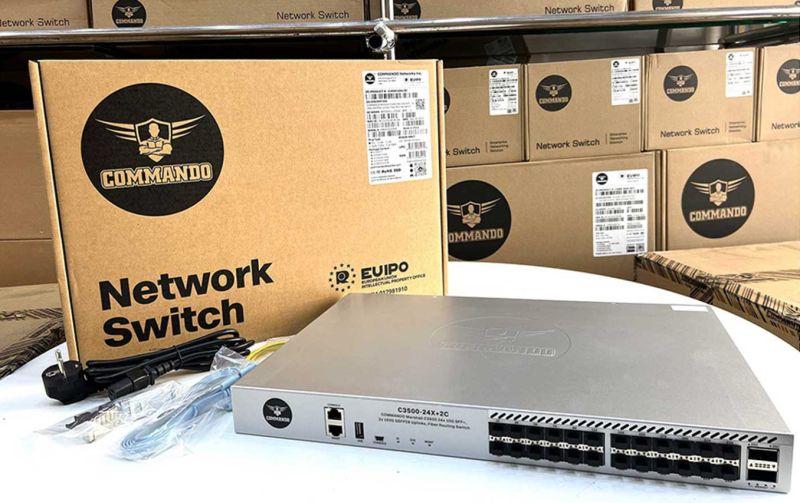

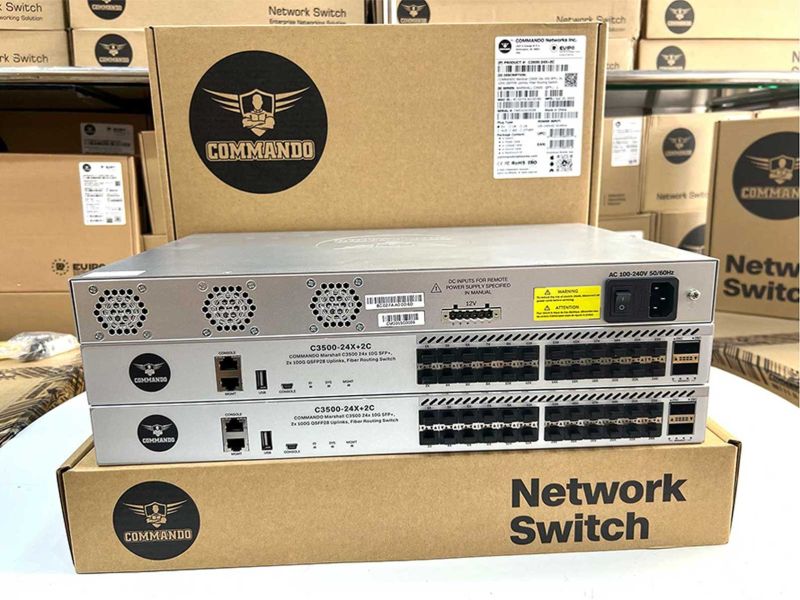

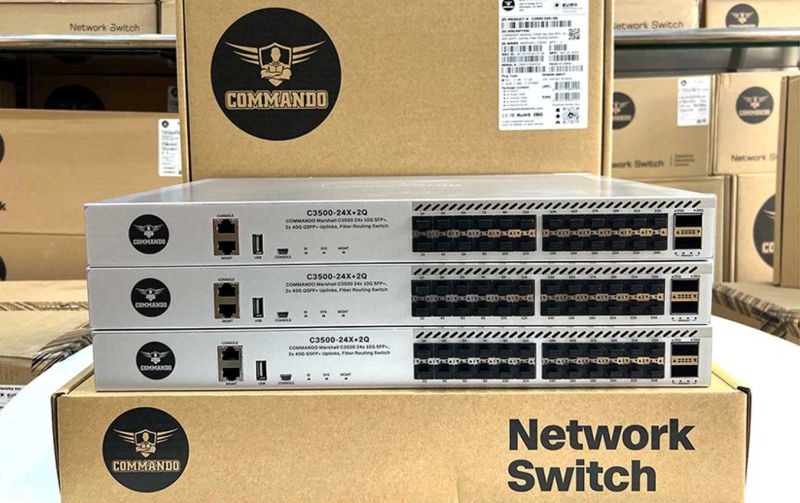

hardware highlights

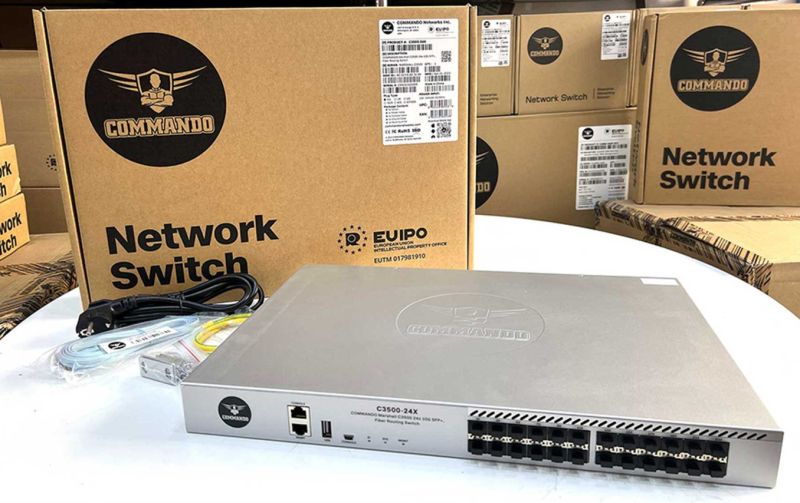

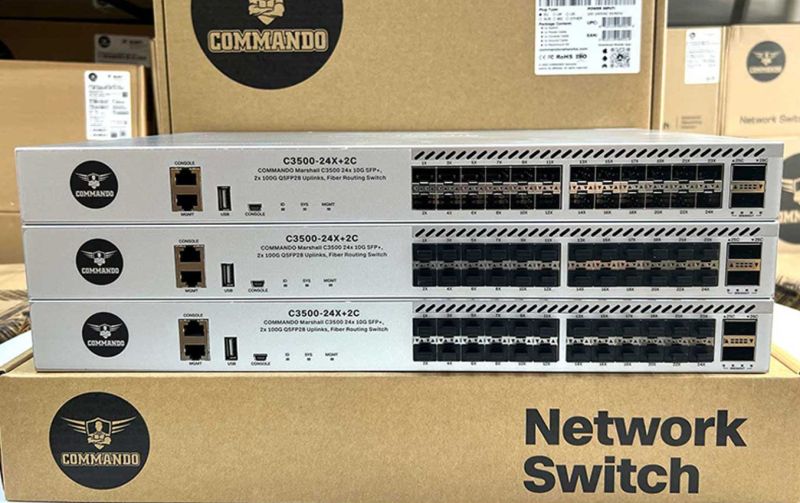

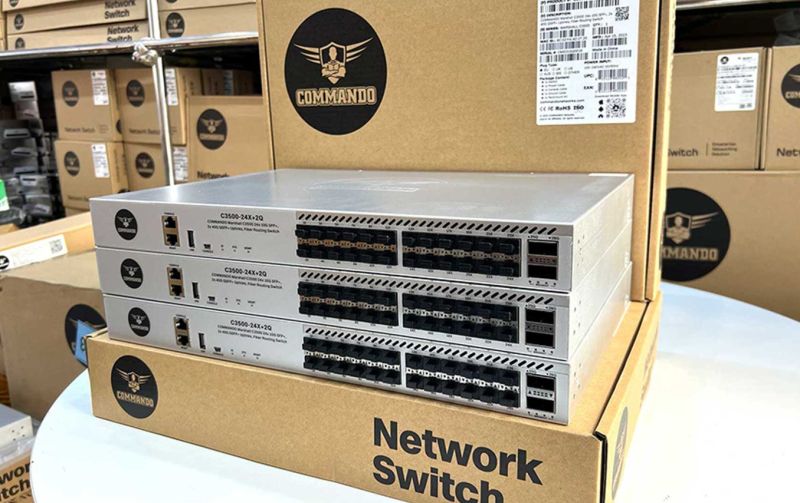

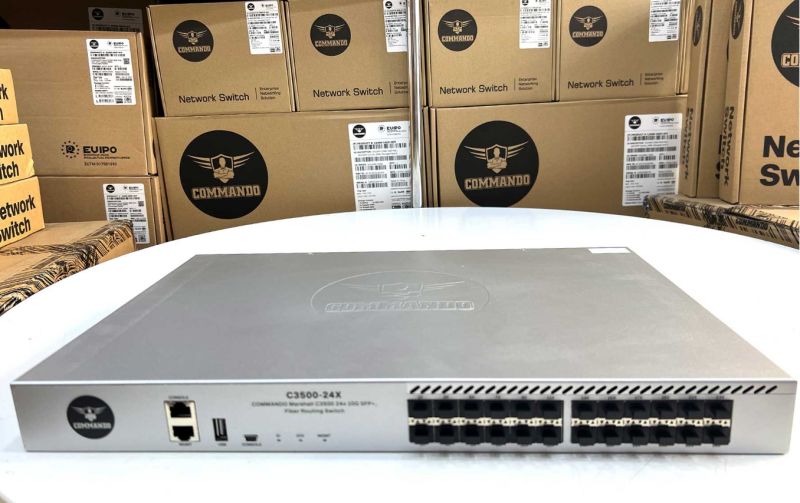

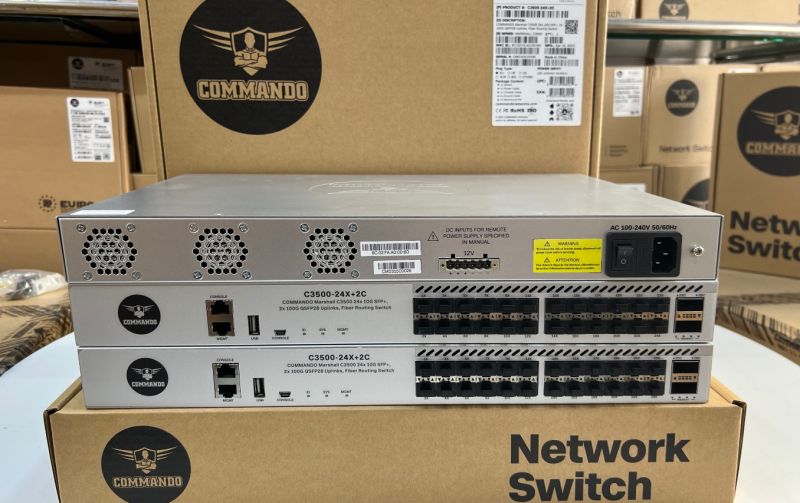

• 24 x 10g sfp+ ports
• 2 x 100g qsfp28 uplink ports
• 1 x rj45 management port
• 1 x rj45 console port
• 1 x mini usb console port
• 1 x usb 2.0 storage port
• switching capacity: 880 gbps
• thunder protection: 6 kv
• power: 100w
• 3 temperature control fans
• power supply: dual 1+1 power supplies (ac + dc)
• ac: 100240v 50/60hz, dc: 12v, 8.3a
• marshallos l3+ ip services software feature set
• l3+ 100g qsfp28 fiber routing switch
• 5 year extendable warranty

l3 features

• static route
• dynamic routing, ripv1/v2/ng, ospf v2/v3, bgp4
• ripv3, ospfv3, bgp4+
• ospf multiple process
• policy-based routing (pbr) for ipv4 and ipv6
• vrrp
• urpf
• ecmp
• bfd
• igmp v1/v2/v3, igmp proxy,
• static multicast route
• multicast receive control
• illegal multicast source detect
• arp guard, local arp proxy, proxy arp, arp binding, gratuitous arp, arp limit
• anti arp/ndp cheat, anti arp/ndp scan. dynamic arp inspection (dai)
• dns client, dns relay
• gre tunnel

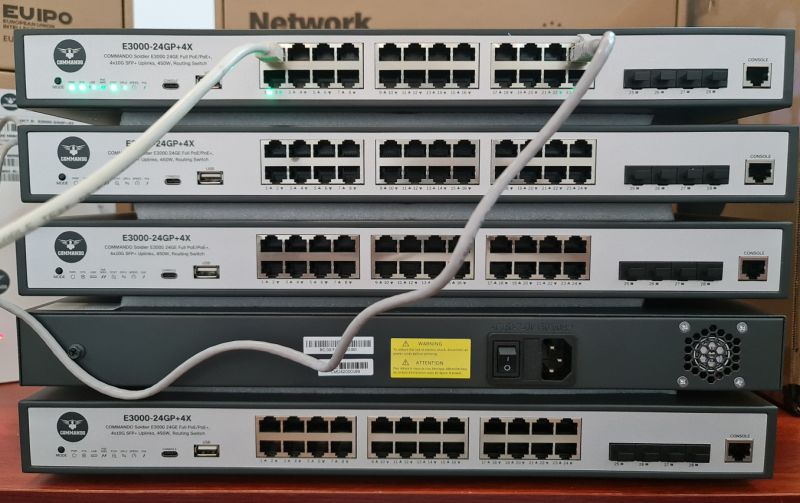

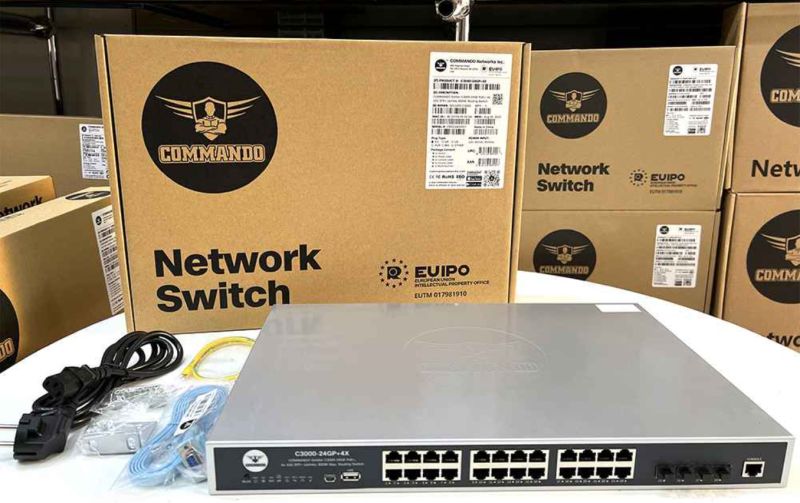

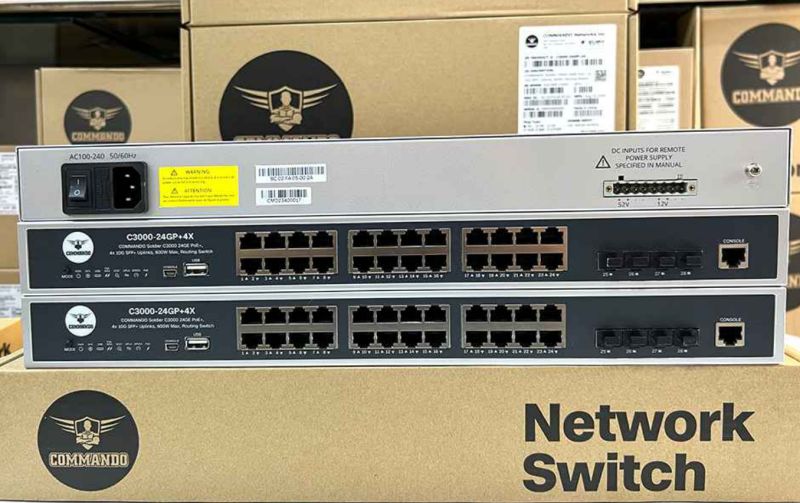

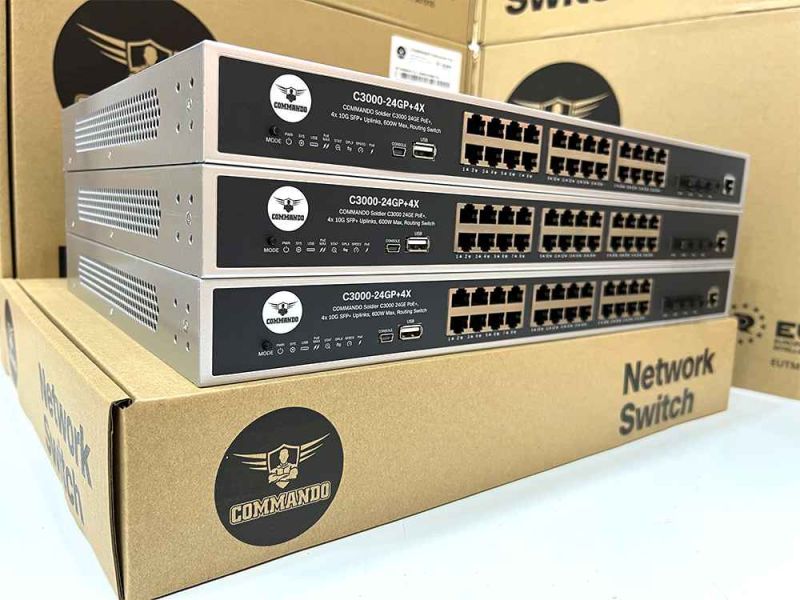

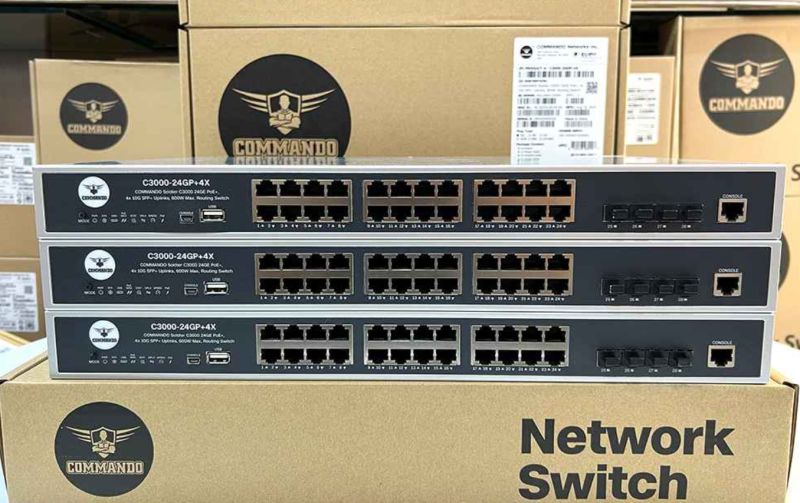

HARDWARE HIGHLIGHTS

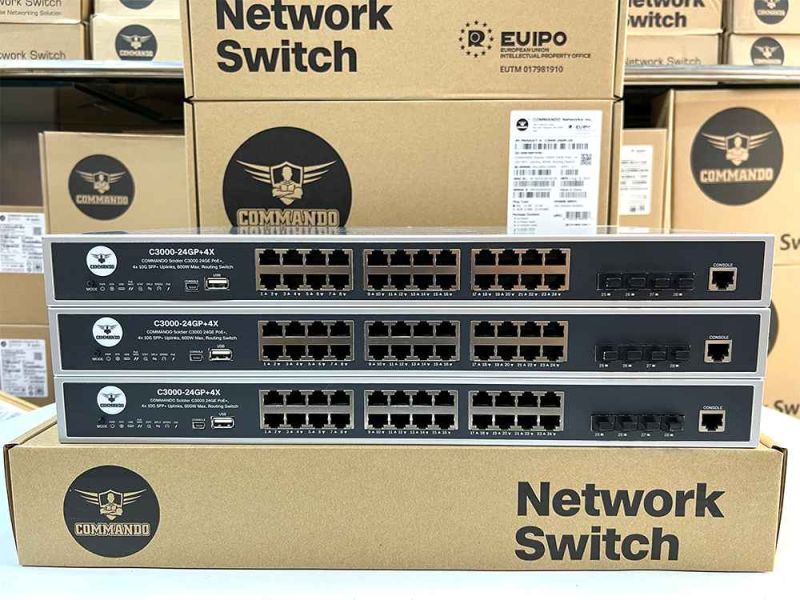

• 24 x 10/100/1000Mbps Ethernet PoE+ ports
• 4 x 10G SFP+ Uplink ports
• 1 x RJ45 Console port
• 1 x Mini USB Console port
• 1 x USB 2.0 Storage port
• 24 x IEEE802.3af 15.4W PoE ports
• 18 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 128 Gbps
• Thunder Protection: 6 KV
• Power: 600W
• 3 Temperature Control Fans
• Power Supply: Dual 1+1 Power Supplies (AC + DC)
• AC: 100240V 50/60Hz, DC: 12V, 4.1A and 52V, 10.2A
• SoldierOS L3 IP Base Software Feature Set
• L3 GigE PoE+ 10G SFP+ Uplink Routing Switch
• 5 Year Extendable Warranty

L3 Features

• Static Route
• Dynamic Routing, RIPv1/v2, OSPF v1/v2
• Policy-based Routing (PBR) for IPv4 and IPv6
• VRRP
• IGMP v1/v2/v3, IGMP Proxy
• Static Multicast Route
• Multicast Receive Control
• Illegal Multicast Source Detect
• ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit
• Dynamic ARP Inspection (DAI)
• DNS Server, Client, DNS Relay

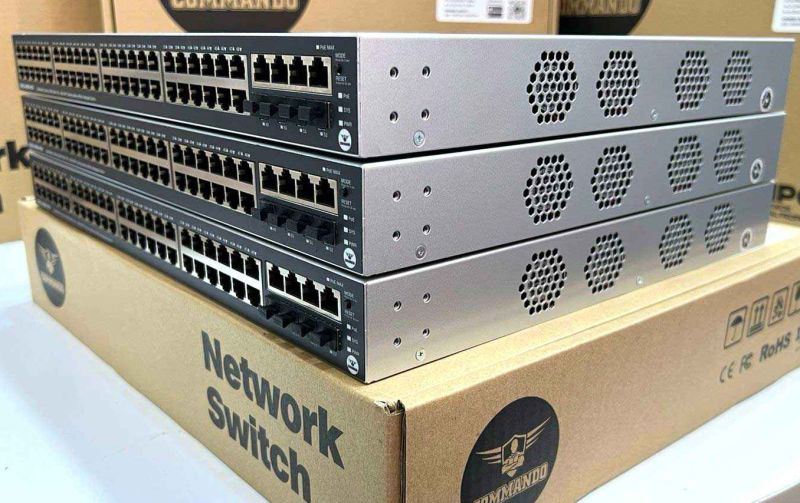

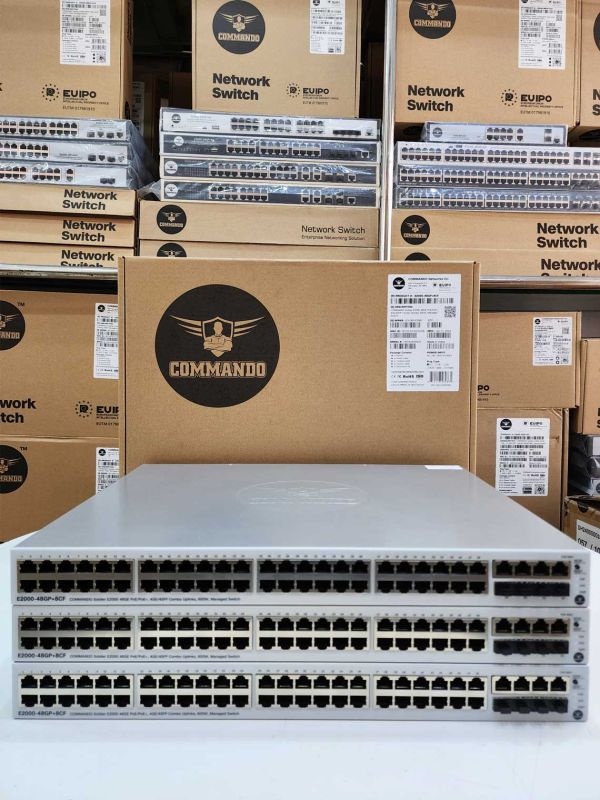

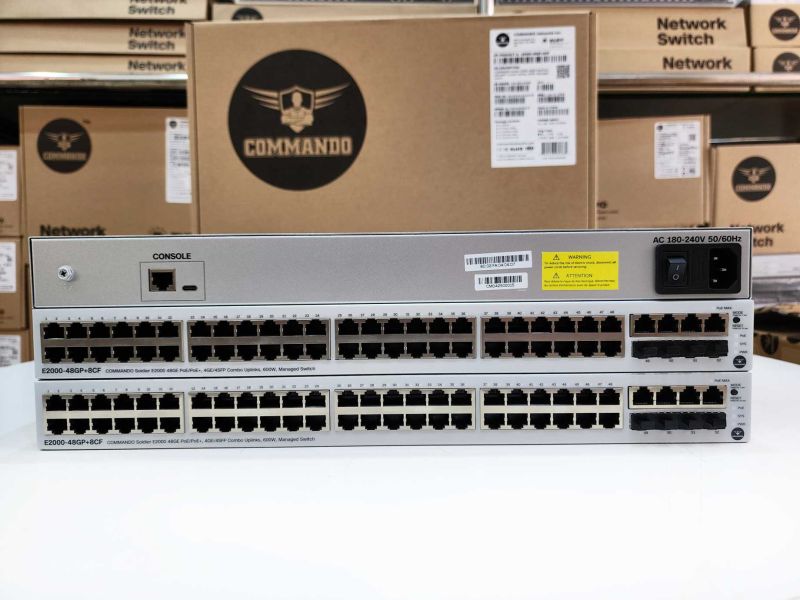

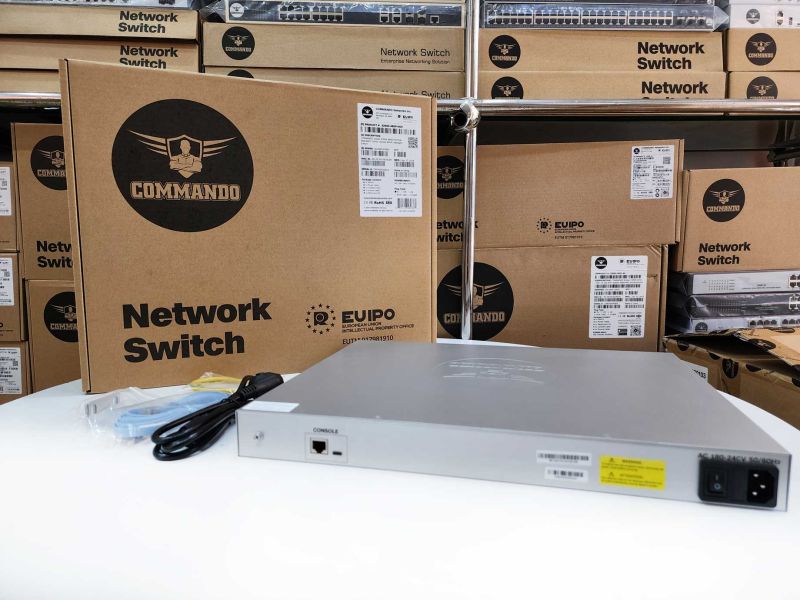

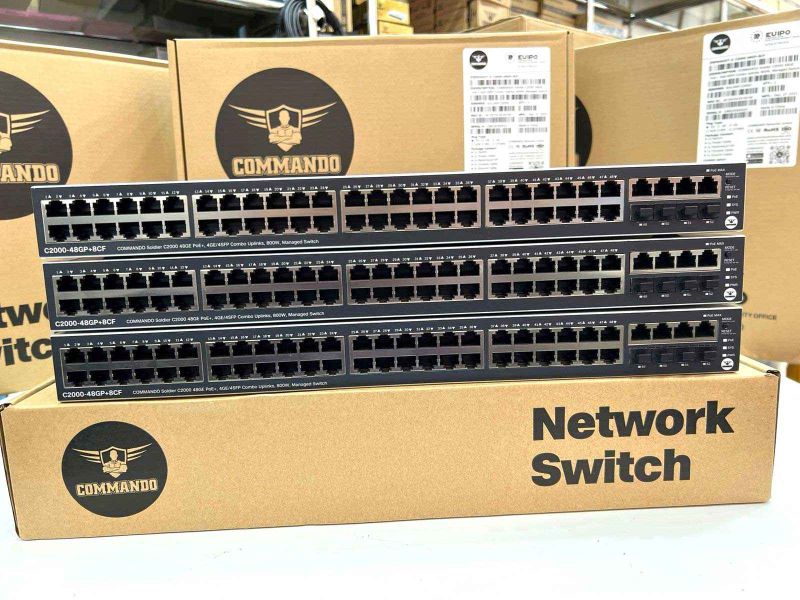

HARDWARE HIGHLIGHTS

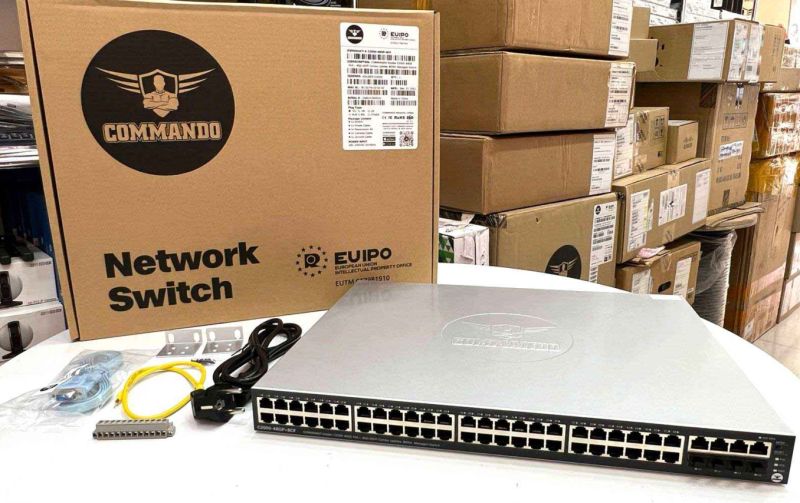

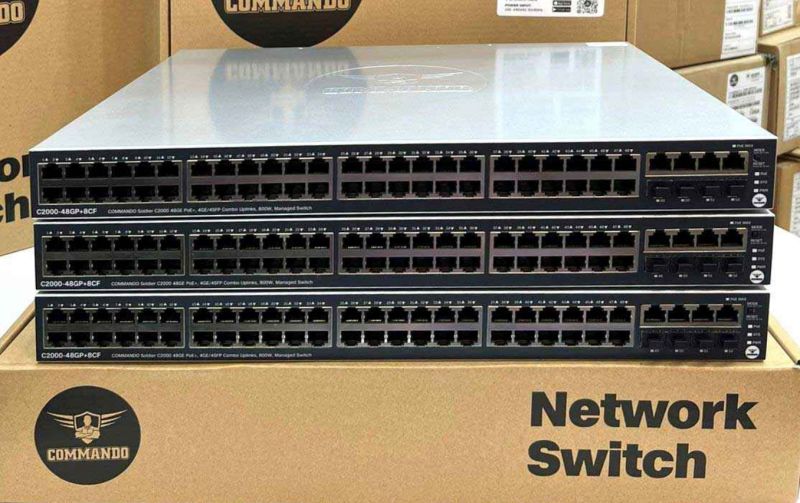

• 48 x 10/100/1000Mbps Ethernet PoE+ ports
• 4 x 10/100/1000Mbps Ethernet / 4 x 1G SFP Combo Uplink ports
• 1 x RJ45 Console port
• 1 x Mini USB Console port
• 1 x USB to Type C Console port (new version)
• 48 x IEEE802.3af 15.4W PoE ports
• 24 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 104 Gbps
• Thunder Protection: 6 KV
• Power: 800W
• 4 Temperature Control Fans
• Power Supply: Dual 1+1 Power Supplies (AC + DC)
• AC: 100240V 50/60Hz, DC: 12V, 6A and 52V, 14A
• AC: 100240V 50/60Hz, DC: 48V, 16.67A (new version)
• SoldierOS L2+ Software Feature Set
• L2+ GigE PoE+ Managed Switch
• 5 Year Extendable Warranty

SOFTWARE HIGHLIGHTS (SoldierOS L2+)

• DHCP Server
• Intelligent PoE Scheduling
• Watchdog Function
• Dual Image
• Automated Traffic Control
• Sflow
• Traffic Segmentation
• MAC Notification

L3 Features:

• L3 Static/Default Route
• Gratuitous ARP
• IPv6

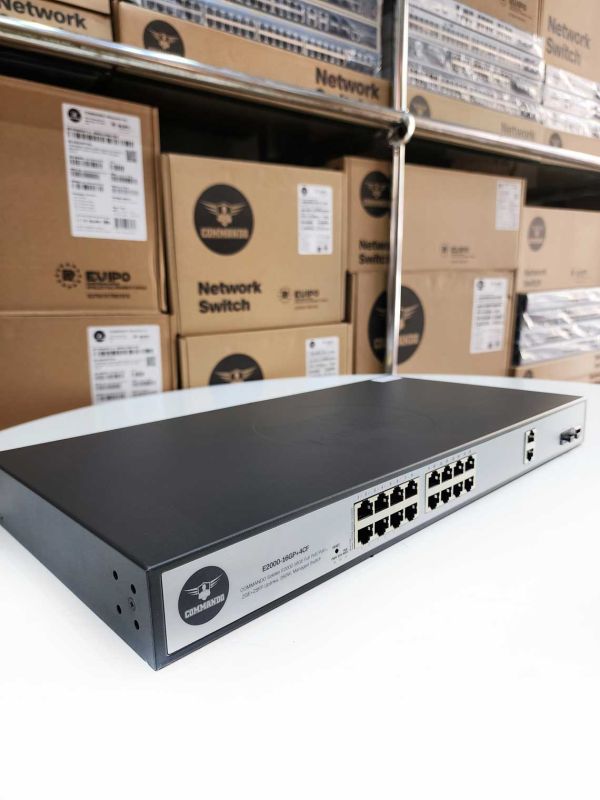

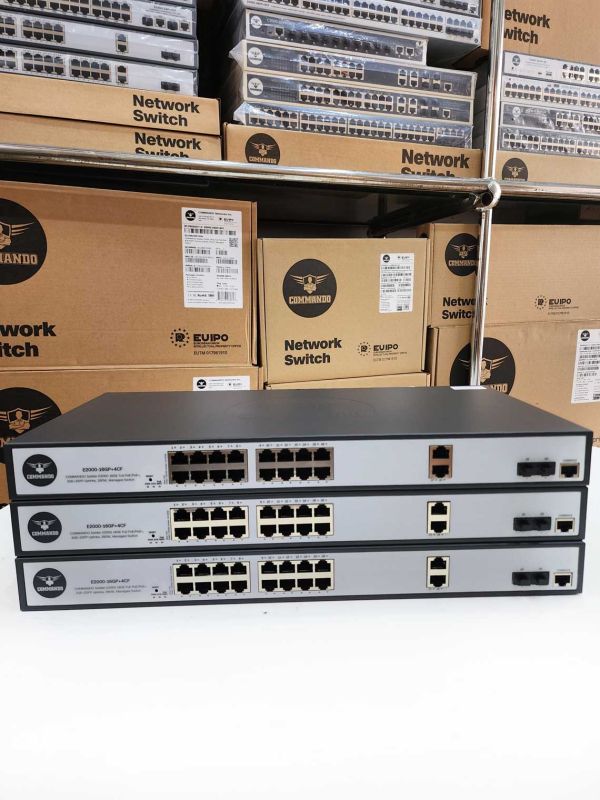

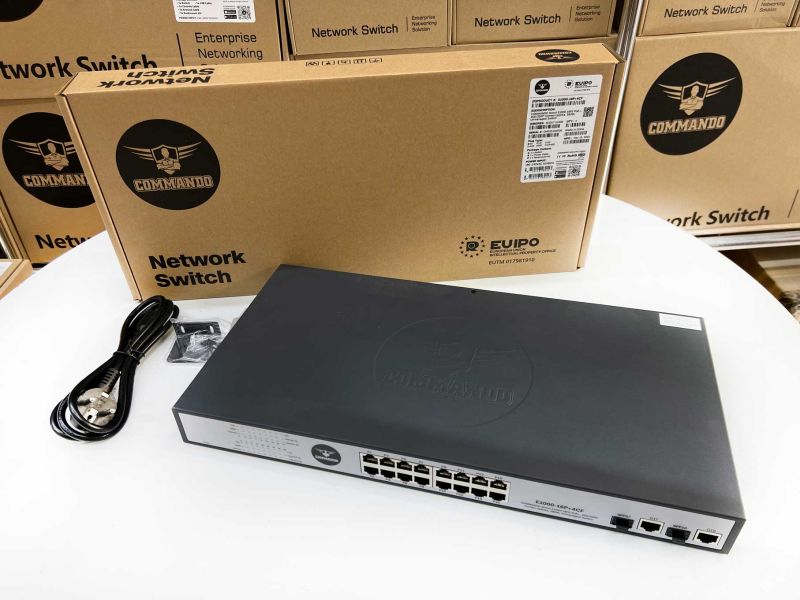

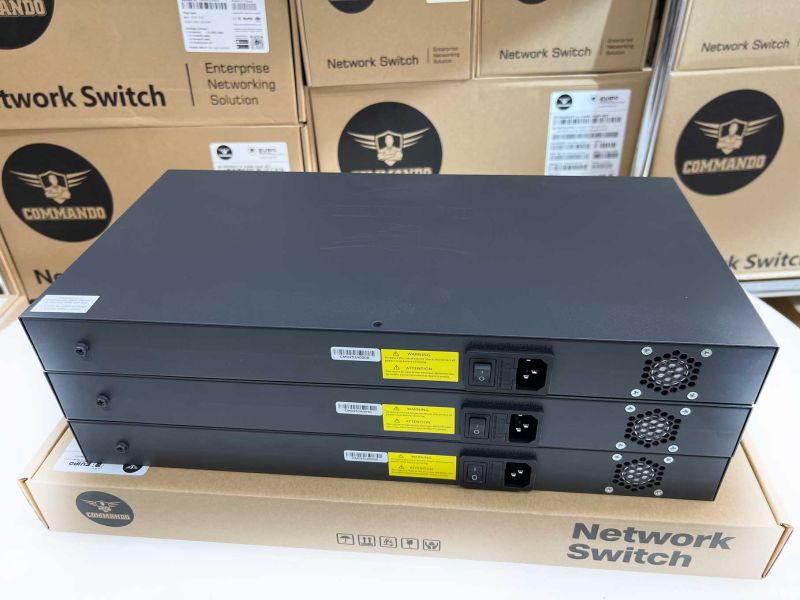

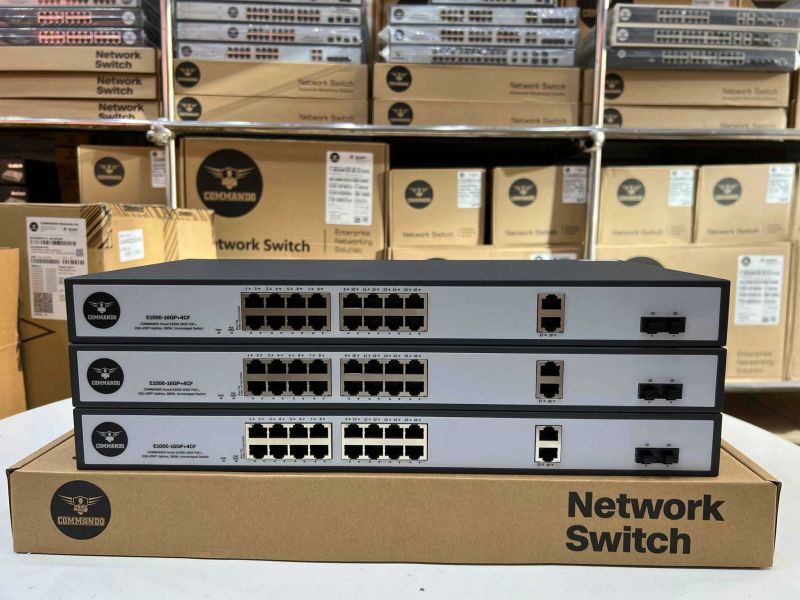

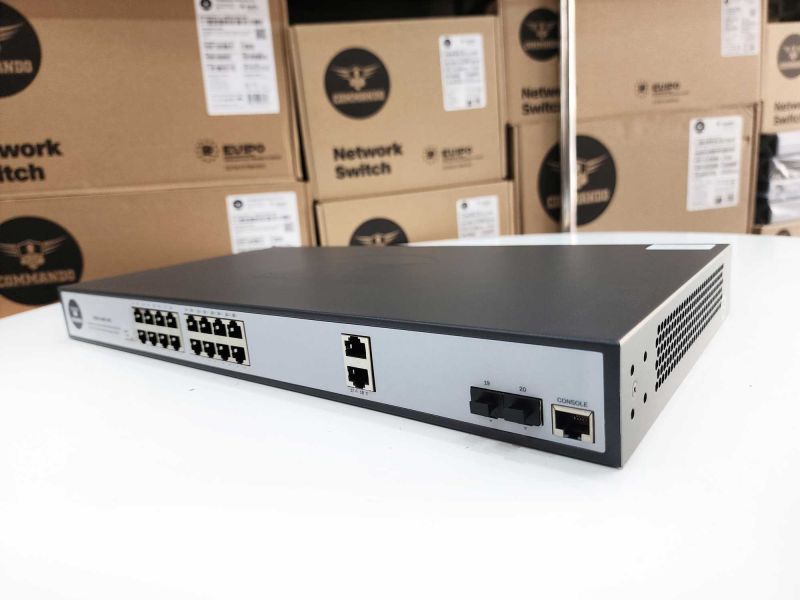

HARDWARE HIGHLIGHTS

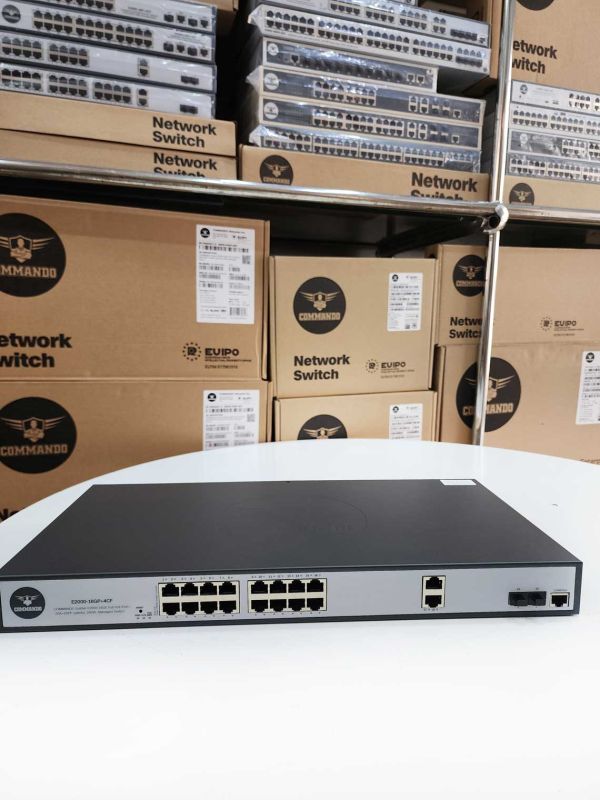

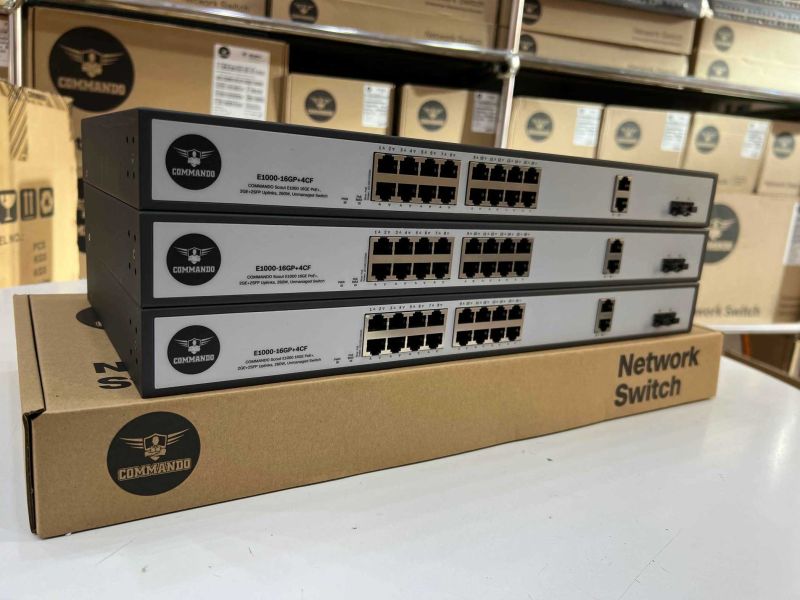

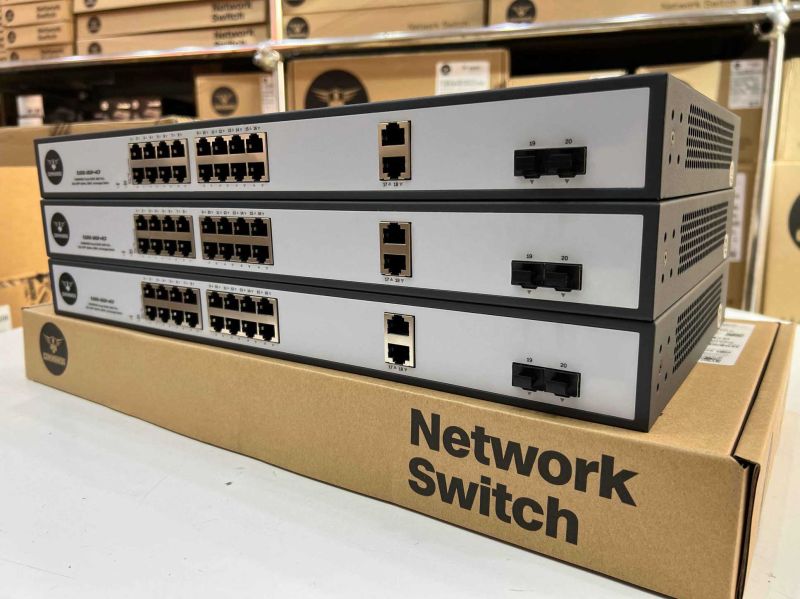

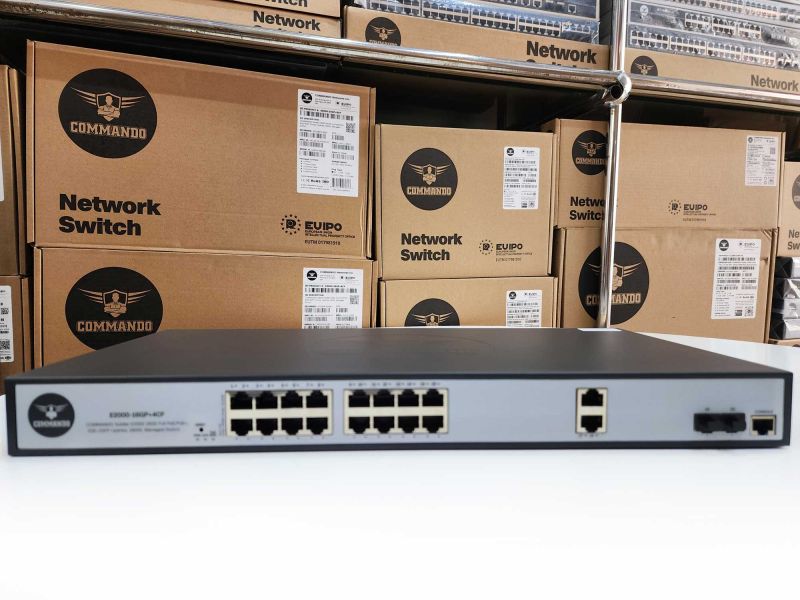

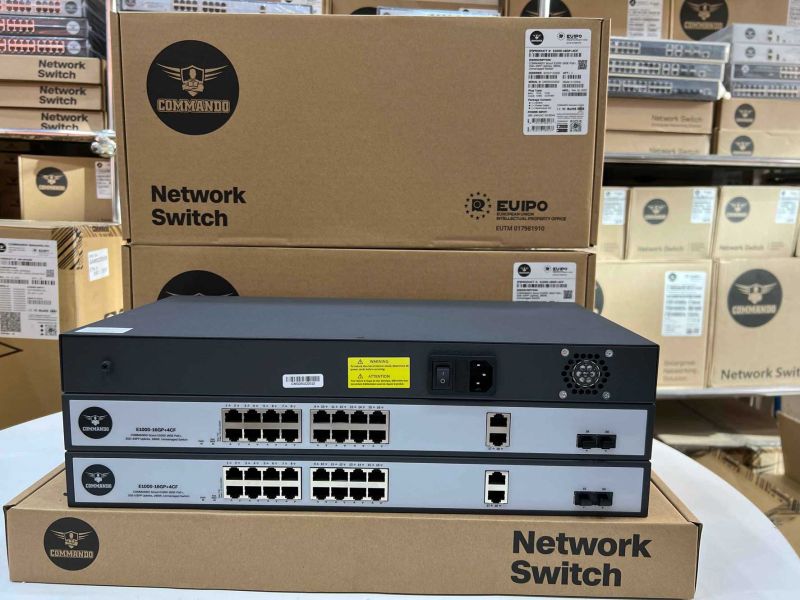

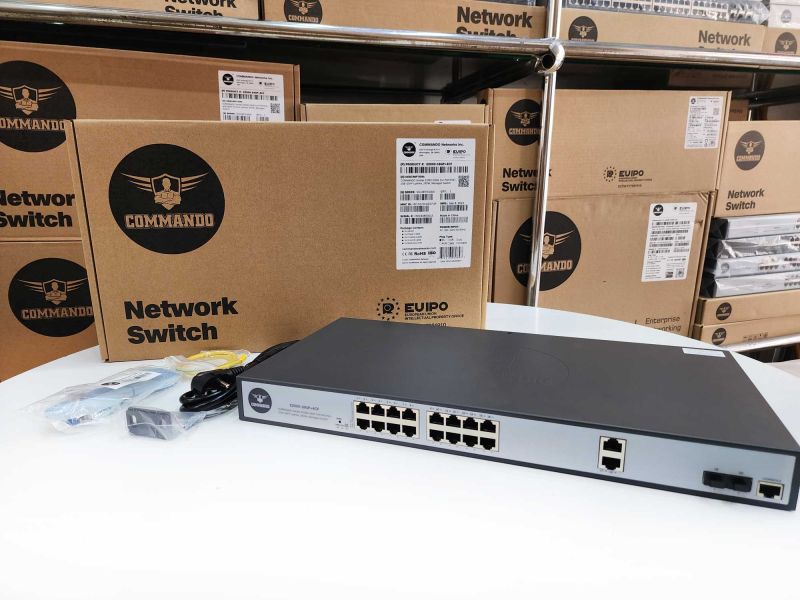

• 16 x 10/100/1000Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
• 1 x RJ45 Console port
• 16 x IEEE802.3af 15.4W PoE ports
• 8 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 40 Gbps
• Thunder Protection: 4 KV
• Power: 260W
• 1 Temperature Control Fan
• Power Supply: AC
• AC: 180240V 50/60Hz
• SoldierOS L2+ Software Feature Set
• L2+ GigE PoE+ Managed Switch
• 3 Year Extendable Warranty

SOFTWARE HIGHLIGHTS (SoldierOS L2+)

• DHCP Server
• Intelligent PoE Scheduling
• Watchdog Function
• Dual Image
• Automated Traffic Control
• Sflow
• Traffic Segmentation
• MAC Notification

L3 Features:

• L3 Static/Default Route
• Gratuitous ARP
• IPv6

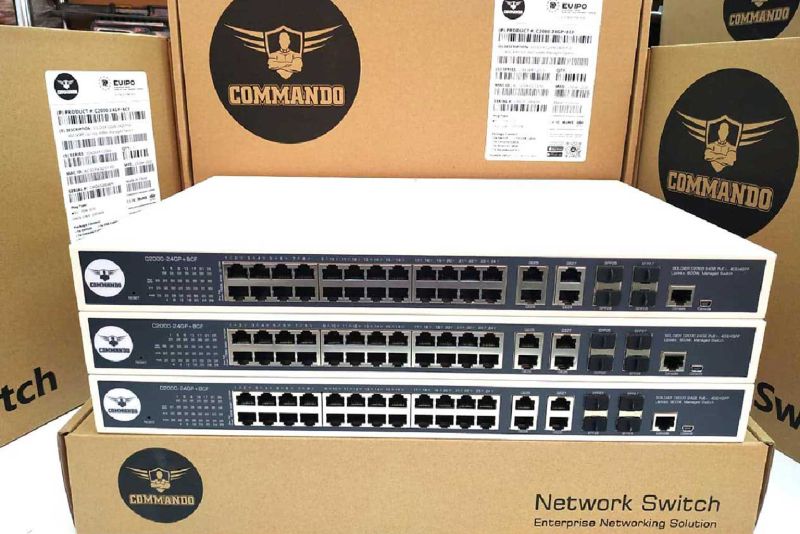

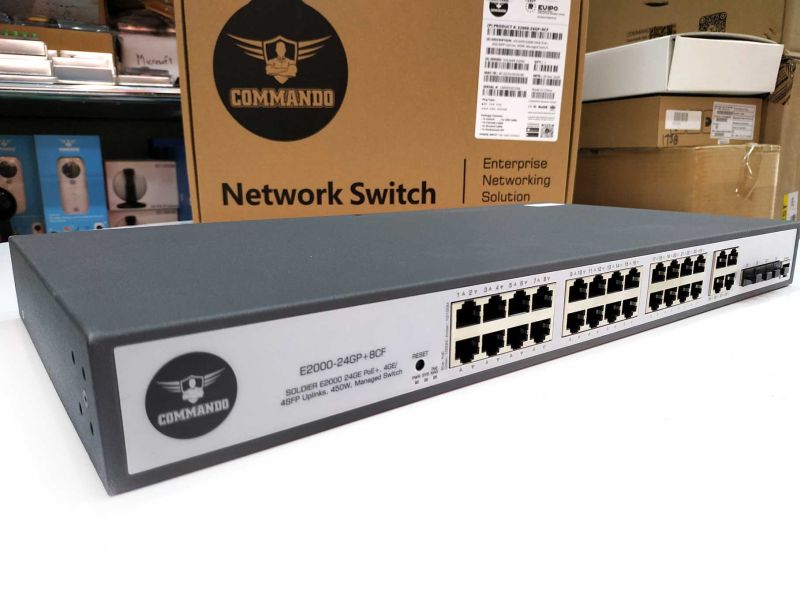

HARDWARE HIGHLIGHTS

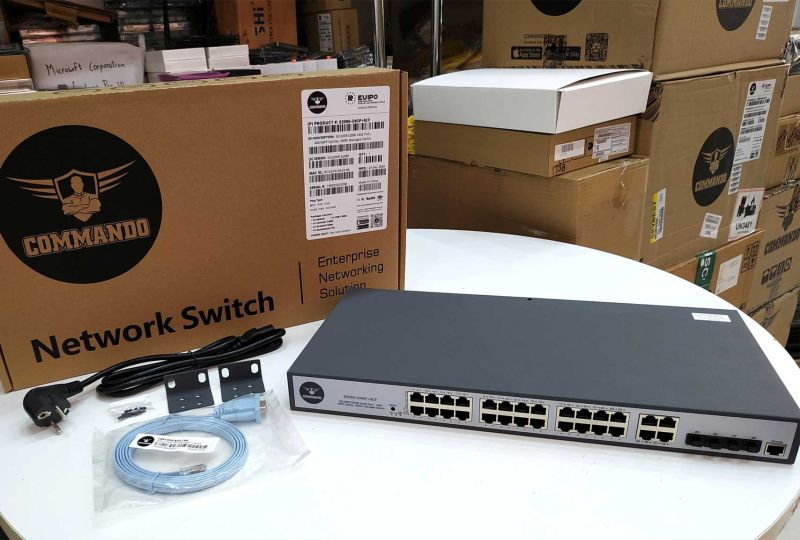

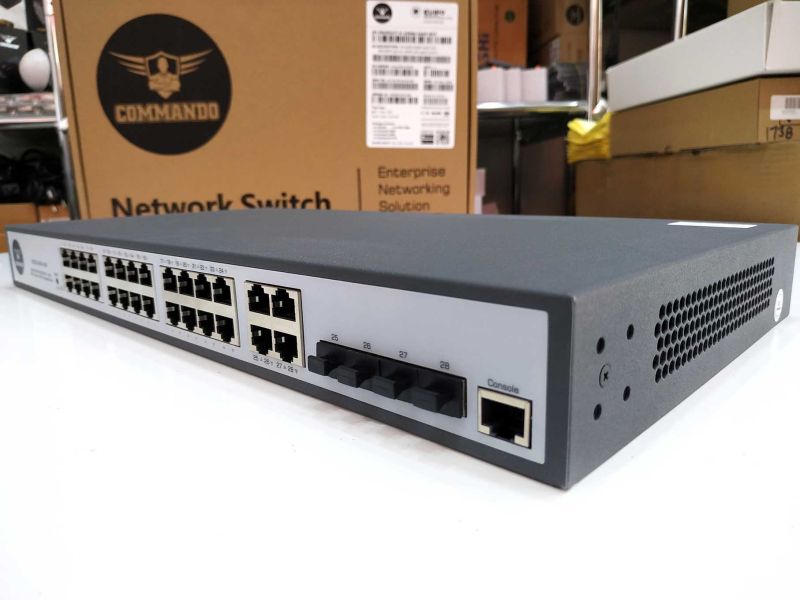

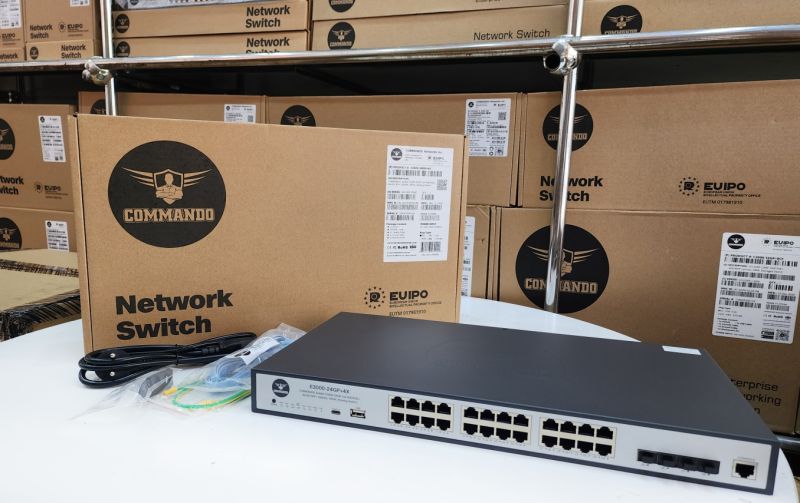

• 24 x 10/100/1000Mbps Ethernet PoE+ ports
• 4 x 10/100/1000Mbps Ethernet / 4 x 1G SFP Uplink ports
• 1 x RJ45 Console port
• 24 x IEEE802.3af 15.4W PoE ports
• 12 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 56 Gbps
• Thunder Protection: 4 KV
• Power: 450W
• 1 Temperature Control Fan
• Power Supply: AC
• AC: 180240V 50/60Hz
• SoldierOS L2+ Software Feature Set
• L2+GigE PoE+ Managed Switch
• 3 Year Extendable Warranty

SOFTWARE HIGHLIGHTS (SoldierOS L2+)

• DHCP Server
• Intelligent PoE Scheduling
• Watchdog Function
• Dual Image
• Automated Traffic Control
• Sflow
• Traffic Segmentation
• MAC Notification

L3 Features:

• L3 Static/Default Route
• Gratuitous ARP
• IPv6

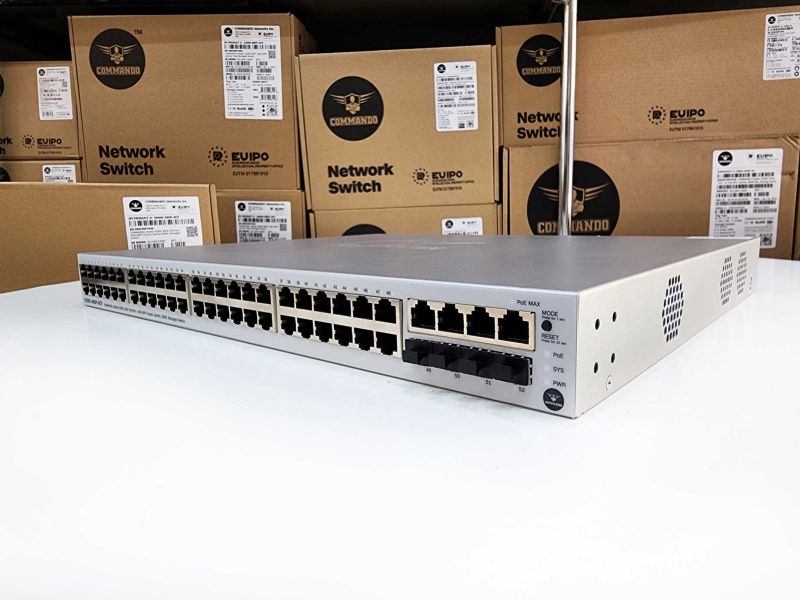

HARDWARE HIGHLIGHTS

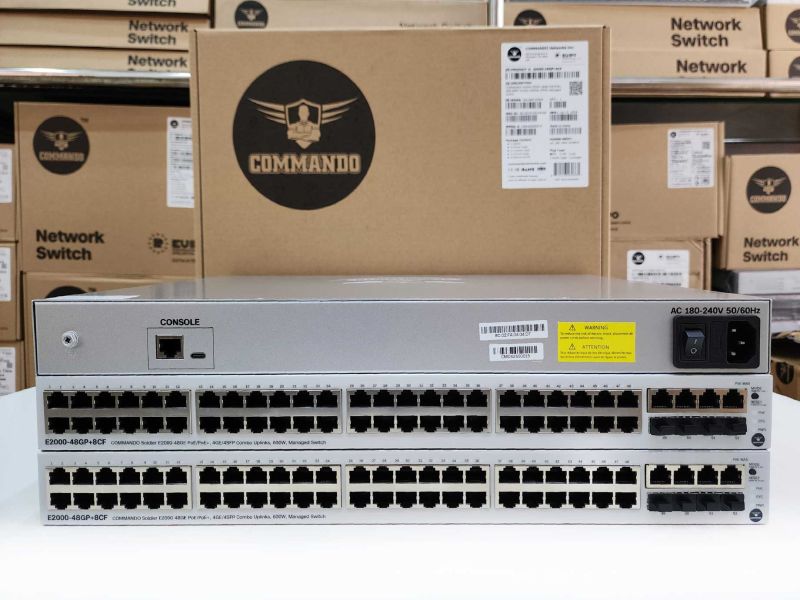

• 48 x 10/100/1000Mbps Ethernet PoE+ ports
• 4 x 10/100/1000Mbps Ethernet / 4 x 1G SFP Uplink ports
• 1 x RJ45 Console port
• 38 x IEEE802.3af 15.4W PoE ports
• 18 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 104 Gbps
• Thunder Protection: 4 KV
• Power: 600W
• 3 Temperature Control Fans
• Power Supply: AC
• AC: 180240V 50/60Hz
• SoldierOS L2+ Software Feature Set
• L2+ GigE PoE+ Managed Switch
• 3 Year Extendable Warranty

SOFTWARE HIGHLIGHTS (SoldierOS L2+)

• DHCP Server
• Intelligent PoE Scheduling
• Watchdog Function
• Dual Image
• Automated Traffic Control
• Sflow
• Traffic Segmentation
• MAC Notification

L3 Features:

• L3 Static/Default Route
• Gratuitous ARP
• IPv6

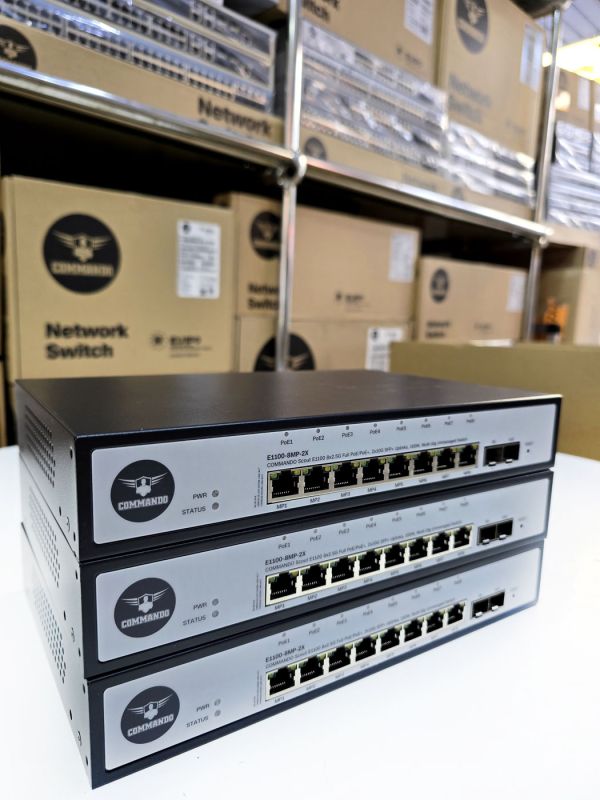

HARDWARE HIGHLIGHTS

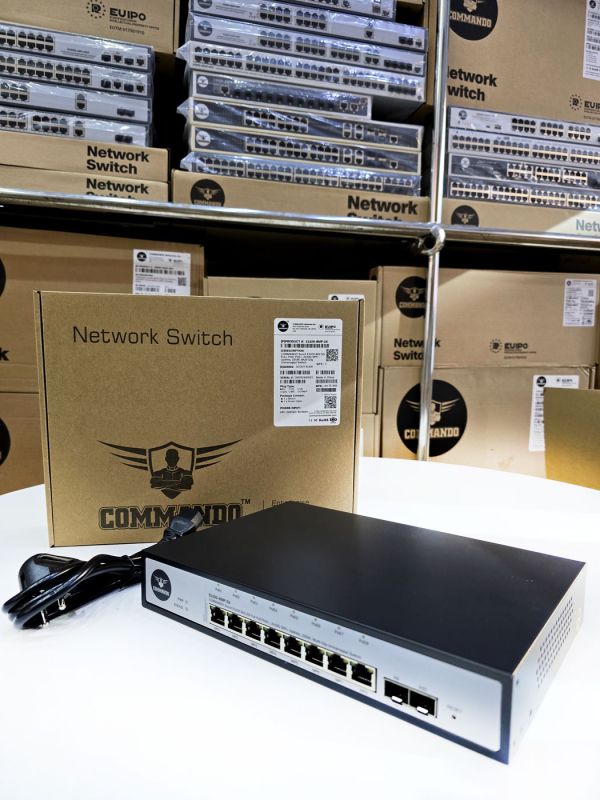

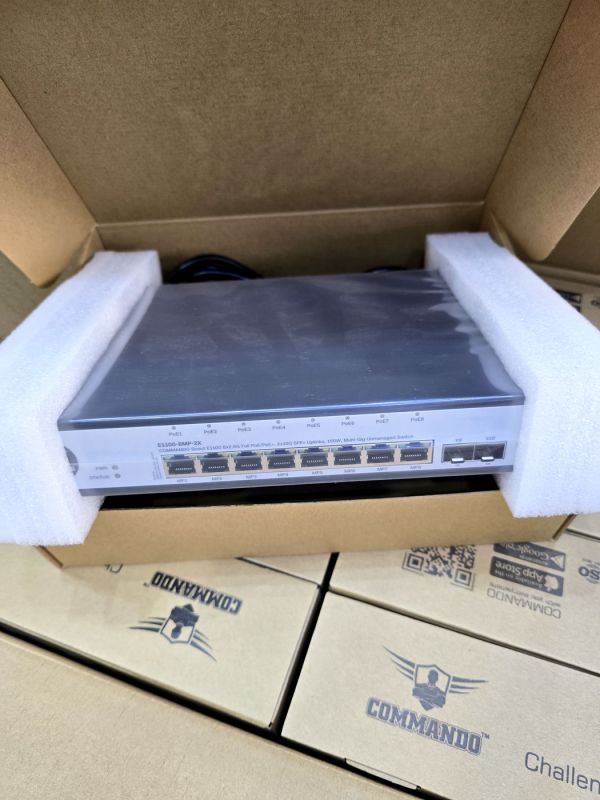

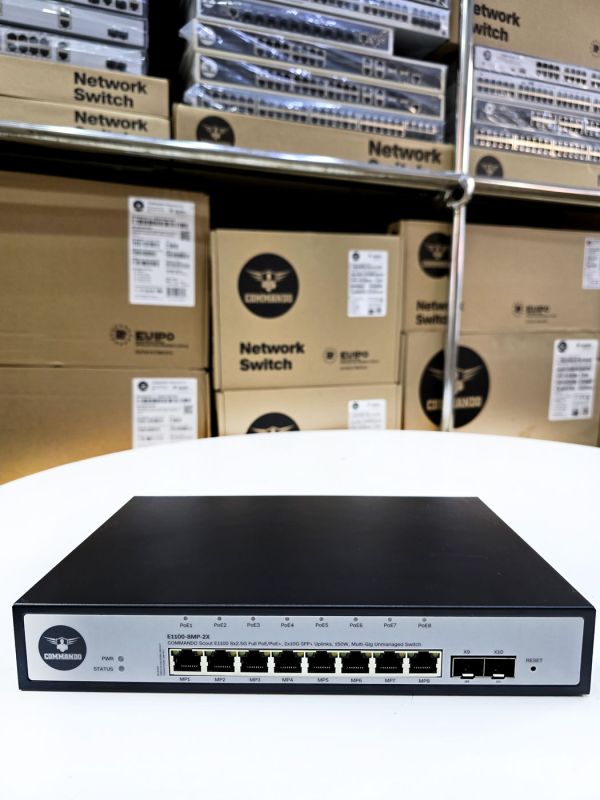

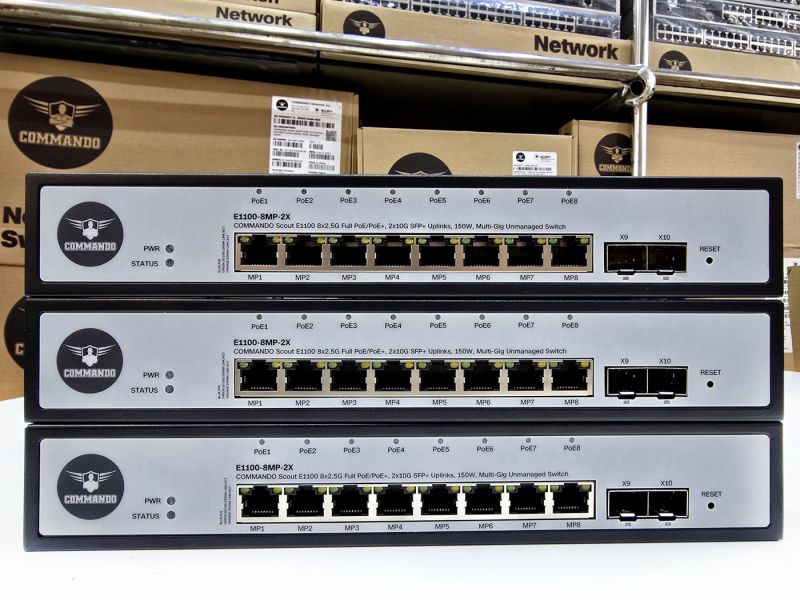

• 8 x 10/100/1000/2500Mbps Ethernet Full PoE/PoE+ ports
• 2 x 10G SFP+ Uplink ports
• 8 x IEEE802.3af 15.4W PoE ports
• 4 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 80 Gbps
• Thunder Protection: 4 KV
• Power: 150W
• Power Supply: AC
• AC: 180240V 50/60Hz
• 2.5G Multi-Gig PoE+ w/ 10G Uplink Unmanaged Switch
• 3 Year Extendable Warranty

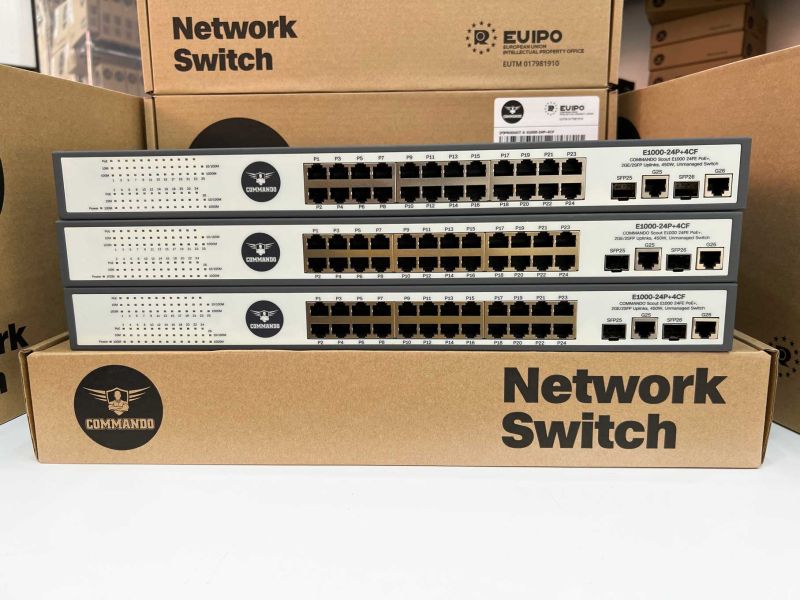

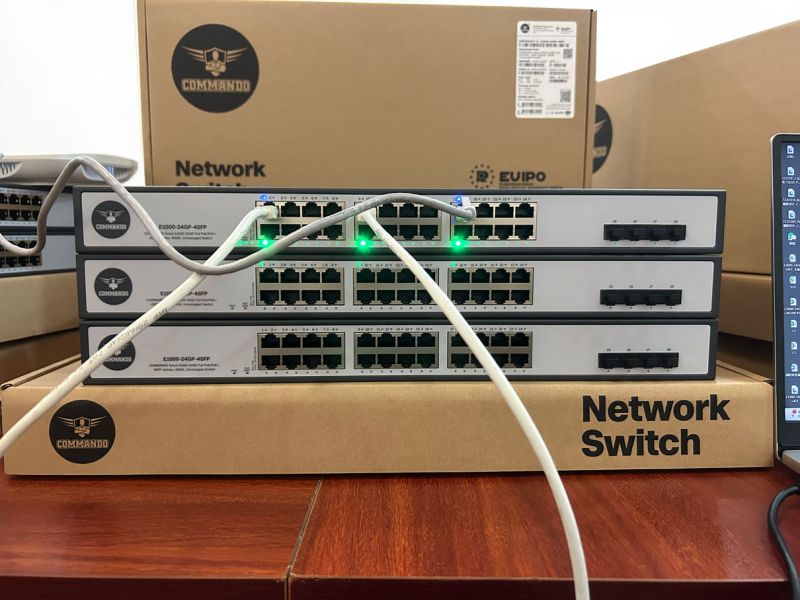

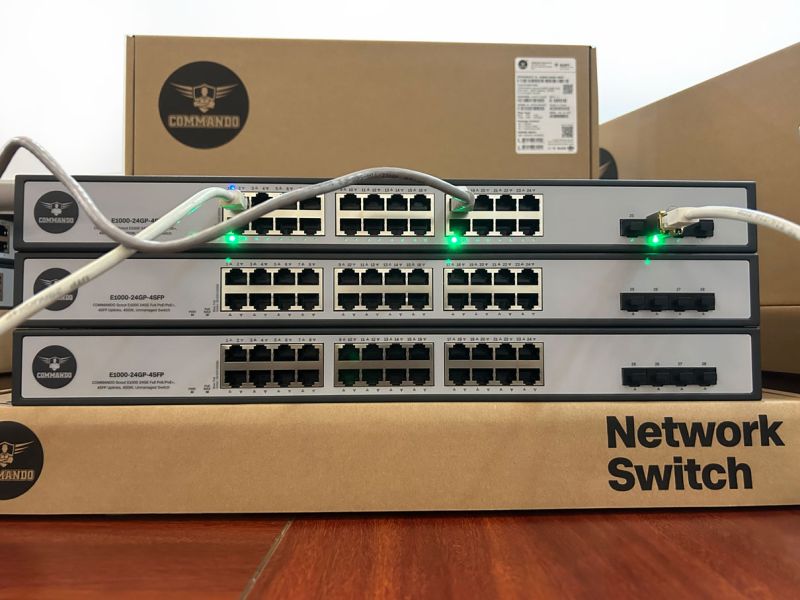

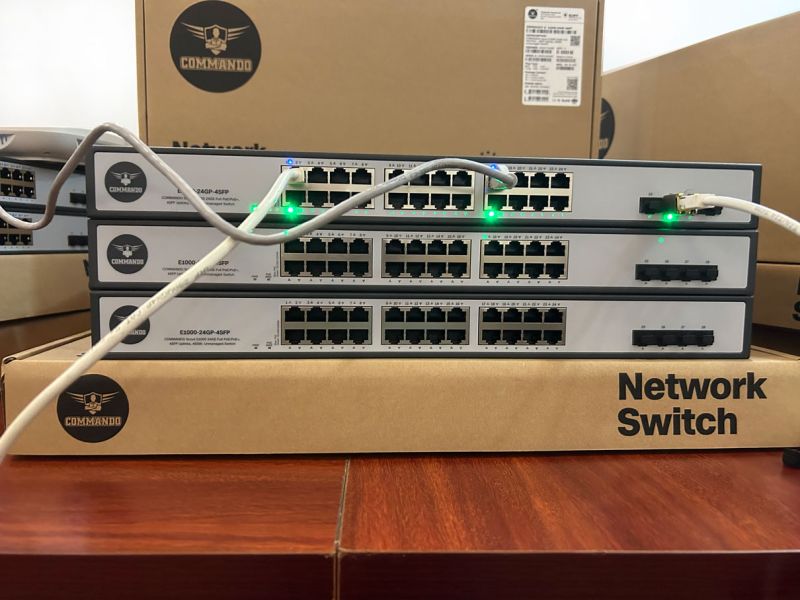

HARDWARE HIGHLIGHTS

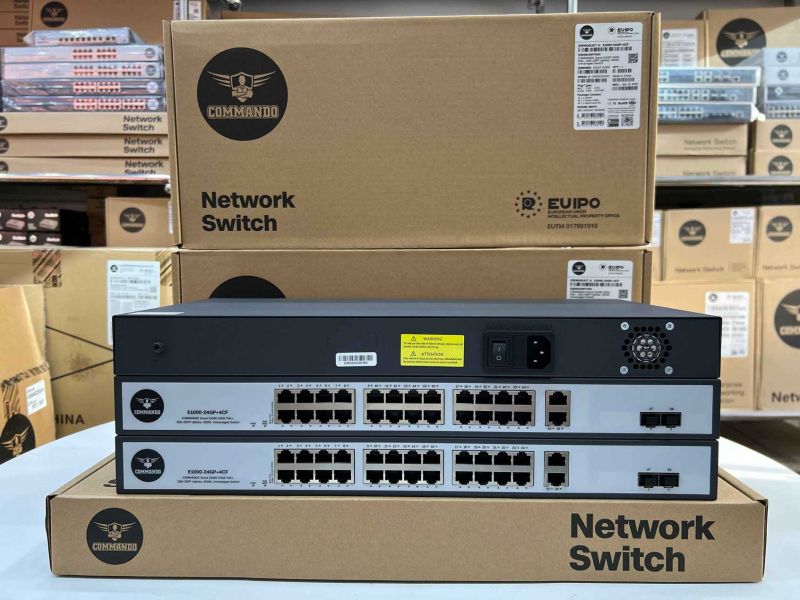

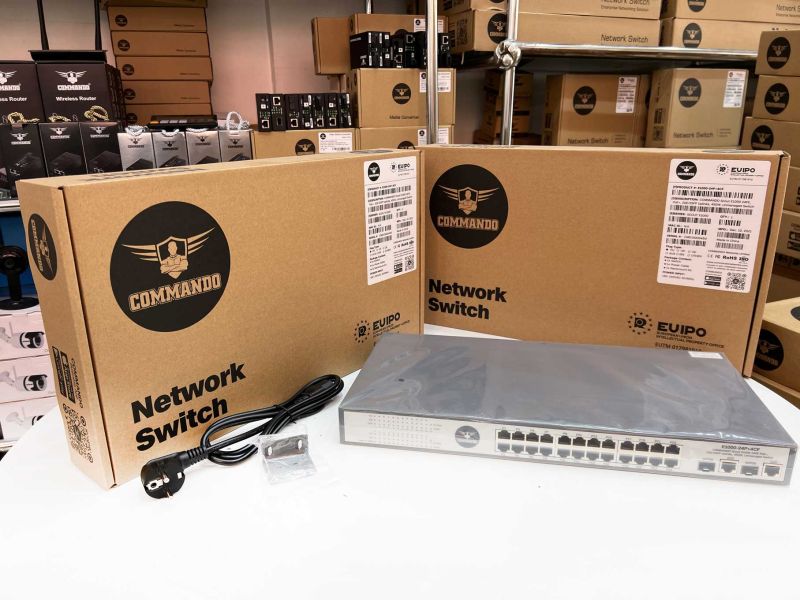

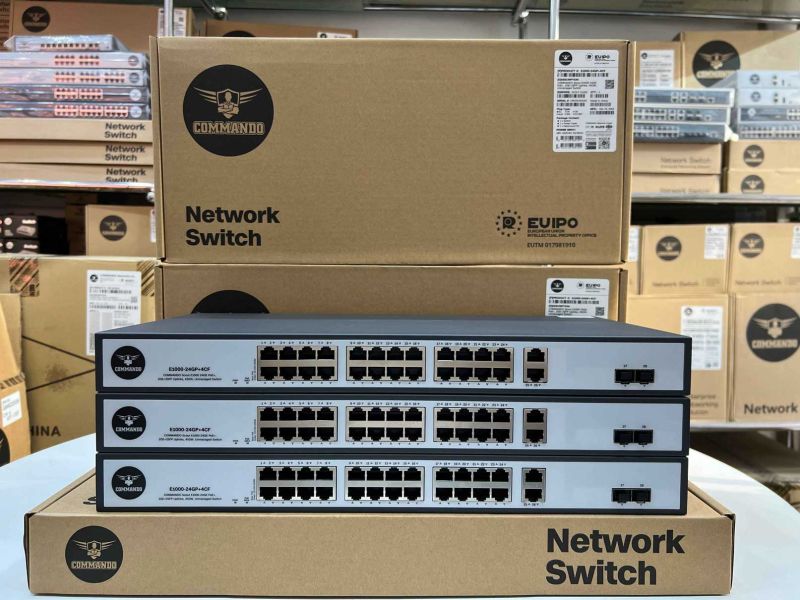

• 24 x 10/100/1000Mbps Ethernet PoE+ ports
• 4 x 1G SFP Uplink ports
• 24 x IEEE802.3af 15.4W PoE ports
• 12 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 56 Gbps
• Thunder Protection: 4 KV
• Power: 450W
• 1 Fan
• Power Supply: AC
• AC: 180240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 3 Year Extendable Warranty

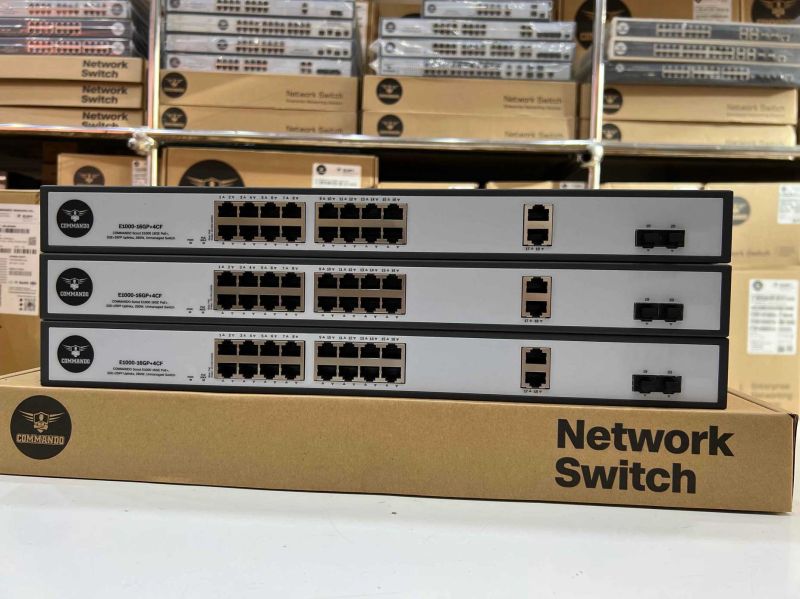

HARDWARE HIGHLIGHTS

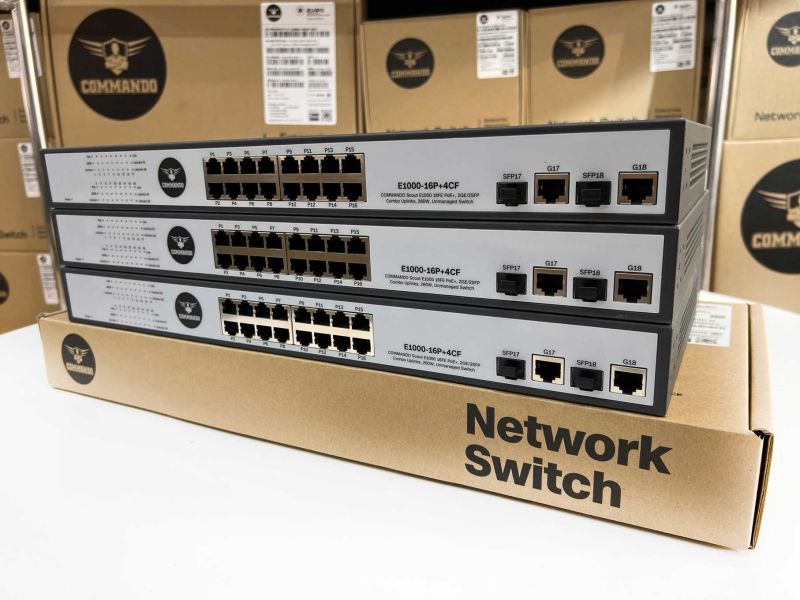

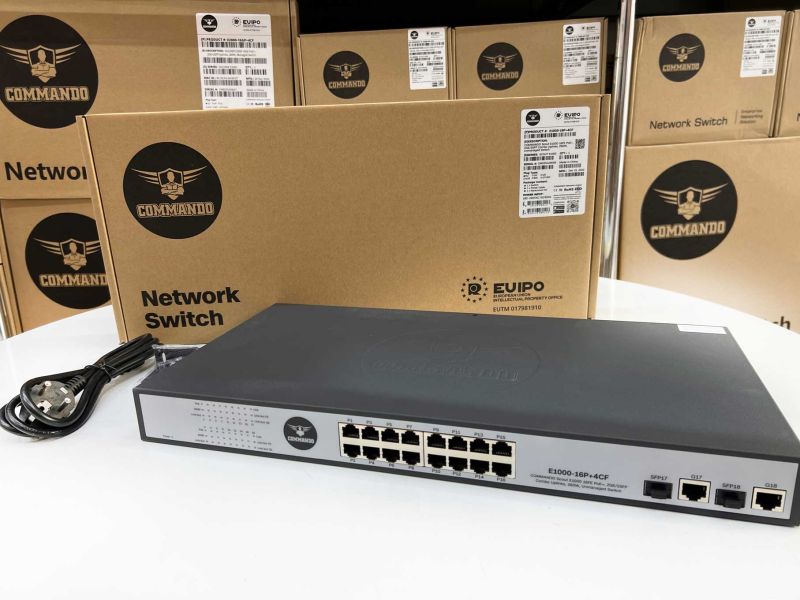

• 16 x 10/100Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet / 2 x 1G SFP Combo Uplink ports
• 16 x IEEE802.3af 15.4W PoE ports
• 8 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 7.2 Gbps
• Thunder Protection: 4 KV
• Power: 260W
• 1 Fan
• Power Supply: AC
• AC: 180240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 3 Year Extendable Warranty

HARDWARE HIGHLIGHTS

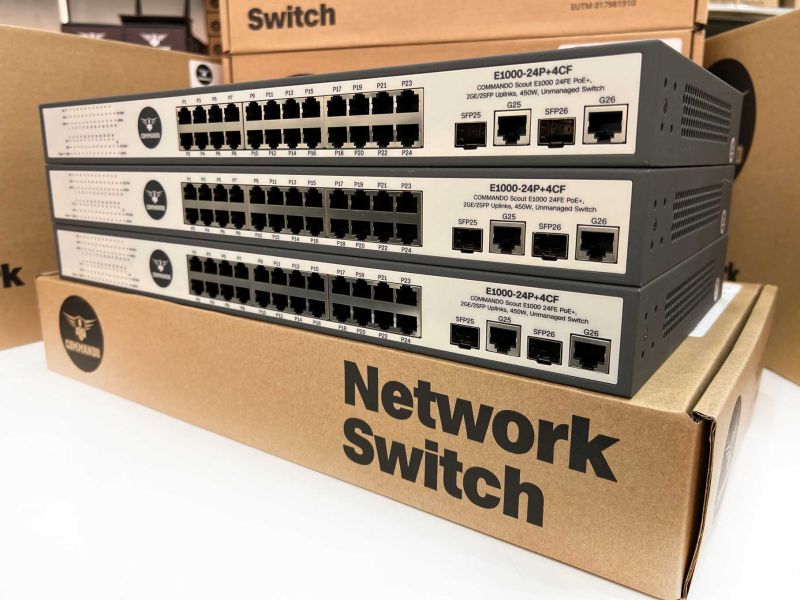

• 24 x 10/100Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet / 2 x 1G SFP Combo Uplink ports
• 16 x IEEE802.3af 15.4W PoE ports
• 8 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 8.8 Gbps
• Thunder Protection: 4 KV
• Power: 450W
• 1 Fan
• Power Supply: AC
• AC: 180240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 3 Year Extendable Warranty

HARDWARE HIGHLIGHTS

• 24 x 10/100/1000Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
• 24 x IEEE802.3af 15.4W PoE ports
• 12 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 56 Gbps
• Thunder Protection: 4 KV
• Power: 450W
• 1 Fan
• Power Supply: AC
• AC: 180240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 3 Year Extendable Warranty

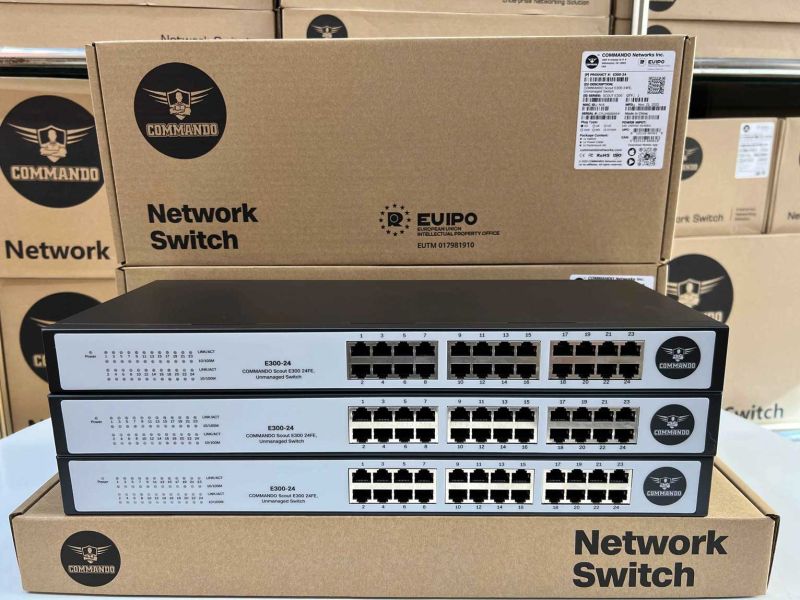

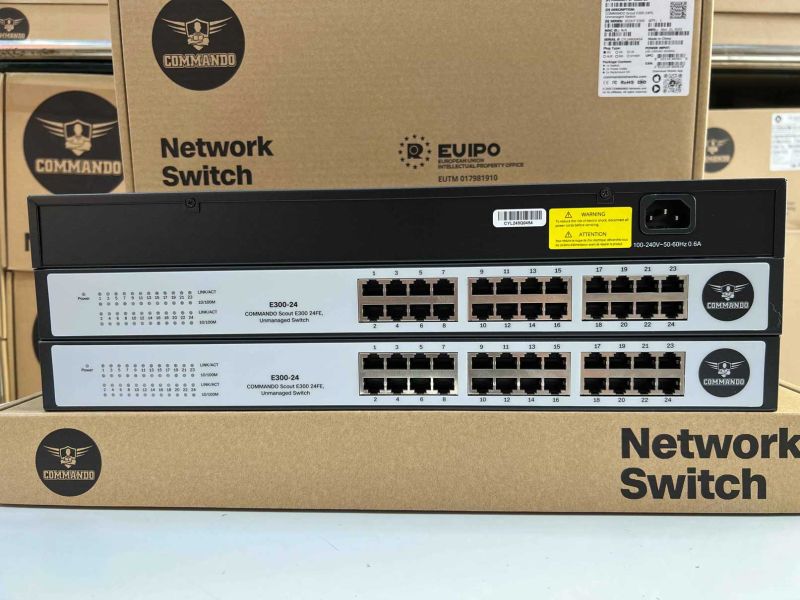

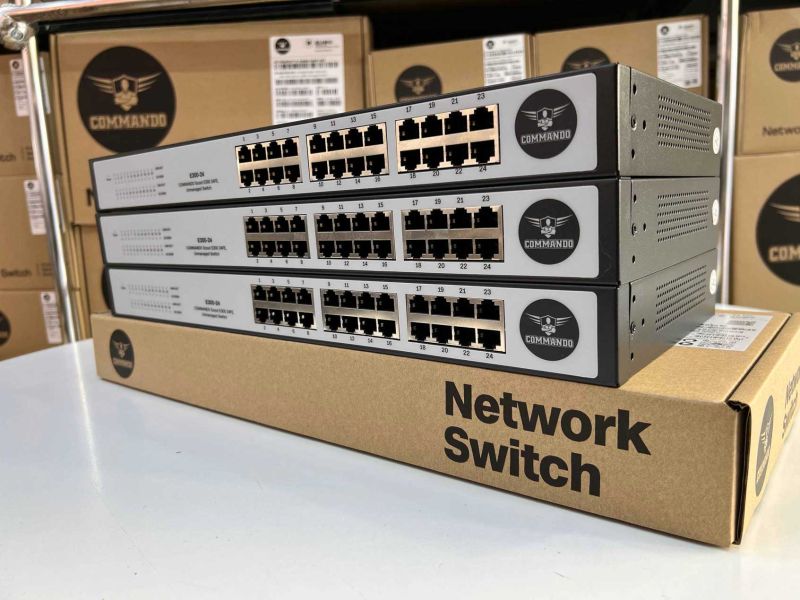

hardware highlights

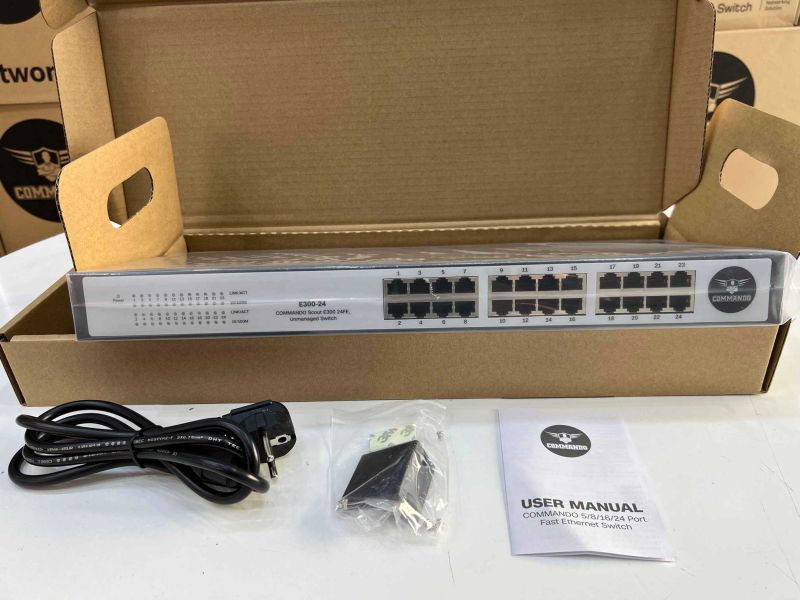

• 24 x 10/100mbps ethernet ports
• switching capacity: 4.8 gbps
• thunder protection: 2 kv
• power: 12w
• power supply: ac
• ac: 100240v 50/60hz
• fast ethernet unmanaged switch
• 1 year warranty

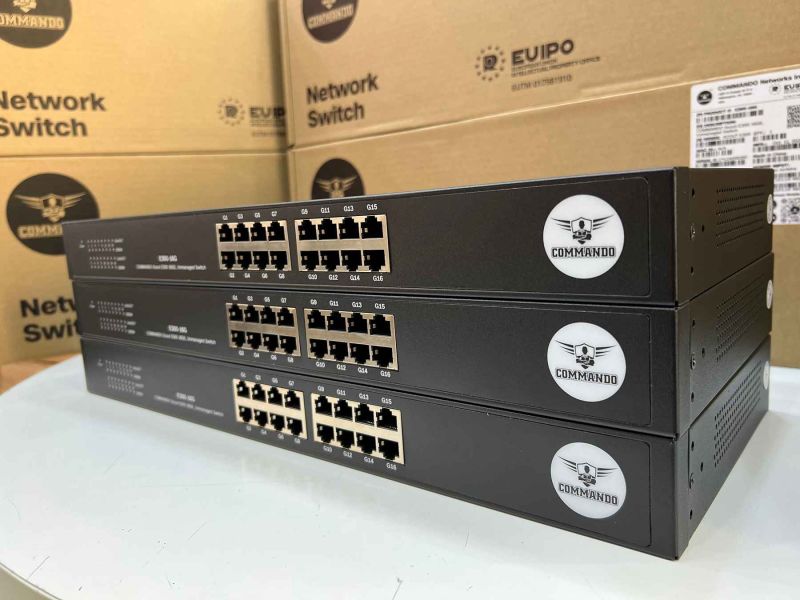

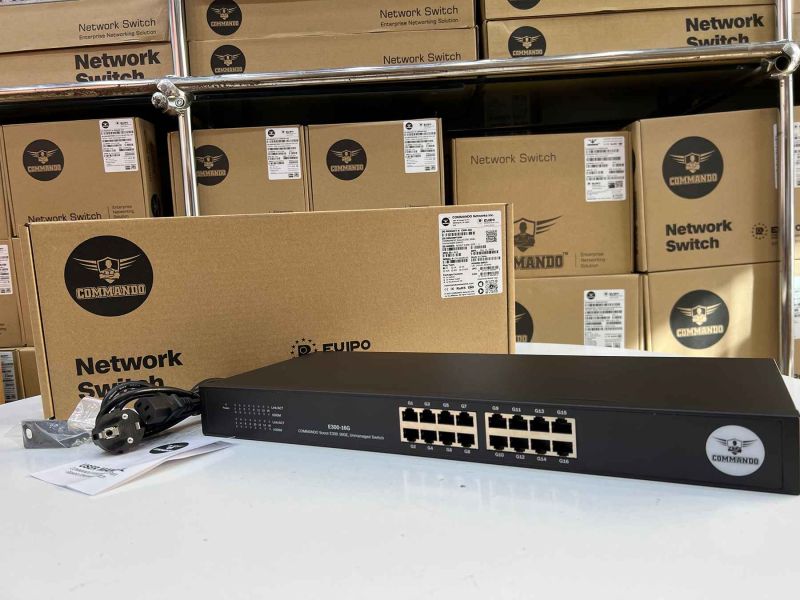

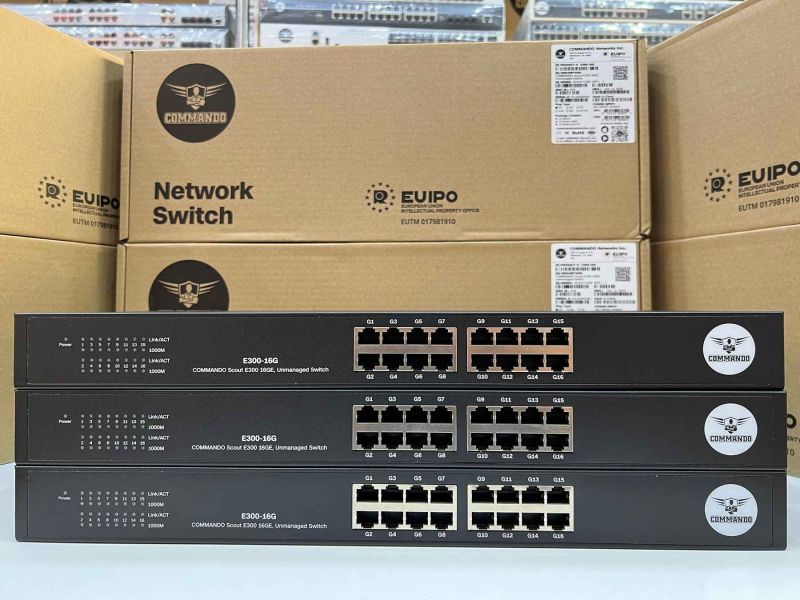

HARDWARE HIGHLIGHTS

• 16 x 10/100/1000Mbps Ethernet ports
• Switching Capacity: 32 Gbps
• Thunder Protection: 2 KV
• Power: 24W
• Power Supply: AC
• AC: 100240V 50/60Hz
• Gigabit Unmanaged Switch
• 1 Year Warranty

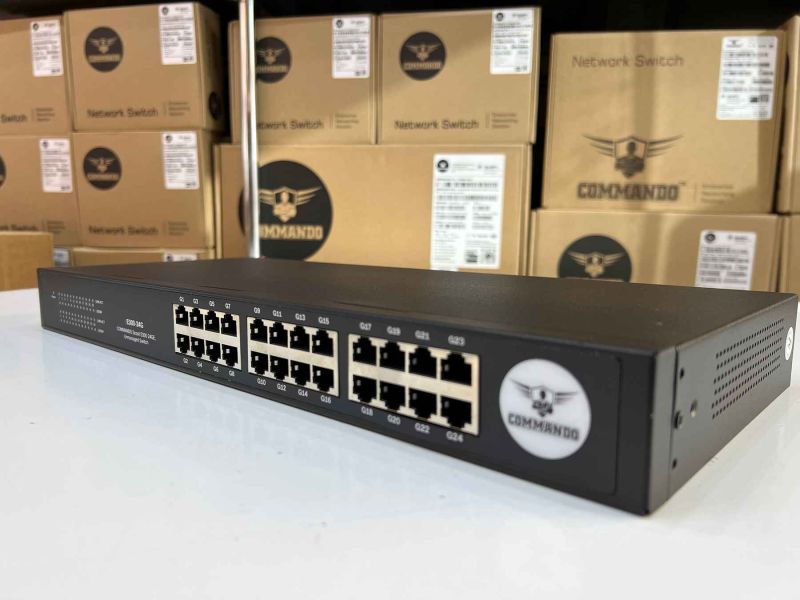

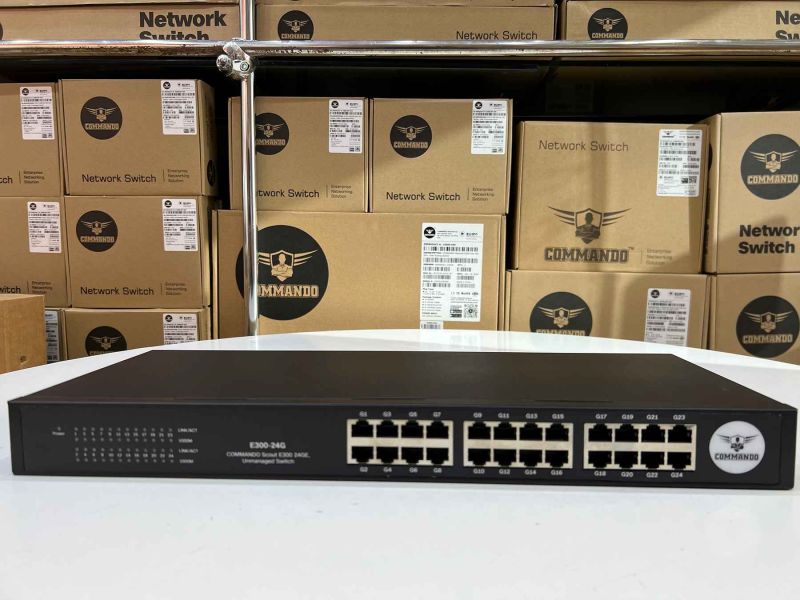

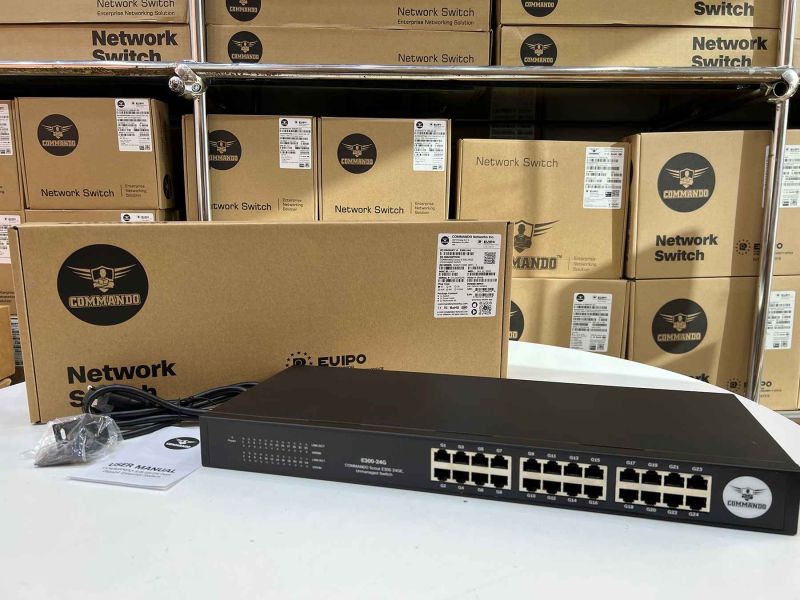

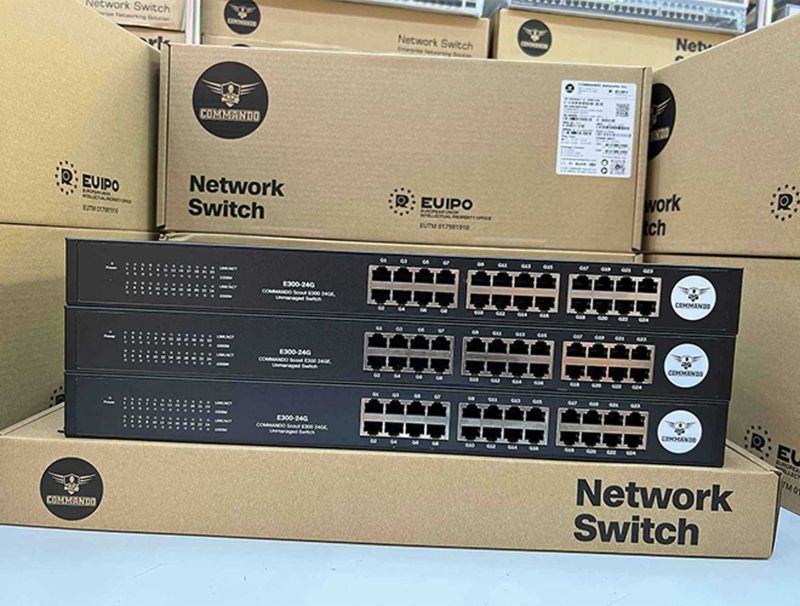

HARDWARE HIGHLIGHTS

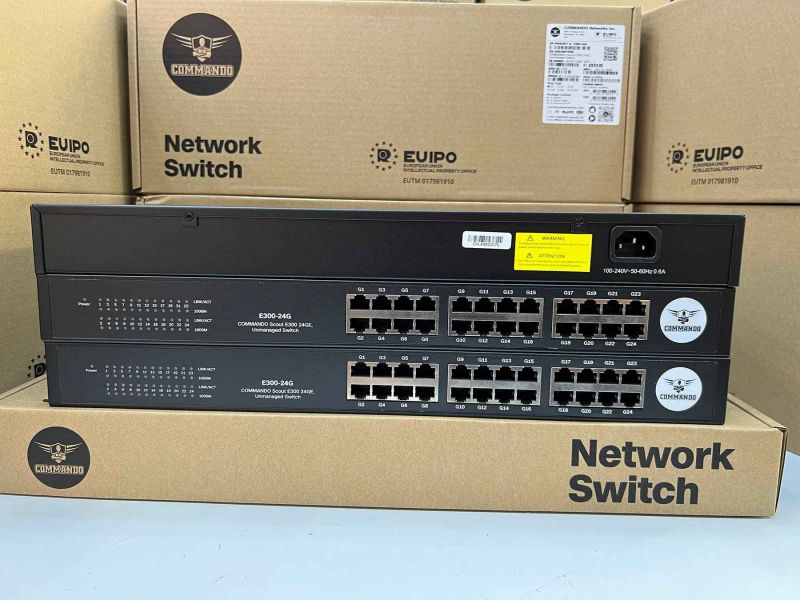

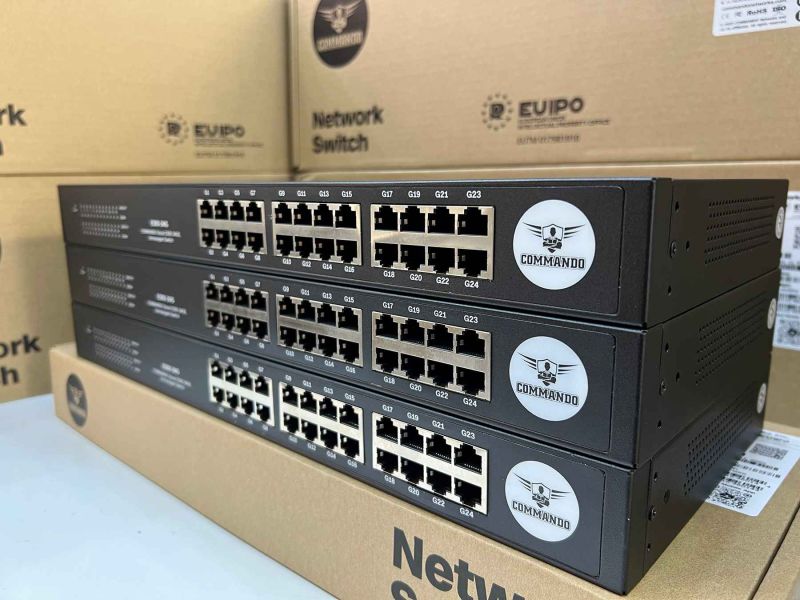

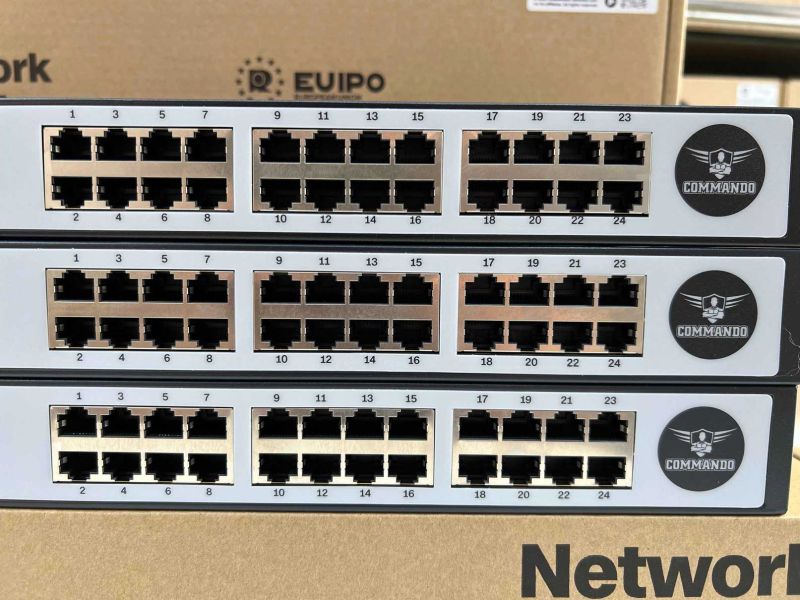

• 24 x 10/100/1000Mbps Ethernet ports
• Switching Capacity: 48 Gbps
• Thunder Protection: 2 KV
• Power: 24W
• Power Supply: AC
• AC: 100240V 50/60Hz
• Gigabit Unmanaged Switch
• 1 Year Warranty

HARDWARE HIGHLIGHTS

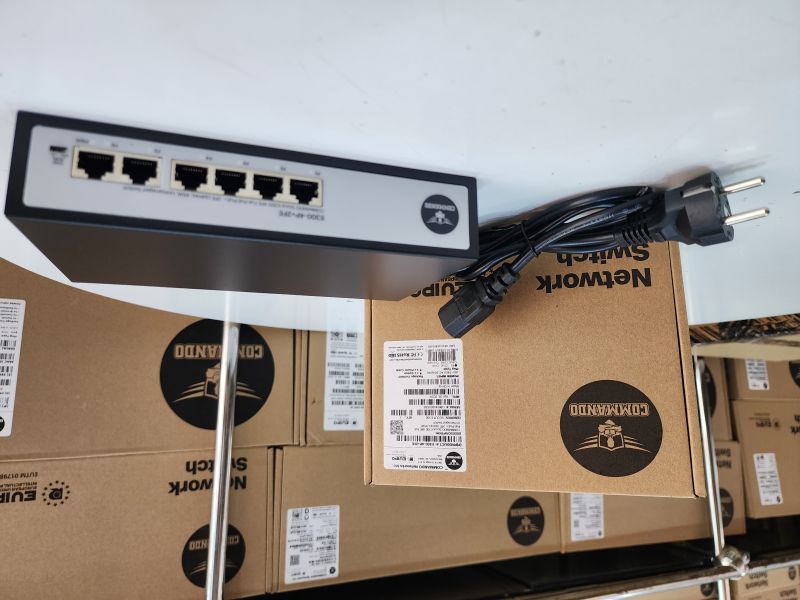

• 4 x 10/100Mbps Ethernet PoE+ ports
• 2 x 10/100Mbps Ethernet Uplink ports
• 4 x IEEE802.3af 15.4W PoE ports
• 2 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 1.2 Gbps
• Thunder Protection: 4 KV
• Power: 65W
• Power Supply: AC
• AC: 180240V 50/60Hz
• Fast Ethernet PoE+ Unmanaged Switch
• 1 Year Extendable Warranty

HARDWARE HIGHLIGHTS

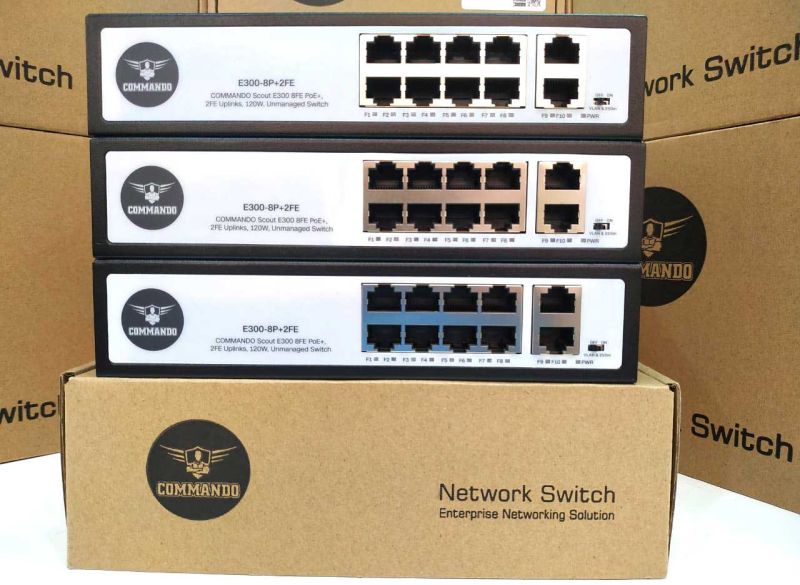

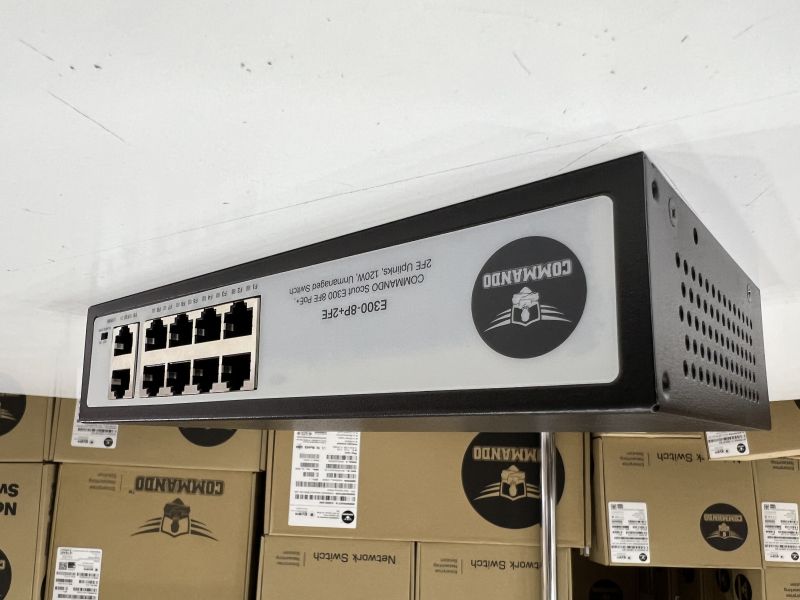

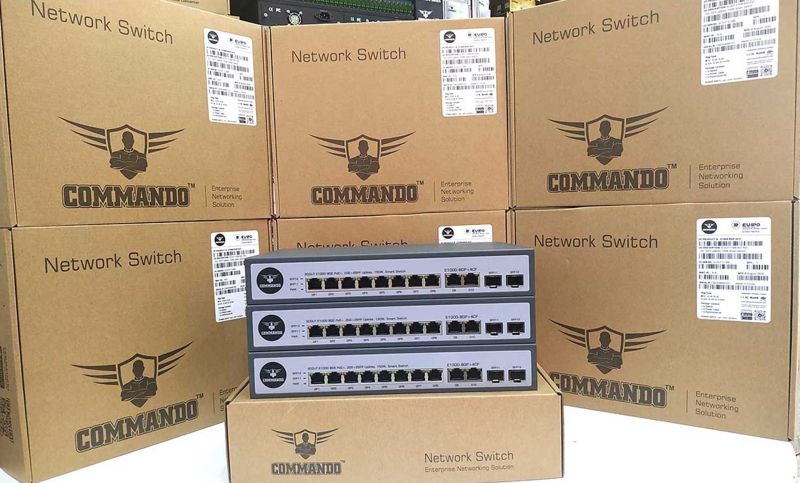

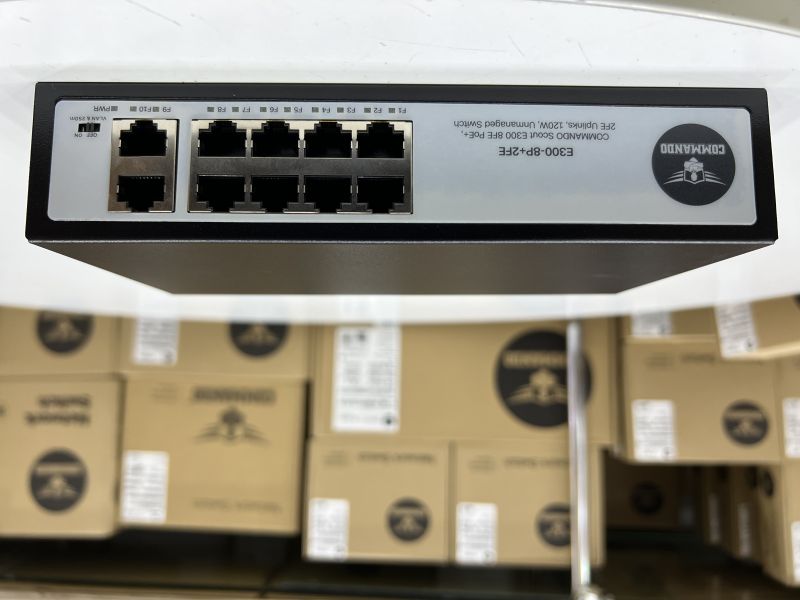

• 8 x 10/100Mbps Ethernet PoE+ ports
• 2 x 10/100Mbps Ethernet Uplink ports
• 8 x IEEE802.3af 15.4W PoE ports
• 4 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 2 Gbps
• Thunder Protection: 4 KV
• Power: 130W
• Power Supply: AC
• AC: 180240V 50/60Hz
• Fast Ethernet PoE+ Unmanaged Switch
• 1 Year Extendable Warranty

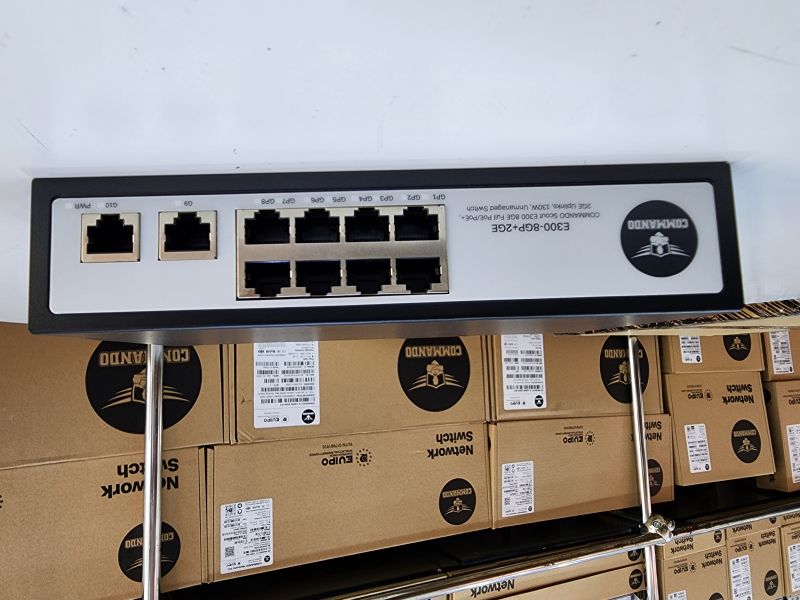

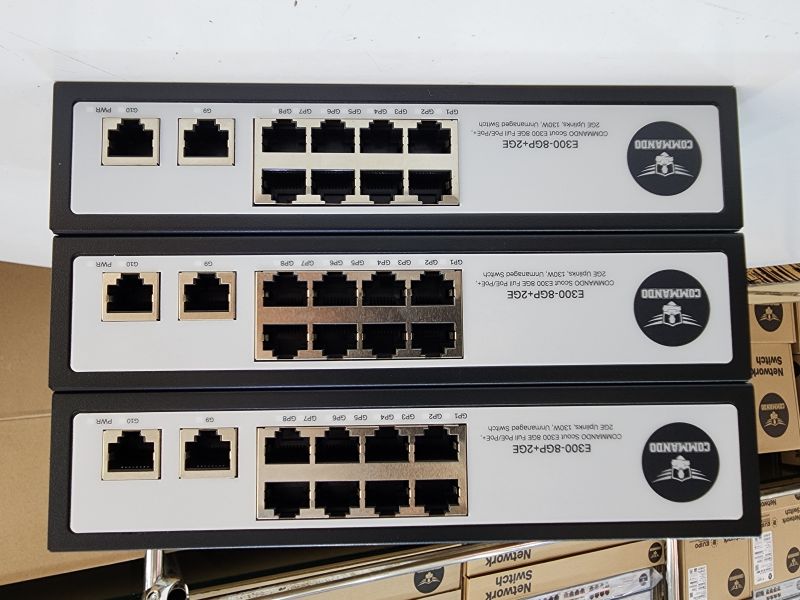

HARDWARE HIGHLIGHTS

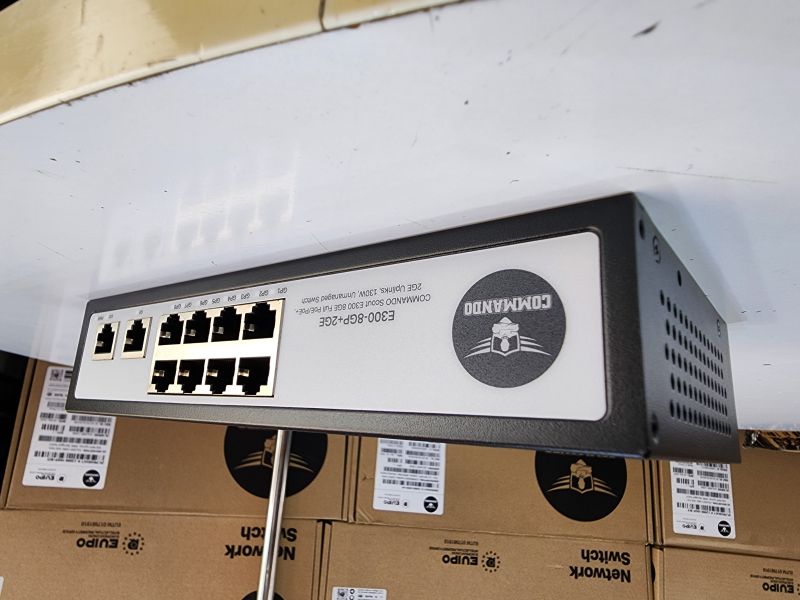

• 8 x 10/100Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet Uplink ports
• 8 x IEEE802.3af 15.4W PoE ports
• 4 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 5.6 Gbps
• Thunder Protection: 4 KV
• Power: 130W
• Power Supply: AC
• AC: 180240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 1 Year Extendable Warranty

HARDWARE HIGHLIGHTS

• 8 x 10/100/1000Mbps Ethernet ports
• Switching Capacity: 16 Gbps
• Thunder Protection: 2 KV
• Power: 5W
• Power Supply: DC
• DC: 5V-1A Adapter with Cable
• Gigabit Ethernet Unmanaged Switch (Plastic Casing)
• 1 Year Warranty

Product Highlights

• Multiple Operational Modes like Gateway Mode, AP mode (Default mode is AP mode).
• Multi SSID up to 8 with inbuilt WI-FI channel analysis.
• Supports IEEE 811ax/ac/b/g/n with backward compatibility for wireless clients, 2.4GHz+5GHz Wireless dual band with radio RF Power up to 300mW .
• Support wireless RF power adjustable as per user movements from AP with data rate up to 1800Mbps.
• Access end users up to 256 max, with concurrent end users up to 120+.
• Supports band steering automatically move to wider 5G band for faster connections, intelligent load balance based on users.
• Support tag VLAN and VLAN management.
• Supports advance security by MAC ACL, Static DHCP, Flow control, URL Mapping, IP/MAC/URL filters, Port mapping and DMZ.
• Support Seamless Roaming, OFDMA, 1024-QAM.
• Dual purposes WAN or IEEE 802.3at Port (PoE+) port supporting 1x 10/100/1000Mbps and dedicated LAN ports 1x 10/100/1000Mbps.
• Supports Wi-Fi client distance 91 meters and above depending on surrounding conditions.
• Dual input for power either PoE+ via WAN port or DC power inputs 12V, 2A.
• Support Open or encryption like WPA/WPA2PSK_TKIPAES.
• With best-in-class power amplifier and FEM, Build in 3dBi MIMO Antenna for stronger signal strength & supports large wireless coverage (91m and above) in all directions.
• Comply with IEEE 802.3az standard
• Plug and Play design simplifies installation with self-adaption.
• Compact, silent design perfect for noise sensitive environments.
• With Zero Touch Provisioning: Plug and play and no setup. Affordable, Easy-to-Use AP for all sized business networks, with Zero Configuration Required.
• Built-in High-Performance Processor with Flash: SPI NOR 32MB , and 256MB RAM which greatly improved the data processing performance. Suitable for Deployment of Large Scale Commercial Scenarios
• Comes with one-year default warranty optionally extendable up to 3 years.

HARDWARE HIGHLIGHTS

• 16 x 10/100/1000Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
• 16 x IEEE802.3af 15.4W PoE ports
• 8 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 40 Gbps
• Thunder Protection: 4 KV
• Power: 260W
• 1 Fan
• Power Supply: AC
• AC: 180240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 3 Year Extendable Warranty

HARDWARE HIGHLIGHTS

• 16 x 10/100Mbps Ethernet ports
• Switching Capacity: 3.2 Gbps
• Thunder Protection: 2 KV
• Power: 12W
• Power Supply: AC
• AC: 100240V 50/60Hz
• Fast Ethernet Unmanaged Switch
• 1 Year Warranty

HARDWARE HIGHLIGHTS

• 5 x 10/100/1000Mbps Ethernet ports
• Switching Capacity: 10 Gbps
• Thunder Protection: 2 KV
• Power: 5W
• Power Supply: DC
• DC: 5V-1A Adapter with Cable
• Gigabit Ethernet Unmanaged Switch (Plastic Casing)
• 1 Year Warranty

HARDWARE HIGHLIGHTS

• 24 x 10G SFP+ ports
• 2 x 100G QSFP28 Uplink ports
• 1 x RJ45 Management port
• 1 x RJ45 Console port
• 1 x Mini USB Console port
• 1 x USB 2.0 Storage port
• Switching Capacity: 880 Gbps
• Thunder Protection: 6 KV
• Power: 100W
• 3 Temperature Control Fans
• Power Supply: Dual 1+1 Power Supplies (AC + DC)
• AC: 100240V 50/60Hz, DC: 12V, 8.3A
• MarshallOS L3+ IP Services Software Feature Set
• L3+ 100G QSFP28 Fiber Routing Switch
• 5 Year Extendable Warranty

L3 Features

• Dynamic Routing (IPv4 Based) BGP4, RIPv1/v2, OSPFv2, IS-IS.
• Dynamic Routing (IPv6 Based) RIPng, OSPFv3, BGP4+
• OSPF multiple process
• Policy-based Routing (PBR) for IPv4 and IPv6
• VRRP
• URPF
• ECMP
• BFD
• IGMP v1/v2/v3, IGMP Proxy
• Static Multicast Route
• Multicast Receive Control
• Illegal Multicast Source Detect
• ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit
• Anti ARP/NDP Cheat, Anti ARP/NDP Scan. Dynamic ARP Inspection (DAI)
• DNS Client, DNS Relay
• GRE Tunnel
• Static Route

hardware highlights

• 24x 10g sfp+ ports
• 2 x 40g qsfp+ uplink ports
• 1 x rj45 management port
• 1 x rj45 console port
• 1 x mini usb console port
• 1 x usb 2.0 storage port
• switching capacity: 640 gbps
• thunder protection: 6 kv
• power: 100w
• 3 temperature control fans
• power supply: dual 1+1 power supplies (ac + dc)
• ac: 100240v 50/60hz, dc: 12v, 8.3a
• marshallos l3+ ip services software feature set
• l3+ 40g qsfp+ fiber routing switch
• 5 year extendable warranty

l3 features

• dynamic routing (ipv4 based) bgp4, ripv1/v2, ospfv2, is-is.
• dynamic routing (ipv6 based) ripng, ospfv3, bgp4+
• ospf multiple process
• policy-based routing (pbr) for ipv4 and ipv6
• vrrp
• urpf
• ecmp
• bfd
• igmp v1/v2/v3, igmp proxy
• static multicast route
• multicast receive control
• illegal multicast source detect
• arp guard, local arp proxy, proxy arp, arp binding, gratuitous arp, arp limit
• anti arp/ndp cheat, anti arp/ndp scan. dynamic arp inspection (dai)
• dns client, dns relay
• gre tunnel
• static route

HARDWARE HIGHLIGHTS

• 48 x 10/100/1000Mbps Ethernet PoE+ ports
• 6 x 10G SFP+ Uplink ports
• 1 x RJ45 Console port
• 1 x Mini USB Console port
• 1 x USB 2.0 Storage port
• 48 x IEEE802.3af 15.4W PoE ports
• 24 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 216 Gbps
• Thunder Protection: 6 KV
• Power: 800W
• 4 Temperature Control Fans
• Power Supply: Dual 1+1 Power Supplies (AC + DC)
• AC: 100240V 50/60Hz, DC: 12V, 6A and 52V, 14A
• SoldierOS L3 IP Base Software Feature Set
• L3 GigE PoE+ 10G SFP+ Uplink Routing Switch
• 5 Year Extendable Warranty

L3 Features

• Static Route
• Dynamic Routing, RIPv1/v2, OSPF v1/v2
• Policy-based Routing (PBR) for IPv4 and IPv6
• VRRP
• IGMP v1/v2/v3, IGMP Proxy
• Static Multicast Route
• Multicast Receive Control
• Illegal Multicast Source Detect
• ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit
• Dynamic ARP Inspection (DAI)
• DNS Server, Client, DNS Relay

HARDWARE HIGHLIGHTS

• 24 x 10/100/1000Mbps Ethernet PoE+ ports
• 4 x 10G SFP+ Uplink ports
• 1 x RJ45 Console port
• 1 x Mini USB Console port
• 1 x USB 2.0 Storage port
• 24 x IEEE802.3af 15.4W PoE ports
• 12 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 128 Gbps
• Thunder Protection: 6 KV
• Power: 450W
• 1 Temperature Control Fan
• Power Supply: AC
• AC: 180240V 50/60Hz
• SoldierOS L3 IP Base Software Feature Set
• L3 GigE PoE+ 10G SFP+ Uplink Routing Switch
• 3 Year Extendable Warranty

L3 Features

• Static Route
• Dynamic Routing, RIPv1/v2, OSPF v1/v2
• Policy-based Routing (PBR) for IPv4 and IPv6
• VRRP
• IGMP v1/v2/v3, IGMP Proxy
• Static Multicast Route
• Multicast Receive Control
• Illegal Multicast Source Detect
• ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit
• Dynamic ARP Inspection (DAI)
• DNS Server, Client, DNS Relay

HARDWARE HIGHLIGHTS

• 48 x 10/100/1000Mbps Ethernet PoE+ ports
• 6 x 10G SFP+ Uplink ports
• 1 x RJ45 Console port
• 1 x Mini USB Console port
• 1 x USB 2.0 Storage port
• 38 x IEEE802.3af 15.4W PoE ports
• 18 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 216 Gbps
• Thunder Protection: 6 KV
• Power: 600W
• 3 Temperature Control Fans
• Power Supply: AC
• AC: 180240V 50/60Hz
• SoldierOS L3 IP Base Software Feature Set
• L3 GigE PoE+ 10G SFP+ Uplink Routing Switch
• 3 Year Extendable Warranty

L3 Features

• Static Route
• Dynamic Routing, RIPv1/v2, OSPF v1/v2
• Policy-based Routing (PBR) for IPv4 and IPv6
• VRRP
• IGMP v1/v2/v3, IGMP Proxy
• Static Multicast Route
• Multicast Receive Control
• Illegal Multicast Source Detect
• ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit
• Dynamic ARP Inspection (DAI)
• DNS Server, Client, DNS Relay

HARDWARE HIGHLIGHTS

• 24 x 10/100/1000Mbps Ethernet PoE+ ports
• 4 x 10/100/1000Mbps Ethernet / 4 x 1G SFP Combo Uplink ports
• 1 x RJ45 Console port
• 1 x Mini USB Console port
• 24 x IEEE802.3af 15.4W PoE ports
• 18 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 56 Gbps
• Thunder Protection: 6 KV
• Power: 600W
• 3 Temperature Control Fans
• Power Supply: Dual 1+1 Power Supplies (AC + DC)
• AC: 100240V 50/60Hz, DC: 12V, 4.1A and 52V, 10.2A
• SoldierOS L2+ Software Feature Set
• L2+ GigE PoE+ Managed Switch
• 5 Year Extendable Warranty

L3 Features:

• L3 Static/Default Route
• Gratuitous ARP
• IPv6

L2 Features:

• MAC Table 8K to 16K
• 802.3x Flow Control
• Back Pressure
• HOL Blocking Prevention
• Jumbo Frame
• ERPS
• Port Mirroring
• RSPAN
• Auto Loopback Detection and Prevention
• L2 Protocol Tunneling
• Link Aggregation Static / 802.3ad LACP
• STP/RSTP/MSTP
• IGMP Snooping v1/v2/v3
• Multicast VLANs
• MLD v1/v2 Snooping
• PIM Snooping
• VLAN - IP Subnet / Protocol / Voice / Surveillance / MAC based / Q in Q / Guest
• IEEE802.1Q with 4K VLAN groups and 4K VIDs
• GARP/GVRP
• Auto-negotiation for Port speed, PoE Power and Duplex mode with Flow Control
• VLAN Trunking
• Traffic Segmentation
• IGMP Querier / Snooping v1, v2, v3 / Throttling / Filtering / Immediate Leave
• MVR
• Mirror - Port Based (One to One, Many to One) / VLAN based / MAC based
• Ethernet Ring Protection Switching

HARDWARE HIGHLIGHTS

• 8 x 10/100/1000Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
• 1 x RJ45 Console port
• 8 x IEEE802.3af 15.4W PoE ports
• 4 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 24 Gbps
• Thunder Protection: 4 KV
• Power: 150W
• Power Supply: AC
• AC: 100240V 50/60Hz
• SoldierOS L2+ Software Feature Set
• L2+ GigE PoE+ Managed Switch
• 3 Year Extendable Warranty

SOFTWARE HIGHLIGHTS (SoldierOS L2+)

• DHCP Server
• Intelligent PoE Scheduling
• Watchdog Function
• Dual Image
• Automated Traffic Control
• Sflow
• Traffic Segmentation
• MAC Notification

L3 Features:

• L3 Static/Default Route
• Gratuitous ARP
• IPv6

HARDWARE HIGHLIGHTS

• 24 x 10G SFP+ ports
• 1 x RJ45 Management port
• 1 x RJ45 Console port
• 1 x Mini USB Console port
• 1 x USB 2.0 Storage port
• Switching Capacity: 480 Gbps
• Thunder Protection: 6 KV
• Power: 100W
• 3 Temperature Control Fans
• Power Supply: Dual 1+1 Power Supplies (AC + DC)
• AC: 100240V 50/60Hz, DC: 12V, 8.3A
• MarshallOS L3+ IP Services Software Feature Set
• L3+ 10G SFP+ Fiber Routing Switch
• 5 Year Extendable Warranty

L3 Features

• Dynamic Routing (IPv4 Based) BGP4, RIPv1/v2, OSPFv2, IS-IS.
• Dynamic Routing (IPv6 Based) RIPng, OSPFv3, BGP4+
• OSPF multiple process
• Policy-based Routing (PBR) for IPv4 and IPv6
• VRRP
• URPF
• ECMP
• BFD
• IGMP v1/v2/v3, IGMP Proxy
• Static Multicast Route
• Multicast Receive Control
• Illegal Multicast Source Detect
• ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit
• Anti ARP/NDP Cheat, Anti ARP/NDP Scan. Dynamic ARP Inspection (DAI)
• DNS Client, DNS Relay
• GRE Tunnel
• Static Route

HARDWARE HIGHLIGHTS

• 8 x 10/100/1000Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet + 2 x 1G SFP Uplink ports
• 8 x IEEE802.3af 15.4W PoE ports
• 4 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 24 Gbps
• Thunder Protection: 4 KV
• Power: 150W
• Power Supply: AC
• AC: 100240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 3 Year Extendable Warranty

HARDWARE HIGHLIGHTS

• 4 x 10/100/1000Mbps Ethernet PoE+ ports
• 2 x 10/100/1000Mbps Ethernet Uplink ports
• 4 x IEEE802.3af 15.4W PoE ports
• 2 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 12 Gbps
• Thunder Protection: 4 KV
• Power: 65W
• Power Supply: AC
• AC: 180240V 50/60Hz
• Gigabit PoE+ Unmanaged Switch
• 1 Year Extendable Warranty

HARDWARE HIGHLIGHTS

• 4 x 10/100/1000Mbps Ethernet PoE+ ports
• 2 x 1G SFP Uplink ports
• 4 x IEEE802.3af 15.4W PoE ports
• 4 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 12 Gbps
• Thunder Protection: 6 KV
• Power: External power supply
• Power Supply: DC
• DC: 48V, 3A
• Industrial PoE+ Ethernet Unmanaged Switch
• 5 Year Extendable Warranty

hardware highlights

• 8 x 1g sfp ports
• 2 x 10/100/1000mbps ethernet + 2 x 1g sfp uplink ports
• 1 x rj45 console port
• 1 x mini usb console port
• switching capacity: 24 gbps
• thunder protection: 6 kv
• power: 24w
• power supply: dual 1+1 power supplies (ac + dc)
• ac: 100240v 50/60hz, dc: 12v, 2a
• soldieros l2+ software feature set
• l2+ fiber managed switch
• 5 year extendable warranty

software highlights (soldieros l2+)

• dhcp server
• intelligent poe scheduling
• watchdog function
• dual image
• automated traffic control
• sflow
• traffic segmentation
• mac notification

l3 features:

• l3 static/default route
• gratuitous arp
• ipv6

HARDWARE HIGHLIGHTS

• 8 x 10/100/1000Mbps Ethernet PoE+ ports
• 2 x 1G SFP Uplink ports
• 8 x IEEE802.3af 15.4W PoE ports
• 8 x IEEE802.3at 30W PoE+ ports
• Switching Capacity: 20 Gbps
• Thunder Protection: 6 KV
• Power: External power supply
• Power Supply: DC
• DC: 48-54V, 5A
• Industrial PoE+ Ethernet Unmanaged Switch
• 5 Year Extendable Warranty

HARDWARE HIGHLIGHTS

• 8 x 10/100Mbps Ethernet ports
• Switching Capacity: 1.6 Gbps
• Thunder Protection: 2 KV
• Power: 5W
• Power Supply: DC
• DC: 5V-1A Adapter with Cable
• Fast Ethernet Unmanaged Switch (Plastic Casing)
• 1 Year Warranty
