Brinell Hardenss Tester

Brinell hardenss tester

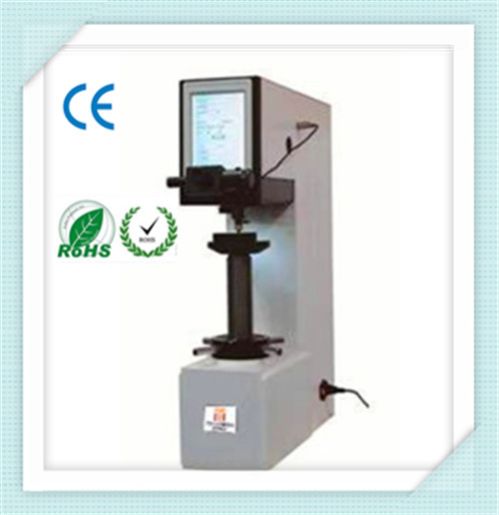

HB-3000MDX Digital Brinell Hardness Tester With Automatic Turret

Min. Order (MOQ) 1 Set(s)
Brand Name JUNG

Technical Specifications: Model HB-3000MDBrinell Scale HBW2.562.5 HBW2.5187.5 HBW5125 HBW5750 HBW10100, HBW101500 HBW103000 HBW10250 HBW10500 HBW101000 Testing Force 62.5kgf(612.9N)100kgf(980.7N)125kgf(1226N)187.5kgf(1839N) 250kgf(2452N)500kgf(4903N)750kgf(7355N)1000kgf(9807N) 1500kgf(14710N)3000kgf(29420N) Max Height of Specimen 200mmMain Measuring unit 0.625mNet Weight About 90kgPower supply AC220+5%, 5060HzOverall Dimension (mm) 550*210*750mmDuration time 560sHardness testing Range 8650HBWMagnification of Microscope 20XCarried Standard EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GBT231.2, JJG150Distance of Indenter to outer wall 155mmIndication of Hardness Value LCD display, Printer Output, Built-in PrinterDigital camera 1280*1080 pixels, 12-inch, USB 2.0

Additional Information:

Payment Terms : T/T

View Complete Details

Ask Latest Price & Details

HB-62.5MDX Digital Brinell Hardness Tester With Motorized Turret

Brand Name JUNG

Technical Specifications: Model HB-62.5MDBall Diameter 5mm, 2.5mm, 1mmTesting Force 1, 2.5, 5, 6.25, 10, 15.625, 25, 30, 31.25, 62.5 (Customer should choose 6types in the above 10 types) Loading Duration time 560sLens Magnification 5X , 10XEyepiece magnification 10(Automatic Digital encoder)Lighting External lighting, each lens comes with a light source Minimum test unit 0.25mPower supply AC220+5%, 5060HzData correction automatic correction respectively for each lens Hardness testing Range 4650HBWMax Height of Specimen 160mmDistance of Indenter to outer wall 135mmTester Overall Dimension 520*190*650mmStandards Conform to EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GBT231.2, JJG150 Net Weight About 40kgIndication of Hardness Value LCD display, Printer Output, Built-in Printer

Additional Information:

Payment Terms : T/T

Delivery Time : 30days

View Complete Details

Ask Latest Price & Details

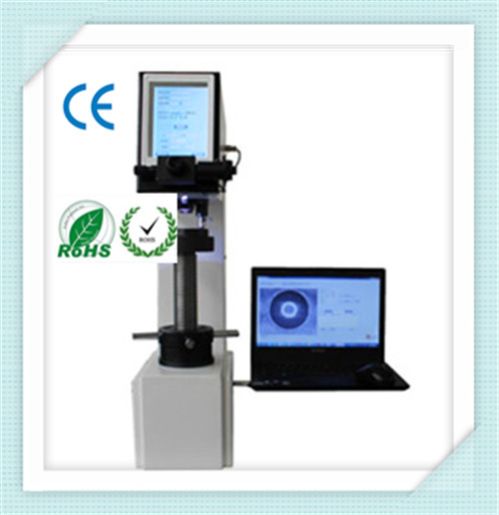

HBS-3000MDX Automatic Brinell Hardness Tester System

Min. Order (MOQ) 1 Set(s)
Brand Name JUNG

Technical Specifications: Model HB-3000MDXBrinell Scale HBW2.562.5 HBW2.5187.5 HBW5125 HBW5750 HBW10100, HBW101500 HBW103000 HBW10250 HBW10500 HBW101000 Testing Force 62.5kgf(612.9N)100kgf(980.7N)125kgf(1226N)187.5kgf(1839N) 250kgf(2452N)500kgf(4903N)750kgf(7355N)1000kgf(9807N) 1500kgf(14710N)3000kgf(29420N) Max Height of Specimen 200mmMain Measuring unit 0.625mNet Weight About 90kgPower supply AC220+5%, 5060HzOverall Dimension (mm) 550*210*750mmDuration time 560sHardness testing Range 8650HBWMagnification of Microscope 20XCarried Standard EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GBT231.2, JJG150Distance of Indenter to outer wall 155mmIndication of Hardness Value LCD display, Printer Output, Built-in PrinterDigital camera 1280*1080 pixels, 12-inch, USB 2.0

Additional Information:

Payment Terms : T/T

View Complete Details

Ask Latest Price & Details
