Abcp Steel Reinforcement Products Co. Ltd.

hengshui, China

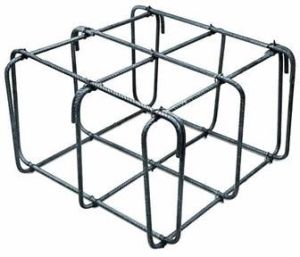

We are offering reinforcing mesh cages for two-way force. Rmc strengthens core strength of concrete reinforcing mesh cage (rmc), also called steel reinforcement cage or prefabricated cage, plays an important role in concrete building construction. As we all know that concrete and steel bars are commonly used together and they turn out to be a perfect combination. But more and more constructions need higher quality nowadays especially in some areas where extreme weather frequently occur. Reinforcing mesh cage is a better option in many cases because of its stronger structure. Made of high strength steel or ligature, the cage is usually consisted of two parts: longitudinal bars and transverse bars (or spiral bars). Longitudinal bars serve to confine the core concrete, and the transverse bars or spiral bars fit around the longitudinal bars. The steel or ligature is then tied into proper place which can reinforce the longitudinal and lateral strength to prevent cracking, and reduce the deflections occurrence probability. The cage is laid out before the concrete is poured. It can be made in different shapes that can fit any design of construction. Cylindrical, triangle, square, spiral or polygonal shapes are available in our company. We are also devoted to manufacturing other types according to your drawings. One prefabricated cage made of 6 rectangle ligatures cross bundling one prefabricated cage can be aligned before installationone spiral reinforcing mesh cage with four longitudinal bars and one spiral bar spiral reinforcing mesh cage can be better used to strengthen the core concreteone triangle and one square steel reinforcement cage made of ligatures and steel bars triangle and square reinforcing mesh cagesmany polygonal frame cages with thick longitudinal bars polygonal steel reinforcement cages have stronger structure specification

We are offering reinforcing steel bar for concrete reinforcement different kinds of reinforcing steel bars reinforcing steel bar is widely used for concrete structure reinforcement. It is installed inside the concrete and brick, to make them keep their shape and enhance the whole strength. Reinforcing steel bar can be plain or ribbed. Specification material: carbon steel, stainless steel, galvanized steel, epoxy-coated steel. Diameter: 5mm - 50mm. Length: 3m - 36m. Pattern: single straight bar or in rolls. Note: all kinds of steel bars can be cut in short or bent into l shape for your specific project need. Four ribbed carbon steel bars four reinforcing steel bars with ribbed profilethree l shape steel bars reinforcing steel bar can be cut into l shapegreen epoxy-coated reinforcing steel bars epoxy-coated steel barssome rolls of galvanized reinforcing steel bars packed by stainless steel stripe reinforcing steel bars are packed in rolls by stainless steel stripe in the warehousefour bundles of plain round reinforcing steel bars with different diameters four bundles of plain round reinforcing steel bars features large demand for concrete construction need. Stainless steel bar mostly ensures durability of concrete. Galvanized and epoxy-coated steel bars provide excellent corrosion protection. Application reinforcing steel bar is widely used in construction industry, commonly seen in the construction of power station, chemical industry, bridge, pavement, parking lot, residential building. Packing in bundles or according to customers' requirement.

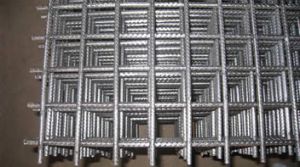

We are offering reinforcing welded mesh for concrete reinforcement. Two shapes of reinforcing welded meshes reinforcing welded mesh, manufactured from 500mpa wire grade l, is usually used for concrete reinforcing. As concrete is weak in tension, applications of reinforcing welded mesh minimize the cracking on the surface of concrete in construction. Deformed or plain bars are welded in longitudinal and transverse directions to form different shapes of apertures, which mainly form square reinforcing mesh and rectangular reinforcing mesh. For square welded mesh, longitudinal and transverse wires support the whole strength at the same time, while for rectangular welded mesh, longitudinal wire is the supporting one. Advantages reinforcing welded mesh is manufactured in sheets and rolls, which makes the installation process quick and simple, and it saves time and binding wires. Its ribbed profile improves bonding to concrete elements, improving stress distribution, crack resistance, and strengthening stability of the construction. The reinforcing mesh can be designed according to the project requirement, which reduce the material and labor cost and improve the efficiency of the whole construction. It has great corrosion resistance and oxidation resistance. Material and surface treatment low-carbon iron wire, steel bar, rebar wire, stainless steel wire, galvanized iron wire (electronic galvanized, hot-dipped galvanized), black iron wire, etc. Specification the standard sizes for square and rectangular sheets and rolls are: sheets: 6m (length) × 2.4m (width) =14.4m2. Rolls: 60m (length) × 2.4m=144m2. Wire diameter: 4mm to 40mm. Square mesh schematic diagram square welded mesh product code standard unit longitudinal wires (mm) cross wires (mm) edge wires (mm) weight (kg) swm81 sheet 7.60@100 7.60@100 7.60@100 105 swm102 sheet 9.50@200 9.50@200 6.75@100 80

Ribbed trench mesh for footing reinforcement trench mesh is one kind of reinforcing meshes which can be typically used in residential and industrial constructions to reinforce footings and beams. Manufactured from d500l ribbed steel wires, trench mesh is usually made in long and narrow sheet that can applied in narrow space construction. We have many years' experience in manufacturing trench meshes available in various sizes and colors. Trench mesh sheets are usually made in 6m length, with different width varying from 200mm to 500mm depending on the number of main wires. The main wires (longitudinal wires) are at 50mm or 100mm apart (100mm commonly used). Cross wires are at 300mm apart. Main wire diameter is from 8mm to 16mm, cross wire diameter is 4mm or 5mm. Features it can be used in narrow places for footing beams like trenches, walls or paths. It is easy to transport, which may reduce construction cost. Firm structure makes solid foundation that contribute to the whole construction. Many trench meshes bundled up by tie wires many trench meshes laid in bundlesschematic diagram of trench mesh with detailed introduction schematic diagram of trench meshspecification list the specification below is a reference to your construction, other sizes are available, you can also make an order that applied to your own construction. Trench mesh specification- standard length 6m product code main wire main wire diameter (mm) cross wire diameter (mm) width (mm)

We are offering trench-mesh-spacer-for-rigid-cage-reinforcement. Trench mesh spacer is used to form a reinforcing cage three trench mesh spacers with different length three trench mesh spacers for different trench meshes trench mesh spacer, also called trench mesh clip, is a fast and efficient tool to form a rigid cage for foundation and footing beam where trench mesh is laid out. Material galvanized steel, low carbon steel, stainless steel. Features time saving. Cost saving. Work efficiency improvement. Specification trench mesh spacer specification list product code for trench mesh wire (mm) height (mm) pack quantity tms815 8 150 50 tms820 8 200 50 tms825 8 250 50 tms830 8 300 50 tms835 8 350 50 tms840 8 400 50 tms845 8 450 50 tms850 8 500 50 tms1120 11 200 50 tms1125 11 250 50 tms1130 11 300 50 tms1135 11 350 50 tms1140 11 400 50 tms1145 11 450 50 tms1150 11 500 50 tms1220 12 200 50 tms1225 12 250 50 tms1230 12 300 50 tms1235 12 350 50 tms1240 12 400 50 tms1245 12 450 50 tms1250 12 500 50 tms1620 16 200 50 tms1625 16 250 50 tms1630 16 300 50 tms1635 16 350 50 tms1640 16 400 50 tms1645 16 450 50 tms1650 16 500 50trench mesh spacer is installed to form a rigid cage trench mesh spacer is used for forming a cage installation and application trench mesh spacer is widely used for reinforcing foundations and footing beams. Simply put one end of spacer on trench mesh cross wire at center of spacer cross wire, clip the spacer on bottom bar then put the top bar at center, snap the spacer locked to the mesh by firm hands, if loose, tap sideways to lock, then a rigid cage is formed.

We are offering masonry mesh for brick wall reinforcement. Ladder, truss, t shape or brick welded mesh masonry mesh, also called masonry wall reinforced mesh, is used for concrete construction reinforcement, normally used for the wall reinforcement. It is a welded and fabricated steel reinforcing structure which is laid in the bed joint to strengthen masonry panels without thickening the wall. It can prevent or reduce cracking in walls by bonding the masonry units together so as to strengthen the masonry panel where it is installed. Features welded spots of warp wire and weft wire are on the same surface. It increases lateral flexural strength and performance of masonry walls under various stresses. It improves resistance to water penetration and shrinkage cracking of masonry walls. Variety according to shapes ladder mesh reinforcement. Truss mesh reinforcement. T shape masonry mesh reinforcement. Brick welded mesh reinforcement. Different materials and surface treatment material: low carbon steel wire, stainless steel wire, galvanized steel wire. Welded before electric-galvanized. Welded after electric-galvanized. Welded before hot dipped galvanized. Welded after hot dipped galvanized. Welded by stainless steel wire. Ladder mesh reinforcement wire diameter: 2.5mm - 8.0mm. Standard length: 10' (3.05m). Width: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm. Cross wires are 300mm to 400mm apart. One ladder shape reinforcing mesh ladder mesh reinforcement used for masonry wall in building industry truss mesh reinforcement wire diameter: 2.5mm - 8.0mm. Standard length: 3.05m. Width: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm. Type: two longitudinal rods; three longitudinal rods; four longitudinal rods. Three truss shape meshes with two, three, four longitudinal rods truss mesh with side to side rods and three or four longitudinal rods performs better bonding performance t shape masonry mesh

We are offering rebar supports for supporting rebars, slabs or beams. Different types of bar chairs and bolsters rebar support, also known as reinforcing steel bar chair, is mainly used to provide support for horizontal reinforcing bar or wire mesh. With great flexibility, it is widely used in big constructions to save time and improve the quality of the project. Material and surface treatment low-carbon steel (q195, q235), medium carbon steel, plain, galvanized, plastic-protected, epoxy-coated or plastic tipped. One four-leg rebar chair with epoxy tip one individual rebar chair with four epoxy tipstwo galvanized individual rebar chairs with different plates two galvanized rebar chairs with plateone plain slab bolster upper one slab bolster upper with plain profile specification of nine types rebar supports rebar support description individual rebar chairan individual rebar chair height: 1 inch to 40 inch. Wire diameter: 4.0mm - 6.5mm. Used to support and space the top mat of rebar off the form individual rebar chair with platean individual rebar chair with plate height:1 inch to 40 inch. Wire diameter: 4.0mm - 6.5mm. Used to support lower slab steel or other soft materials continuous rebar chaircontinuous rebar chair length: 5 feet. Wire diameter: 4.0mm - 6.5mm. Used to support and space the top mat of steel off the form continuous rebar chair uppercontinuous rebar chair upper length: 5 feet. Wire diameter: 4.0mm - 6.5mm. Used to support and space the top mat of steel off the bottom mat slab bolstera slab bolster length: 5 feet. Wire diameter: 4.0mm - 6.5mm. Used to support and space the bottom steel off the form slab bolster uppera slab bolster upper length: 5 feet. Wire diameter: 4.0mm - 6.5mm. Used to support and separate the top mat of steel from the bottom mat beam bolstera beam bolster length: 5 feet. Wire diameter: 4.0mm - 6.5mm.
