Azeus Biopellet Machinery

Zhengzhou, Henan, China

• MOQ 1 Set(s)

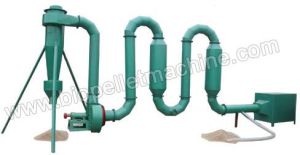

We are offering small pipe type sawdust dryer. air flow sawdust dryer introduction the airflow sawdust dryer, also called pipe dryer or flash dryer for sawdust , is professionally designed for drying materials like sawdust, rice hull, wood chips, wood shaving, wheat straw, and corn stalks, paddy straw , etc. Moisture in the raw materials of less than 40% can be drying one time to meet the requirement for wood pellets production. In addition, airflow sawdust dryer is considered as the most inexpensive sawdust dryer, which is highly recommended for bio-pellets production capacity less than 1000kg per hour. features of air current dryer 1. This airflow dryer can reduce the moisture of the materials to 8-12% one time with the advantages of lower consumption and high efficiency. 2. Moisture evaporative power can be from 50kgh to 1500kgh. 3. The pipes of dryer can be changed to any angle based on the production field, less floor area and easier installation.

• MOQ 1 Set(s)

We are offering large drum type wood dryer. Rotary wood dryer introduction rotary sawdust dryer is also known as sawdust drum dryer machine, which is specially designed for drying the wood chips, sawdust, wood pellets, wood shavings, etc. Our rotary sawdust dryer is made up of hot air stove and main rotary drum which is high efficiency in drying the wood and biomass material. It can be used for drying a wide range of biomass materials such as alfalfa, straw, sawdust, marigold, wood shavings, manioc waste, bagasse, colza cake and leaves, etc. performance features of large wood dryer-drum type 1. High drying intensity: since the material is highly dispersed in the air stream. The entire surface area of the particles is entire effective area of the particles for drying; 2. Energy saving: the consumption of large wood dryer can be lower 8% to 16% than the normal ones, with the production ratio being higher 10% to 15%; 3. High expandability: capacity margin has been designed, so it is no need to change equipment even a slight increase in production; 4. Environment friendly: the special design hot air furnace can supply the clean hot air for the rotary dryer, and there is little dust and noise during working process; 5. Large drying capacity, heat efficiency can be more than 80% when it is free water.

• MOQ 1 Set(s)

We are offering diesel wood hammer mill. Introduction to diesel-driven wood hammer mill in bio pellets production, there are many important pre-treatment and after-treatment steps for best quality wood pellets. There are many sorts of wood grinding machines, one is wood hammer mill, others are wood crusher or wood chipper. What makes them different is the grinding part. As it’s name states, the main tools in wood hammer mill are hammers. Large wood particles fall into wood chamber and are crushed by hammers on rotating rotor. The material are impacted by the hammer bars and is thereby shredded and expelled through screens in the run of a selected size. features and advantages of diesel wood hammer mill 1. Diesel engine biomass hammer mill is suitable for areas short of electricity or areas inconvenient to connect electricity. 2. Mesh size can be adjusted from 2-10mm. 3. Suitable for small scale wood pellet production. 4. Easy to operate and maintain, stable working performance.

• MOQ 1 Set(s)

We are offering flat die wood pellet machine-diesel engine. start to make your own biopellets whether your interest is making pellets from sawdust or leaves or even cardboard, this small wood pellet machine with diesel engine is an entry level pellet machine that can get you not only started making burnable biomass pellets but also make extra money by selling pellets to your neighborhood. Help yourself to free from your backyard: leaves, hay, grasses, and sawdust are just the beginning. Whatever kind of biopellets you want to make, this portable diesel flat die wood pellet mill is a good answer. With a pellet machine you can also make feed pellets for horses, rabbits, goats, and fish! or you can make bedding pellets for animal stalls from cardboard with our pellet machines. advantages of portable wood pellet machine with diesel engine 1. Mobile flat die wood pellet machine with capacity ranges from 40kgh to 550kgh. 2. Driven by a diesel engine makes wood pellets production possible especially in the rural area with shortage supply of electricity. 3. The diesel wood pellet machine runs smoothly with low noise and long life. 4. As the core unit of wood pellet mill, rolls and dies are all made of high alloy metal to ensure a low consumption. 5. Pellets size is from 2-12 mm upon your requirement. When making different size, you just need to change the die mould.

• MOQ 1 Set(s)

We are offering wood pellet cooler. Wood pellet cooler introduction wood pellet cooler is necessary machine for biopellet plant. Typical applications are for cooling of feed pellets and wood pellets. It can reduce the temperature of pellets from 80~90℃to about 3~5℃ above ambient temperature. And the pellet moisture content is reduced from 17%~18% to 12%~13%. The counter flow type pellets cooler adopts international advanced counter flow cooling technology, the cooler generates a premium effect of maintaining integrity of the pellets in the working process. With features of large capacity, smoothly functioning, high efficiency, the counter flow pellet cooler has been accepted by plenty of advanced countries. remarkable features of counterflow pellets cooler 1.with rotary distributor, the pellets can be cooled evenly in the bin room. Using the pendulum discharger, gentle discharge can be achieved. 2.the cooling process applies the counter flow cooling principle. Cooling air reverse the pellets and the pellet is cooled from the bottom to top gradually, thus the cooling time is increased. All these will do good to the production of high quality pellets and to extend the time of pellets storage. 3.the cooling effect of this cooling machine is remarkable. With features of large capacity, low energy consumption, low noise and high automation degree, the counter flow pellets cooler is popular in many industrial pellets production plant.

• MOQ 1 Set(s)

We are offering vertical ring die wood pellet machine. Introduction to vertical ring die wood pellet machine this roller-driven pellet machine is an energy-saving type professional biomass pelleting machine. This length of biopellets can be adjusted easily according to your demand. It is available to process various biomass materials like wood chips, straw, chaff, bamboo shavings, peanut shells, bagasse, and alfalfa and so on. If you want to start a biomass pellet making business, this is your choice for where to start. performance features of vertical ring die wood pellet machine 1.vertical die, feeding vertically; no arching of raw materials, easy for heating dissipation. 2.die fixed, rollers rotating, better for even material distribution. 3.independent lubrication; high pressure filtration, clean and unblocked 4.independent and frequency changeable cutting device ensuring high pelletizing rate 5.the key parts are made of superior alloy steel with heat treatment by german vacuum furnace, so its service life is prolonged by 5-7times.

• MOQ 1 Set(s)

We are offering electric wood crusher. wood crusher introduction wood crusher is specially designed to crush wood and other agro stalks for wood pellet plant. This wood crusher machine has compact structure, simple design. Driven by one motor, wood crusher has low noise and stable working performance. Unlike wood hammer mill which crushes wood by hammer blades, wood crusher grinds material by cutters and rotors. features and advantages of wood crusher 1. Compact structure and simple design make wood crusher easy to clean and maintain. 2. High yield and stable working performance ensure a continuous running. 3. Ground by both knives and rotors, raw material has better crushing effect. 4. Crushed wood material are about 3-5 mm and can be used for bio-pelletizing directly.

• MOQ 1 Set(s)

We are offering electric wood hammer mill. why need an electric wood hammer mill? as we all know, wood pellet machine is the key part for making sawdust into bio-pellets. While not all materials are suitable for pelletizing directly, for some materials with diameter larger than 5mm, you need to grind them into sawdust or powder particles first. An electric wood hammer mill can help you grind large wood branches or straw stalks into small mesh size. We supply two types of wood hammer mill, the difference between electric wood hammer mill and diesel wood hammer mill is the engine -- the former is motor while the latter diesel engine. You can choose anyone on the base of your cheaper energy resource. Besides, you can also take wood crusher into consideration according to your raw material. If your materials are wood logs, you need to use wood chipper for preprocessing prior to a wood crusher or wood hammer mill. features and advantages of electric wood hammer mill 1. Electricity-saving: the smallest wood hammer power is only 2.2kw, best choice for home use. 2. Safe to operate, low noise, stable working. 3. Low malfunction rate, easy to operate and low maintenance cost. 4. Could process raw material in different or irregular size into even wood particle size.

• MOQ 1 Set(s)

We are offering wood chipper - drum type. a wood chipper is a machine used for crushing wood, generally tree logs or branches, into smaller woodchips. They are often portable, being mounted on wheels on frame suitable for various working environment. There are two kinds of wood chipper according to structure design: disc-type wood chipper and drum-type wood chipper. Disc wood chipper is usually used in papermaking industries for it’s mainly process wood logs, while drum wood chipper can process both wood logs and agro stalks in various size. performance features of drum-type wood chipper 1. Wood logs with max diameter from 25-35 cm can be processed smoothly. 2. Processed chips length can be freely adjusted. 3. Equipped with 2 blades, the chipper can guarantee an efficient working procedure. 4. Wear-resistant material for mat, high quality steel for dead knife and blades. 5. Drum wood chippers can process both wood material and agro stalks.

• MOQ 1 Set(s)

We are offering ring die wood pellet machine. Introduction to ring die wood pellet machine this mklh ring die pellet machine capacity ranges are from 500kg to 1500kg per hour. According to the characteristics of biomass fuel pelletizing, it is mainly designed for pressing combustible materials such as saw dust and grass into pellets. This pellet machine is usually equipped with 8mm and 10mm ring dies, because the 8mm and 10mm particle diameters are more favorable for combustion. Ring dies with other bore diameters can also be equipped according to different demands of users. main characteristics of ring die wood pellet mill 1. Driven by gear, so that the output is improved by about 20% when compared with that of belt drive. 2. Advanced bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation. 3. The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles. 4. High-quality craft ring dies are adopted, so that the service life is long; the discharged pellets are smooth and the quality is high. 5. Snakelike spring coupling has the properties of novel and compact structure, low noise and low fault rate.

• MOQ 1 Set(s)

We are offering homemade wood pellet machine-electric engine. Introduction to homemade wood pellet machine-electric engine our small electric pellet machine can make wood pellets from any kinds of saw dust, recycled paper, grass, leaves, or any type of biomass. Never pay for expensive wood pellets any more , make them for free with the portable electric pellet machine. Even better make pellet for your neighbour and get them to pay you ! this potable wood pellet machine is equipped with 3 phase electric motor which can provide all the power you need to create tons of wood pellets. feature of small flat die wood pellet mill-electric engine 1.driven by electric motor, three-phase voltage, more convenient and environmental friendly. 2.flexible and movable biopellet machine design; widely used in small wood pellet plant or home fuel pellets making. 3.capacity ranges from 40kgh to 550kgh, various models for choice. 4.equipped with gearbox which can control the material feeding speed and ensure wood pellet quality, at the same time prolonging pellet machine life. 5.all our pellet machines meet european standard -ce certified; the small wood pellet machine design is of closed house to cover motor. 6.suitable for all kinds of biomass materials to make biopellets.

• MOQ 1 Set(s)

We are offering biopellet packing machine. Introduction automatic biopellet packing machine adopts highly intelligent control system, with stable performance and high precision. Combines with the delivery device and the intelligent arm operation tool, the automatic weighing & packing system can realize integrative packaging of wood pellets. Now it is widely used in wood pellet line, fertilizer, food and metallurgical industries. pellet weighing & packing machine advantages scope of application: the quantitative packaging of powder in food, flour, fodder, chemical industry etc. 1.automatic pellet packing machine has the advantage of high calculating precision, stable function, digital demonstration and easy operation. 2.this pellet packing machine has the function of batch scale, automatic filling, carbon dioxide filling, plastic capsulation and knitting commissure. 3. Adopt the imported sensor and pneumatic implementation mechanism which makes the work reliable, the maintenance easy. 4. High accuracy measuring system and the auto-adapted software has the function of controlling the parameter setup, the self-correcting of the fall height and fault self-diagnostics etc. 5. Predetermined interface of the printer can print the production data, such as the quantity of package and total weight, etc. Predetermined connection interface can be used to communicate with the outside management system by data. These two technologies can increase the production efficiency greatly. more information about this machine: http:www.biopelletmachine.comproductbiopellet-packing-machine.html if need or have any question, feel free to contact with: azeuscara@gmail.com
