Baoji City E.ton Oilfiled Machinery Manufacture Co.,Ltd

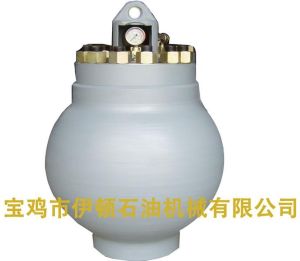

We are offering air bag assembly. Specifications1.mud pump air bag 2.rabber inner, metal shell 3.used as pressure balance on mud pump 4.meet api&iso standards 1. Air bag assembly is a part of mud pump, used as pressure balance on mud pump. 2. Air bag with pressure, the max. Pressure is 5000psi 3.air bag assembly produced according to api standard 1.disassembling and assembling air bag must first relief. 2.f500f800 mud pump using kb45 air chamber, f100013001600 mud pump using air chamber kb75. 3.air chamber play an important role in drilling to reduce the fluctuations and stable pressure , so in drilling production, maintaining the normal operation of the air bag is very important . installation position:air chamber is installed at one end of the discharge pipe in the hydraulic end function:play a role of stabilizing the pressure and pressure compensation. working pressure: 80% of the mud pump.

• MOQ 10 Set(s)
• Number Of FlowerF1300/1600

High performance valves and seats are available from our factory with the following features: 1. Forged alloy steel aisi 4110 construction 2. Heavy-duty valve design 3. Deep carburized wear surfaces 4. Heavy-duty durable retainer threads 5. Precise machined to api standards 6. Taper post-heat treat machined to remove warpage various sizes are available to fit all major mud pumps. An extensive range of valves and seats are offered, such as premium cross-arms valve and seat, three-arm valve and seat, three-wing valve, four-wing valve, full-open seat, long-life bonded valve with urethane. Wide choices are available for requirements not met by hardened.

• MOQ 1 Set(s)

We are offering hydraulic cylinder for mud pump accessories: 1. Drilling mud pump parts - valve casing 2. Heat treated 3. internally hardened 3. Variables type:f500, f800, f1000, f1300, f1600, sl3nb, qz3nb, qf, qz series drilling mud pump 4. Could be tailor-made by custom the product covers various large oil fields all over the country with the home market occupation ratio reaching more than 50%, and export usa, canada, middle east and the former soviet union area. The company passed iso 9001 quality system certification and has produced strictly according to international api standard. Now it has become the first class networks supplier for petroleum, goods and materials to petroleum and gas group company of china. the cylinders are made of special alloy steel and manufactured with scientific techniques. They feature scientific structure design and long life span. the leading factor products sl3nb, qz3nb, qf, qz series drilling mud pump and compound drive groups are mainly used in oil field and geological prospecting for well drilling, well workover and so on. Among them the sl3nb-1300a and sl3nb-1600a models are large powers well drilling pumps which are the first to be studied and produced and also make up the domestic blank space.

We can offer emsco, gardner denver, national, oil well, continental, idenco, and china 3nb mud pump spare parts. premium liners 1.premium liners combine the strength of a forged steel outer shell with the abrasion and corrosion resistance of a high chromium iron inner sleeve. 2. These liners feature a centrifugally cast high chrome iron sleeve which is machined and heat treated to a minimum uniform bore hardness of 62 rc. 3.each liner is machined to close tolerances to assure ease of installation and long liner life with the inside diameter of these premium liners honed to a mirror-like finish for smooth even wear during the life of the liner. ceramic liners 1.ceramic liner combine the strength of a forged steel outer shell with the abrasion and corrosion resistance of a ceramic inner sleeve. 2.we provide zirconia(zro3) sleeves as well as alumina(al2 o3.) sleeves., of which ziconia exhibits better impact strength, higher hardness andbe honed to finer surface finishes than alumina. chrome-plated liners 1.we offers chrome-plated liners made from premium forged steel with the core plated by chrome. 2.the chrome-plated liners have hardening characteristics of 58 to 62 rockwell c hardness. hardened liners 1.we offer economy in a liner that is made for normal to mildly corrosive mud conditions. 2. These liners are hardened and heat treated under strict quality control to a minimum of 60 rc hardness and a depth of .125 inches. 3.each liner is honed to a mirror-like finish for smooth and even wear during the life of the liner and is machined to close tolerances to assure easy installation and long life. brand model emsco f-350 f-500 f-650 f-800 f-1000 fa-1300 fb-1300 fa-1600 fb-1600 gardener denver pz-7 pz-8 pz-9 pz-10 pz-11 national 7-p-50 8-p-80 9-p-100 10-p-130 12-p-160 ideco t-800

• Number Of FlowerF1300/1600

We offer valve assembly. valve and seats: 1) stem-guided valves and cross-arms seats: features greater fluid flow than four-arm seats, as well as it features an extra wide metal to metal seal on the valve flange. The serrated upper surface on the valve gives a longer non-breathing seal between valve body and insert while the rigid seat cross-arms give greater strength and positive sealing. 2) stem-guided valves and three-arms seats: features an extra side metal to metal seal on the valve flange. The serrated upper surface on the valve gives a longer non-breathing seal between valve body and insert while the rigid seat cross-arms give greater strength and positive sealing. 3) four-wing valves and full open seats: valve design eliminates snap rings, plates or keepers providing reduced maintenanle by snap-on valve insert and easy installation 4) three-wing valves and full open seats, innovative unibody valve design eliminates snap rings, plates or keepers providing reduced maintenanle by snap-on valve insert and easy installation we supply qualified valves with positive price. If you have any interest, please do not hesitate to contact with me.

• MOQ 1 Set(s)
• Number Of FlowerF1300/1600

F-1600 mud pump used for drilling rig • advanced structure • small size • good interchangeability • great operational performance f series mud pump consist of the hydraulic end and the power end. the power end applies both the constraint lubrication and splashed lubrication, the lubrication can improve the life expectancy of the power end.as these series mud pump have longer stroke and can be used in lower impact, effectively improving the pumping performance of the pump, hence the life of the fragile parts in hydraulic end are improved.

• MOQ 1 Set(s)
• typpe110--190

1)hy-chrome mud pump liners are made with a high chrome iron sleeve in a forged steel hul. 2)the bore hardness is 60 to 67 rockwell c scales while the hull has high tensile strength of more than 90000psi. 3)combining the characteristics of chrome with state of the art manufacturing. The liners can withstand mud pressure of up to 7000psi. 4)the hardened steel liner service life surpasses 800 hour under the normal condition , which has earned us reputation from world wide customers.
