Beihai Xinhong Fishmeal Equipment Co., Ltd

Guangxi, China

• MOQ 1 Set(s)
• Brand NameXINHONG

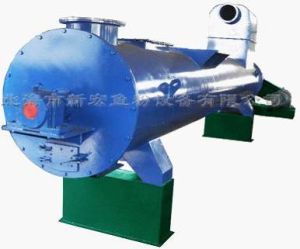

We offer fishmeal cooler. Detailed product description: 1. Fishmeal cooler adapt air cooling, nice cooling effect 2. Fishmeal cooler use stainless steel pipe, corrosion resistance features of fishmeal cooler: 1. Fishmeal cooler is used to cool down the fish meal to room temperature; 2. The main part of the fishmeal cooler is made of q345 low alloy steel; 3. Stainless steel air blower; 4. Fishmeal cooler equipped with a air cooling conveyor after grinder; modle capacity(ton/24h) weight(ton) power(kw) dimensions(m) xh-c-30 30 4 13 5.2×1.4×2.2 xh-c-50 50 4.5 16.5 6.5×1×2.2 xh-c-80 80 5.5 22.5 7×1.3×2.2 xh-c-100 100 6 24 7.5×1.3×2.2 xh-c-150 150 7.5 26.5 8×1.3×2.2 xh-c-200 200 8 27 8.5×1.3×2.2 xh-c-300 300 8.5 31 9×1.3×2.2

• MOQ 1 Set(s)
• Brand NameXINHONG

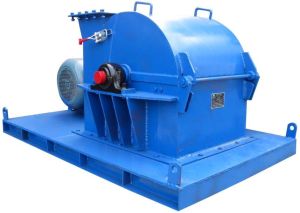

We are offering fish crusher. function: fish crusher is used to cut the large raw material into small pieces. product features: 1. The rotary-knife structure of cutter consists of main frame, power setting, rotor, moving knife and stationery knife. 2. Entering into the equipment, the raw material is cut by moving and stationery knife then discharged form the bottom. 3. The distance can be adjusted between moving knife and stationery knife to change the size of the fish. The small fish or shiver can directly put into the screw conveyor through the funnel. model capacity (t/h) power(kw) dimension (m) weight(t) xh-c-i 6-8 15 1.8× 0.6× 0.7 1.2 xh-c-ii 10-12 18.5 2.0× 0.6× 0.7 1.5

• MOQ 1 Piece(s)
• Brand NameXinhong

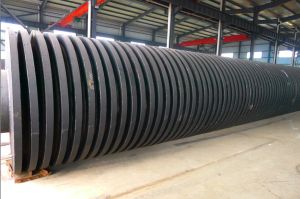

we offer The double heating discs has been honored Utility Model Patents * 1. Heating speed is fast, generally 2.5-3 times faster than other drier 2. Finished fishmeal is fragrant 3. Saving energy 4. Heating disc can be used for 10 years. 5. European Standard * Patent picture can be viewed on first page of website. Patent introduction and dryer info are available upon request.

• MOQ 1 Set(s)
• fishmeal plantfish meal plant equipment
• fish meal plant supplierfishmeal plant manufacturer
• Brand NameXINHONG

• MOQ 1 Set(s)
• Brand NameXINHONG

We are offering Automatic Packing System. 1 The part contacting with the material made of stainless steel for anticorrosion; 2 Single screw transducer could be adjusted, higher measuring precision 3 Fast pneumatic bag clamping, packing and weighing directly; 4 20 different packing size (20~50KG) to meet different requirement; 5 Quality import and domestic electrical components and pneumatic component for stability of the operation of the equipment; 6 Unique design, less drive component, no need installation of platform bracket, fast and convenient maintenance; 7 Dimensions: 3× 1.5× 2.2 m

• MOQ 1 Set(s)
• Brand NameXINHONG

We offer centrifuge oil separator. 1 oil separator is used to separate oil from stickwater; 2 electronic brain driven, easily control; 3 discharge sludge periodically; 4 separating factor 10200 5 automatic sludge discharging; 6 dimensions: 1.8x1.75x1.8m

• MOQ 1 Set(s)
• Brand NameXINHONG
• fish meal processing equipmentfish meal processing plant
• fish meal manufacturing linefish meal processing line
• fish meal processing machinefish meal production line

We offer fishmeal plant has good effects from the fish; the complete fishmeal plant as below: 1. The process flow: cooking-pressing-decanting-drying-cooling-grindering and packing 2. In fishmeal plant, the fish passes through a electrical magnet to remove iron like fish hooks. The raw material is cooked in a steam cooker where the protein of the mass is coagulated, the fish oil is liberated. The mass from the cooker goes to twim screw press to squeeze out as much liquid as possible from the solid phase. After pressing, we get press cake and press liquor. In the complete fishmeal plant, the dryer is the key point, when the sludge is recovered in a decanter and then dryed in dryer after mixed with press cake. 3. The refinery system is one important part of the fishmeal plant, the liquid after decanter is treated in a oil separator. In the high speed centrifuge, fish oil is separated. The stickwater goes to evaporator. 4. The stickwater is concentrated continously by the waste vapor from the dryer and cooker. 5. The press cake, sludge and stickwater concentrate is mixed together and is dryed in the disc dryer. After drying process, the fish meal have to be cooled to room temperature by a cooler. Usually the fish meal shall be grindered to fine particles before packing. After grinding, the fish meal shall be transported by an air-cooling screw conveyor before it is packed in a packing tank.

• MOQ 1 Set(s)
• Brand NameXINHONG

We offer rolling sieve. 1. Special for fish meal sieving; 2. 2.5× 2.5mm mesh size; 3. Dimensions: 4.7× 1.4× 2.2m

• MOQ 1 Piece(s)
• Brand NameXINHONG

We are offering tubular condenser. 1. Condenser is used to remove bad smell from the fishmeal plant. 2. Equipped with quantity stainless steel tube to affect heat-exchange fully between cooling circulating water and exhaust gas, wide range of temperature reduction and evident deodorization effect. 3. Corrosion resistance of the ring filler inside the tower to enlarge the contact area, and improve the deodorizing result. 4. Deodorizer remove 98% of bad smell, realize environmental protection. 5. European standard. 6. Adopting fan principle as temperature reduction method, especially suitable for water shortage fishmeal plant.

• MOQ 1 Set(s)
• Brand NameXINHONG
• fishmeal plant equipmentland fishmeal machine
• fishmeal plant machinefishmeal plant device
• fishmeal machine plantfishmeal plant China

We offer discs fishmeal dryer. 1 the dryer is used to dry out the moisture from the material thus make the fish meal; 2 the heating disc are made in double layers, more than about 450 square metres heating area, fast drying and higher output; 3 the rotor is made of high quality ã� 790ã� 40mmseamless steel tube; 4 the heating discs are made of 12 mm q345 wear-resisting steel, the periphery of the discs are welded with hard wearing steel d167; 5 the outer shell is made of 16mm q345 low alloy steel; 6 the top, the covers and windows are made of sus304 stainless steel; 7 heating with double-layer steam jacket, increasing the drying effect; 8 famous brand y225m-4 motor, zly400 gearbox 9 made by carbon dioxide gas arc welding; 10 steam consumption 8000kgh, steam pressure 6kg; 11 equipped with a liquid coupling for on load start; 12 famous brand rotary joint and stainless steel flexible hose; 13 according to the standard of the pressure vessel, all pressure vessels are manufactured with carbon dioxide gas arc welding or low-hydrogen electrode dc welding; 14 the machine has taken x-ray test and hydraulic pressure test for welding lines by technical supervision office; 15 the double heating discs with national patent, wear-resisting, 10 years service life; 16 fast heating speed, output product wet 6~8 precent, with fragrant output product, saving energy etc; 17 european standard. 18 steel stand for convenience installation; 19 dimensions: 11.0ã� 2.3ã� 2.5m. specifications capacity (t24h) weight (t) power(kw) size(m) d-xh-50 > 50 19.0 37.0 8.5× 1.9× 2.6 d-xh-80 > 80 22.5 45.0 10.0× 1.9× 2.6 d-xh-100 > 100 26.0 55.0 11.5× 1.9× 2.6 d-xh-150 > 150 37.0 75.0 12.0× 2.2× 3.2 d-xh-200 > 200 45.0 90.0 13.0× 2.2× 3.3 d-xh-250 > 250 50.0 110.0 13.5× 2.2× 3.3 d-xh-300 > 300 55.0 110.0 14.0× 2.2× 3.3

• MOQ 1 Set(s)
• Brand NameXINHONG

we offer Fish Cooker. 1 Cooker is used to cook the raw material and liberate the oil from the fat depots; 2 Minimum processing capacity 300Ton in 24hour; 3 Heating with both inner rotor and outer jackets; 4 Working temperature90~95 degree centigrade, steam pressure 6Kg; 5 Rotor is made of Φ480�12mm high quality seamless steel tube; 6 Equipped with famous brand YCTJ225-11kW cycloidal needle wheel, electromagnetic speed-adjustable motor 7 Rotation speed is adjustable from 0.7 to 5rpm; 8 Rotor vane is made of 6mm Q345 low alloy steel; 9 Outer shell of jacket is made of 10mm Q345 low alloy steel, the inner is 12mm; 10 The main part of the cooker is made of Q345 low alloy steel; 11 The covers and windows are made of SUS304 stainless steel; 12 Made by carbon dioxide gas arc welding; 13 Insulation by stainless steel; 14 The cooker has been taken the hydraulic pressure test after manufacture; 15 European Standard; 16 Steel stand for convenience install; 17 Dimensions:13.0�1.9�1.6m Modle Capacity (T) Weight (T) Power (Kw) Dimensions (m) C-XH-30 30 3.8 2.2 5.2X1.2X0.9 C-XH-50 50 4.5 3 6.2X1.5X1.0 C-XH-80 80 5.0 3 7.2X1.5X1.1 C-XH-100 100 5.8 4 7.7X1.5X1.2 C-XH-150 150 6.8 5.5 9.0X1.7X1.2 C-XH-300 300 8.5 11 11.0X1.9X1.5

• MOQ 1 Set(s)
• Brand NameXINHONG

We are offering decanters. 1 decanter is used to recover suspended particles in press liquor; 2 bowl diameter 400mm, length 1600mm; 3 rotation seed 3660rpm, separating factor 3000; 4 dimensions: 3× 1.6× 1.1m

• MOQ 1 Set(s)
• Brand NameXINHONG

We are offering screw conveyor used in fishmeal plant. 1 the screw conveyor is used to transport the raw material and fish meal; 2 the speed of transporting raw material from material pit is adjustable; 3 the screw conveyor for transporting wet material is made of sus304 stainless steel. 4 the screw conveyor for transporting dry material is made of q345 low alloy steel. 5 one is cooling screw conveyor after the cooler. 6 dimensions: 7.0× 1.2× 1.2m;

• MOQ 1 Set(s)
• Brand NameXinhong
