Changzhou Deyong Machinery Co. ltd

Jiangsu, China

• MOQ 1 Piece(s)
• yellowgreen

6kva diesel generator set DY4000CX(E) Alternator-Type Revolving field type 2pole generator Frequency(HZ) 50 60 Rated output(kw) 2.8 3.3 Engine speed(r/min) 3000 3600 Voltage(V) 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240 DC output 12V-8.3A Power factor(cos) 1.0 Excitation System Controlled Constant Operation D.C output V/A 12V/8.3A Coupling Pattern Straight Shaft Coupling Engine Model DY178F(E) TYPE Direct injection Vertical, 4cycle, air cooled diesel engine Displacement(cc) 296 Rated Output(kw/rpm) 3.7 4.0 Max.Output(kw/rpm) 4.0 4.4 Starting system Recoil or Electric start Governor system Centrifugal weight system Fuel tank capacity(L) 15 Lube oil capacity(L) 1.1 Bore*Stroke(mm) 78*62 Protection system CX:Low oil , warning system/stop device Dim L*W*H(mm) 700*500*565 N.W.(kg) 61 Noise level at 7m dBA 82 DY5500CX(E) Alternator-Type Revolving field type 2pole generator Frequency(HZ) 50 60 Rated output(kw) 4.2 4.5 Engine speed(r/min) 3000 3600 Voltage(V) 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240 DC output 12V-8.3A Power factor(cos) 1.0 Excitation System Controlled Constant Operation D.C output V/A 12V/8.3A Coupling Pattern Straight Shaft Coupling Engine Model DY186F(E) TYPE Direct injection Vertical, 4cycle, air cooled diesel engine Displacement(cc) 406 Rated Output(kw/rpm) 5.7 6.3 Max.Output(kw/rpm) 6.3 6.8 Starting system Recoil or Electric start Governor system Centrifugal weight system Fuel tank capacity(L) 15 Lube oil capacity(L) 1.65 Bore*Stroke(mm) 86*70 Protection system CX:Low oil , warning system/stop device Dim L*W*H(mm) 720*500*625 N.W.(kg) 95 Noise level at 7m dBA 85 DY6500CX(E) Alternator-Type Revolving field type 2pole generator Frequency(HZ) 50 60 Rated output(kw) 4.5 5.0 Engine speed(r/min) 3000 3600 Voltage(V) 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240 DC output 12V-8.3A Power factor(cos) 1.0 Excitation System Controlled Constant Operation D.C output V/A 12V/8.3A Coupling Pattern Straight Shaft Coupling Engine Model DY186FA(E) TYPE Direct injection Vertical, 4cycle, air cooled diesel engine Displacement(cc) 418 Rated Output(kw/rpm) 5.7 6.3 Max.Output(kw/rpm) 6.3 6.8 Starting system Recoil or Electric start Governor system Centrifugal weight system Fuel tank capacity(L) 15 Lube oil capacity(L) 1.65 Bore*Stroke(mm) 86*72 Protection system CX:Low oil , warning system/stop device Dim L*W*H(mm) 720*500*625 N.W.(kg) 95 Noise level at 7m dBA 85

• MOQ 1 Piece(s)
• single_cylinervertical
• 4_strokeair_cooled engine

• MOQ 1 Piece(s)
• yellowgreen

1.OHV （overhead valve）design ensures the low oil and fuel 2.consumption and prolongs the working lift of the engine 3.Oil alert built——in 4.Multi——choice for PTO shafts

• MOQ 3 Piece(s)
• greenyellow

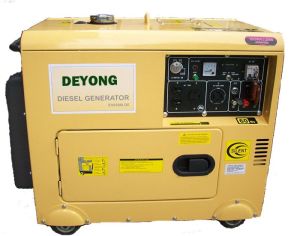

Generator generator model silent diesel generator set dy3500ln dy5000ln dy6000ln frequency (hz) 50 60 50 60 50 60 rated power(kw) 2.8 3.3 4.2 4.6 4.6 5.0 max power(kw) 3.0 3.6 4.5 5.0 5.0 5.5 voltage (v) 230 240/120 230 240/120 230 240/120 current(a) 12.2 13.8/27.5 18.3 20.8/41.7 20 20.7/43.4 engine speed(r.p.m) 3000 3600 3000 3600 3000 3600 power factor(% ) 1 d.c output v/a 12v/8.3a sockets as requested optional emergency stop pre-heater wireless remote control ats (automatic start/stop) digital panel noise level at 7mtrs 68dbs alternator avr(automatic voltage regulator) or brush as optional engine dy178fge dy186fge dy186fage start method electric start & recoil start displacement cc 296 406 418 fuel tank capacity(l) 13.5 16 16 lube oil capacity(l) 1.1 1.65 1.65 dim lxwxh(mm) 850x520x730 920x520x730 920x520x730 n.w.(kg) 126 175 175 container qty 72pcs/20fts, 144pcs/40hq.

• MOQ 2 Piece(s)
• yellowgreen

Silent type diesel generator alternator-type revolving field type 2pole generator frequency(hz) 60 rated output(kw) 5 engine speed(r/min) 3600 voltage(v) 120/240 dc output 12v-8.3a excitation system controlled constant operation coupling pattern straight shaft coupling engine model dy186fae type direct injection vertical, 4cycle, air cooled diesel engine displacement(cc) 418 rated output(kw/rpm) 6.3 max.output(kw/rpm) 6.8 starting system electric start governor system centrifugal weight system fuel tank capacity(l) 16 lube oil capacity(l) 1.65 bore*stroke(mm) 86*72 low oil pressure alarm system with n.w.(kg) 175 noise level at 7m dba 78.
