China Xinda International Group Co. Ltd.

• MOQ 1 Set(s)

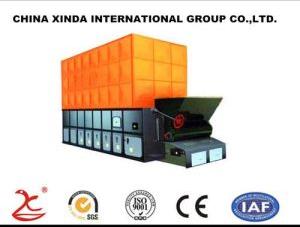

We are offering organic heat carrier boiler is a new type heating equipment that can save energy and reduce emission. It uses coal as fuel and heat transfer oil as heat carrier (such as l-qb, l-qc, l-qd). It uses circulating oil pump to make heat carrier cycling forcibly, after that the heat carrier return to the boiler be reheated tot use. The highest temperature that coal-fired organic heat carrier boiler can supply is 340℃, and the working pressure is under 0.8mpa, so it is safe and reliable. Characteristics 1.use lower working pressure to get higher temperature. 2.a wide range of heating temperature, it can process stable heating and precise temperature adjustment between 250℃ to 340℃. 3.the thermal efficiency can be maintained at an optimum standard under the different levels of load. 4.liquid circulation, the steam pressure of 300℃ heat carrier is three times lower than the steam pressure of the saturated water. 5.the system has perfect adjusting and controlling devices such as operation monitoring and security monitoring devices. 6.it saves oil, water, power and has lower consumption. The investment costs can be recouped during 6 to 9 months.

• MOQ 1 Set(s)

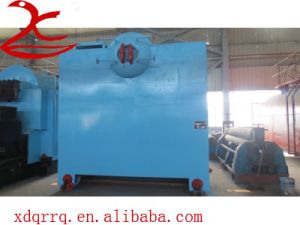

We are offering double drum chain- grate coal- fired hot water boiler. characteristics 1.double drum and horizontal layout, up and down assembly structure, save space. 2.reliable and safe operation. 3.compact structure, reasonable water circulation, fast start-up. 4.newly furnace arch structure and insulation materials make less radiating loss, improve thermal efficiency. 5.use advanced domestic chain grate, reliable process, save energy, reduce installation and maintain workload. Reasonable air distribution, double side air inlet for combustion system which improves the efficiency. With layered coal feeder, burning efficiency is improved, carbon is reduced, save coal about 10%. 6.automatic control system, high mechanization degree, easy operation, secure running. 7.high dust-collecting efficiency, built-in ash removal, environmental. Fast packaged for shipment, good shape.

• MOQ 1 Set(s)

We are offering steam boiler. Characteristics 1. The arched tube plate and screw thread smoke tube build up the boiler barrel so that the boiler has high heat transfer efficiency, boosts fast, strong output and the smoke tube is hard to accumulate dust, these solve the problem of tube plate crack. 2. Eliminate the stagnant water area at the bottom of the boiler barrel, improve the water recycling effect, prevent the boiler barrel bottom bulge. 3. All welding combining are processed by large mechanical and high temperature region bundle special processing, to ensure the welding quality and service life. Easy burning and adapt to various fuel such as: soft coal, anthracite coal and biofuels. 4. Compact structure, small size, saving construction investment, easy to install, can run after connecting the valve, water, electricity and pipeline. 5. Stable operation, easy to adjust, unique design of air prevention, can bank up a fire for a long time. 6. It has a function of dust reduction, dust emission conforms to the environment standard.

• MOQ 1 Set(s)

We are offering horizantal oil gas fired steam boiler. Features 1.with scavenging function, the life of combustion chamber is prolonged. 2.with unique large combustion chamber, the heated area is increased, which lowered the emission of no2. 3.the front and back smoke tube box use multistage sealing way, which ensures no leakage of smoke. 4.large steam volume, good quality for steam. 5.horizontal structure increases heated area, fully transfers heat. Stable operation, high combustion efficiency. The boiler furnace is laid low, ensures large range of water safety.
