Chongqing Nakin Electromechanical Co., Ltd

Chongqing, China

• MOQ 1 Set(s)
• joannaelle@hotmail.comwww.nkoilrecycling.com

Application: series tyk is latest model of vacuum oil purifier designed for purifying the unqualified phosphate ester fire-resistant oil, this machine can treat and regenerate the degenerative fire-resistant oil, removing acid, pigment, gas, water and particles. This machine body uses the special metal materials which are compatible with fire-resistant oil, combined with technologies of vacuum dewatering; multi-stage filtration system and new adsorbent to ensure treated oil achieve new fire-resistant oil properties. Series tyk is the necessary purifying equipment for the sectors which use fire-resistant oil, it can be online working and oil-filling. features: 1. use of special metal materials which is compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent 2. stainless steel machine body, pipes and filtering components, reliable, anti-corrosion, durable. 3. duplex-stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter 4. advanced medium cooling system 5. high quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime. 6. efficient electric heating system, heating uniformity, less power consumption, safe, and reliable. 7. adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

• MOQ 1 Set(s)
• joannaelle@hotmail.comwww.nkoilpurifier.com

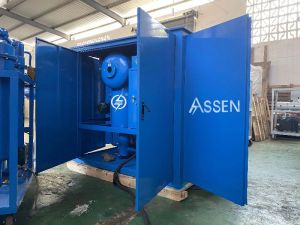

application: vacuum transformer oil purifier machine is popular in electric power industries, this machine mainly purify and recover old insulating oil, like the transformer oil, mutual inductor oil, cable oil, and switch oils. for the insulating oil, the trace water and gas badly effect insulating oil dielectric strength, it is a good job to remove the trace water and gas completely and effectively. vacuum distillation way is best way to remove trace water and gas, the treated oil moisture can reach to 3 ppm, gas content is 0.01%. zy single stage vacuum transformer oil purifier. it is low price, and good working performance. it is very good for middle/low grade transformer oil purifying working. also, this oil purifier can be used to power equipments to vacuum drying, and vacuum oiling. features: 1. low cost and easy operation. 2. multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies 3. efficient electric heating system, heating uniformity, less power consumption, safe, and reliable. 4. double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely. 5. adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. if there is any fault, machine will be power off automatically. 6. working with bz insulating oil regeneration device to decolorize (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity.

• MOQ 1 Set(s)
• joannaelle@hotmail.comwww.nkoilrecycling.com

Application: zyd double stages vacuum transformer oil purifier is mainly used for removing trace water, gas and impurities from insulating oil, improving the insulating oil performance index. It is mainly applied to purification of 110kv, 220kv, 500kv, 750kv, 1000kv power transmission equipment insulating oil, also applied to treat low viscosity oils, like insulating oil, turbine oil, and hydraulic oil in the transmission equipment which is lower than 110kv. Meanwhile, series zyd oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling. Insulating oil performance mainly decided by oil�s water content, if the water is not saturation in the oil, it appears as the molecular states; if water is saturation in the oil, it appears as the liquid states and stay at the bottom of container. Under the vacuum states, because the less gas content, the water and gas in the oil will be escaped from the oil and evacuated by the vacuum pump. The higher vacuum value (close to 0 pa), the higher speed of water molecular volatilization (the latest technology, the vacuum oil purifier can reach to 1pa working vacuum value). The gas and water which dissolved in the oil will become gaseity and exhausted by vacuum pump. The oil temperature affect vacuum oil purifier working efficiency, the higher temperature, the water molecular get more kinetic energy, so it is higher diffused speed of water molecular. But, exorbitant temperature will cause fracture of carbon chain for oil molecular, if that will make oil bad. So we don�t suggest the oil temperature excess 80�. Also the impurity will affect oil dielectric strength, so the vacuum oil purifier requires high filtration precision. features: 1. Pre-electromagnetic-valve before vacuum pump to prevent the vacuum oil flow backwards. 2. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value � 5pa 3. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly. 4. Duplex-stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil. 5.adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically. 6. Pre-gas-water separator before vacuum pump to prolong the vacuum pump and vacuum pump oil. 7. Double protecting system, gas-water separator equips liquid level protector to prevent oil escape from vacuum pump 8. Optical oil foam detector and high oil level detector to prevent oil escape from vacuum pump 9. Low oil level sensor to prevent oil pump idle working, so prolong oil pump lifetime 10. Completely intelligent pressure protector to protect oil pump and fine filter 11. Completely intelligent vacuum controller to protect the booster pump 12. Fully intelligent temperature controller to prevent the large surge current 13. Phases protector, voltage overload protector to achieve unattended

• MOQ 1 Set(s)
• joannaelle@hotmail.comwww.nkoilrecycling.com

Application: series jzs engine oil regeneration system is mainly for regenerating the waste engine oil, this equipment can effective separate water, gas, particles, deeply oxides, free carbon, colloid, asphalt and wax from oil, making black engine oil become transparent golden color. This equipment has the functions of dewatering, degassing, decolor. Improving the engine oil's properties, restoring the oil's performance and lowering wear to ensure the engine can work normally and safely, prolonging the engine and engine oil lifetime. features: 1.use of special chemicals to eliminate oil-ion's charge polarity, collecting oil-ions and separating out them, removing colloid, asphalt and other chemical compounds. 2.gas treatment device combined with air filter and vacuum degassing, dewatering to remove the odor and water. 3.closed type filtering system use stainless steel mesh, reliable, no pollution. Two filtering units can realize continuous production. 4.vacuum degassing, dewatering, removing particles make sure effectively improve oil properties, restoring oil performance. 5.efficient electric heating system, heating uniformity, less power consumption, safe, and reliable. 6.compact structure, reasonable layout, small space applied, large output. 7.imported germany electric parts (such as siemens, schneider), good performance, safe and reliable.

• MOQ 1 Set(s)
• joannaelle@hotmail.comwww.nkoilrecycling.com

We are offering lubricating oil purifier-tya. Application: thousands ton dirty, waste lube oil need to purify per day. Tya lubricating oil purifier machine is widely applied in industries; which is special for purifying unqualified, waste, dirty lubricating oil, hydraulic oil, compressor oil, refrigeration oil etc. It can effectively demulsify waste oil, separate water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc.) from oil, restoring oil’s performance, like the performance, flash point etc. Treated oil can reuse again in various industrial equipments. features: 1. Double primary-filter structure, large capacity for holding particles, multi-stage filtration system to ensure high filtration precision. 2. Special polymer materials as filter medium with the functions of demulsifying, dewatering, removing particles 3.oil film sprayer and evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas and volatile matter (such as alcohol, gasoline, ammonia, etc.) 4. Automatic backwashing system, improving working efficiency 5. Advanced medium cooling system 6. High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime. 7. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable. 8. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
