Cixi Heroos Sealing Materials Co.,Ltd

Ningbo, zhejiang, China

• Brand NameHEROOS

We are offering eyelets metal tape shaper. Eyelets metal tape shaper metal tape shaper hs-202 a machine produce eyelet to reinforce cut gasket. Both inner eyelet and outer eyelet are available. Eyelet diameter is manually configured. With two sets of shaping molds, lifetime: >5000kg eyelets( select two from 2.0, 2.5, 3.0, 3.2, 4.0, 4.5) customize sizes are available on request.

• Brand NameHEROOS

We are offering Vertical Winding Machine. HS-M330 is a vertical winding machine, which is designed to produce spiral wound gasket with inner ring and without inner ring from 200mm to 1600mm. driven by variable frequency gear motor. Dual roller drive gasket by ID and OD to make winding stable. With OD control tools. Options: 1. V or W profile, thk 3.2mm 4.5mm 6.4mm 7.2mm

• BrandHEROOS

We are offering vertical semi automatic winding machine. Hs-m340b is a vertical semi-automatic winding machine, just feed metal strip and filler material to produce spiral wound gasket with inner ring or without inner ring. Setting product quantity, revolutions and size etc. Simply by touch screen interface, which insure the repeatability of quality. options: 1. V or w profile, thk 3.2mm 4.5mm 6.4mm 7.2mm 2. Including molds of asme 2”-10” 150lbs with inner ring and without inner ring. molds of other standard or customized size are available on request.

• Brand NameHEROOS

We are offering fully automatic winding machine for spiral wound gaskets. hs-m380 description: automatic winding machine is a new desigh in order to improve the productivity, ensure the quality of spiral wound gaksets. It has the simple repeatability operating performance. Just need to add steel strips and fillers. It can automatic producing the gasket with or without inner rings.

• Brand NameHEROOS

We are offering eyelets wrapping machine, gasket overlock machine, metal binding machine etc. Forming good inside and outside the loop can be coated to enhance the inner and outer diameter ofthe gasket. Leveling at the same time to enhance the gasket coated. Especially with the variable-frequency control gear motors, it can be quite arbitrary start and stop, so that the coating becomesvery convenient. select the configuration:

• Brand NameHEROOS

We are offering gasket cutting machine with double knives. It is a desktop machine, high-speed reciprocating motion of the two blades cut inner and outer diameter of the gasket. The diameter is 50mm - 3000mm. The gasket have neat edge, correct size. Itis easy to cut thick gasket in many materials such as fibers, rubber, ptfe, graphite reinforcedsheet etc. No need change if you make same size gaskets

• Brand NameHEROOS

We are offering metal jacketed machine for dj coating machine. A process to non-metallic filler, the outside coated with a layer of sheet metal gasket production machines. first：a shear good sheet metal into the machine forming the wheel and drive between the guide pulley to start the motor slowly forming round sheet metal pressed into the drive guide wheel. second：ready-coated non-metallic filler: such as graphite, asbestos, glass fiber. Into forming themiddle of a good sheet metal, and close the lid (the pre-cut sheet metal). Third：the plastic wheelwith the repression of the drive guide wheel molding gasket called jacketed gaskets. Select the configuration:1.random with eight sets of mold: molding round of eight sets of eight sets of integer round 2.other mold according to customer order.

• Brand NameHEROOS

We are offering hs-204b metal strip shaping machine. Hs-204b metal strip shaping machine is semi-automatic, flat strip is shaped to v or w profile by pressing roller which is controlled by variable frequency motor, it will stop automatically when shaping finish, so one worker can operate several machines. Production capacity: 400kg per day based on 4.5mm width strip

• Brand NameHEROOS

We are offering hs-201b metal tape cutter. Metal tape cutter hs-201b strip machine it is a simple, efficient metal belt slitting machine. Able width of less than 120mm, thickness 0.1 - 0.3mm metal band is divided into the width you need. By variable frequency control gear motor drive tailor-made winding disk striping work quite easily. Stand-alone daily output can reach more than 1000 kg. When combined with hs-201b spiral wound gasket strip molding machine, then make the stainless steel strip processing more efficient. Specially designed cutting blade: first cylindrical grinding, you can continuously0.2mm stainless steel 8000 --- 10000kg. Select the configuration:

• Brand NameHEROOS

We are offering metal ring bending machine. This machine is designed to produce rings in large quantity. Three rollers are all driving roller. The id and od of rings can be set by plc and automatically adjust rotational speed to make size correct. All rings of different material will be done in one time and work continuously. Feeding metal strip into driving roller and adjust right position, the machine will produce rings according to id and od of rings set by touch screen interface.

• Brand NameHEROOS

We are offering vertical miling machine. Design for making groove of swg outer ring groove for spiral wound gaskets hs-208 is a vertical machine, which is designed to groove outer ring of spiral wound gasket in carbon steel and stainless steel. The diameter of ring is 200mm through 4000mm. easy to operate, even for unskilled worker. Several machines just need one worker, it improves productivity much.

• Brand NameHEROOS

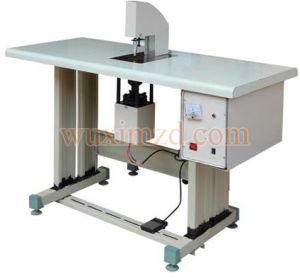

We are offering spot welding machine . Spot welding machine for spiral wound gasket a reliable welding machine, which is used for spiral wound gasket and reinforced graphite gasket and other gaksets. It can weld tinplate, stainless steel and other metal materials. It only requires 220v power supply, can provide a powerful current. Easy operation and mobility, so that it can be used in different environments.

• Brand NameHEROOS

We are offering kammprofile gasket machine. hs-m209a it is a specially designed horizontal machines, ≥ 280mm of tooth gasket corrugated gasket is suitable for processing. It has a simple process, processing speed, do not need any mold, processing and product surfacebalance, etc. . It appears, to bid farewell to the history of the large size gasket required oversize equipmentprocessing. After years of practice and to improve its performance has been a leap in the upgrade: a variable frequency speed control, spindle motor and feed motor. The latest design of the cutter. 3 a key to start and stop function. (repeat the processing of advance and retreat knife, tool, cutter)
