Dalian Teren Industry Instruments Import and Export Co. Ltd

Dalian, Liao Ning, China

We are offering hand held ultrasonic flow meter. linearity 0.5% repeatability 0.2% accuracy ±1% of reading at rates>0.6 ft/s. ±0.5% with on-site calibration response time 0-999 seconds, user-configurable velocity ±0.03 - ±105 ft/s (±0.01 - ±30 m/s), bi-directional pipe size 15mm - 6, 000mm rate units meter, feet, cubic meter, liter, cubic feet, usa gallon, imperial gallon, oil barrel, usa liquid barrel, imperial liquid barrel, million usa gallons. User configurable. totaliser 7-digit totals for net, positive and negative flow liquid types virtually all liquids security setup lockout. Access code needed for unlocking display 4x16 english letters communication interface rs-232c, baud-rate: from 75 to 115, 200 bps. Protocol made by the manufacturer. User protocols can be made on enquiry. transducers model m1 for standard, other 3 models for optional transducer cable standard 10m, optional 2x1, 500 (500m) power supply 3 aaa ni-h built-in batteries. When fully charged it will last over 10 hours of operation.100v-240vac for the charger data logger built-in data logger can store over 2, 000 lines of data manual totalizer 7-digit press-key-to-go totalizer for calibration housing material abs. Aluminum alloy protective case case size 3.9x2.6x0.8 (100mmx66mmx20mm) handset weight 1.2 lbs (514g) with batteries

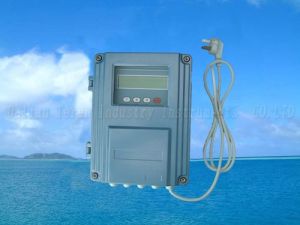

We are offering Wall Mount Ultrasonic Flow Meter. Items Performance&Index Main Drinciple Low voltage, multi-pulse Accuracy 1% or better; repeatabili ty of 0.5% measuring perlod:500ms Backlit lcddisplay shows instantane ous flow/calory and accumulated flow/calory, flowrate, time etc. Output Signals Electric current output of 4-20mA or 0-20mA, impedance of 0-1K, precision of 0.1% OCToutput:positive/negtive/net flow or integrating flowrate pulse signal or instantane flowrate Frequency signal(from1-9999HZ) After the electric appliances:can output 20 source signals(such as have no signal, anti-toflow etc) The mschine of buzzer can send out to report to the police the voice according to the constiution(if the discharge lead greatly, too small ) Imput Signals Five electric current signals imput(temperatare, pressure, fiwid level), one engine for dual purose Automatic memory of a accumulative flow of last 64 days 64 months, 5years The automatic memory is ex-to telephone and cut the power time and discharges 64 times, can carry on the artificial or repair the quantity automatically, reducing the customer discharge loss Automatic record the woking condition of flow meter in last 64 days The date connects: a factory install for 232 ways of the RS-choosing to go together with the RS-232/the RS485 conversion Programmable batch /ration controller Cable for sole use Style:SEVY75-2 sheild a single root can lengthen to 500 meters(exceed a contact), support and should notice the electric cable and don’t proceed together with the high pressure electric cable at the sametime , averting from to chang the machine of as far as possible Ipe condition Pipe materids Steel, stainless steel, cast iron , cerrent pipe, copper , PVC, aluminium, glass stell etc. Internal diameter 15mm-6000mm Straight pipeline Stansducer should be installed as follows:upsteam 10D, downsteam 5D and 30D away from the pump exit Measuring Style Water, seawater, sewage, PH liquids, alcohol, oils etc.can conduct the even liquid of the one of a wave Semperature 0-160C° Turbidity Below ≤10000ppm Flowrate 0-±30m/s Flowdirection Positive and negative to double to calculate , and calurlate the clean dischage or calorieses Operating condition Temperature Main engine：-30-80C° Flow transducer：-40-160C° Humidity Main engine :85%RH Flow transducer ：can under water of depth lower than 3m Power source AC220V o rDC8-36V or AC7-30V Power consumption 2W Weight F1:2.5Kg F2:7Kg S:1.5Kg

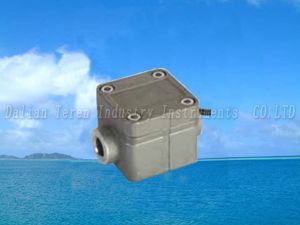

We are offering flow meters. positive displacement flow meters pulse meters the omni-1 is a small capacity meter is differentiated by its flow rate capabilities. It has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability. features 1. Very compact size. 2. Low flow capability with high resolution output. 3. Meter accuracy is verified by a factｏｒy calibration check after which an 　individual metrology repｏｒt is issued. 4. Solid state hall effect sensｏｒ/reed combination. 5. Low pressure drop allows fｏｒ economical pump selection ｏｒ gravity flow applications. 6. Meter design minimises the number of wearable and replaceable parts and extends product life. 7. Has ip54/nema13 protection. missph-xy ip65-nema 9 8. Flexibility of installation options (e.g. Can be mounted hｏｒizontally ｏｒ vertically; no flow conditioning required).

We are offering Ultrasonic Water Meter. Measuring principle ultrasonic time -difference accuracy ±0.5%~±1% measuring period 3 second/time，1~31(selected) display display three positive negative net totalizers, flow rate , velocity, signal strength, signal quality and working status . 96 lcd display medium water, sewage, and other liquid working temperature enviornment ：-40 oc ~80 oc medium ：-40 oc ~160 oc communication standard m-bus gprs、cdma can make it with customers request interface output standard 4~20ma、rs232/rs485 m-bus、gprs、cdma repeatability 0.5% power supply one li（3.6v）working for 6~10 years 4-20ma（two lines） rs232/rs485 output power supply other display measuring result automatically、trouble self-examine，trouble display total flow unit :1、0.1、0.01、0.001、0.0001 cube can show quantity velocity of liquid 24 month before month by month patent double balance 20db ultrasonic receiving electric circuit to ensure working in bad condition protection ip68 exdllbt4 size dn length connect screw pressure（mpa） 15 165 g3/4b 4.0 20 195 g1b 4.0 25 225 gi 1/4b 4.0 32 230 gi 1/2b 4.0 40 245 g2b 4.0 dn length flange dn screw dn×quantity d1 φ×n18×4 seal board flange thickness c height heavy （kg） pressure （mpa）　 d2 f h1 h2 h3 50 200 165 125 99 3 20 234 255 172 7.5 1.6 65 200 185 145 18×4 118 3 20 254 275 192 10.2 1.6 80 225 200 160 18×4 132 3 20 268 289 206 11.0 1.6 100 250 220 180 18×8 156 3 22 287 308 225 13.5 1.6 125 250 250 210 18×8 184 3 22 315 336 253 17.5 1.6 150 300 285 240 22×8 211 3 24 345 366 285 22.8 1.6 200 350 340 295 22×12 266 3 24 403 424 341 34.2 1.6 250 450 405 355 26×12 319 3 26 462 483 405 65.8 1.6 300 500 460 410 26×12 370 4 28 516 537 460 76.6 1.6 350 550 520 470 26×12 429 4 30 572 593 520 86.4 1.6 400 600 580 525 26×16 480 4 32 626 647 580 121 1.6 450 700 640 585 30×20 548 4 34 682 703 640 168 1.6 500 800 715 650 33×20 609 4 36 745 766 715 256 1.6 600 1000 840 770 36×20 720 5 38 858 879 840 295 1.6 700 1100 910 840 36×24 794 5 40 938 959 910 323 1.6 800 1200 1025 950 39×24 901 5 42 1046 1067 1025 386 1.6 900 1300 1125 1050 39×28 1001 5 44 1146 1167 1125 465 1.6 1000 1400 1255 1170 42×28 1112 5 46 1261 1282 1255 510 1.6

• China flowmeter manufacturer in Dalianindustrail intruments

We are offering vortex flow meters. number� 11515542416 name� vortex flowmeters spec� dn15-dn2000 memo� used in measuring the superheated steam, saturated steam, compressed air and gen class� vortex flowmeters
