Domain Laser

Wuhan, Hubei, China

• MOQ 1 Set(s)
• Brand NameDomain Laser

we are offering multi-axis auto welder. feature: 1.ceramic converging cavity is imported from the britain. it is corrosion resistant and high temperature resistant, and has 8-10 years service life. the life of xenon lamp is more than 8 million times. 2.the laser head can be adjusted for 360°. 3.the size of the light spots can be adjusted 4.both manual welding and automatic mass production are possible. application: special laser welding machine for stainless steel shell and metal spectacle frame, as well as welding of metal materials such as hardware industry, relay, sensor and electronic components weld spot, straight line, circle, arc, square and other profile welding

• MOQ 1 Set(s)
• Brand NameDomain Laser
• fast positioninghigh precision

• MOQ 1 Set(s)
• Brand NameDomain Laser

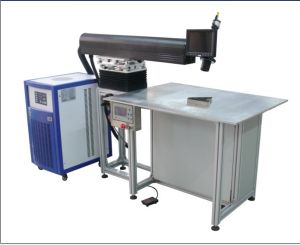

we are offering channel letters laser welder. application: this laser welding machine applies for the welding of various metal letters, led illuminated letters, customized metal signage, and exterior billboards. features: 1. red light fast positioning, ccd display, microscope optional 2. adjustable working table allows welding from small size to bigsize of work piece 3. fast working speed; professional jig ensures the focus fixedand makes welding easier without using ccd or microscope 4. slight distortion and affect by heating. technical parameters: model no. : 400hz laser welding machine laser working substance : 3+：yag crystal & gilded resonance cavity rated power : 400w max. single-pulse energy :120j max. peak power :12kw laser wavelength :1064nm focused facula diameter :ф0.10-3.0mm adjustable pulse width :0.2-20ms adjustable pulse frequency :1-30hz adjustable pulse depth :≤6mm working table scale :750*1000mm 3-axis itinerary :x=700mm y=150mm z=200mm controlling system :single-chip microprocessor observing system : ccd cooling system :water chiller 5. capable of partial heating process. 6. able to deal with complex, profiled, or tiny letters welding. 7. low noise and no pollution. 8. ultrafine positioning rod makes the welding of tiny corner easierwithout changing spot position 9. new metal processing technology brings higher quality of end products.

• MOQ 1 Set(s)
• Brand NameDomain Laser

we are offering efficiency fiber transmission welder. applied in the precision welding of optical communication device, it, medical, electronics, battery, optical fiber coupling device, kinescope electron gun, metal parts, mobile phone vibrator, precision clock and watch components, automobile steel sheet, etc technical parameters: model : cy-wf300 laser wavelength : 1064nm laser working substance : nd:yag pulse width : ≤40ms pulse frequency : ≤80hz optical fiber diameter : 0.4mm0.6mm minimum welding spot diameter : 0.2mm rated laser power : 300w400w integrity power : 12kw14kw optical fiber output quantity : both energy spectroscopy and time spectroscopy are available;standard optical fiber: one line, up to six lines cooling system : water cooling power supply : 380v±10%50hz dimensions :1200*600*1100mm weight : 300kg

• MOQ 1 Set(s)
• Brand NameDomain Laser

We are offering jewelry laser spot welder. Features: 1) the energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects. The parameters of jewelry laser welding machine are adjusted by the lever in the sealed cavity, which is simple and highly efficient. 2) ceramic converging cavity is imported from uk. It is corrosionresistant and high temperature resistant, with 8 to10 years service life. the life of xenon lamp is more than 8 million times. 3) most advanced light shielding system to eliminate the irritation to eyes by light during working. 4) work for 24 hrs continuously;long-term stable performance;maintenance-free in 10000 hrs. 5) human-based design accords with ergonomics, avoiding fatigue after long time working. application: jewelry laser welding machine is widely used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, and etc. Especially suitable for the re-sizing, re-tipping& repairing of gold silver titanium alloy jewelries and accessories, inlay and welding of claws. technical parameters: model :cy-w180 rated laser output power :180w laser wavelength : 1064nm laser power :6kw minimum molten pool : 0.1mm laser pulse frequency : �50hz laser pulse width : �20ms adjusting range of light spot : 0.1-3.0mm size of light spot : 0.2-3.0mm cover gas : one line quick connection power supply : 220vsingle phase50hz40a dimensions : master unit system 1000*480*1080mm cooling system 400*350*880mm

• MOQ 1 Set(s)
• Brand NameDomain Laser

We are offering general laser mould welder. Laser welding machine not only can be used for repairing for the mold, but also can used for modifying the design size for the mold to shorten the time for product’s r&d. During the operation, the operator can select the output power, frequency and pulse width and other parameters by the touching control panel, the operator can also be moved either forward or backward to achieve high welding efficiency. Different wave shapes can be set according to the welding materials so as to allow the welding parameters to match the welding requirements, generate plane and neat welding seams and points and optimize the welding effects. The equipment especially fits the manufacturing, molding and repairing of plastic molds, die-casting molds, extrusion molds, glass molds, plastic blow molds and rubber molds, and is widely used in mold manufacturing and mold industries for products like cell phone, digital devices, automobiles and motorcycles.
