dspunches

ningbo, China

• MOQ 1000 Piece
• MOQ1000

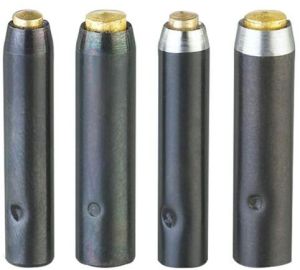

Spring punches  are available in centre bevel (order on this page) and with an inside bevel , the brass pin is tensioned by a fundamental internal spring to provide the strongest  forward ejection of material. Height:  23.80mm Bevel:  Centre Cut Diameter:   from 2mm to 10mm(at 0.5mm intervals)

• MOQ 1000 Piece(s)
• Number Of FlowerPunches

The side ejection punch tube is ideal for tougher materials and some plastics where other forward ejection punches are not strong enough.   The material is ejected through the side of the punch, care must be taken to ensure that the ejection path is not hindered. Height:  23.80mm Cut Diameter:   from 1mm to 12mm(at 0.5mm intervals) Special sizes can also be manufactured , you can visit our website: www.dspunches.com to view more info. For a quotation please send e-mail  dspunches@hotmail.com

• MOQ 1000 Piece(s)
• MOQ1000

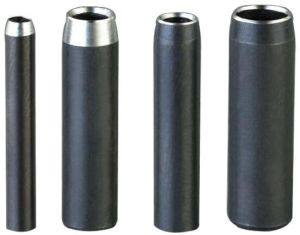

The punch with a centred bevel that requires the die maker to use a suitable ejection material.    The centre bevel punch tube is robust and durable, therefore can be used for cutting most materials. Height:  23.80mm Cut Diameter:   from 1mm to 25mm(at 0.5mm intervals) Outside dia   = cutting  dia +1mm Special sizes can also be manufactured. .

• MOQ 1000 Piece(s)
• MOQ1000

High Quality Punch uses better steel and has better hardness than other punch. High Quality Punch with a centred bevel that requires the die maker to use a suitable ejection material.   The centre bevel punch tube is robust and durable, therefore can be used for cutting most materials.   Height:  23.80mm Bevel:  Centre Cut Diameter:   from 2mm to 10mm( at 0.5mm intervals)   Outside dia   = cutting  dia +0.5mm Special sizes can also be manufactured. you can visit our website: www.dspunches.com  to view more info.   For a quotation please send e-mail  dspunches@hotmail.com

• Brand NameDspunches

High Quality Spring Punch uses better steel and has better hardness than other punch. High Quality Punch with a centred bevel that requires the die maker to use a suitable ejection material.   The centre bevel punch tube is robust and durable, therefore can be used for cutting most materials. The brass pin is tensioned by a fundamental internal spring to provide the strongest  forward ejection of material. Height:  23.80mm Bevel:  Centre Cut Diameter:   from 2mm to 10mm(at 0.5mm intervals) Outside dia   = cutting  dia +0.5mm Special sizes can also be manufactured, for a quotation please call dspunches-hotmail.

Cup Punches are made of solid rod. When these punches cut, the stock is forced into the cup and the compression acts as its own ejector.Cups can be used when cutting extremely small holes where ejection can be a problem. Never cut material thicker than the diameter of the cutting edge. Height:  23.80mm Cut Diameter:   from 3mm to 10mm(at 0.5mm intervals)   Outside dia   = cutting  dia +1mm Special sizes can also be manufactured, for a quotation please call dspunches-hotmail

Characteristic: 1.Single hardness HV430 2.Square teeth 3teeth/1' 4teeth/1' 6teeth/1' 8teeth/1'(1:1) 10teeth/1' 12teeth/1' 16teeth/1' 3.Used for form-cutting of bill Thickness: 0.71mm(2PT) Height: 23.6-23.8mm

Characteristic: 1.Three class hardness, body hardness HV280.core hardness HV380, edge hardness HV600 2.Used for spacers, plastic, fibre and so on. the cutting piece can exce-ed to 800000pcs 3.Can be bend to any geometrical shape Thickness : 0.71mm(2PT)   1.05MM(3PT)   1.42MM(4PT) Height:  22.8-30mm

Characteristic: 1.Abrasive machining sharp knife edge 2.Two class hardness body hardness HV280, core hardness HV410 3.Two type:
