Bin Tipper

We specialize in manufacturing and exporting construction attachments such as Bin Tipper. With its extensive use in the construction process, Bin Tipper has proved truly helpful in tipping boxes. The task of the Bin Tipper starts as soon as the forklift truck hauls boxes to the assigned area. Bin Tipper dumps stuff contained in the boxes to that area. The Bin Tipper that we offer also includes a good viewport, making it convenient, safe and reliable to use.

Usage instructions :

Insert the forklift fork into the 23 position of the fork extension.
Connect the oil pipe to the hydraulic circuit control system by tools.
Insert the locating pin for fixed, then the whole system works.

Operation Principles :

Insert the tipping bin under the bottom of the boxes with the help of the hydraulic system.
The second cylinder uplifts the box to a certain angle.
Drive the link mechanism which can prevent the box from dropping to the ground.
Meanwhile the main cylinder works to push it to an angle of 142 degree and dump all the stuff out of the box.
The two main cylinders will also work excellently to replace the box to its original position.

Parameters :

Max. size of forklift fork arm : 130x60x1400mm
Max. loading capacity : l000.0kg
Size of a standard box : length 1200 x width(7501300) x height (6501100)mm (its width and height are variable)

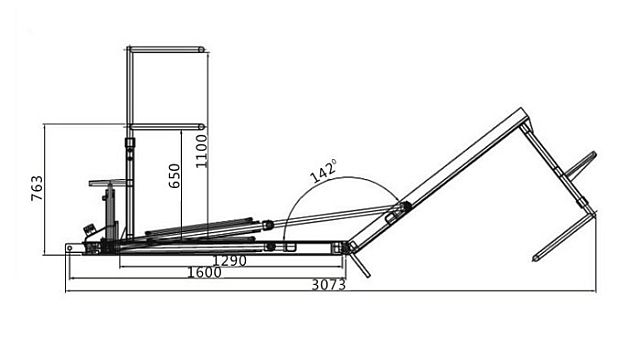

Graph
