Guangzhou Widgery Biotech Co. Ltd

Guangdong, China

• MOQ 1 Set(s)

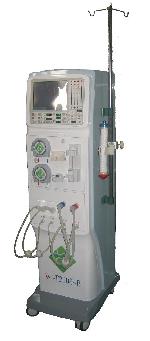

The machine's main performances are below: 1) Self-test function 2) Carbonate dialysate dialysis 3) Double needle dialysis 4) Liquid-level detector 5) Air-bubble detector 6) Blood leakage detector 7) Temperature and conductivity monitoring 8) Arterial pressure�venous pressure and TMP monitoring 9) Rolling type blood pump 10) Heparin pump 11) Volume control dehydration volume 12) Automatic disinfecting and rinsing procedure 13) Back-up power of blood pump when power is off 14) Information display function of LCD touch screen

Product Introduction The Raw Water Requirements and Working Conditions: 1. Ambient temperature: 5 ℃ ~ 40 ℃ 2. Relative humidity: ≤ 80% 3. Raw water pressure: ≥ 0.1Mpa 4. Raw water temperature: 15 ℃ ~ 35 ℃ 5. Raw water flow rate: ≥ 1.5L/min 6. Total solid content: ≤ 200ppm 7. Volume index of raw water sedimentation: SDI

• MOQ 1 Set(s)

Performance characteristics 1 、The water processing system provide secondary reverse osmosis water for the preparation of dialysis fluid used in kidney dialysis, used in various medical centers as a water supply system. 2、 System uses purely physical processing technology: simple operation, compact structure, stable quality, and no pollutant emission. 3 、Water processing system would real-time monitor raw water pressure, water inlet pressure and water outlet pressure. 4 、Water and concentrated water flow were shown on the control panel and user can adjust the water and concentrated water flow based on actual situation. 5 、Indicator lights display working conditions of the system, which was equipped with a emergency switch. 6 、Water quality monitor will monitor the conductivity of pure water, and the system will automatically run or stop by the automatic adjustment controller, based on the volumn of pure water tank. 7、Automatic backflushing. This system can carry out this function with the automatic controller in the filter, the same as for the function of reuse in the demineralizer. 8 、Reverse osmosis water system to perform YZB / Guangdong 0819-2010 "reverse osmosis water system" standard and YY0572-2005 " hemodialysis and related treatment water" industry standards. Electrical safety requirements: GB 4793.1-1995 " safety requirements for measurement, control and laboratory electrical equipments Part I: General requirements". To meet the purpose of safe and efficient clinical use of the system, we take GB/T19249-2003 "reverse osmosis water equipment" Part of national standards and YY 0572-2005 " hemodialysis and related treatment water" as basis to determine the major technical indicators and test methods of enterprise standards. The product passed through inspection and full performance test by Center for Medical Device Quality Supervision, Guangdong Province, and all the technical indicators have reached the requirements of enterprise product standard YZB / Guangdong 0819-2010. Technical parameters 1、water requirements: municipal water, water pressure is above 0.25 MPa, the conductivity is under 400us/cm 2、water capacity: the capacity is 2T / H 3、the ambient temperature is between 5° C and 35 ° C. 4、the optimum operating pressure for RO: 0.8-1 .2 Mpa 5、the Maximum operating pressure for RO: 1. 4 Mpa 6 、water production volume (under the degree of 25 ): 150L / H, 300L / H, 500L / H, 750L / H, 1000L / H 7 、quality of water: the Conductivity is under 10us/cm, the value of PH is between 3. 0 and 10. 0. This production of index is tested by the Guangdong Provincial Center of Medical Device Quality Supervision according the standardization of YZB / Guangdong 0819-2010. The architecture of production: sand filtration container, carbon filtration container, resin container, reuse resin container, the master station of reverse osmosis water, tank, ultraviolet ray disin device, bacteria filter and channel.

• MOQ 1 Set(s)

Types: W-2010-A1 foreign trade normal configuration W-2010-A2 foreign trade luxury configuration W-2010-C1 domestic normal configuration W-2010-C2 domestic luxury configuration Our production feature: 1、Comfortable. The structure of this chair is Multilayer and muti-partion applied to physical curve, so it can avoid the compression injury. 2、High permeability. this kind of chair uses the latex production and processing. 3、Easy to control. The patient can adjust his prone or sitting position with the lifting knob and lifting base easily. 4、Little space occupation. it is easy of approach to chair arrangement for the medical staff. 5、Relaxation and enjoyment. it is wonderful to watch TV when the patient is being in the processing of dialysis or anything else. Also, this chair can improve the physical blood circulation and mitigate tiredness applied to the function of massage. 6、Medical care. it can monitor dynamic balance to the weight of patient in time. Technical parameters: 1.Adjustable-upthrust backboard: less than or equal to 75 %( adjustable) 2.Adjustable-fold foot rest: less than or equal to 35 %( adjustable) 3.Power supply: alternating current 200 V 4.frequency:50Hz 5.Lifting height: more than or equal to 100mm 6.Loading capacity:250Kg 7.Size: L2000mmX W800mm 8.Weight: about 70Kg
