Hangzhou Royal Import & Export Co. Ltd.

Hangzhou, Zhejiang, China

• MOQ 1 Set(s)

We are offering gluing machine. corrugated cardboard production line includes mill roll stand, single facer, pre-heater, conveyer bridge, gluing machine, slitter scorer machine, cut off machine and stacker. We can produce the three ply, five ply and seven ply corrugated cardboard production line, widths from 1400 to 2500mmmin, production speeds from 60 to 250 meters/min customer's can choose according his own needs. We can provide a complete production line and can also provide individual parts to complete customer’s own line. equipments list equipments name mjf-80-1800 economic mjf-120-1800 middle-speed mjf-180-1800 high-speed mechanical roll stand (include the paper roll rail.) 3unit 5units hydraulic roll stand (include the paper roll rail.) 5units pre-heater φ600mm 4units pre-heaterφ900mm 4units pre-heaterφ1000mm 4units vacuum single facer (rollφ280), gimbal drive 2units vacuum single facer (rollφ320), gimbal drive 2units vacuum single facer (rollφ380), gimbal drive 2units transport bridge (electrical adjust the precision, vacuum tighten and loosen.) 1set heavy model transport bridge (electrical adjust the precision, vacuum tighten and loosen.) 1set 1set triple preheater φ600mm 1units triple preheater φ900mm 1units triple preheater φ1000mm 1units double gluer - b 1units 1units heavy model double gluer -c 1units double baker (600mm x14heat plates, 6meter cooling part.) 1units double baker (600mm x15heat plates, 7meter cooling part.) 1units double baker (600mm x18heat plates, 9meter cooling part.) 1units high-speed thin blade(electrical up and down, electrical adjust the precision.) 1units 1units nc thin blade (computer control) 1units nc cutter (servo, straight knife.) 1units 1units nc cutter (servo, spiral knife.) 1units paperboard conveyor (right-angle shape) 1units stacker 1units 1units glue system 1set 1set steam system (not include boiler and pipes) 1set 1set 1set technological parameters technological parameters mjf-80-1800 standard mjf-120-1800 middle-speed mjf-180-1800 high-speed line size l*w*h(m) 56×4.5×4.2 67×4.5×4.2 82×4.5×4.5 factory size l*w*h(m) 60×11×5 72×11×5 88×11×6 total power (about) 100kw 180kw 250 kw steam cost 0.8~1.2mpa (advise 2t/h boiler) 0.8~1.2mpa (advise 4t/h boiler) 0.8~1.2mpa (advise 4t/h boiler) starch cost (g/m2) 20-26 20-26 20-26 raw paper width (mm) 1800 1800 1800 mechanical speed 80m/min 120 m/min 180m/min economical speed 60m/min 90m/min 150 m/min shift capacity (*104m/8h) 3 4.5 9 transversely cutting precision ±1 ±1 ±1 transversely cutting scope (mm) 500-9999 500-9999 500-9999 slitting scope (mm) 145-1800 160-1800 160-1800 slitting precision (mm) ±1 ±1 ±1 workers 8-11 8-11 8-11 note: above parameters are for your reference. It depends on the different machines you choose.

• MOQ 1 Set(s)

We are offering single facer machine.introduction： single facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard. characteristics: 1. Cover vacuum suction. 2. Corrugating roll is made of high quality alloy steel 48crmo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach hrc55~60, which ensures good wear-resistance and long life service. 3. Independent transmission box, transmit by shaft coupling. 4. Glue roll is lifted and lowered pneumatically. 5. Independent glue clean device and electric glue-separate board to control the width of glue. 6. Manually regulate or electrically regulate the display device. 7. Lubricated by high temperature lubricate grease. 8. Surface of all dancing rolls and preheating rolls is grinded and chrome-plated. 9. Pressure roll is medium- frequency quenched and chrome-plated. 10. Width 1400mm~2000mm. 11. Preheating rolls, pressure rolls and corrugating rolls all meet the national standard of pressure vessel. Working pressure is 1.1mpa. technological parameters: working width 1600mm 1800mm 2000mm 2200mm heating method oil heating / steam heating/electrical heating design speed 60m/min economical speed 45-50 m/min compress-air pressure 0.4-0.9mpa flute type standard flute uv flute standard spec. a, b, c, e, f for other type and model, we can produce as customer’s requirement. corrugated roll diameter (mm) 268 wall thickness (mm) 130 type vacuum absorb roller material 48crmo alloy, heat treated machine size (mm) 3300*1300*1700 3550*1300*1700 3800*1300*1700 4050*1300*1700

• MOQ 1 Set(s)

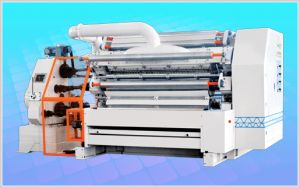

we are offering single facer machine.purpose and characteristics: 1) design speed:200m/min 2) effective width of machine: 1400mm-2500mm 3) main flute roller diameterφ380mm, pressure roller diameterφ385mm, preheater roller diameterφ400mm. 4) vacuum suction paper leading features perfect flute formation 5) dual flute structure, one pair flute rollers unit working and another preheating, achieve flute quickly change. save working space ( if normal single facer machine need two sets to achieve this function ). 6) plc control system. touch screen display all running data, easy for operation. 7) the flute rollers made by special alloy steel with hardness treatment . it' hardness can reach hrc58-60, the surface is well treated by grind and plated chrome, or adopt tungsten carbide flute rollers are optional. 8) the independent driving box, five driver axis, all gears with hardness treatment, oil spray lubricating by oil pump to reduce noise keep running stable, prolong the use life of gear. 9) adopt glue width motorized dividing to match the paper width. idle running motor for glue applicator roll to avoid glue dry. adjustment for gap between glue roller and doctor roller by electric . digital read out for the gap between glue roll and doctor roll. glue unit can be moved by pneumatic. 10) flute rollers and pressure roller controlled by hydraulic system, working pressure stable. 11) with water spray device for adjust moisture capacity of flute paper. 12) this dual flute machine suit for single facer paperboard production line ---2 layer (single facer paperboard ) and corrugated paperboard production line--- 3 & 5 &7 layer. with high market competitive power.

• MOQ 1 Set(s)

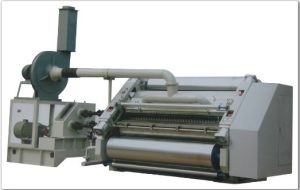

We are offering single facer machine.introduction: single facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard. characteristics: * paper leading with vacuum absorb model, have high-pressure & strong fan motor. The flow of fan can be adjusted, and have silencer; the electric control system fastens on a electrical case, which has min. 1.5meter distance from equipments, the operation side is completely independent. * gimble drive system, separated structure and independent drive case. Closed gear drive system with oiling lubrication, the usage life of the gears is highly prolonged. * machine base and wallboard is cast iron structure, thickness of the wallboard is 180mm. * corrugated roll: material of corrugated roll is 52crmo alloy, which is dealt with quench, surface polish. Diameter of roll is ø 320mm, surface hardness is more than hrc60. The adjust of up and down of roll is pneumatic controlled. * press roll: diameter is ø320mm, surface is worn down and chromeplated. The adjust of up and down of roll is pneumatic controlled, material is carbon iron 45#, dealt with confection. * pre-heater roll: diameter is ø400mm, surface is worn down and chromeplated. All are connect with soft metal pipe. * the bearing of corrugated roll and press roll are lubricated and high-temperature resistant. * glue supply and quit is pneumatic controlled, diameter of glue roll is ø240mm, surface of roll has concave netted rind, surface polish & chromeplated. Surface of adjust roll is surface polish & chromeplated. * use electrical glue separate equipments, the glue part can run independently when the main motor stops, this can avoid the dry of the glue.(choose by customer.) * middle height of corrugated roll is 0.10mm, middle height of press roll is 0.075mm. Have place limit equipment, diameter of tighten cylinder is ø160mm. technological parameters: 1. Working width: 1600mm, 1800mm, 2000mm, 2200mm. 2. Design speed: 150m/min. 3. Operation direction: left or right (design as customer’s workshop.) 4. Gas: 0.4-0.9mpa. 5. Steam pressure: 0.8-1.3mpa. 6. Flute: uv or uvv model, can design as customer’s requirement. diameter of the rolls: 1. Corrugated roll: ø320 mm 2. Press roll: ø320 mm 3. Gluing roll: ø240 mm 4. Pre-heating roll: ø400 mm drive power: 1) main motor: 11kw, 380v, 50hz 2) fan motor: 15kw, 380v, 50hz

• MOQ 1 Set(s)

We are offering corrugated cardboard production line. introduction : corrugated cardboard production line includes mill roll stand, single facer, pre-heater, conveyer bridge, gluing machine, slitter scorer machine, cut off machine and stacker. We can produce the three ply, five ply and seven ply corrugated cardboard production line, widths from 1400 to 2500mmmin, production speeds from 60 to 250 meters/min customer's can choose according his own needs. We can provide a complete production line and can also provide individual parts to complete customer’s own line. equipments list equipments name mjt-60-1600 economical mjt-80-1600 standard mjt-100-1600 high-speed mechanical roll stand (include the paper roll rail.) 2 2 hydraulic roll stand (include the paper roll rail.) 3 pre-heater φ400mm (up) 1 2 pre-heater φ600mm (ground) 2 vacuum single facer (rollφ280), gimbal drive 1 1 vacuum single facer (rollφ320), gimbal drive 1 transport bridge (electrical adjust the precision, vacuum tighten and loosen.) 1 1 heavy model transport bridge (electrical adjust the precision, vacuum tighten and loosen.) 1 double preheater φ400mm 1 1 double preheater φ600mm 1 double gluer - a 1 1 double gluer - b 1 double baker (600mm x9heat plates, 4.5meter cooling part.) 1 double baker (600mm x11heat plates, 5meter cooling part.) 1 double baker (600mm x14heat plates, 6meter cooling part.) 1 thin blade (simple electrical adjust.) 1 high-speed thin blade(electrical up and down, electrical adjust the precision.) 1 1 mechanical cutter 1 nc cutter (servo, straight knife.) 1 1 conveyor and stacker 1 paperboard booking machine 1 glue system 1 1 1 steam system (not include the boiler and pipes.) 1 1 1 technological parameters technological parameters mjt-60-1800 economical model mjt-80-1800 standard model mjt-100-1800 high-speed line size l*w*h(m) 32×3.6×4.5 36×3.6×4.5 48×4×4.5 factory size l*w*h(m) 35×11×4.5 40×11×4.5 55×11×4.5 steam cost 0.8~1.2mpa about 2t/h 0.8~1.2mpa about 2t/h 0.8~1.2mpa about 2t/h starch cost (g/m2) 11-13 11-13 11-13 raw paper width (mm) 1600 1600 1600 mechanical speed 60m/min 80m/min 100m/min economical speed 45m/min 50m/min 80m/min shift capacity (*104m/8h) 2.5 3 5 transversely cutting precision ±2.5 ±1 ±1 transversely cutting scope (mm) 600-2600 500-9999 500-9999 slitting scope (mm) 145-1600 145-1600 160-1600 slitting precision (mm) ±1 ±1 ±1 workers 6-9 6-9 6-9 note: above parameters are for your reference. It depends on the different machines you choose.

• MOQ 1 Set(s)

We are offering single facer machine. Introduction： single facer is the main machine for producing the corrugated paperboard. Mjsf-210c model single facer is suitable for the small or middle factory use. Good machine is directly effecting the quality of the corrugated paperboard. Model name mjsf-210c max. Speed 35-40m/min economical speed 25m/min flute type a, b, c, e, f (can be chosen or required by customer) heating method 1)electrical heating 2) oil heating 3) steam heating main motor power 7.5kw machine body thickness 70mm roller material 45# steel, heat treated.

• MOQ 1 Set(s)
• Brand NameROYAL

We are offering cutting machine. The series of model mjtj-1 gilding, cutting & mark pressurized machine is product of new generation with clockwork precision and marked effect. It is used for gilding-printing all kinds of colored electro-chemical aluminum, marking a concave-convex die-cutting pictures, trade mark, advertisement of sample, boxes, cover of books and new year card, highly decorations and printing materials. It is the optimum equipment for printing, packing, decoration and plastic industries with materials including paper, cardboard, plastic, leather matters. it adopts high quality material and high tension of casting it adopts four-shaft bevel wheel structure with steady operation, great cutting, low noise. Sound and layout of its height, great angle of frame. Electrical system is designed according to iec standard. It has three functions for single slitting, successive slitting, time delay. Its can be adjusted. Safety protection system is reliable. Concentrated lubricating system.

• MOQ 1 Set(s)

We are offering single facer machine.characteristics: 1) designed speed:150m/min 2) corrugator roll diameter:320mm, 360mm 3) available width:1600mm-2200mm 4) heat source: steam 5) vacuum suction system provide perfect flute shape. 6) double flutes structure, one flute unit working and another pre-heating.operate the switch of the clutch to change flute rapidly. 7) block design of the gluing unit with frequency conversing drive, straight guide way slipping, hydraulic lock, pneumatic movement of the glue trough, electric control of dividing glue. Motorized glue application, and vdigital read out. 8) auto-circulating glue feeding system is provided to avoid the deposition of the glue. 9) corrugated paper spraying device is equipped. 10) the corrugated roll is made of special alloy steel of 48crmo with grinding process and induction hardened with hardness of hrc56-60. 11) frequency conversing motor transmission, frequency converter control of the acceleration and deceleration of the machine. Two units of individual driving box, gimbal transmission, isolated dynamic vibration, flooding system lubrication to improve the stability. 12) hydraulic control of upper roll and gluing roll. 13) the bearings of corrugated rolls and press rolls are lubricated by high temperature lubricating grease and manual centralized lubricating system is available.
