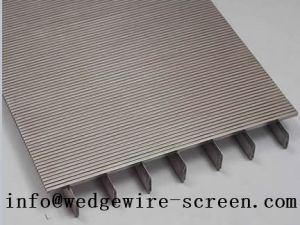

Wedge wire screen panels, also called wedge wire flat screens, wedge wire panels, are manufactured with stainless steel surface profiles and support profiles. The surface profile are welded onto support profiles at each intersection in a 90 degree. Wedge wire screen panels, also called wedge wire flat screens, wedge wire panels, are manufactured with stainless steel surface profiles and support profiles. The surface profile are welded onto support profiles at each intersection in a 90 degree. Wedge wire screen panels are composed of surface profile and support profile. The surface profile is commonly triangle wire, and the support profile can be triangle wire, wedge wire, round bar and rectangular bar. They can suit different machines and can be used in various applications. Support types of wedge wire screen panels triangle wire. Round bar. Rectangular bar. Wedge wire. If there is any need please contact us via info@wedgewire-screen.com.

• MaterialStainless steel wire
• Brand NameHighTop

• Packaging Typesiliver

Compared with wedge wire screen tube, the wedge wire screen cylinder has some similarity and difference. Similarity of wedge wire screen cylinder and wedge wire screen tube they are all manufactured from stainless steel wire, including triangle surface profiles, round, rectangular, triangle and wedge wire support profiles. They are produced on an automotive machines, which the support profiles are welded onto surface profiles when the surface profiles are winding. Difference of wedge wire screen cylinder and wedge wire screen tube wedge wire screen cylinder has larger diameters than the wedge wire screen tube. This make the wedge wire screen cylinder can be used in large machines and applications. Wedge wire screen cylinder has higher load capacity than the wedge wire screen tube. The wedge wire screen cylinder is commonly used in the heavy duty applications and maintain a long service life. Edge type of wedge wire screen cylinder standard type. There is no any edge on the wedge wire screen cylinder. End ring type. The end rings are welded onto wedge wire screen cylinder. Flange type. The flange are welded onto the wedge wire screen cylinder and there are two types of flange for your choice. If there is any need please contact us via info@wedgewire-screen.com.

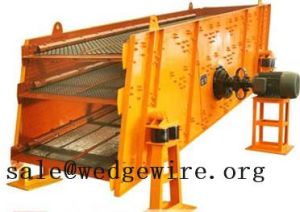

We offer double deck screen. Designed with a larger-mesh top box and a smaller-mesh rocking sifter, the double decker allows you to sift through two mesh sizes simultaneously. The upper box is clamped into place on top of the bottom sifting screen. After the material remaining in the top box is processed, the top box is easily unclipped and removed, leaving the sorted smaller matrix in the bottom rocking sifter - thus aiding in the identification of small objects. Double deck screens (model# tyler h-40-x). Screens for s-7508 (top). High tensile carbon steel. Width 4 feet length: 5 feet, tyler 5. Wire diameter: 0.054" (opening : 0.156"). Slots ra with hooks on 5" side metal reinforced with 8 holes at center 22mm. Top polishing screens for s-7509. Type: 722a. Material: st. Steel 316, pvc edge eyeleted every 100mm. Length: 4316mm. Width: 2010mm. Aperture: 4 × 7mm. Wire diameter: 1.6mm.

We offer sieve bend screen. Sieve bend screens also known as side hill screens, parabolic screens, run down screens, gravity screens and dsm screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery. Sieve bends are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity. A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface. Specifications: profile wire width relief angle typical support rod 116” (.063”) 13 degrees small round rod 332” (.093”) 13 degrees round or rectangular bar 18” (.125”) 13 or 5 degrees round or rectangular bar features: low headroom - only 1.1 metres (44") tall for the 900mm arc length unit. Energy efficient - operates with no moving parts and with no energy input. Space efficient - treats up to 122 litres per second per square metre of floor space. Quiet operation - no moving parts means no mechanical or electrical vibrations. Accurate sizing - can be used for sizing solid particles down to 0.2mm (0.008"). Low maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation. Easy screen replacement - a typical screen can be replaced in 10 minutes with no tools. Wedge wire application: they are used in industries such as sugar, coal mining & quarrying, mineral processing, cement, and industrial & urban effluent treatment etc.

We offers run down screen.run down screens offer a high capacity, cost effective method of solidsliquids separation utilizing stainless steel wedge wire as the screening medium. each unit is designed to suit the specific requirements for the customers. Consisting of a basic outer casing, which can be manufactured in mild steel or stainless steel, each unit incorporates a distribution chamber and feed weir; over which the effluent passes onto the wedge wire panel which is set at right angles to the flow to enable the separating process to commence. the separated solids collect on the lower half of the screen to drain and compact, they then slide by gravity onto a solids discharge chute. the extracted liquid passes through the wedge wire into an underflow collecting chamber, with a disposal outlet for either re-circulation or discharge.

We offer the order of wedge wire filtration elements with years' development, our company successfully exports the wedge wire screen, flat wedge wire panel to inida, keyna, pakistan and other asian countries and regions. And build the long-time cooperation with purchasing friends. Here is one of our purchasing inquiries. the company is a manufacturer and importer of filtration which was established in the year 1994 to manufacture industrial filters and strainers. Recently the company purchased some wedge wire filter elements. Here is the details of inquiry: we are having urgent requirement wedge wire elements as per specification given below. Wish kindly give us the most competive rates and shortest delivery period. fr no: 2902. Flow direction: in to out. Degree of filtration(slot opening): 0.8mm or 1mm (quote of both separately). Moc: ss 316l. Service: industrial water. Size: 750mm dia × 1800mm lg (offer as per tool readily available). fr no: 2979. Size: dia. 268 × 1000lg. Size: dia. 215 × 750lg. Flow direction: in to out. Moc: ss304. Slot opening: 250 micron. Flow direction: in to out. Differential pr. To: 6kgcm2. Withstand at 40 deg. C. note: kindly inform us the size of tool available with you for bigger diameter in between 625 to 914 for our records.

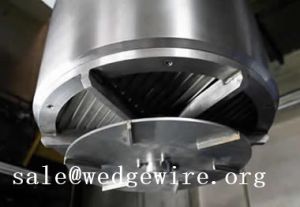

we offer Wedge wire screen is the products that are usually used in mining, oil, sand, seawater seperator or filtration. Wedge wire slot screen seperator is used in the seawater separation. The specifications of the wedge wire slot screen seperator is as follows: The construction details of the screen that we use: What we use in this size is highlighted in red. 28SS shows the profile of the surface material; Q35 shows the dimensions and the shape of the support profiles; 21mm indicates the distance between the support profiles. Screen slot round screens - Material: 316L - Outer diameter: 480mm - Inner diameter: 125mm - Total thickness: 8mm - Construction: 28SSQ35-21mm - Slot: 0.4mm. The picture shows how the screen is positioned under the basket. 80kg of zirconium beads are rotating over the screen at 800rpm, so the construction and weldings must be very rigid.

We are offering crimped wire screen. Crimped wire screen can withstand the rigorous treatment and survive the day and night attrition experienced in quarries, sand and gravel pits and all types of ore treatment. Crimped wire screen is renowned for their extremely high resistance to abrasion. Close checks on raw materials, production processes and constant quality control at all stages of manufacture guarantee a top quality finished product. Typical crimped patterns: flat top the top or working surface of the screen is smooth, all the crimping is on the underside, assuring a more even weave. Materials are free to move over the screen. Double crimp evenly crimped in warp and weft, providing a rigid construction. The wires are under crimped and sprung together thus giving a mesh which will not chatter at the intersections. Lock crimp a variation of the double crimp with an additional crimp to give a firmly locked mesh. Widely used for vibratory screen cloths. Corrugated crimp extra crimps in war and weft with the wires seated in every third or fifth crimp. Gives a rigid mesh even when the aperture is large in relation to the wire diameter. General use: screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat. Pre-crimped weaves are preferred for vibrating screens and many other applications where sizing is critical.

We offer woven wedge wire screen wedge wire screen is made with certain size of woven wire cloth as screen fabrics, then framed with stainless steel or coated carbon steel plates. Woven wedge wire screen is made with the embedded way of weaving, with the features of flat surface, high hardness, good ductility and toughness. This type woven wire screen is normally used in mines, coal mines with the advantages of hight strength, wear resistance, forming fast and long life. It completely overcomes all the shortcomings compared to other wedge wire screens. Woven wedge screening is used for primary screening of metal, coal and other operations. Vibrating wedge screen for mining with the benefit of flat type vibration screen, high temperature, toughness, shock resistance and high efficiency. And mainly for large scale stone processing, coal mine and metallurgy. Here are the common types. Typical apertureweave combinations include square, long slot, double chute and triple chute, harp and piano wire screens. Types of weave available include: plain weave. Single crimped screen. Double intermediate crimp. Triple chute (non-blind). Lock crimp. Twill weave. Harp weave. Slotted screens (against flow).

Our factory can serve different specifications of pmc sand control screen, which is a new efficient technology of mechanical sand control with excellent performance in practice by its high permeability, high strength, high deformation adaptive capacity, high reliability and good anti corrosion property. Pmc sand control screen mainly consists of base perforated pipe, pmc sand control filtration jacket, and stainless steel outer protective shroud. The base pipe is of api casing or api tubing. The pmc sand control filtration jacket is made of multilayer stainless steel precise micropore weaves. All parts of pmc screen are welded together. Pmc screen features materials and anticorrosion ability: 1. For common wells, oil engineering, the base pipe is api casing or tubing (j55, n80). Pmc sand control filtration jacket and protective shroud are made of high quality stainless steel. 2. For special wells in h2s, co2 or co1 corrosive environment, the base pipe is anti-corrosion casing or tubing, even is stainless steel tubing. Pmc sand control filtration jacket and protective shroud are made of high quality stainless steel. 3. Have anti-corrosion ability to acid, alkali, or salts.

We are offering flat wedge screen panel. Welded wedge wire screen panels can be constructed using rectangular support rods or round support rods. They are the most widely used type of wedge wire screens mainly in the mineral processing both for stationery as well as vibratory decks. Flat screen panel can be designed to optimize the open area, strength and wear life for each application. The panels are either continuously or intermittently welded on the lower side of loop to provide complete rigidity to the panels thus becoming very effective in transmitting the vibrations without mechanical failures. 1. Flat screen with round support rods. 2. Flat screen with rectangular support rods. 3. Screen panel with side frame. 4. Heavy duty wedge wire. round support rod construction rectangular support rod construction 63v on ?” diameter at 1 ?” centers 63v on .074” × ?” at 1” centers 69v on 516” diameter at 2” centers 69v on .074” × ?” at 1 ?” centers 93v on 516” diameter at 2” centers 93v on .074” × 1” at 2” centers 125v on 38” diameter at 3” centers 125v on .105”× 1” at 2” centers if there is any need please contact us at

We are offering welded wedge wire candle filter our range of welded wedge wire candle filters are ideal for removing particles of very small size up to 10 microns. These filters can be easily washed through a back flush of the steam. We also provide options for different attachments to meet the specific process requirements of the clients. Features backwashable welded wedge wire foti tubes low heel volume easy to clean smooth filtration surface outside to inside flow no moving parts permanent filter element fine filtration down to particles (10 microns and above) advantages clean and hygienic operation highest level safety for operator and process eco-friendly operation stand alone equipment backwashing facility permanent candles steam back-washable if there is any need please contact us at

Vibrating sieve screen with its approximately circular movement is of multilayer and high efficient. The eccentric shaft vibration exciter and partial block help to adjust amplitude. It coats with multi - component organic binder on perforated metal plate and screen cloth contact to enhance corrosion to form a bonding layer, so that bolting cloth and perforated metal plate as together, constitute the whole napped component. Weaving and characteristics: acid - resistant, alkali-resistant, heatproof wear and cold-proof. Use: vibrating screen is mainly used for quarry screen, oil industry and iron slop vibration sifting and coal mining. Variety: single layer vibrating screen; double layer vibrating screen, wave type vibrating screen, high efficiency vibrating screen. features of vibrating screen : it uses eccentric block to produce strong exciting force. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance. It adopts tire coupling with capability of flexible connection and stable operation. It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise. Type screen spec .mm layers sieve pore mm max. Feed size mm capacity th power kw vibrating frequency hz ya1230 1200×3000 1 3-50 200 7.5-70 5.5 800-970 2ya1230 1200×3000 2 3-50 200 7.5-80 5.5 800-970 2ya1230 1200×3000 3 3-50 200 7.5-80 7.5 800-970 ya1237 1200×3700 1 3-50 200 7.5-70 5.5 800-970 2ya1237 1200×3700 2 3-50 200 7.5-80 5.5 800-970 3ya1237 1200×3700 3 3-50 200 7.5-80 7.5 800-970 2ya1548 1500×4200 2 5-50 400 50-208 15 970 3ya1548 1500×4800 3 5-50 400 50-250 15 970 3ya1848 1800×4800 3 5-80 400 50-300 18.5 970

We are offering dewatering screen panel we supply numerous combination of screen panel for static dewatering equipments. The dewatering screen has gravidity feed. The solid particles and the liquid are separated on a bend or folded wedge wire screen. The liquid flow through the panel screen, although the solid particles roll down. In order to optimize the performance of dewatering, we propose tilted wires panel screen adapted to each particular application. If there is any need please contact us at

We are offering wedge wire screen cylinder. Compared with wedge wire screen tube, the wedge wire screen cylinder has some similarity and difference. Similarity of wedge wire screen cylinder and wedge wire screen tube they are all manufactured from stainless steel wire, including triangle surface profiles, round, rectangular, triangle and wedge wire support profiles. They are produced on an automotive machines, which the support profiles are welded onto surface profiles when the surface profiles are winding. Difference of wedge wire screen cylinder and wedge wire screen tube wedge wire screen cylinder has larger diameters than the wedge wire screen tube. This make the wedge wire screen cylinder can be used in large machines and applications. Wedge wire screen cylinder has higher load capacity than the wedge wire screen tube. The wedge wire screen cylinder is commonly used in the heavy duty applications and maintain a long service life. Edge type of wedge wire screen cylinder standard type. There is no any edge on the wedge wire screen cylinder. End ring type. The end rings are welded onto wedge wire screen cylinder. Flange type. The flange are welded onto the wedge wire screen cylinder and there are two types of flange for your choice. If there is any need please contact us via info@wedgewire-screen.com.

• MaterialStainless steel wire
• Brand NameHighTop

we are offering wedge wire screen tube. wedge wire screen tube, also called round slot tube. it is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance. the wedge wire screen tube is composed of working profile and support profile. it is produced on an automotive machine. the support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles. if there is any need please contact us via

• Brand NameHighTop

We are offering wedge wire screen support grid. Wedge wire screen support grid is made of all stainless steel materials or nickel alloy materials, including the wedge wire screen, frames and other accessories. The high quality material make the wedge wire screen support grid corrosion and rust resistance and long service life. Compared with woven wire mesh or perforated metal, wedge wire has continuous slots, which have higher open area and precise openings. It can supply more precise filtering performance, higher strength and more durable life. Types of wedge wire screen support grid wedge wire screen support grid has various types, it can be whole type, and it can also be divided into several parts. The whole type is mainly in small diameter. The large diameter support grid will be divided into several parts for convenient transportation and installation. Whole type wedge wire screen support grid. Joint type wedge wire screen support grid. If there is any need please contact us

• MaterialStainless steel wire
• Brand NameHighTop

We are offering wedge wire sieve bends are made of stainless steel wedge wires. They are consist of a concave curved profile wire screen, which are inserted into a stainless steel frame. The wedge wire sieve bends are manufactured by wrapping and welding stainless steel v-shaped profile wire and support rods. Then the panel screens are cutting and curved into arc screen. The wedge wire sieve bends have continuous slots, which has efficient filtering performance. Forces exerted as materials flows against the curved surface, curved screen structure has better filtering and greater capacity than the wedge wire screen panel. If there is any need please contact us via

• Brand NameHighTop

We offer wedge wire screen basket. Similar to the wedge wire screen cylinder and wedge wire screen tube, the wedge wire screen basket is also manufactured from v-shaped profile wires and various support rod. The support rod are resistance welded onto the profile wires to form a firm structure. Wedge wire screen basket has a narrow top and a wide bottom, which is suitable for various centrifuge machines. wedge wire screen basket is a very important component of centrifugal liners. The wedge wire screen basket commonly has flange on the bottom or top. It is connected to the machine by bolt and nuts. Sometimes, there are flanges on both the top and bottom of the wedge wire screen basket. If there is any need please contact us.

• Brand NameHighTop

We offer wedge wire lateral assemblies. wedge wire screen is widely used in the under draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in the under draining. wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications. the wedge wire screen lateral has two type: threaded ending wedge wire screen lateral and flange ending wedge wire screen lateral. Threaded ending wedge wire screen laterals are composed of a solid cap on one end and a threaded pipe connection on the other end. The flange ending wedge wire screen lateral is composed of solid cap on one end and a flange. The different design make it possible to suit different applications and machines. if there is any need please contact us.

We are offering stainless steel wedge wire screens are made of ss "v" shaped and ss "v" shaped or ss "v" shaped and ss rod or ss "v" shaped and ss "convex "shaped rod with the unique computer controlled machinery in which a continuous length of profile wire of a triangular section is fusion welded into support rods. This 'v' shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening. The cylinder screen have a perfectly flat and smooth surface with rectangular openings , also named ss wedge wire screen, ss wedge profile wire screen cylinder or ss wedge cylindrical screen . Advantages: a continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone. A 'v' shaped wedge wire which avoids clogging and ensures uninterrupted flow. A uniform and efficient well development due to the continuous slot opening. Offering great strength. Precision, long service life. Applications: wedge wire products are used for solid liquid and solid gas separation, sizing, dewatering and media retention in oil & gas wells, water wells, monitoring & soil sanitation, the (petro) chemical industry, food and process industry and architecture.

Welded Wedge Wire Screens are made in panel or cylinder type from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid liquid and solid gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals. Flat welded wedge wire panels offer a perfectly flat and smooth surface with rectangular openings.This kind of wedge wire can replace traditional media like wire mesh cloth, perforated plate and other metal sifting materials as components for rotary screen, well screen, quarry screen. Wedge Wire Application: Separating, Sizing; Straining, De-watering, Filtering, Drying, Water intake, Media retention. Cylinder wedge wire screens are available for both externally-fed (flow from outside to inside) and internally feed applications. Externally-fed cylinders can be manufactured without requiring a weld seam up to about 36” OD, larger diameters must be fabricated. Internally-fed cylinders are fabricated to customer’s requirements. 1. End view of external-fed cylinder. 2. Internally-fed fabricated rotary screen cylinder. 3. Internally-fed rotary screen cylinder. 4. Reinforced externally-fed rotary screen. 5. Externally-fed rotary screen with flanges. 6. Internally-fed rotary screen with flights. Features: Self Supporting; High Abrasion resistance; Low pressure drop; High resistance to Vibration. Applications: Cylinder screen is used in food processing, waste water filtration, pulp and paper as well as mineral processing applications.

We are offering wire wrapped screen. The wire wrapped of stainless steel pipe materials: 302, 304, 304l, 316, 316l stainless steel wire. The profile wire stainless steel pipe screen is created by wrapping a profile wire cylindrical around longitudinal placed support rods. All wires and rods are resistance welded at each point of contact. The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods (fixed or variable) allow us to design a screen according your technical or cosmetic specification. V-shaped slots: openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it. Continuous slots: the special design gives continuous slot opening across the periphery and length of screen. Very large open area: this design gives continuous slot and hence the% open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably. Better sand filtration: due to specialize manufacturing process, wide range of slot opening is available down to 0.15mm to allow proper slot selection depending upon the size of sand in particular area. This gives better sand control and reduced pump maintenance and longer tube well life. Energy saving: due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed.

We are offering wedge wire screen for mine is a kind of metal mesh components for sifting and filtering. Widely used for sifting, filtering, drying, etc. Wedge wire screen offers high strength and conveying strength, can be made into different sifting and filtering devices.

V-wire screen is manufactured with v-shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires if fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. V-wire screen specifications: slot size: 0.10, 0.15, 0.2, 0.25, 0.30mm, up to 3mm. Diameter available: 1.5”, 2”, 3”, 4”, 6”, 8”, 10”, 12”, 14”. Open area: up to 60%. material: low carbon, low carbon galvanized steel (lcg) steel treated with plastic. Spraying, stainless steel (304). Lengths up to 6 meters. Diameter: ranging from 25 to 2000mm. End connection: plain beveled ends for butt welding or threaded. V-wire screen application: v- wire screen is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

We are offering multilayer packing screen multilayer packing screens are common used for oil and water exploiting. It consists of two layers well screens (pipe base screens) or multilayer well screens with gravel packing. They have great sand controlling capacity, and so far it adopts an advanced sand controlling technology under the well. Material: stainless steel and carbon steel supply capacity: 6800meters per month high quality low price fast delivery first class technology meanwhile, our company can offer a whole set of service, such as the related process, the solution of the related technology and so on. Furthermore, we can supply the product according to the clients’ specific requirements. And we can supply the products according to the client's specific descriptions.

We offer pipes well slot screen.

We are offering bare wedge wire screen bare wedge wire screen construction a. #93 profile sr250 supports × 120pcs. B. 46.6% open area. C. Collapse pressure: 4 psi. D. Od 627mm or 628mm × 609mm id × 303mm length. E. All welded construction. F. Material is ss304. G. Slot width: 1.5mm, 2.0mm. Bare wedge wire screen construction a. #93 profile sr250 supports × 120pcs. B. 46.6% open area. C. Collapse pressure: 4 psi. D. Od 627mm or 628mm × 609mm id × 1192mm length. E. All welded construction. F. Material is ss304. G. Slot width: 1.5mm, 2.0mm

we offer Wedge wire screen cylinder specifications: 1) Wedge wire WW M15 screen type: cylindrical. screen material: hastelloy C276. Metal type: wedge wire. Metal grade: WW M15. screen aperture size: 0.5mm. screen diameter: 80mm. screen length: 460mm. 2) Wedge wire WW M15 screen type : cylindrical. screen material: SS316L. metal type: wedge wire. metal grade: WW M15. screen aperture size : 0.5mm. screen diameter: 80mm. screen length: 460mm.

We offer different shapes and sizes wire wrap screen. V wire wrap screen is a common shape of this screen. V wire wrap screen specifications: Material: SS304 Fitted on U PVC base pipe Wire Diameter: 3.5" Slot size: 300μm open area of screen: 12% Shape: Panel or round shape Packing: with pallets. Length: 4m - 6m. Special specifications can be required according to your needs.

We offer profile wire slotted tubes.general construction drawing slot tubes are welded structures with the support profiles being rods in the axial direction of the tube and surface profiles spirally wound around the support profiles. slot tubes are manufactured directly on a machine. They have the unique advantage of very accurate, narrow slot openings and perfect roundness all in one. Slot tubes can be provided with the necessary end pieces for attachments andor reinforcements. If there is any need please contact us at sales@wedgewire.org

we offer Bridge Slot Screen. The sand and gravel can't easily block the slot because of the special bridge style design, and Bridge Slot Screens has great mechanical strength and water entering capacity. Meanwhile, Water Well Screens use steel punching technology and is rolled in many ways, so they are light, cheap and easily operating. We use CNC to punch, so the slot can change as your requirements. In order to give customers more convenience, we can offer any diameter Bridge Slot Screens and Water Well Screens. We also offer galvanized Well Screens to prolong the operational life. Features for bridge slot screen: Mechanical robustness Precise slot openings Easy installation Quality sheet metal If there is any need please contact us at sales@wedgewire.org

We offer perforated pipe for wedge wire.the perforated pipe adopted advanced ways to soak. Our water drainage pipes are always fully accessible for inspection and maintenance. manufacturing perforated drainage pipe in diameters from 0.3m to 3.6m to fit any situation, we can produce pipe systems or vertical rings or a combination of the two. We can also provide a full design and detailing service, consistent with suds, using the latest software. we can determine the suitability and performance of a soak away or infiltration system according to three criteria: ? the capacity of the soil to infiltrate water - the "infiltration coefficient" ? existing or historic groundwater levels - should be at least 1m below the invert of the intended soak away ? the plan area available for sitting the soak away unit supplication: hole: 3mm. Pitch: 5mm, 7mm. Open area: 25. 4%. Diagonally perforated. If there is any need please contact us at sales@wedgewire.org

The support grid is a flat screen panel that provides uniform flow collection which is essential in many applications. This is particularly important when screens are used to reserve expensive ion exchange resins. Support grids provide superior media retention characteristics in vessels of all types. They feature durable construction, precise open area, and are virtually non-clogging. For larger vessel diameters SanQiang screen support grids are fabricated in segments to allow installation through a vessel man-way. Benefits: A non plugging surface; Self supporting structure; Accurate separation; High open area; Durable. Wedge Wire Applications: Molecular sieve; Catalyst bed support; Ion exchange; Sand filters; False bottoms Arrangement & Installation A support grid could be made out of parallel or pie shaped segments, each segment just resting on the beams or bolted to or welded to the next one. The joining bars could be flush or project above the screening surface. Support structure can be included for additional strength. The support grids can be attached to the supporting structure by bolts fixed to the grid or part of the vessel itself. If there is any need please contact us at sales@wedgewire.org

our factory can serve different specifications of pmc sand control screen, which is a new efficient technology of mechanical sand control with excellent performance in practice by its high permeability, high strength, high deformation adaptive capacity, high reliability and good anti corrosion property. pmc sand control screen mainly consists of base perforated pipe, pmc sand control filtration jacket, and stainless steel outer protective shroud. the base pipe is of api casing or api tubing. the pmc sand control filtration jacket is made of multilayer stainless steel precise micropore weaves. all parts of pmc screen are welded together. pmc screen features materials and anticorrosion ability: 1. for common wells, oil engineering, the base pipe is api casing or tubing (j55, n80). pmc sand control filtration jacket and protective shroud are made of high quality stainless steel. 2. for special wells in h2s, co2 or co1 corrosive environment, the base pipe is anti-corrosion casing or tubing, even is stainless steel tubing. pmc sand control filtration jacket and protective shroud are made of high quality stainless steel. 3. have anti-corrosion ability to acid, alkali, or salts.
