HTEC Instruments Ltd.

Shenzhen, China

• MOQ 1 Set(s)

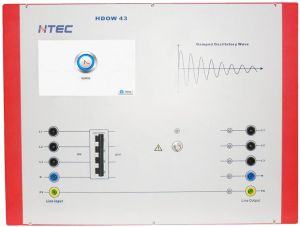

Offers damped oscillation slow wave generator. ● output voltage up to 4.0kv ● frequency 100khz and 1mhz ● rise time 75ns ● output impedance 200ω ● damping rate 50% between 5th and 10th peak ● integrated single phase cdn 250vac16a or three phase cdn 3×440vac32a ● 7'' touch screen ● compliance with iec 61000-4-18.

• MOQ 1 Set(s)

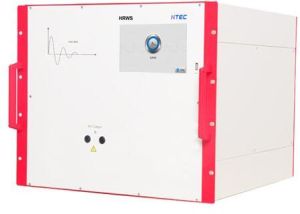

We are offering ring wave generator hrws. ● output voltage up to 7.0kv ● frequency 100khz ● rise time （open circuit）0.5μs ● rise time（short circuit）1.0μs ● output impedance 2ω and 30ω ● line synchronisation 0°~359° ● damping rate 60% of pervious peak ● 7'' touch screen ● compliance with iec 61000-4-12

• MOQ 1 Set(s)
• Body MaterialSTEEL
• Packaging TypeWHITE+RED
• Brand NameHTEC
• Place of OriginSHENZHEN, CHINA
• Model NumberDIPS
• LanguageENGLISH

We are offering voltage dips interrupts generator. Electrical and electronic equipment may be affected by voltage dips, short interruptions or voltage variations of the power supply. Voltage dips and short interruptions are caused by faults in the network, in installation or by a sudden large change of load. In certain cases, multiple dips or interruptions may occur. Voltage variations are caused by the continuously varying loads connected to the network. Hpfs can rapidly complete the auto-test under the normal iec standards. It can either be operated via front panel by large colour graphic interface or remotely from pc. The easy to use menu together with the availability of predefined test routines for different standards makes testing easy and reliable, even for less frequently users. Features & benefits according to the latest iecgbsemi f47 standards high quality igbt imported from germany, meets the ac & dc test requirements eut rated current:16a32a50a100a(continuous ) single phase rush current>500a, 3-phase rush current>1000a built-in single phase transformer, external 3-phase programmable ac power source external expandable dc power source and voltage variation test module color touch screen interface, easy to operate small in size , light weight, easy to filed test standards iecen 61000-4-11 gbt 17626.11 iecen 61000-4-29 gbt 17626.29 iec 61000-4-34 semi f47 iec en 61000-6-2 iecen 61000-6-1 iec 62052-11 gbt 17215.211 iec 61326

• MOQ 1 Set(s)
• Display Typetouch screen
• Brand NameHTEC
• Packaging TypeWHITE+RED
• Model NumberHCWG
• Place of OriginSHENZHEN, CHINA

We are offering emc test system--surge generator. The surge test of iec 61000-4-5 simulates high energy but relatively slow transient overvoltages on power lines and long signal lines, most commonly caused by lightning strikes in the vicinity of the line. Hcwg test system meets all your current and future surge testing requirements ！ a modular expandable system that grows with your application needs, and various test accessories, including single & three phase cdn (max current up to 100a) and symmetrical & asymmetrical data signal line cdn are available . features & benefits max output voltage 5.0kv7.0kv10.0kv combination wave: 1.2μs50μs（2ω） single phase16a & three phase 3250100a cdn, full automatic control data line cdn ，according to iec 61000-4-5，drawing 11-14 circuit measurement of peak voltage and current telecom wave 10μs700μs is expandable（15ω&40ω） high quality components，small in size & light weight color touch screen interface，easy to operate according to latest iec&gb standards compliance and certified test system standards iec en 61000-4-5 gbt17626.5 ansi c62.41 itu k.20 ituk.41 ituk.45 gbt 17215.211 eniec 60255-22-5

The EFT-Burst test checks the immunity of the product against high frequency, low energy transient bursts due to switching events in the near environment. For examples, industry measurements or control equipments are always use the relays or switches, in addition, some components with inductive load, such as the LED lamp ballast or some appliance with small power will generate interference when switching these parts, and electronic products or equipments probably cannot be normally work due to these interference. Therefore, electronic products are tested for EFT immunity to insure their continued reliable operation if subjected to realistic levels of fast transients. HEFT immunity test system is a reliable & economic solution with a built-in couplingdecoupling network for single phase or three phase mains supply lines and a HV terminal to connect a capacitive clamp. HEFT can quickly and completely perform auto-test according to IEC standards. Varied options and accessories are available, including CDN (Max current up to 100A), capacitive coupling clamp and burst calibration kit. Features & Benefits 5.0kV and 7.0kV output voltage Max repetition frequency 1MHz Multiple burst modes: normalcontinuousreal 7 inch touch screen, easy to operate, good-looking appearance Built in single & three phase coupling and decoupling network Max voltage 690V, Max current 100A External mobile capacitive coupling clamp According to latest IEC standards Standards IEC 61000-4-4 IEC EN 61000-6-2 IECEN 61000-6-1 GBT 17626.4 IECEN 61850-3 IECEN 61326

• MOQ 1 Set(s)

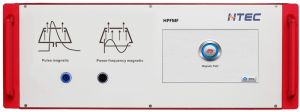

We are offering magnetic field generator hpfmf 1000. Frequency 50hz60hz ● continuous mode level up to 800am ● short mode level up to 1300am ● 1m×1m magnetic field coilantenna stand roller wheel ● 7'' touch screen ● fully automated test routines ● compliance with iec 61000-4-8

• MOQ 1 Set(s)
• Body MaterialSTEEL
• Brand NameHTEC
• Packaging TypeWHITE+RED
• Model NumberHESD
• LanguageENGLISH
• Place of OriginSHENZHEN, CHINA

We are offering emc test system. Esd simulator (also called electrostatic discharge generator) is one of the most important test equipments in emc test. Any electrical equipment can be subject to electrostatic discharges from human operators or from adjacent objects. The electrostatic discharge simulator hesd reproduces this phenomenon to evaluate the performance of electrical and electronic equipment. There are specific test requirements that must be satisfied when conducting esd testing. These are noted in some detail in iecen 61000-4-2, iso 10605 and other standards. The hesd is a state of the ergonomic electrostatic discharge simulator available in 16kv and 30kv versions according to iec 61000-4-2 edition 2. The ergonomic design, modular rc unit, external ac power and varied test accessories allows for trouble-free use of the hesd in all types of test sites. features & benefits 16kv and 30kv discharge voltage. ergonomic design. discharge frequency up to 20hz. more easy to change the discharge tips. modular rc network, more test specifications. external controller (ac power supply), more reliable. small and exquisite, portable test set. full compliance testing to a wide variety of standards. Standards iecen 61000-4-2 gbt 17626.2 iecen 61326 iso 10605 iso 14304 iecen 61000-6-1&-6-2 iec 61340-3-1 iec 60571 ansi c63.16 iitu-t k20 mil-std-1512-1514-750d-883 rtcado-160 jedec22-a114a gr-1089-core
