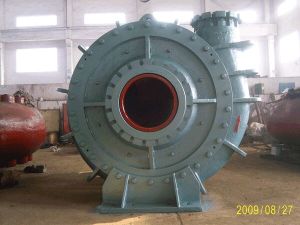

Double-walled water pump for dredger------- Benefits: 1.efficiency up to 92%(as measured in practice) resulting in lower fuel consumption at unchanged production 2.reduced and more even wear, resulting in longer lifetime of wear parts 3.highly versatile application due to steep flow head ratio curve 4.better performance as a result of the low net positive suction 5.improved resistance to cavitation 6.limited influence of wear on pump performance we supply: double-walled pump single-walled pump high pressure pump jet pump

• MOQ 1 Piece(s)

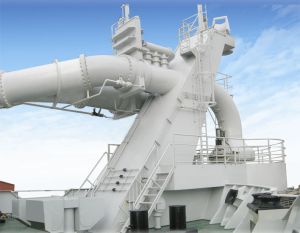

DN1000 Bow coupling installation--------- The bow coupling installation mainly consists of a welded steel frame, which is mounted on the fore threstle of the ship and a hydraulic hoisting winch. The steel frame contains a hydraulically operated click-in ball joint, dredge line bend, uppper roll for the hoisting wire and optionally a rainbow nozzle. The unit is equipped with an operating panel and a hydraulic control block. The coupling procedure is easy: connect the floating pipe line to the hoisting wire, hoist into the click-in ball joint and close the click-in. The hydraulic control block will adapt automatically to the increasing hoisting load and will prevent the male part from being pulled into the click-in ball joint too fast.

• MOQ 1 Piece(s)

Dredging cutter head ------- Special benefit include: 1.widely varying dimensions. 2.refined tooth and cutting edge design. 3.exceptional wear resistance. 4.competitive maintenance cost. 5.rapid delivery. 6.low cost per ton production. 7.simplified maintenance. We supply: Rock cutters; Sand cutters; Clay cutters; Multi-service cutters(for mixed soil types). Dredging cutter head ------- Special benefit include: 1.widely varying dimensions. 2.refined tooth and cutting edge design. 3.exceptional wear resistance. 4.competitive maintenance cost. 5.rapid delivery. 6.low cost per ton production. 7.simplified maintenance. We supply: Rock cutters; Sand cutters; Clay cutters; Multi-service cutters(for mixed soil types).

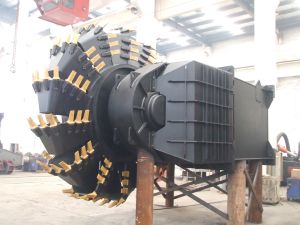

We are offering 4000mm-diameter bucket wheel for dredger------ benifits: 1.highly mixture density 2.equal production in both directions of swing 3.high production and low spillage 4.larger debris cannot enter the wheel 5.built in root cutter 6.reduced risk of large clay ball formation 7.upward and downward cutting models available 8.accurate selective dredging at flat bottom profile 9.smooth dredging process 10.constant feed rate to mining treatment plants 11.low operating costs.

• MOQ 1 Piece(s)

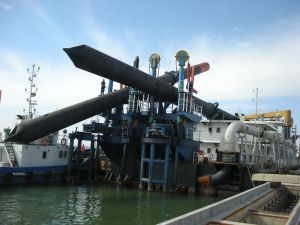

We are offering dredger spud (ccsd36 )--------- •high quality steel made. •simple to assemble and disassemble. •longer wear life. •easy maintenance. •can be adjusted precisely. •easy maintenance. •any size is available. we design and delivers spuds in all sizes. The spuds' design forms an optimum between diameter, wall thickness and weight. The construction is of rolled steel pipe pieces with varying wall thickness, which are welded together with full pen welds. our spuds are fitted with pin holes for tilting as well as to secure the spud when it is not in use. The lower point is made of solid steel to ensure sufficient strength during ground penetration. When the spud is hoisted, water may escape through two holes above the lower point. On top, a hoisting eye allows for a crane to replace the spud easily. Standard spuds are made of grade a steel, but it is possible to order other material. We can provide a wide range of dredge spuds and any other marine spuds according to the the clients' any requests.

• MOQ 1 Set(s)

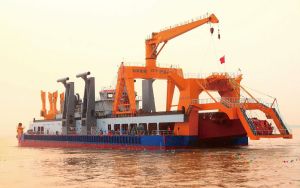

We are offering 5000 cbm cutter suction dredger for sale----- type of vessel:5000m3/h non-self-propelled cutter suction dredger delivery: within sep. 2011 principal dimensions and characteristics length overall: 122.8m length of hull: 100.8m beam: 20.8m molded depth: 6.38m gross tonnage: 7000t design draft: 4.58m dredging depth: 30m class: zc main dredging pump characteristics (inboard) double-walled dredging pump manufacturer –jiangsu huaxia heavy industry co., ltd max lift: 103m pump revolution: 300rpm shaft power: 5700kw pump water flow rate: 22, 000m3/h diameter of discharge orifice: 1000mm diameter of mouthpiece: 1000mm main pump engine manufacturer: deutz in germany model: bv16m640 power: 6590kw rotate speed: 600rpm under water pump characteristics (submersed) single-walled dredge pump manufacturer –jiangsu huaxia heavy industry co., ltd max lift: 50m pump revolution 300rpm shaft power: 3000kw pump water flow rate: 22, 000m3/h diameter of discharge orifice: 1000mm diameter of mouthpiece: 1000mm underwater driving motor manufacturer: deutz in germany model: bv16m640 power: 6590kw rotate speed: 600rpm generator power: 7950kva, 10500va, 50hz. cutter cutter head inner diameter of cutter ring: 2260 mm cutter height: 1710mm cutter revolution :0~30 rpm shaft power:3000kw other devices gauge pile:2 pcs; diameter :1800mm ; length:51m lifting winch: 2 sets. tension: 1000kn crab winch: 2 sets. tension: 1000kn dredging automatic system ship monitoring system plc control centre underwater section display instrument anchor lay down winch generators :600kw x 2 sets ; 800kw * 1 set harbor generator set:120kw * 1 set dgps orientation system cdma long distance video portal round crane: 20t/24m and so on .

• MOQ 1 Piece(s)

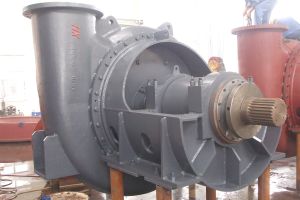

We are offering dredging pump------- benefits: 1.efficiency up to 92%(as measured in practice) resulting in lower fuel consumption at unchanged production 2.reduced and more even wear, resulting in longer lifetime of wear parts 3.highly versatile application due to steep flow head ratio curve 4.better performance as a result of the low net positive suction 5.improved resistance to cavitation 6.limited influence of wear on pump performance.

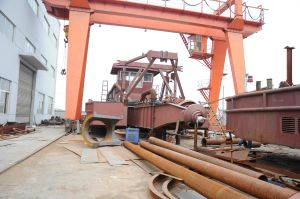

500kw dismountable cutter suction dredger--- overview------ 1.1 3pcs pontoons: 1pcs main pontoon, 2pcs side pontoons;1pcs cutter head, 1pcs bucket wheel. 1.2 2pcs spuds, boat move trip:2.5m. 2. Details------ length overall ~27.1m width 8.60m beam 8.40m depth 1.55m draft 0.90m dischargeofwater 128t main pontoon 14.6(15.9)ã�3.4ã�1.60m side pontoon 2pcs/20.0ã�2.45ã�1.55(1.60)m max dredging depth 8.0m(knife and plane angle 50â°) navigating zone class a endurance ~160hours 3. Generator sets------ 3.1 main generator sets main generator , manufacturer---ccec cummins, rated speed:1800r/min, rated power:507kw.diesel engineer driven capacity 500kw, 440v, 60hz. 3.2 assist generator sets generator is 64kw, diesel engineer is dcec ---6bt5.9-gm83, continued power is 83kw, 1500r/min. 4. Pump------ underwater pump driven by motor directly, motor is b4j355lc type water-cooled motor made by marelli motori italy. details of pump:water flow 1000m3/h, lift:60m.

• MOQ 1 Piece(s)

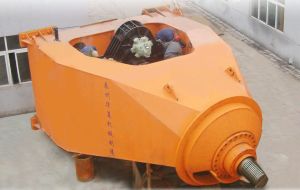

We are offering 55kw-4500kw cutter ladder for dredger--- the huaxia cutter ladder front parts are of a pipe or a box-type rigid design, complete with the cutter drive motor, cutter shaft, cutter shaft bearing and side wire swivel blocks. The unit can simply be mounted to the ladder of the dredge, connect hydraulics, greasing and flushing water and is then ready for use. The unit's extra sturdy design ensures a long lifetime. the high-efficiency slow running hydraulic motor drives the cutter shaft and cutter directly. The high starting torque of the motor helps to prevent the cutter from getting stuck. the cutter ladder front part is fitted with a cone in order to get an optimal flow of solids into the suction mouth. The suction mouth is also designed for this purpose. the water-lubricated rubber cutter shaft radial bearing has a long life time and is practically maintenance-free. In case the bearing needs to be replaced, it can be easily accessed from the front of the shaft. The axial (thrust) roller bearing is fitted in an oil chamber. for easy removal of the cutter head, the ladder front piece is fitted with an eye to lock the cutter and unscrew it by reversing the hydraulic motor. In case this does not suffice, the assembly also has a ‘flame cut ring. After cutting away this ring, the cutter head will be loosened on the thread of the shaft.

• MOQ 1 Piece(s)
• length100.8m
• width 20.8m

5000 CBM Cutter suction dredger for sale----- Type of vessel:5000m3/h Non-Self-Propelled Cutter Suction Dredger Delivery: Within Sep. 2011 Principal Dimensions and Characteristics Length overall: 122.8m Length of hull: 100.8m Beam: 20.8m Molded Depth: 6.38m Gross Tonnage: 7000T Design Draft: 4.58m Dredging depth: 30m Class: ZC Main Dredging Pump Characteristics (Inboard) Double-walled dredging pump Manufacturer �Jiangsu Huaxia Heavy Industry Co., Ltd Max Lift: 103m Pump Revolution: 300rpm Shaft power: 5700kW Pump Water Flow Rate: 22, 000m3/h Diameter of discharge orifice: 1000mm Diameter of mouthpiece: 1000mm Main Pump engine Manufacturer: DEUTZ in Germany Model: BV16M640 Power: 6590KW Rotate speed: 600rpm Under Water Pump Characteristics (Submersed) Single-walled dredge pump Manufacturer �Jiangsu Huaxia Heavy Industry Co., Ltd Max Lift: 50m Pump Revolution 300rpm Shaft power: 3000kW Pump Water Flow Rate: 22, 000m3/h Diameter of discharge orifice: 1000mm Diameter of mouthpiece: 1000mm Underwater Driving Motor Manufacturer: DEUTZ in Germany Model: BV16M640 Power: 6590KW Rotate speed: 600rpm Generator power: 7950KVA, 10500VA, 50HZ. Cutter Cutter head Inner Diameter of Cutter ring: 2260 mm Cutter Height: 1710mm Cutter revolution :0~30 rpm Shaft power:3000kw Other Devices Gauge Pile:2 pcs; Diameter :1800mm ; Length:51m Lifting Winch: 2 sets. Tension: 1000kn Crab Winch: 2 sets. Tension: 1000kn Dredging Automatic System Ship Monitoring System PLC Control Centre Underwater Section Display Instrument Anchor Lay Down Winch Generators :600kw x 2 sets ; 800kw * 1 set Harbor generator set:120kw * 1 set DGPS Orientation System CDMA Long Distance Video Portal Round Crane: 20t/24m And so on .

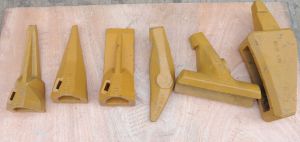

cutting teeth of draghead for dredger---- 1.maximum output. 2.long lifetime. 3.high tonnage per tooth. 4.easy replacement. 5.high versatility. 6.high tonnage per tooth. Because of the demands on the product, the highly complex shape of the equipment and the versatility of the manufacturing process, the teeth and adapters are cast. We are continuing to do research into both new shapes and materials combining wear and impact resistance, hardness, toughness and strength to meet present and furture applications.

• MOQ 1 Piece(s)

Pt-800 heavy duty drag head for tshd dredger------ benefits : • optimal draghead-bottom contact • effective bottom loosening • minimal resistance to flow • reduced blockages • optimally wear protected • designed for easy maintenance • fenders protect ship's hull the draghead of a trailing suction hopper dredger represents the first mechanical contact with bottom material, so its design, quality and sturdiness are critical in dredging and alluvial mining tasks. We have invested many years of practical experience and testing to create optimal draghead solutions for extracting the maximum of bottom soil at minimum time and cost, and continues to do so. the heavy duty dragheads offer a combination of high excavation capabilities for loosening the soil and optimised hydraulic properties for mixture transportation. High mixture concentrations are possible in many kinds of soil. The dragheads are welded constructions made of structural steel. Cutting teeth of abrasion resistant cast steel and jet water nozzles are arranged over the whole width of the visor.

• MOQ 1 Set(s)

We are offering flexibility spud carrier etc. 1.adaptable to any dredge 2.easily accessable spud hoisting 3.superior performance.
