Jiaozuo Zhuoer Machinery Manufacturing Co., Ltd

Jiaozuo, Henan, China

• MOQ 1 Piece(s)
• Material95+/-1%
• CertificateISO9001:2008,SGS
• ApplicationHopper,chutes,bins,lining pipe,side bar,deck plate
• Ceramic SizeVariuos Size & thickness
• RubberNR
• Ceramic HardnessMohs9
• Peel Strength>800N/cm
• Brand NameZhuoer
• Ceramic ShapeCylindrical,hexagonal & rectangular
• Steel Mild PlateQ235A

• MOQ 1 Piece(s)
• MaterialUHMPE Cap,rubber & aluminum alloy framwork
• Brand NameZhuoer
• CertificateISO9001:2008 & SGS
• UseImpact bar is to reduce shock & damage to conveyor belt
• impact bar specification1220*100*75,1400*100*75*1500*100*75,etc
• Number Of Flowerconveyor impact bar

we are offering conveyor rubber impact bar. the impact bar is composed of uhmwpe sheet, elastomer & aluminum alloy framework, each part of them is closely jointed by hot vulcanization technical parameter 1.surface material of impact bar:uhmwpe 1.1 tensile strength: >25nmm2 1.2 elongation: >350% 1.3 impact strength: >10kjm2 1.4 speeling strength: uhmw and rubber >200ncm rubber and aluminum frame >200ncm 2. rubber elastomer of impact bar 2.1. tensile strength: >15nmm2 2.2elongation:>400% 2.3hardness:shore a 35~40 3.framework of impact bar: aluminum 4.standard length of impact bar: l=1220mm or l=1400mm

• MOQ 1 Piece(s)
• Brand NameZhuoer
• working temperature<85C
• Installationcan be installed by cold vulcanization
• CN bonding layerwith CN Bonding Layer
• Tensile Strength15 mpa
• ceramic hardness (Mohs)>9t
• certificateISO9001:2008,SGS,Safety Certificate of Approval for Mining Products
• aluminum oxide>92%
• Specification200*12mm,15/12*500mm
• Rubber hardness65±5 Shore A

• MOQ 1 Piece(s)
• MaterialNatural Rubber/NR or other rubber material
• CertificateISO9001:2008
• Number Of FlowerConveyor Skirt Board Rubber
• Brand NameZhuoer
• Useto keep material on conveyor belt and prevent spillage

we are offering conveyor skirting board rubber. installed on all conveyor loading points to eliminate material spillage and provide a positive dust seal. features: 1.this sealing system is a low-maintenance design that provides an effective seal without the application of downward force onto the belt. 2.it is recommended that appropriate wear liners be installed on the inside of the chute to protect the sealing system from material side-loading forces. 3.it is composed of a single strip of rubber fabricated with an integral "outrigger" strip to form two sealing barriers. 4.this skirting will provide dual sealing effectiveness while allowing the simple installation of single-strip systems. 5.the sealing strip is clamped against the metal chute wall above the belt. 6.the strip's primary leg is installed to touch the belt, forming a flexible wall to contain fugitive material.the sealin strip's "outrigger" leg will be installed so it lies on the outside of the belt, away from the material load.

• MOQ 1 Piece(s)
• Brand NameZhuoer
• CertificateISO9001:2008,SGS
• cable diameter4.9 ~13.2mm
• rubber thickness<43mm
• cable pitches10~25mm
• Useto strip steel cord from steel cord conveyor belt
• StructureMotor, winch, slide unit, work device,upper & lower knives

we are offering conveyor steel cord stripper. steel cord belt stripper the steel cord conveyor belt stripper is used to strip the steel cord from conveyor belt which is to be spliced. considerable reduction in splicerepair times offers quick payback on capital outlay machine function: strip cover, inter and bonder layers from one or two steel cords to expose 50% of cord circumference on each unit it is designed to cover the complete range of belt thickness, widths and tensile strengths benefits of this machine: considerable savings in stripping times over traditional manual methods(knives) resulting in shorter belt down times operator safety-avoids manual knives ergonomics-ease of stripping posture especially in difficult site conditions stripped steel cords have true circular form covered with approximately 1.0m (0.040inch) thick bonder layer, ideal for vulcanizing new rubber without any further preparation.equipment is robust, light and easy to transportstore, and easy to use. replacement blades can be fitted in a matter of seconds.

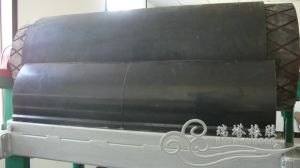

• MOQ 1 Piece(s)
• Brand NameZE-HPU
• mounted100mm from the head pulley
• temperature-40~90C
• spring tensionerstainless steel
• belt width500~2000mm
• material humidity<15%
• scraperpolyurethane belt cleaner
• Number Of Flowerbelt cleaner
• belt speed<3.5m/s
• certificateISO9001:2008 & SGS
