Jiashan Roncan Slide Bearing Co.,Ltd

Hefei, Anhui, China

RCB-600 flange copper sleeve, is a kind of oil as a lubricating oil groove Bay high strength brass bearings. The copper-tin bronze sleeve bearings with traditional features, the use of high-strength copper, the copper sets of HB hardness doubled, so the low-speed situations to use the product, than bronze sets of life can be extended twice, and its bearing pressure, able to adapt to overload the occasion. Currently, the copper sleeve is mainly used for excavator joints and large force gear box. The main parameters: Material 600 600S1 600S2 600S3 600S4 600S5 600S6 Ingredients% Cu 65 85 80 88 80 65 76 Sn 5 12 10 8 Pb 5 10 15 Zn 25 5 25 Ni 5 1 Al 6 10 6 Fe 5 Mn 4 4 Density 8.0 8.8 7.6 8.8 8.9 8.0 9.1 Yield strength> 350> 90> 260> 150> 100> 450> 80 Tensile strength> 750> 250> 500> 270> 210> 800> 180 Elongation> 12> 15> 10> 5> 8> 8> 8

RCB-JSL (CuZn25Al5) self-lubricating plate, combined with the wear resistance of copper alloys and solid self-lubricating properties of lubricants to make it in the course without refueling maintenance. Products are widely used in high load, intermittent or oscillating motion, such as the steam locomotive production lines, turbine, a reservoir / accidents door, plastic machinery. Depending on the conditions, can provide various types of copper alloy.

RCB-600 phosphor bronze sleeve, is a kind of oil as a lubricating oil groove Bay phosphor bronze bearings. The copper-tin bronze sleeve bearings with traditional features, the use of phosphor bronze, the copper sets of HB hardness doubled, so the low-speed situations to use the product, than bronze sets of life can be extended twice, and its bearing pressure large, can adapt to overload the occasion. Currently, the copper sleeve is mainly used for excavator joints and large force gear box.

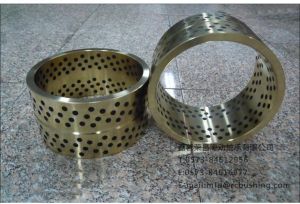

Solid lubricated bearings in the bearing surface of the substrate metal friction out of the appropriate size, arranged in order of the hole, and then embedded in the cavity has a unique self-lubricating properties of solid lubricant 〖forming area is generally solid lubricant friction area 2596-- 3596> and made ​​self-lubricating bearings. The metal matrix composite bearings and specially formulated lubricating materials of their respective advantages, breaking the general lubrication of bearings depend on the limitations of film. ^ 8 solid lubricant bearings are particularly suitable for oil-free, high temperature, high load, low-speed, anti-fouling, corrosion, anti-radiation radiation, as well as solutions in water or vacuum infiltration could not lubricating film under the working conditions of special use. The product is widely used in metallurgy rolling equipment, filling equipment, turbines, gas turbines, instrumentation, and mining machinery, ship machinery, textile machinery, shipbuilding, aerospace navigation and other fields. Also become widely used in other industrial and agricultural machinery. ^: 8 matrix of solid lubricated bearings should be based on the bearing of their own working conditions may be. Commonly used materials with high strength brass, bronze, castings and so on. According to bearing their own working conditions, by different metal matrix and the embedded solid lubricant combination, enables the product to meet a variety of temperature, load, sports and media and other working conditions of the special needs, while ensuring stable and reliable work. This section is made of (CuSn12)

RCB-JFB (CuZn25Al5) flange sleeve, combined with the wear resistance of copper alloys and solid self-lubricating properties of lubricants to make it in the course without refueling maintenance. Products are widely used in high load, intermittent or oscillating motion, such as the steam locomotive production lines, turbine, a reservoir / accidents door, plastic machinery. Depending on the conditions, can provide various types of copper alloy.
