Jinan Lijiang Automation Equipment

Jinan, China

• MOQ 1 Set(s)
• Max.glass size2500*3200mm 2500*3500mm(Extend IG Unit)
• Min.glass size280*450mm
• Dimension18500*3500*3600mm
• Total power3P380V 50HZ 34KW
• Glass thickness3-12mm

1.Stable performance 2.Online gas filling (option) 3.PLC control system, touch screen interface 4.Coating&LOW-E glass automatic identification 5.Can wash on-line&off-line glass 6.Hierarchical type washing system 7.Water tank automatic temperature control, water replenishing system 8.European silencer system&stainless steel drying system 9.Intelligent batch-type energy saving system 10.Embedded subdued light inspection method 11.Digital display&sealant depth adjustment device 12.Aviation plug cable connect way 13.Triple IG , shaped IG automatic assembly and positioning system 14.Universal wheel in tilting table has balance weight device 15.Servo control stepped IG system, modularity function, superposition function

• MOQ 1 Set(s)
• Dimension10500mm*2200mm*2600mm
• Aluminum spacer width5.5-24mm
• Total powerAC220/380V 50Hz 2.5KW
• Weight1250kg

he machine is used to apply Siemens control system and touch screen operation to achieve automatically bend aluminum and warm edge spacers of insulating glass evenly, and the machine has functions of size optimization calculation, evading connected pieces and connecting automatically. So the machine can greatly increase bending efficiency, it only spends 26s to bend a 1m*1m frame. The machine can process angle size well and control the anger size in 0.015mm. It also can bend special-shaped frame and it improves practicability of machines by humanization designed. So it is necessary equipment in insulating glass productions.

• MOQ 1 Set(s)
• CertificationCE

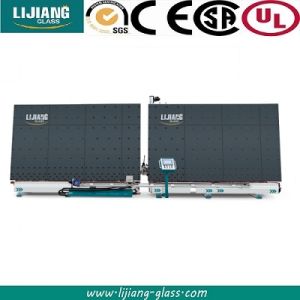

1.Whole machine adopt man-machine interface, the operation is more convenient and intuition with the simplified thinking design interface. 2.The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner the condition that the glass are cut levelly and without dislocation after combined. 3.High automation, high efficiency, suitable for glass deep processing enterprise to use. 4.Using two sets of independent sealant supply system( including the mixing device), two kinds of sealants switch in one-key operation easily.�optional) 5.The third section can pre-store glass to improve the efficiency effectively 6.Servo control system adopts world famous brand(Japan Anchuan), the performance is stable 7.Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning 8.The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability.

• MOQ 1 Set(s)
• CertificationCE

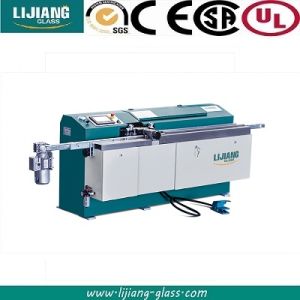

Butyl extruder machine is used to apply hot melt butyl to the aluminum spacers of insulating glass evenly. The use of large electrical control panel makes the operation easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min. The squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The machine is energy-saving. The dispensing cylinder uses rotate supporting system and this makes the refill of butyl easier. The system can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.

• MOQ 1 Set(s)
• Power supply and power consumptionAC220V 50Hz 1KW
• Molecular sieve diameter needed0.5-0.9mm
• Air source≥0.65MPa
• Dimension1300mm*1100mm*3650mm
• Article aluminum specifications5.5-24mm

• MOQ 1 Set(s)
• ColorGreen

SIEMENS PLC control system Can washing online and offline LOW-E, automatic identification of LOW-E surface Adopt the sectional type of up and down washing design Adopts frequency conversion fan, high efficiency and energy saving The wind knife can be adjusted automatically according to the thickness Intelligent intermittent energy saving working mode

• MOQ 1 Set(s)
• Brand NameLijiang
• Model NumberLJST02A
• Country of OriginShandong

Imported sealant gun, stainless steel mixer High pressure protect device Anti-back flow control structure Mixed rate detector

• MOQ 1 Set(s)
• Brand NameLijiang
• Applicationfilling argon gas for insulating glass
• Model NumberLJCJ02
• Country of OriginShandong
• ColorGreen

Can gas filling for 4 pieces of glasses at the same time Automatic display the gas filling process and proportion Equipped with automatic protection device, will alarm automatically when beyond a certain pressure.

• MOQ 1 Pair
• Brand NameAFS

It can test how much argon gas filling inside and show us the value! We can know the amount of gas inside insulated glass in advance, to avoid the waste of glass. We will take some to ZAK-Mumbai exhibition, if your factory need this tester please let me know, I will get here for you in exhibition special price!
