Jinan Testing Equipment Ie Corporation

Carry out the functions of clear zero and return automatically, capture the value of lost impact energy and pendulum cycle by means of setting up with computer program, and the result can be displayed, stored and printed out. Hand box and computer program controlled alternative as operating method. Features: The support of pendulum adopts Charpy structure, with lower deformation & strong anti-impact capacities. The pendulum rising mechanism adopts motor reducer & make it stable & long working performance. U type hammer, 450J/ U type hammer, 750J Adopting lower noise electric brake, that leads lower noising & non-vibration when pendulum & clutch combined together during test. The pendulum is released with pneumatic, simple construction & reliable. Powerful function software.

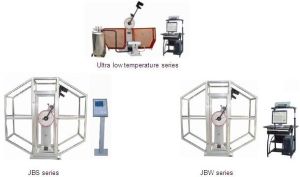

JB Series Semi-automatic type: it features as pendulum to be raised or released automatically, dial gauge to show the impact energy. Easy to operate & high efficiency. JBS Series Digital Display type: by adopting PLC Controller, the results can be displayed on both digital screen and dial gauge. The test results also can be printed out. JBW series Computer type: carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program, and the results can be monitored, stored and printed out.

Wdw series is designed and manufactured according to astm, iso, din, en etc. Standards. It is computer-controlled precision testing machine, suitable for extensive metallic & nonmetallic materials for tension, compression, bending, shearing and cycle test etc. It features high precision, high stability as well as high reliability. Equipped with pc system & printer, graph, test result display, data processing and printing can be done easily. Complete with modulus for metal, spring, textile, rubber, plastic and other material testing. It is widely used in many fields of r&d, qc and qa and education institutes.

Waw-e series computer controlled electro-hydraulic servo universal testing machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing strength. It is capable of testing the characters of materials on physical & technology properties. It is simple, easy to operate and widely used in works, laboratories and high schools for material properties research and quality control. Equipped with the computer & software & printer, it can display, record, process and print the test results, and control test procedures as per the set program and can draw test curves automatically in real time.

The creep and rupture strength testing machine is an important equipment to determine the characteristic of metallic materials under high temperature. The significance of this instrument is more prominent especially in selecting materials for high temperature structures, increasing the reliability in estimating the life of working components, monitoring the safety of working components as well as the research and development of new materials.

Specifications: Max. load: 30kN, 50kN, 100kN, 200kN Effective measuring range: 1%-100%FS; Test load accuracy: ≤1%; Resolution: 1/60000 High temperature furnace & Temperature-controller Working temp. range: 400℃～1200℃ Length of effective soaking zone: 150mm Furnace pipe & electric furnace size: Furnace inner chamber: φ120mm×470mm (L), Furnace outside: φ300mm ×470mm (L); Furnace life: ≥3000 hours (Constant working time less than 1000℃)
