manipulator specifications carrying capacity, nominal: 80 tons tongs clamping moment: 2, 000 knm tongs openings, without inserts, round: 800/2, 000 mm round with inserts: 200 - 800 mm round with extension arms: 100 - 2, 800 mm round max. turning diameter with extension arms: 3, 900 mm vertical tilting angle of tong: up 15 angle (down to floor) horizontal movements of tong in forging direction, relative to carriage: 400 mm speed, times forging: 0-30 m/min traveling: 0-50 m/min turning of tong: 0-8 rpm lifting and lowering of tong: 90 mm/sec tilting of tong: 90 mm/sec side shifting of tong: 80 mm/sec accuracy traveling: 3.0 mm turning: +/- 1 angle total delivery of the main pumps: approx 1, 450 l/min total capacity of accumulator: 600 liters usable capacity of accumulator: 200 liters travel distance: 25.0 meters

hot die forging hydraulic press max. press force: 50, 000ton main performance parameters nominal pressure 60mn return force 3mn idle stroke fast-down speed 200mm/s return speed 15mm/s max. stroke of moving cross head 1000mm opening height of press 1300mm forging temperature 500 degree celsius

5, 000 ton heavy 4-column push-down hydraulic open die forging press with 80 ton forging manipulator press specifications press force: 400.0 bar (4, 700 tons) upset force: 425.0 bar (5, 000 tons) maximum press stroke: 2, 500.00 mm main cylinder diameter: 710.0 mm no. of cylinders: 3 set press daylight: 5, 000.0 mm press force stage @ 425 bar 1st stage (one-central cylinder): 16.7 mn 2nd stage (two-side cylinder): 33.4 mn 3rd stage (three-all cylinder): 50.0 mn distance between columns clear width: 4, 000mm x 1, 800mm table shifting device stroke (left x right): 3, 000mm x 3, 000mm die magazine: 4-die magazine number of press stroke force stage penetration return stroke stroke/minute 3-cylinders 150mm 300mm 10/12 3-cylinders 100mm 200mm 15/17 2-cylinders 50mm 100mm 25/30 1-cylinders 5mm 20mm 80/85 weight of press (die magazine/die shift): approx. 900 tons (1, 984, 140 lbs) overall dimension of press total dimension of press: 14, 370 mm press height above floor level: 10, 870 mm depth: 3, 500 mm quantity of pumps: 8 pressure of each pump 1) rx 360 (2): 400 bar, max 500 bar 2) rf 1000 (6): 400 bar, max 450 bar hydraulic system: hydraulic

hot die forging hydraulic press max. press force: 50, 000ton main performance parameters nominal pressure 60mn return force 3mn idle stroke fast-down speed 200mm/s return speed 15mm/s max. stroke of moving cross head 1000mm opening height of press 1300mm forging temperature 500 degree celsius

• MOQ 1 Set(s)

5, 000 ton heavy 4-column push-down hydraulic open die forging press with 80 ton forging manipulator press specifications press force: 400.0 bar (4, 700 tons) upset force: 425.0 bar (5, 000 tons) maximum press stroke: 2, 500.00 mm main cylinder diameter: 710.0 mm no. of cylinders: 3 set press daylight: 5, 000.0 mm press force stage @ 425 bar 1st stage (one-central cylinder): 16.7 mn 2nd stage (two-side cylinder): 33.4 mn 3rd stage (three-all cylinder): 50.0 mn distance between columns clear width: 4, 000mm x 1, 800mm table shifting device stroke (left x right): 3, 000mm x 3, 000mm die magazine: 4-die magazine number of press stroke force stage penetration return stroke stroke/minute 3-cylinders 150mm 300mm 10/12 3-cylinders 100mm 200mm 15/17 2-cylinders 50mm 100mm 25/30 1-cylinders 5mm 20mm 80/85 weight of press (die magazine/die shift): approx. 900 tons (1, 984, 140 lbs) overall dimension of press total dimension of press: 14, 370 mm press height above floor level: 10, 870 mm depth: 3, 500 mm quantity of pumps: 8 pressure of each pump 1) rx 360 (2): 400 bar, max 500 bar 2) rf 1000 (6): 400 bar, max 450 bar hydraulic system: hydraulic

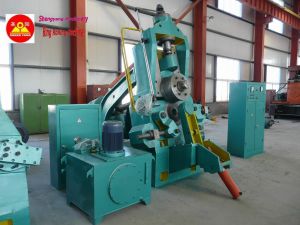

d53 series 4000 5000 7000 ring size od (mm) 500-4000 500-5000 800-7000 height (mm) 80-700 80-750 80-800 machine parameter radial rolling force (kn) 2000 2500 3000 axial rolling force (kn) 1600 2000 2500 linear speed of press (m/s) 1.3 1.3 1.3 machine dimensions lxw (mm) 18500x4500 20000x5500 27000x7100 height above ground (mm) 4400 5000 6100 drive power radial (kw) 2x315 2x315 2x400 axial (kw) 2x315 2x315 2x355
