Langtai FRP Product Co., Ltd.

Hengshui, China

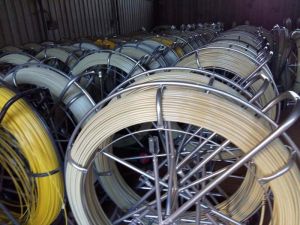

We are offering fiberglass duct rodder. Fiberglass duct rodder for cable placing in pipe, conduit duct rodder, also called fiberglass duct rodder, is composed of three parts: internal coppersteel wire, fiberglass rod, and outer polyethylene coating. Each duct rodder comes with a sturdy steel frame with different sizes according to the diameter and length of the rod. Some frames are equipped with wheels, also called wheeled duct rodder, which makes it convenient to move at the job site. The fiberglass rod is the basic element of the duct rodder, large proportion of high quality glass fiber (80%) is added, which ensures its stability under shear stress. And polyester resin is embedded together to form a compact bound core. Frp duct rodder is an ideal tool for underground jobs such as pulling cables and lines through conduits, tubes, pipes or ducts. For its high tensile strength, wear-resistant surface and elastic body, it is widely used in the fields of telecommunication, electric power, water conservancy, etc.

We are offering duct rodder accessory. Accessory for broken replacement and easy passing in complicated plumbing situations, accessory is needed when the pulling rod is broken or not long enough to reach the end of the pipeline. All of our duct rodders come with a range of accessories and spare parts. Accessories can be screwed on the frame of the duct rodder, and accessory and repair kit are also available, with a canvas bag attached on the cage of the duct rodder, which is perfect to keep all the accessories safe, and ensures versatility to handle any problem at the job site. Accessories include drawing head, swivel connector, mini harness, roller guide, repair kit, flexible guide tip, etc. Several accessories are listed below in detail. Rod grapple set rod grapple set is used when the conduit is very long and the bend is not easy to pass. Put the two loops on one half into the conduit, when it pass the bend with difficulty, push the four hooks grapple from the other end of the conduit, when the two grapples meet, twisting will engage the two halves, and all of the rods can be pulled through the conduit easily.

We are offering Portable Duct Rodder for Handy Carry in Cable Pulling. Portable duct rodder shows good performance in wire or cable pulling in pipes, conduits or ducts. Without wheels, it is easy to carry or put in the boot of the car. Generally, when the pulling rod diameter is below 10mm (including 10mm), there is a portable duct rodder needed. And some portable duct rodders are not equipped with a hand operated brake on the frame. Portable duct rodder with totally enclosed handle Portable duct rodder with totally enclosed handle is designed for good protection of the pulling rod (See Figure 1). Portable duct rodder with semi-closed handle Some portable duct rodders are designed with semi-closed handle for light weight (See Figure 2). Portable duct rodder with bushing handle Bushing handle of duct rodder is for reducing pressure on the hand who carries it. The grip is very important to the duct rodder (See Figure 3).

We offer wheeled duct rodder. Wheeled duct rodder helps cable & wire placing in ducts wheeled duct rodder performs apparent advantage over portable duct rodder when the conduit or pipe is very long or complicated. Wheeled duct rodder is made with a rubber wheel on the cage, which makes it easier to transport at the job site. The wheel can be made into pneumatic or solid rubber tire with iron wheel rim. Different from portable duct rodder, wheeled duct rodder is often manufactured with the pulling rod diameter varying from 11mm to 16mm. Duct rodder with outboard wheels duct rodder with outboard wheels is commonly used for threading in conduits. Two wheels on the duct rodder are installed on one side, outside against the end of bottom frame. The outboard wheels are designed for reducing the pressure on the ground. When moving the duct rodder to the job site, press down hard on the grip of the frame, towards the direction of the wheel, and move on the wheels.
