Luohe Gold Grain Wheat Flour Mill Machinery Co., Ltd

• MOQ 1 Piece(s)
• Brand NameGoldGrain

Henan luohe gold grain wheat flour mill machine co., ltd. Was originally set up in 1987, as an enterprise specializing in scientific research, development, design, manufacturing and marketing on wheat flour mill machine and equipment, maize and cereals processing equipments. At present, three series and more than sixty types of wheat flour milling plants have been formed, of which the capacity range from 5 tons to 500 tons. our company is evaluated as "henan province consumer credit-worthy organization". We are also awarded "enterprise of observing contract & keeping promise" and "aaa credit enterprise". For many years, we have built technological relationships with grain colleges and research institutes. There is one first-class design and installation engineers team in grain project department, they can provide complete set of equipment design, installation and test running, operate training. based on the principle of " quality first, faithfulness, mutual benefit ". We improve our products continuously to meet requirement of world market. If you are interested in any of our products, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

• MOQ 1 Piece(s)

The GoldGrain maize flour mill machine is the main equipment for milling section in flour mills. It mainly depends on a pair of differential transmission and relative rotation rolls to break wheat, meanwhile, scrapes endosperm from wheat bran, then endosperm grinding into flour. The material can be extruded, sheared and broken during the equipment working and so as to achieve a certain grinding effect, each roller mill has one independent drive, feeding, and grinding systems and play their functions in the flour passages.

We are offering plansifter. The plansifter is an important machine used to grade and inspect the materials of all the milling systems. It includes screen box, gearing steel frame, beam, suspension device, etc. The screen box made of qualified alloy steel holds the advantages like good rigidity, high intensity, and light weight. Various types of sieve frame can be applied. Also, it is made of first class wood, and has anti-abrasion plastic on its surface. The amount of sieve frame varies according the relevant size. Commonly, the plan sifter has amount of sieve frame ranging from 22 to 28 layers. Its sifter applies the zinc plating metal mesh. Moreover, the transmission device of this equipment is located in the centre of steel frame. Through the motor plate, the driving motor is installed onto the steel frame flat panel. A belt tensioning device is set on the motor plate to adjust the v-belt. With the v-belt or single-sided circular arc gear, the electric motor drives the main shaft to rotate. Moreover, the press mechanism includes two parts like the door horizontal compaction and the screw vertical compaction. Both steel wire and fiberglass boom are combined for suspension. Last but not least, the cotton sleeve is used to connect the material inlet and outlet. Sincerely looking forward for the agent around the world, the better quality of flour mill with cheaper price will be for you.

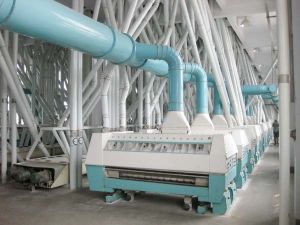

We are offering grain purifier. Our purifier is necessary equipment used for the fine separation of wheat inner part, wheat residue, and crude powder, thus reducing the ash content in the central milling center. Generally, it applies the duplex structure. With two sieves installed inside the frame, it can choose one material, or select two different kinds of materials. The feed box made of aluminum sheet has allocation doors. The main air suction channel of this machine has two throttles. The collecting trough under the sieve is used to collect and distribute the materials separated. Two distribution boxes equipped separately has a commutator. Moreover, our product has two vibrating motors, and each comes with the power of 0.18 kw. A lighting device is utilized as well. Features 1. The housing of the purifier is equipped with resin glass window, door, and cover, to conveniently inspect the separation of the materials inside. Also, the operator can be clear about the operation condition of the cleaning mechanism. 2. Each sieve group comes with three layers of sifters, and each sifter has four aluminum screen frames. That is to say, a purifier possesses 24 screen frames. Moreover, the sifter is fixed onto the screen frame. An automatically rotating brush which is movable is applied to the frame for cleaning. 3. Two sieve groups are separately set with a cabin. The cabin is divided into 16 parts, each of which has the control damper.

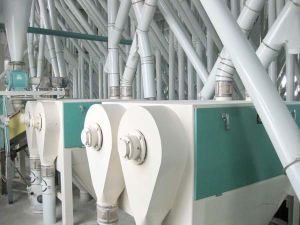

The bran scourer is the equipment specially designed for processing the products with bran. With the rotary brusher and beating plates, it can beat and brush the bran to separate the flour for recycling. Features 1. Our bran scourer of steel construction has a detachable door on the vertical side and an inspection cover at the discharge spout. Its perforated sheet steel jacket is easily exchangeable. 2. Its rotor comes with 4 obliquely toothed beater rails, all of which are adjustable. The exhaust ventilation is connected with the central aspiration system. 3. This device driven by v-belt is also equipped with discharge hopper and support. Both belt guard and motor base plate are used.

• MOQ 1 Piece(s)
• Brand NameGoldGrain

Goldgrain serieswheat flour mill machine the wheat flour mill machine rollers are set horizontally, favorable for feeding the material into roll clearance and roller are easier assembly, disassembly and maintenance. the fast and slow rollers are installed on the steel girder, there is damping cushion between the girder and rack, making the grinding force absorbed by itself, favorable for maintaining constant roll clearance and reducing noise. feeds through servo mechanism, the feed door open degree can automatically regulate with the coming materials. the machine can be controlled independently or be controlled concentrated. equipment with roll gap pneumatic locking mechanism and can secure constant roll clearance， fine tune roll gap structure ensures operation simple and accurately. the roller baring comes with taper spherical roller bearing with high precision, reliable positioning and stable operation. the fast and slow grinding rolls are driven by triple-wheel teeth wedge belts with advantages of no jump teeth, no deflection, smooth operation, and low noise. teeth wedge belt has elastic automatic compensation structure to improve the service life of the belts. double route negative press air suction device is adopted in the reduction system to improve feeding condition, reduce the temperature of rolls and materials. high quality double heads centrifugally casted rolls with dynamically balancing testing ensure smooth running and long service life. grinding roller cleaned by advance scraper. 　　it may grind suction or outflow materials.

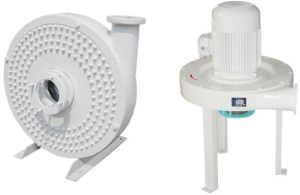

As the new type equipment that can deal with the flake stock in flour plant, the impact detacher not only can impact and loosen the flour, but also kill worm eggs. It is beneficial for enhancing the efficiency of sifting. This device is used for the wheat hygiene requirements. It includes the metal circular casing, inlet flange, cone-shaped outlet hopper, and the impact ring. The legs are used for supporting or suspending installation. Also, our product has a transparent organic glass tube on its top. The chrome plated bolts are used to support the organic glass.

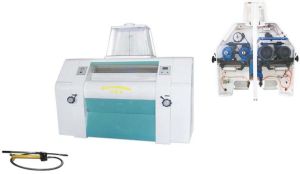

We are offering mill roller. The mill rollers are set horizontally, favorable for feeding the material into roll clearance and roller are easier assembly, disassembly and maintenance. the fast and slow rollers are installed on the steel girder, there is damping cushion between the girder and rack, making the grinding force absorbed by itself, favorable for maintaining constant roll clearance and reducing noise. feeds through servo mechanism, the feed door open degree can automatically regulate with the coming materials. the machine can be controlled independently or be controlled concentrated. equipment with roll gap pneumatic locking mechanism and can secure constant roll clearance， fine tune roll gap structure ensures operation simple and accurately. the roller baring comes with taper spherical roller bearing with high precision, reliable positioning and stable operation. the fast and slow grinding rolls are driven by triple-wheel teeth wedge belts with advantages of no jump teeth, no deflection, smooth operation, and low noise. teeth wedge belt has elastic automatic compensation structure to improve the service life of the belts. double route negative press air suction device is adopted in the reduction system to improve feeding condition, reduce the temperature of rolls and materials. high quality double heads centrifugally casted rolls with dynamically balancing testing ensure smooth running and long service life. grinding roller cleaned by advance scraper. It may grind suction or outflow materials. Sincerely looking forward for the agent around the world, the better quality of flour mill with cheaper price will be for you. Widely application in grinding nshima, ugali, posho, atta chakki, cocoa, coffee and other grain material.

We are offering square sifter (2-bin). Our 2-bin square sifter serves as the flour test sieve to sift stock in middle or small flour plants. It is made of steel, and has steel base frame. Also, it has motor base plate, sheaves and v-belts, 183kg rotator, 144 tip taps, 8 slings as well as 640*640 mm nylon screens and 24 wooden sieve frames with the size of 830*830mm. This product can be equipped with single-bin or double-bin. Also, it can be used as a flour checker. In conclusion, this sifter features high efficiency, smooth operation, and smart volume.

The vibrating discharger is applied to the flour bending bin which is the main equipment in the flour bending process. It allows the stock in the bin to slowly and evenly flow out from the outlet. The bin has an anti-jam structure inside. To offer adequate driving force, the discharger applies the large-scale vibration motor. Also, for the sake of even outflow of the flour, a pressure-releasing distribution umbrella is set above the bin. Due to the large outlet, the feeding rate can be adjusted.

We are offering automatic packing machine. The automatic packing machine is used for the automatic weighing and packaging in the flour plant. The whole weighing process is digitally controlled by the computer. This equipment mainly includes weighing device, transmission device, sewing device, and computer control. With the imported pneumatic mechanism, the inlet and outlet pressure of the cylinder is adjustable. Also, the operation will be more reliable, and no pollution will be generated. The parts which need to contact with the grains, is made of imported stainless steel which is in compliance with the food hygiene requirements. Those parts are anti-corrosion and will prolong the service life of the equipment.
