Luoyang Goldeng Slewing Ring Co. Ltd

Luoyang, China, China

• MOQ 1 Set(s)

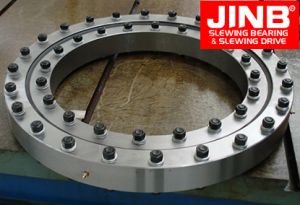

We are offering single row four points contact ball slewing bearing. the single-row four points contact ball slewing bearing is composed of 2 seat-rings.it features compact in design, and light in weight.the balls contact with the circular race at four points, via which the axial force, radial force and resultant moment may be born simultaneously.it may be used for slewing conveyors, welding arms and positioners, light, medium duty cranes, excavators and other engineering machine.

• MOQ 1 Set(s)

We are offering double row slewing ring. The double-row slewing ring has three seat-ring. The steel balls and spacers may be directly arranged into the upper and lower raceways. Two rows of steel balls with different diameters are fitted according to the load. such open mode fitting feature extraordinary convenience. The load angles of both upper and lower race are 90 degree, which enable the bearing to bear large axial force from the resultant moment.

• MOQ 1 Set(s)

We offer double-row different diameter ball slewing bearing. Double-row different diameter ball slewing bearing has three seats.the steel balls and the spacers may be directly arranged into the upper and lower raceways.two rows of steel balls with different diameter are fitted according to the load.such open mode fitting features extraordinary convenience.the load angles of both upper and lower races are 90degree, which enable the bearing to bear large axial force, the raceways should be especially designed .the axial dimension and radial dimension of double-row ball slewing bearing are rather large, and bearing construction is sturdy , hence it is especially suitable for tower cranes which requiring working diameter over medium range, mobile cranes and other unloading machines

• MOQ 1 Set(s)

We are offering ball and roller combination slewing bearing. Ball/roller combination slewing bearing is composed of outer seat-ring, inner seat-ring, ball and roller. The rollers and balls are respectively on a horizontal line rollway of outer seat-ring and global rollway of inner seat-ring. The rollers load the axial moment and the balls load the radial moment, while both of them load the torque moment. So ball/roller combination slewing bearing can not only load axial moment, but also certain torque moment and radial moment. The advantages of small size of section and low cost is very obvious and better applied on large engineering mechanical equipments.

• MOQ 1 Set(s)

We offer ball combined slewing bearing, roller combined slewing bearing. This kind of slewing bearing is one special type, it is made up by two rings, one-row rollers and one row balls & supports, with compact conformation, the roller bear the axial load& the balls bear the radial load and the rollers & balls bear the moment at the same time. It is the one new kind of slewing bearing.it often be used on heavy duty machines which require large working diameter, the bucket wheel excavators, wheeled cranes, steel transporters, heavy duty mobile cranes, port equipments, etc. The dimension scope for goldeng slewing ring is from 1000mm to 6500mm.

• MOQ 1 Set(s)

We offer single-row crossed roller slewing bearing. The single-row crossed roller slewing bearing is composed of two seat-rings.it features compact in design, light in weight, high precision and small fitting clearance. As the rollers are 1:1cross arranged, it is suitable for high precision mounting and capable to bear axial force, resultant moment and considerable large radial force. The single-row crossed roller slewing bearings are widely used for hoisting, transporting, engineering machines as well as for military products.

• MOQ 1 Set(s)

we offer three row roller slewing bearing. the three-row roller slewing bearing has three seat-rings, which separate the upper, lower and radial races, via which the load of each row of the rollers may be specified.it may bear different loads simultaneously and its load capacity is the largest one among the four models.thanks to the large size of its axle and radius, it is sturdy and especially suitable for heavy-duty machines which require large working radius.such as bucket-wheel excavators, wheeled cranes, ship cranes, ladle turrets, heavy duty mobile cranes etc.

• MOQ 1 Set(s)

We are offering heavy duty slewing bearing. 　　luoyang goldeng slewing ring co., ltd is a comprehensive manufacturer specializing in the production of slewing bearings(diameter 1500mm-6500mm), slewing drives and engineering parts 　　we have advanced equipment and perfect inspection equipment, experienced management and personnel senior technicians and other professional and technical strength. 　　we can help our customers make type selection, design and development various kinds of basic types, special structures, non-standard bearings and so on.our products quality strict implementation of national standards. 　　our slewing bearings and slewing drives are widely used in metallurgy, mining, electric power, shipbuilding and other industries supporting the equipment.
