mudanjiang tiptop electric co., ltd

mudanjaing, China

• MOQ 500 Piece(s)

We are offering vulcanized fiber tube vulcanized fiber tube is manufactured by winding zinc chloride treated paper on making mandrel to the predetermined wall thickness. they are then going through puring, drying, rolling, grinding, and sanding processes to get desired inside and outside diameters. vulcanized fiber tube has a density around 1.40 g/cm³. it has good physical properties, mechanical properties, dielectric strength, arc resistance, and arc-quenching characteristics. because of its excellent machinability, vulcanized fiber tube can be sanded, knurled, spirally cut, threaded, lathed, and easily fabricated to various products. the major applications of vulcanized fiber tubes are fuse cartridges, high voltage cutout fuse liners, lightning arresters, grommets, insulators, and bushings. vulcanized fiber tube， vulcanized fiber tubes, vulcanized fiber tubing, horn fiber tube, bone fiber tube. vulcanized fibre tube： vulcanized fibre tube， vulcanized fibre tubes, vulcanized fibre tubing, horn fibre tube, bone fibre tube. Color: gray, black, red, and white standard length: 30", 42", and 48" tube size range: 3mm-100mm

We are offering fuse tube. Vulcanized fiber tube vulcanized fiber tube is manufactured by winding zinc chloride treated paper on making mandrel to the predetermined wall thickness. they are then going through puring, drying, rolling, grinding, and sanding processes to get desired inside and outside diameters. vulcanized fiber tube has a density around 1.40 g/cmâ³. it has good physical properties, mechanical properties, dielectric strength, arc resistance, and arc-quenching characteristics. because of its excellent machinability, vulcanized fiber tube can be sanded, knurled, spirally cut, threaded, lathed, and easily fabricated to various products. the major applications of vulcanized fiber tubes are fuse cartridges, high voltage cutout fuse liners, lightning arresters, grommets, insulators, and bushings. vulcanized fiber tubeï¼� vulcanized fiber tubes, vulcanized fiber tubing, horn fiber tube, bone fiber tube. vulcanized fibre tubeï¼� vulcanized fibre tubeï¼� vulcanized fibre tubes, vulcanized fibre tubing, horn fibre tube, bone fibre tube. Color: gray, black, red, and white standard length: 30", 42", and 48" tube size range: 3mm-100mm

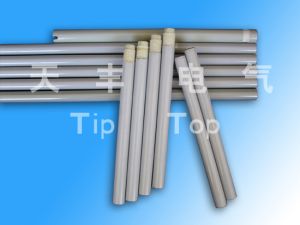

we are offering combination tube. combination tube combination tube is made by overwrapping vulcanized fiber tube with epoxy resin saturated fiberglass filaments. the angle of filament winding is usually set at 55°. vulcanized fiber tube becomes an integral tube liner which provides gas-generating and arc-quenching characteristics. epoxy resin saturated fiberglass provides strength and water resistance. the combination tube is usually coated with uv resistant paint in gray color. fiberglass/vulcanized fiber combination tube has the following advantages over fiberglass/polymeric synthetics combination tube: no-spark generating, char layer forming to prevent liner from excessive ablation, and the optimum amount of arc-quenching gas generating. the main application of fiberglass/vulcanized fiber combination tube is used in expulsion fuse tube cutout for interrupting high voltage ac circuits during power surge. fiberglass/vulcanized fiber combination tube : epoxy fiberglass vulcanized fiber combination tube, / compound tubing fuse tubes/ bone fiber fuse tube / arc-quenching tubing / arch quenching tube/ arch extinguishing tube, combination tube./ arc-quenching fuse tube liner，epoxy fiberglass vulcanized fibre combination tube, / bone fibre fuse tube

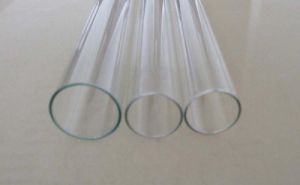

We are offering glass fiber tube. Glassfiber tube epoxy resin fiberglass filament tube is composed of continuous fiberglass filaments with controlled orientation in a matrix of cured epoxy resin. it is produced with varying angles of fiberglass filaments winding. the angles of winding can be varied to suit different applications and strength requirements. the applications include high voltage insulators, fuse tubes, bushings of high voltage electrical equipment, railroad bushings, reverse osmosis shells, and high pressure bottles. Poxy resin fiberglass filament tube/ epoxy fiberglass winding tube, g-10 tube, g-11 tube, fr-4 tube, g-12 tube, filament wound tubes, epoxy glass fiber canvas tubing, epoxy fiberglass wound tubing/ filament winding tubes, epoxy glass fibre canvas tubing color: natural length: 72" maximum od: 4" maximum id:0.2”
