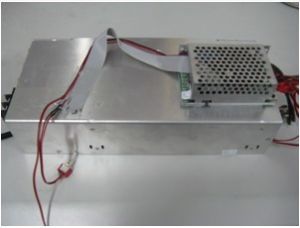

We have Diode Laser Drive. This product is oem-type pulse-width diode laser power which suit for various types of array of laser and high-power diode lasers whose driver pulse width between 20ms ~ 950ms. Product performance is stability, voltage designed adaptive structure among 0 ~ 12v, the current is continuously adjustable between 0.5 ~ 70a. Power output without waves, rising gently with no overshoot, high precision constant current, the current ripple is small, control port is easy to use, it owns types of protection and monitoring ports as well. High efficiency of power conversion, without additional heatsink equipment, suitable for the system integration of equipment manufacturers, especially high-power diode laser hair removal equipment. the power supply has two parts: the main power module and control interface modules.

We offer Diode Laser Hair Removal System. 1, the optimal laser wavelength (808nm) pain-free hair removal easy, icy comfortable. 2, between the long pulse of light regulation, to protect skin while removing hair of different thickness. 3, the most suitable for asian hair color, people, does not produce black hyperpigmentation, inflammation does not appear. 4, sapphire contact cooling patented technology security does not damage the skin. 5, small size, only 25kg, easy to carry. technical parameters: model ndl- 808nm semiconductor laser power 400w a typical pulse-width 20-500ms repetition frequency 1 ~ 20hz spot 11 x 11mm typical power density (500ms / 50hz) 150j/cm ã?â² 50% maximum duty cycle current 65 ~ 70a operating voltage 12v instrument size 60cm x 45cm x 30cm weight 25kg delivery time 3-4 weeks

• MOQ 2 Piece(s)

We offer Conductively Cooled Package (ccp package) high power Laser Diode Bars (laser diode arrays) are widely used for solid-state pumping (dpss laser), infrared lighting, medical & aesthetic treatment and laboratory research. Ndl provides both cw and qcw (quasi-cw) laser diode bars. features: 20w~60w cw and 100w~300w qcw laser diode bars available. 795nm, 808nm, 940nm, 976nm (+/-3nm, +/-5nm, +/-10nm) available cs-mount, narrow cs-mount, w2 package available tm & te polarization available long life time > 10, 000 hours support custom package design.

• MOQ 2 Piece(s)

We offer water cooled laser diode arrays (horizontal stack)are designed nd:yag side-pumping with simple electrical and water inlet/outlet connections. these horizontal stacks are the key components for the cw or qcw dpss laser modules and they are also widely used as replacement for laser head refurbishment. features: 20w, 40w cw per bar, or 100w~300w qcw per bar 1~20 bars per stack typical 808+/-3nm, other wavelength available support custom package design

• MOQ 2 Piece(s)

We offer fiber coupled laser diode modules (pigtailed laser diode) are widely used for solid-state pumping, fiber laser pumping, medical treatment, surgery, printing, soldering and other applications. features: 1w, 2w, 3w up to 25w pigtailed output na 0.15, 0.22 available 808nm, 940nm, 980nm available long life time with mttf > 50, 000 hours (9xxnm)

• MOQ 2 Piece(s)

our conductively cooled package (ccp) vertical laser diode stacks are mainly designed for low duty solid-state pumping. ndl is working hard to improve the optical power density for these stacks to get max output power within a limited optical window. this kind of laser stack is widely used for nd:yag pumping to get high pulse energy in qcw or pulsed mode. features: qcw laser diode bars with peak power 100w~300w 1~100 bars per stack typical 808+/-3nm, other wavelength available long life time > 1g shots support custom package design.

• MOQ 2 Piece(s)

We offer Mccp Laser Diode Bars, Mccp Laser Diode Stacks etc. Micro-channel cooler package (mccp) is designed for high power cw diode bars up to 60w and 80w. The micro-channel cooler (mcc or mc2) is a high efficiency heat-exchange heatsink. These mccp package can provide up to >1kw cw output power from a single stack for directly heat treatment for industry, such as metal hardening, laser cladding, welding and etc. It is also widely used for hair removal applications. features: optical power 60w, 80w or 100w cw per bar 1~20 bars per stack vertical & horizontal stacks available typical 808+/-3nm, other wavelength (940nm, 976nm )available long life time > 10, 000 hours support custom package design.

our cw diode pumped laser module (dpss laser modules at 1064nm) are designed by side-pumping geometry with 808nm laser diode arrays and nd:yag rods. ndl is now providing high power laser modules with power from 10w, 20w up to 500w. it is widely used for industry, such as laser marking, engraving, welding, cutting, drilling and etc. features: cw output power from 10w up to 500w per module high beam quality & low-rank gaussian beam profile long life time > 10, 000 hours none-microchannel and low requirement for cooling water support custom package design.

• MOQ 2 Piece(s)

We offer qcw diode pumped laser modules (dpss laser modules at 1064nm) are designed with qcw laser diode arrays for nd:yag pumping. it can provide high pulse energy for amplification up to 1200mj with high repetition rate up to 1khz. these qcw dpss laser modules are mainly used for research applications. features: pulse energy from 30mj up to 1200mj (@200us) high small signal gain long life time > 1gshots water cooled and conductively cooled are both available support custom package design
