Ningbo Weco Optoelectronic Co., Ltd.

• Brand NameWECO

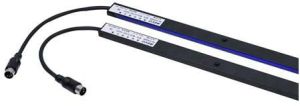

We are offering elevator light curtain. Technical features items 957q6 957q7 957q8 957q9 response time replay output 36ms replay output 57ms replay output 65ms replay output 95ms transistor output 12ms transistor output 33ms transistor output 41ms transistor output 72ms number of infra diodes 17 diode sets 32 diode sets 40 diode sets 48 diode sets scanning beams 94-33 beams 154-94 beams 194-118 beams 234-142 beams detecting height 20-1840 mm 20-1870mm 20-1900mm infra red diodes range 117.5 mm 58.8 mm 47.5 mm 40.0 mm redundancy none one transmitter shielded after 120s detected absent power consumption ‰¤ 4 w or 100madc24 v operating temperature ' -20º c- +65 º c tolerance vertical> 10mm10° horizontal> 5mm7° light immunity ‰¤ 100000lux emc(en12015)(en12016) eft passed level 4 tests d (± 4kv ) surge d(± 2.5kv line to ground, ± 1kv line to line ) esd a(air discharge± 15kv direct discharge ± 6kv) radio-frequency d(10v rms, 150khz-80mhz, 80%, 1khz amp. Mod., 1%, 3s ) radiated-immuity d(30 vm, 80mhz-1.96ghz, 80%) vibration vibration 20 to 500hz 4hrs per x-y-z axis, sinusoidal vibration 30 mins per x-y-z axis detecting range 0-3m protection level ip54(tx, rx), ip31(power box) voice reminder buzzer in rx, after continuous detection for 15s, buzzer on.

• Brand NameWECO

We are offering elevator light curtain. Dimension: 2000mm(l)*24mm(w)*11mm(ht) signalrelayout(ac220ac110dc24), transistor out(npn-nonc, pnp-nonc) number of infra red diodes: 17 diode sets detectingheight: 20-1840mm detecting range: 0-4m protection level:ip54(tx, rx), ip31(power box) package: power supply control unit:(1pieces) durable flexible cabie: (2cables) transmitter: (1pieces) receiver: (1pieces) user manual: (1copy) mounting accessories: (1 set) optional information - payment : tt - origin : china - minimum order : 50set - inspection : iso9001 - samples : charge - remarks : oem avaliable
