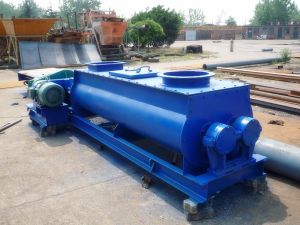

We are offering biaxial burnt lime slaker. Our company is specialized in technical reform of sintering process. Biaxial burnt lime slaker is one of our mainly patent products. it is an ideal equipment using in sintering business. Generally quicklime will be added in the sintering production and make slaking become into hydrated lime, four good reasons as below: in favor of taking mixture into balls in the process of sintering, mixture ball will keep intact reducing the burning zone temperature and thickness lime slaking will produce heat which can increase the temperature, to prevent or mitigate the wet layer. with the previous experience, new biaxial burnt lime slaker is manufactured, its characteristics is following: 1. Dual axis mixing forms has multiple roles with shattered the agglomeration, mixed and cleaned itself 2. Alloy material stirring blade inside the machine is arranged in a spiral line according to the unequal pitch, makes the lime digestive process is divided into three stages: import, digestion and forced digestion, to ensure the lime fully digest. 3. The 23 circular cylinder is more conducive to digestion of quicklime than original u type tube. Differences between them are lime thrown into the air in different directions. The lime in the u type tube is being thrown to up towards, and fall back in place. And the 23 circular cylinder throws the quicklime to another direction, collides with the opposite lime and scatters, expands the combination area with water, makes the lime assimilated more completely. 4. Drive shaft uses a split design, easy to assemble, disassemble and replace the blades. 5. The bearing seat adopts an open design, easy to repair and maintenance, double-row radial spherical roller bearings is used, it adapts the field environment completely and with long using life. 6. Equipped with automatic dust removal system.

• simple operationhigh precision

We are offering photovoltaic equipment solar component reflective film laminating machine. According to demand of 3m company in united states, qinhuangdao hongtai machinery co., ltd is made an idea attached to reflective film laminating machine, and ultimately successfully developed china's first reflective film laminating machine. This equipment is reflective film bonded to the battery string of interconnected to provide a stable and efficient solutions. The apparatus is including the battery strings of automatic loading and unloading mechanism, the automatic positioning mechanism, the automatic bonding mechanism, and the automatic temperature control function module mechanism, the several parts together complete the u.s. 3m reflective film bonded to the battery string. The characteristics: 1. simple operation: the device uses a touch screen interface to achieve one-touch fitting. 2. high precision: equipment adopts stepping motor and high-precision module transmission, positioning, transmission accuracy of ± 0.1mm. 3. high efficiency: the device uses high speed and synchronized fit three reflective film, maximize efficiency of monomer. 4. maintenance convenience: equipment take a modular design, spare parts replacement convenient, fast, high operation rate for device.

we are offering swing eddy current type flexible sealing device for sintering machine. sealing device is used in sinter plant widely, and swing eddy current type flexible sealing device is manufactured by our company, is a patent high tech production which invented by several r&d institutions together. the project is adopted the most advanced material、process and structure, can completely solve all kinds of air leakage defects hold by four bar linkage and double lever, that the defect is decided by the sealing structure itself. after through dozens of steel company’s transformation(like wuhan steel、sino steel、tangshan steel、benxi steel etc), it proves that the air leakage rate in the head and tail of sintering machine is decreased over 80%, and negative pressure of fore and aft bellows increases about 1kpa, and the air temperature improves about 20 degree. it achieves effective sealing between head and tail of sintering machine, decreases the consumption of energy, and improves the productivity of sintering equipment. characteristics: 1.application of sintering machine in the 2 meters and more than 2 meters width, swing eddy current type flexible sealing device can be deformed with the same deflection deformation of the bottom beam of grate wing pallet cars, to guarantee there is no air leakage in the place of head and tail of sintering machine. 2.upper cover plate of sealing device is made of alloy material, the upper surface is not easily to draw a groove. 3.the sealed cover is provided with eddy current choke system, thus can lower air leakage, which caused by local distortion or by drawing a groove on the bottom of grate wing pallet cars. 4.swing tracking system can make the upper surface of sealing plate to sway in any directions, to ensure the close contact between the upper surface of sealing device and bottom beam of the grate wing pallet cars

• MOQ 1 Set(s)

We are offering inclusive type mechanical sealing system for circle cooler. It is our patent production and received highly praise from our clients. features:1.energy-saving and consumption reducing: inclusive type mechanical sealing system completely solve the problem of air leakage of circle cooler, air leakage rate at the place of dynamic and static rubber will be cut down over 70%，and cooling effect increase above 50%, effectively to avoid burnout of convey belt. blower will not need to work with full load. under the same cooling effect, total electric power of blower will save 400kwh or above. 2.productivity increasing: because of cooling effect raised greatly, circle cooler can cool the sintering promptly which produced by sintering machine and convey it smoothly, thereby lessen influence on sintering machine with full load since previously the sintering cannot cool immediately on circle cooler. 3.spot environment improving: because of air leakage rate reducing greatly by adopting inclusive type mechanical sealing system, there will not be dusty scene appeared on site. 4.waste heat recovery power generation increasing: because of good sealing effect, air temperature increased obviously during the period of waste heat recovery in the circle cooler, and improved the productivity of waste heat recovery. 5.labor intensity reducing.When the outage maintenance, it will decrease extraction around the track by labor clearing, no need to change the dynamic and static rubber sheet, thereby decrease the labor intensity of workers. 6.this system is easy to maintain.
