shanghai saking grouting system ltd

shanghai, China

• MOQ 100 Barrel(s)

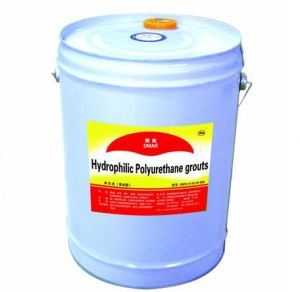

We are offering hydrophilic expansive grouts react upon contact with water, absorb water while curing, and cure to a flexible foam or gel. They are generally used to seal leaks in joints or cracks and to repair leaking water-stops. Hydrophilic expansive foam grouts chase and absorb the water in the crack and in all of the fractures that branch off from the main crack. Range of application water stop foam for infiltrating & gushing water: - defective concrete (cracked or honeycombed) - concrete construction joints & cracks - limestone - brick construction - pipe intrusions - waste water tanks - water reservoirs - sewers, manholes, utility boxes, etc. - tunnels, dams - soil stabilization - elevator pit waterproofing performance property value norm color pale yellow solids 100% astm d 2369 b viscosity at 25℃ 180-260 mpa.s astm d 2196 a density ≥1.00 gcm³ astm d 3574 shrinkage non-shrink astm d 1042 toxicity non-toxic storage and shelf life： 16kgsbarrel the chemicals should be stored inside warehouse at temperature range 15℃~26℃. the shelf life is 6 months from date of manufacturing and in original sealed drums.

• MOQ 1000 Barrel(s)

We are offering hydrophobic polyurethane grouts. As dm-510 is one liquid type hard firing urethane having strong hydrophobic type, it is injected and packed in surrounding of concrete break and leakage, also, through reacting with water, it builds water foaming layer having high dense closed cell structure. Firing layer blocks from water poured into due to break of construction. Therefore, dm-510 is the product having excellent still water. range of application sealant foam for infiltrating water through: - defective concrete (cracked or honeycombed) - concrete construction joints & cracks - limestone - brick construction - pipe intrusions - waste water tanks - water reservoirs - sewers, manholes, utility boxes, etc. - tunnels, dams performance characteristics property value norm color pale yellow solids 100% astm d 2369 b viscosity at 25℃ 180-260 mpa.s astm d 2196 a density ≥1.05 gcm³ astm d 3574 shrinkage non-shrink astm d 1042 toxicity non-toxic storage and shelf life： 16kgsbarrel the chemicals should be stored inside warehouse at temperature range 15℃~26℃. the shelf life is 6 months from date of manufacturing and in original sealed drums.

• MOQ 1 Set(s)

We are offering progressive cavity pump. The machine is suitable for affusing a variety of cement grout. It can be used widely in anchor grouting of road, rail tunnels, subway, hydropower stations, underground caverns. It also can be used in the curtain grouting project of soil for the dam, slope, soft rock reinforcement. characteristic: -simple structure, light, wheel design and portable; -way of working:grouting, stop and relief; -it has wide range of water-cement ratio and it can work continually.it’s suitable for a variety of design requirements of the concentration of slurry; -work pressure can be adjusted according to project needs. Performance: item unit index dmar-2 dmar-3 dmar-5 dmar-7 output lh ≤2000 ≤3000 ≤5000 ≤7000 water-cement ratio wc ≥0.30 ≥0.30 ≥0.30 ≥0.30 particle size of sand mm ≤3 ≤6 ≤5 ≤6 delivery distance volume m 40 60 60 90 horizontal 180 180 200 200 work pressure mpa 2.0-4.0 2.5～5.0 2.5-6 2.5-6 cubage of hopper l 80 130 160 190 gross weight kg 230 300 320 360 voltage v 380 380 380 380 power kw 4 5.5 7.5 7.5 l*w*h mm 1260*560*770 1400*660*900 1300*660*910 1350*970*1100.

• MOQ 1000 Piece(s)

We are offering flat head injection packer. type f-13 f-17 f-19 dimensions(d*l) 13*110~400(mm) 17*11~420(mm) 19*160~420(mm).

• MOQ 1 Set(s)
• Brand NameDMAR

We are offering high quality epoxy resin grout pump.the electric high pressure injection pump is a professional machine used for polyurethane and epoxy injection. It is the perfect machine for waterproofing contractors performing commercial work and residential injection. With this pump it is a snap to get in and out of basement and confined areas as found on many job sits. specifications: - gross: 7.5 kg power, easy to carry. -flow rate: ~ 0.7lmin - max output pressure: 11000 psi - star-up: standard specification: - machine body - 5 meters or 3metres high pressure pipe - switch valve suit(including butter head) - metabo sbe560 electric drill, north america: standard metabo drill 110v sold separately. -maintainance saddlebag application scope: o for the crack, flexing crack, construction crack, and instruction crack of building and concrete project. O leak stopping for the breast wall of artesian well in geologic drilling project. O grouting of reservoir and dam for the water conservancy project, leak stopping of the water transporting tunnel, seepage control of the concrete crack of the embankment. O leak stopping for underground, tunnel, culvert, sewage disposing pool, concrete fissure. O leak stopping for basement, underground garage, and underground channels. O leak stopping for floor, wall pipe, and wall corner. O cracking of building, girder, pole, board etc structure, inject epoxy resin with high-handed. The electric high pressure injection pump is a professional machine used for polyurethane and epoxy injection. It is the perfect machine for waterproofing contractors performing commercial work and residential injection. With this pump it is a snap to get in and out of basement and confined areas as found on many job sits.

• MOQ 1 Set(s)

We are offering agitator tanks. Agitation tanks are used to provide a storage reservoir for mixed batches of grout from the high speed high shear mixer. Three main functions: i) releases any air bubbles trapped during the mixing process. Ii) the agitation of the specially shaped paddles keep the mix in suspension prior to pumping. iii) the tank acts as a storage reservoir for mixed batches allowing a continuous supply to be maintained for the pump. Technical data nominal capacity（l） 800 rpm (rmin) 90 output diameter（mm） 65 power (kw) 4 weight（kg） 310 dimension (l*w*h）（mm） 1470×1260×1470.

• MOQ 20 Ton

We are offering ultrafine cement, microfine cement. microfine cements are blast furnace slag based cements composed of ultrafine particles and are designed for injection into loose soils, rock and concrete. They feature a maximum grain size ranging from a d95 of 6µm to a d95 of 16µm. Depending on the application and the permeability of the strata, different grain size can be used. It is suited for stabilizing or sealing all earthen foundations; especially for permanent structures such as tunnels, dams, deep foundations and oil storage tanks. Because they cure into a hardened concrete, microfine cements cause no pollution to underground soils or water supplies. benefits:≥ -excellent penetration in tight joints, fissures and pore spaces -improved water tightness following proper application -better working environment -improved grouting efficiency and less waste technical data product unit dmfc-600 dmfc -800 dmfc -1200 appearance grey powder grey powder grey powder odor none none none toxic none none none specific gravity kgdm3 ～3 ～3 ～3 specific surface area m2kg ≧600 ≧800 ≧1200 grain size d50 µm ＜6.75 ＜4.38 ＜3.21 grain size d90 µm ＜16.31 ＜9.68 ＜7.55 grain size d95 µm ＜22.97 ＜12.86 ＜10.51 setting times (measured by vicat needle) initial set min 60 120 60-120 final set min 120 150 120-150 compressive strength 3 d mpa 25 25 25 7 d mpa 45 45 45 28 d mpa 60 60 60.

• MOQ 1 Set(s)

We are offering shear grout mixers. The colcrete range of colloidal grout mixers are internationally recognized as the most efficient method of mixing cement based grouts and other materials used in the construction industry, resulting in very stable mixes which resist bleed and contamination by water. The cgm series of high speed, high shear, colloidal grout mixers provide an extremely efficient and rapid means of producing various types of grout. These may include cement, bentonite, sand, and a wide range of polymeric grouts. The mixing tank is fitted with a bag splitter which enables the material to be evenly distributed into the mix, and the splitter is easily removed, allowing access to the inside of the mixing tank. technical data type 400 800 capacity（l） 400 800 the water and cement ratio allowed ≥0.5 ≥0.5 the mixing time（ min ） 3 5 power（ kw ） 7.5 15 weight（ kg ） 450 700 dimensions （l*w*h）（mm） 1350×1150×1460 1725×1373×1848 how a progressing cavity pump works although the geometry of its pumping elements may seem somewhat complex, the principle of progressing cavity pump operation is deceptively simple. the key components are the rotor and stator. The rotor is a single external helix with a round cross-section, precision machined from high-strength steel. the stator is a double internal helix molded of tough, abrasion-resistant.elastomer, permanently bonded within an alloy steel tube. as the rotor turns within the stator, cavities are formed which progress from the suction to the discharge end of the pump, conveying the pumped material. The continuous seal between the rotor and the stator helices keeps the fluid moving steadily at a fixed flow rate proportional to the pump's rotational speed.

• MOQ 10000 Piece(s)

We are offering aluminum injection packer. the injection packer is a tool for sealing works. It is tightly fixed in the drill hole of the building component and connects the injection device with the building component. Under pressure the sealing material is injected into the damaged building component. Packers are made of different materials such as steel or plastic and various types of packers are available such as drive-in packers or adhesive packers etc. there is a wide application range for injection packers: injection into dry and wethumid building components, filling of hollows, high pressure injection up to about 200 bar in concrete structures, crack injection (frictional connection of cracked building components), sealing of structures, elastic connection of crack flanks (varying crack widths), sealing of expansion joints.

• MOQ 10 Piece(s)

We are offering grouting packer. product applications 1. Coal mine engineering, such as water injection, reduce dust, pressure drop, split coal, gas emissions. 2. Coal or rock engineering, such as grouting, water injection and blocking of grouting holes . 3. Hydropower, reservoir engineering, such as curtain grouting, consolidation grouting, backfill grouting, chemical grouting and cement grouting. 4. Water pressure test of geological survey, consolidation, plugging of drilling, etc. main technical type hole diameter mm max outside diameter mm max expansion outside diameter mm max pressure grouting mpa dmp-42 42 38 60 7 dmp-56 56 45 70 7 dmp-60 60 54 85 7 dmp-65 65 58 90 7 dmp-75 75 67 95 7 dmp-91 91 74 105 7 dmp-110 110 87 135 5 dmp-140 140 128 165 3.
