Shanghai Uninovo Seal Co.,Ltd.

Shanghai, China

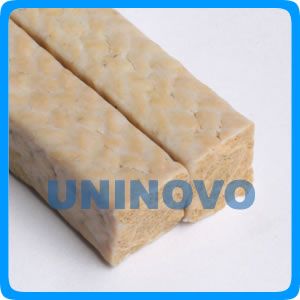

We offer Aramid Fiber Packing Ptfe. Features&Functions Aramid Fiber Packing Braided from high quality aramid fibers with PTFE-lmpregnation and lunricant additive.Extremely hard wearing.It shows good chemical resistance, high elasticity and very low cold flow.Compare with otherkinds of packing, it can resist more severe media and higher perssure. Recommendation:A minimum shaft hardness of 60HRC. Application: A universal packing, can be used for pumps in all types of industry suchas chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, power ststions etc.Tt is also a durable packing able to withstand granular and abrasive applocatons, it is recommended for serve on superheated steam.solvents, liquefied gases, sugar syrups and other abrasive fluids.For hot water applications it can be used uncooled up to 160�. Service Limits T 280� PH 2-12 V 25ms Rotating 25bar Reciprocating 100bar Valve 200bar D(gcm³) 1.4 Forms of supply: 2-5Kgroll

We offer Expanded Graphite Braided Packing. Braided from low-sulphur expanded graphite yarns, which are reinforced by cotton or glass fiber. It has a very low friction, does not damage shafts or stems. It shows good thermal and chemical resistance and high elasticity. CONSTRUCTION: Other reinforcement materials are also available: Glass fiber--------High strength, lower cost Carbon fiber------Less weight loss UP202203--Flexible Packing with Corrosion Inhibitor Corrosion inhibitor acts as a sacrificial anode to protect the valve stem and the stuffing box. APPLICATION: It is a multi-service packing capable of a wide variety of uses throughout a plant. It can be used in valves, pumps, expansion joints, mixers and agitators in high-pressure, high-temperature hostile environments of hydrocarbon processing, pulp and paper, power stations, refineries and industries where effective sealing is vital. Precaution: in oxidizing environment. Recommendation: Use preferably with UP203 high carbon fiber anti-extrusion packing rings. PACKAGING: In coils of 5 kg, other package on request.

We are offering metal gaskets we offer clients a wide range of metal gaskets to choose from. These are precision finished to meet a variety of complex profiles for special industrial as well as defense duties. These metallic gaskets are offered in many forms including: spiral wound gaskets, api rtj gaskets, heat exchanger gaskets, jacketed gaskets, corrugated gaskets, solid metal gaskets. Typical applications: 1.high vacuum equipment ***** plants 3.hydraulic systems ***** lines prime features: lens section: resist overstressing in high-pressure duties convex section: centralized loading of gaskets is achieved by a reduction in the loaded area wedge section: positively locates gasket in a cylindrical application double cone section: for meeting large diameter, high -pressure duties weld ring gaskets: for critical applications where leak-proof joints are essential materials: soft carbon steel stainless and alloy steels duplex, monel, inconel, incoloy, nickel s316l urea grade stainless for high corrosive environment

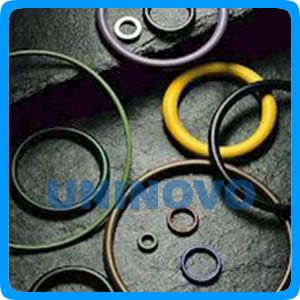

FDA certificated EPDM O-ring Uninovo Seal Co., Ltd. offer all types of EPDM rubber molded products and EPDM rubber O-ring. We have more than decade working experience in handling projects for all applications in automotive, architectural aluminium, industrial, railway, bus body fabricator etc. We have engineering capabilities to offer solution which will fit your requirements exactly. Features: ***** has excellent resistance to compressive stress relaxation at temperature 120 degree celsius and splitting or bursting under combined conditions of compressive strains upto 60% temperature -135 degree celsius. ***** also has good resistance to ethylene glycol based engine coolants-1000 hrs at 120 degree celsius. ***** material can successfully meet with heat aging requirement of 120 degrees for 1000 hours. ***** in EPDM rubber are widely used in a radiator ***** material revealed no dimensional variation or deformation in a test which involved 30 mts in boiling water.
