Shanghai Yongming Machinery Manufacturing CO., LTD.

shanghai, China

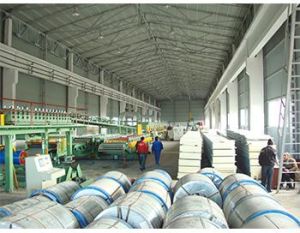

• PU sandwich panel linepu sandwich panel machine

PUR, PIR (Polyurethane) sandwich panel product line continuous make the PUR, PIR  sandwich panel with the thickness 50mm-200mm.The main composing of product line:1.Uncoiler(automatical) 2.Roll forming machine 3.PU foaming system 4.Double belt pressing(Caterpillar press 16-30 meter length) 5.Band saw cutter 6.Cooling system 7.Stacking machine 8.Packing machine Primary technology parameters:1.Speed of product line: 0-6mmin( frequency conversion to adjust speed) 2.The dimension the product line: about 140 m*18m*6.5m 3.Total power of the product line: about 400 KW

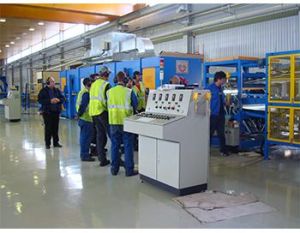

• rockwool sandwich panel machinerockwool sandwich panel machine

Rock wool Sandwich Panel Product Line could automatically make rock wool, mineral wool, glasswool sandwich panel for wall and roof.The composing of product line:1.Uncoiler 2.Mineral wool slab feeding line 3.Roll forming machine 4.Milling mineral wool system 5.Scraping glue 6.Double belt pressing 7.Band saw 8.Stacking machine 9.Packing machine

• PU sandwich panel linepu sandwich panel machine

PUR, PIR, Polyurethane, Rock wool Sandwich Panel Product Line could automatically make PUR, PIR, rock wool, mineral wool, glasswool sandwich panel for wall and roof.The composing of product line:1.Uncoiler 2.Mineral wool slab feeding line 3.Roll forming machine 4.Milling mineral wool system 5.Scraping glue 6.PUR or PIR foaming machine 7.Double belt caterpillar press pressing 8.Band saw 9.Cooling system.10.Stacking machine 11.Packing machine

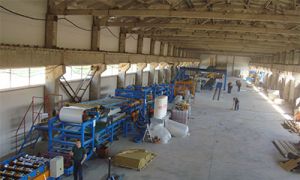

• EPS sandwich panel machineEPS sandwich panel machine

EPS and rockwool mineral wool glasswool sandwich panel line could make rock wool, mineral wool, glasswool，EPS sandwich panel for wall and roof.The composing of product line:1.Uncoiler(MANUAL) 2.Mineral wool strip feeding line 3.Roll forming machine 4.Milling mineral wool system 5.Scraping glue 6.Rubble rollers press machine 7.Band saw 8.Stacking machine 9.Packing machine

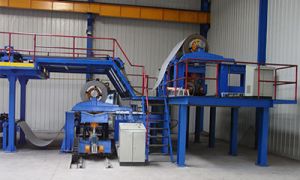

• uncoiler with coil cardecoiler with coil car

Uncoilers or Decoiler It is Automatic and hydraulic, can be used to uncoil steel coil which is maximal 1300mm’s wide, no more than 12 ton’s weighty and steel coiler’s inner diameter is about 500 or 600mm. De-coiler and coiler car for steel sheet The Hydraulic De-coiler is used to hold and drive the steel coil that is being fed into the roll forming machine. The de-coiler allows for a quick change of steel coli with minimal manual labor. The de-coiler is powered with a feedback system that ensures the roll former is not required to turn the coil. The de-coiler will turn as required to reduce the potential for over coiling. Maximum coil mass: 12, 000 kg Nominal coil ID: 500mm supplied with addition spaces to use 600mm above Maximum coil OD: 1300mm Maximum coil width: 1300mm Machine consists of the following major items: Machine frame Overhung shaft with roller bearing Drive motor and chain Hydraulic power pack Hydraulic cylinder of expansionretraction Solenoid valves Electrical control system Limit system to allow positioning of de-coiler for different feed positions. Manual positioning with position indicator. Coiler Car-Powered loading bed to aid in loading to the de-coiler.
