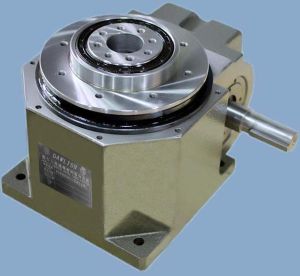

We are offering Product Details: Quick View Material: alloy steel Model: DT (Table Model) Packaging & Delivery Packaging: packed in plywood case Shipping: by sea or by air Product Details 1. Cam Indexer Features As the industrial automation technology develops rapidly, the cam indexer, known for its high precision, great stability, and long-lasting performance, has become the mainstream drive institution in all fields. 1). Simple structure: mere mechanical structure, composed of the cam and division plate; 2). High accuracy: accurate positioning in both partition and static area; no lock components needed; vast choices of stop numbers. 3). Steady transmission: solid CAM curvilinear with good kinetic characteristic, transmission is smooth, little vibration, and no noise. 4). High accuracy of segmentation output: accuracy output less than ± 15 sec. 5). High-speed performance: nearly zero friction in transmission process, input shaft speed can reach as high as 900 RPM. 6). Long life span: generally 20000 hours. 2. Table Model (DT series) Introduction Our table model satisfies your need for high precision, heavy load and low gravity center applications. Its tough hollow shaft allows flexible combination. It can be used with large diameter rotary disc. Only horizontal installation is feasible. 3. Available options: indexer radius(cm) 8, 11, 14, 18, 25, 35, 45, 55, 65, 80, 100 D mode Stop number 4, 5, 6, 8, 10, 12, 15, 16, 18, 20, 24, 30, 32, 36, 40, 48, 60, 64, 72, 96 R mode Reduction Ratio 4, 5, 6, 8, 10, 12, 16, 20, 24 Input shaft speed(rpm) 0~200

• MOQ 1 Set(s)
• Brand NameDawlish
• Place of OriginChina
• StructureCam
• Number Of FlowerCam indexer, DS

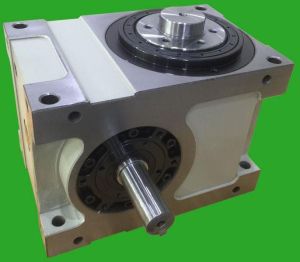

We are offering Product Details: Quick View Material: alloy steel Model: DS (Shaft Model) Packaging & Delivery Packaging: packed in plywood case Shipping: by sea or by air Product Details 1. Cam Indexer Features As the industrial automation technology develops rapidly, the cam indexer, known for its high precision, great stability, and long-lasting performance, has become the mainstream drive institution in all fields. 1). Simple structure: mere mechanical structure, composed of the cam and division plate; 2). High accuracy: accurate positioning in both partition and static area; no lock components needed; vast choices of stop numbers. 3). Steady transmission: solid CAM curvilinear with good kinetic characteristic, transmission is smooth, little vibration, and no noise. 4). High accuracy of segmentation output: accuracy output less than ± 15 sec. 5). High-speed performance: nearly zero friction in transmission process, input shaft speed can reach as high as 900 RPM. 6). Long life span: generally 20000 hours. 2. Shaft Model (DS series) Introduction Our shaft model serves as the drive unit, in the mechanism that the output shaft connects sprocket, coupling, drum, gear, etc., as part of the follower institutions. It is easy to use and install. Available options: indexer radius(cm) 4.5, 6, 7, 8, 11, 14, 18, 25, 30, 35, 40, 45, 65 D mode Stop number 2, 3, 4, 5, 6, 8, 10, 12, 15, 16, 18, 20, 24, 30, 32, 36, 40, 48 E mode Swing angle 5, 10, 15, 30, 45, 60, 90 R mode Reduction Ratio 3, 4, 5, 6, 8, 10, 12 Input shaft speed(rpm) 0~700 (0~200 when the indexer radius is larger than 30cm)

• MOQ 1 Set(s)

We are offering wds zero-backlash drive technology wds is a brand under dawlish precision machinery co., ltd, featured by nc rotary table 4th axis series product. Wds roller drives assist your equipment to realize better speed and precision control, withstand heavy cutting force, overcome external disturbances, and greatly improve transmission efficiency and system stability. Positioning accuracy reaches as good as 10 seconds. theory of operation of the roller driver the roller driver uses the roller gear mechanism, one of the finest motion control mechanisms available. The unit is constructed from an input shaft (the roller gearcam) and a turret (output shaft) fitted with roller followers. The roller followers are preloaded against a screw-like input shaft to completely eliminate backlash. Our proprietary adjustment mechanism provides optimum preload. The roller followers planted in the turret use internal roller bearings to transfer torque while rotating. This ensures zero backlash, outstanding precision, and excellent efficiency without causing wear, while providing long-term consistent accuracy. Accuracy is consistent with no maintenance even after 4.5 million operation cycles. Long-term use is possible without any mechanical maintenance. features use of roller gear mechanism, no backlash or lost motion. No wear, and maintenance is required. Excellent price performance compare to worm gear mechanism. Extended high accuracy even after 5 million indexes. c170 c200 c250 c315 c400 table diameter (mm) ð¤170 ð¤200 ð¤250 ð¤315 ð¤400 table bore diameter (mm) ð¤65h7 ð¤75h7 ð¤110h7 ð¤150h7 ð¤180h7 center height (mm) 150 165 210 255 300 gear ration 160 160 160 160 160 max table speed (rpm) 50 50 50 50 50 indexing accuracy (arc.sec) â±15 â±10 â±10 â±10 â±10 repeatability (arc.sec) 9 5 5 5 5 production weight (kg) 70 100 170 280 410

• Brand NameDawlish
• Place of OriginChina
• Number Of FlowerCam indexer, DF
• StructureCam

We are offering product details: quick view material: alloy steel model: df (flange model) packaging & delivery packaging: packed in plywood case shipping: by sea or by air product details 1. Cam indexer features as the industrial automation technology develops rapidly, the cam indexer, known for its high precision, great stability, and long-lasting performance, has become the mainstream drive institution in all fields. 1). Simple structure: mere mechanical structure, composed of the cam and division plate; 2). High accuracy: accurate positioning in both partition and static area; no lock components needed; vast choices of stop numbers. 3). Steady transmission: solid cam curvilinear with good kinetic characteristic, transmission is smooth, little vibration, and no noise. 4). High accuracy of segmentation output: accuracy output less than ã�â± 15 sec. 5). High-speed performance: nearly zero friction in transmission process, input shaft speed can reach as high as 900 rpm. 6). Long life span: generally 20000 hours. 2. Flange model (df series) introduction our flange model well suits high-speed rotation movement requirement. Flange output shaft has high rigidity with various connections to place tables, gears, sprockets and other peripherals onto the output shaft face, which has a hollow in the center for connection with a foreign shaft as well. Flange model is widely used in disc-structure machines such as stage driving systems and conveyer belt driving systems. 3. Available options: indexer radius(cm) 4.5, 6, 7, 8, 11, 14, 18, 25, 30, 35, 40, 45, 65 d mode stop number 2, 3, 4, 5, 6, 8, 10, 12, 15, 16, 18, 20, 24, 30, 32, 36, 40, 48 e mode swing angle 5, 10, 15, 30, 45, 60, 90 r mode reduction ratio 3, 4, 5, 6, 8, 10, 12 input shaft speed(rpm) 0~700 (0~200 when the indexer radius is larger than 30cm)
