Shenzhen Only-ways.com

shenzhen, China

Shenzhen onlyway technology co., ltd(onlyway) specializes in pcb design service, pcb layout service.a skilled, experienced, efficient and dedicated design team is our guarantee, most of them have more than 5 years design experiences. We can take full account of any factors which may affect the performance of products, such as emi, si, dfm, etc. , to save reasonable costs for customers based on the premise of high quality.Our design area covers high-speed communications, industrial, medical, monitoring and security products, consumer electronics( mobile, mid, laptop, intelligent wear products etc.), network set-top boxes, switchboards, routers, computer motherboards, vehicle products, navigation products, optical access, power products, aerial machines, robotics, radio frequency products, pos machines, digital and analog products, ddr, x86 , acta, cpci products and so on.professional design, specification design, strict examination, just to give you the most satisfactory products and services.Onlyway, your best pcb design partner!

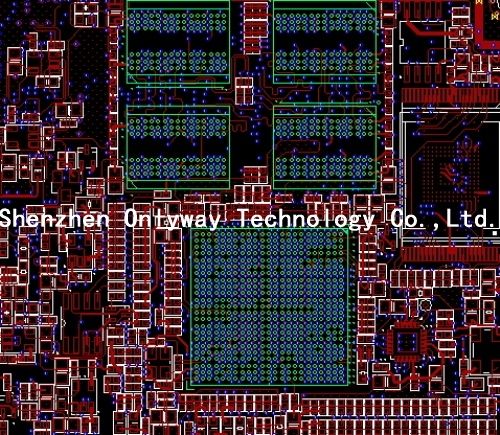

This design is for intel ate structure server with double cpu.18 layers, highest speed is up to 10ghz.use m4 material , 48v power.every cpu has 4 dimms. There are hundres high speed differenctial pair lines.Shenzhen onlyway technology co., ltd specializes in pcb design service , pcb layout service pcb engineering service, printed circuit board design service.Experienced design team help you to save time , save mind and save money!welcome to contact us for details.

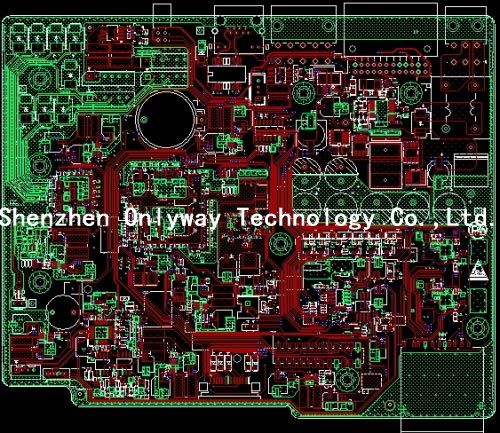

This design is for HI3520D DVR, with 4 layers. analog signals need to go through TVS tube, and a strict packaged by GND, in order to avoid signals interfering. High-speed signals required to packaged buy GND strictly.Shenzhen Onlyway Technology Co., ltd specializes in PCB design service , PCB layout service PCB engineering service, Printed circuit board design service.Experienced design team help you to save time , save mind and save money!Welcome to contact us for details.

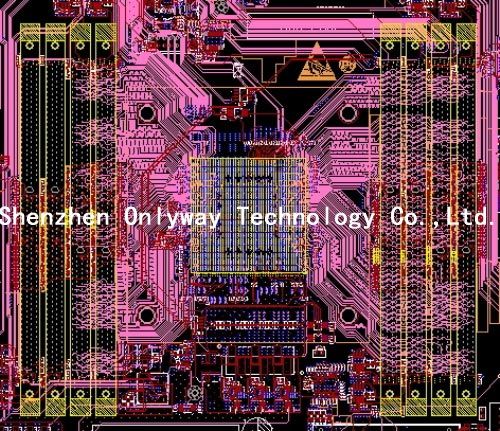

This design is for DDR4 Server, which is an 20 layers board.ATCA structure with 8 DDRs. There are strict timing signal and impedance control requirements to ensure adequate spacing between signals and minimize the crosstalk .Shenzhen Onlyway Technology Co., ltd specializes in PCB design service , PCB layout service PCB engineering service, Printed circuit board design service.Experienced design team help you to save time , save mind and save money!Welcome to contact us for details.
