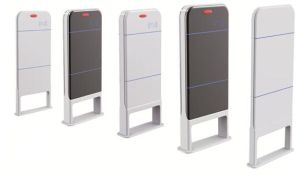

General description royalray “rr-ch-acs3156” is a high performance new design hf cascaded access control gate device. It supports fast process anti-collision and 2 line infrared motion detection of isoiec 15693 protocol tag. Built-in storage feature of rr-ch-acs3156 record tag-parsing result, so do multi-gate cascading. Standard rs485 serial communication port and rj45 (tcpip) network port can connect to the host, controller and other associated equipments directly. The series are top choice for open mass flow rfid applications, such as: access control, conference attendance, digital scenic spots network management, etc. Features  self-intellectual property;  support mainstream isoiec15693 protocol tag (ti, philips, st, infineon, fujitsu…);  support multi-gate cascading;  robust anti-interference ability by metallic shielding design;  low power dissipation design with 24v low power supply, safe and reliable;  built-in 2 line infrared motion detection sensor;  the storage capacity of messages up to 28600;  optional alarm setting;  support rs485 and rj45 (tcpip) network interface;  provide dll and demonstration software source code to facilitate further development;  support customized solutions.

We are offering uhf high performance gate. General description rru-ch-c16058 is a high performance epc c1g2(18000-6c) protocol uhf tag gate device. Designed upon fully self-intellectual property, it supports fast tag anti-collision operation with high identification rate and 2 line infrared sensors for motion detection. It can be directly connected to host, controller and other equipments. It can be widely applied in many rfid application systems such as logistics, open conference attendance system, open access control and industrial production process control. Features  self-intellectual property;  840~960mhz frequency band (frequency customization optional);  support iso18000-6c (epc c1g2) protocol tag;  fhss or fix frequency transmission  rf output power up to 30dbm (adjustable);  built-in 2 line infrared motion sensor with intelligent movement direction determination and personnel counting display*;  support inventory and eas mode;  eas mode supports true eas or epc emulated eas;  advanced anti-collision algorithm, high identification rate and optional rssi ;  low power dissipation design with excellent safety and reliability;  support buzzer and alarm;  support rs232 and tcpip interface;  provide dll and demonstration software source code to facilitate further development.

• Dimensions (HxWxD1700 x 620 x35 / 60 (mm)

We are offering gate device. Royalray “rr-ch-td6960” is a high performance hf 3d gate device. Designed upon fully self-intellectual property, it supports fast tag anti-collision operation with high identification rate, 2 line infrared motion sensor with intelligent personnel movement direction determination and counting, easafi security surveillance, multiple gate synchronization, rs232485 and tcpip interface, remote configuration and management. It is an ideal choice for various hf rfid application systems such as library anti-theft, open access control, conference attendance, process control and logistics etc. Self-intellectual property;  support mainstream iso15693 protocol tag (ti, philips, st, infineon, fujitsu, em…) omni-directional operation;  advanced anti-collision algorithm, high identification rate;  typical gate width up to 90cm*;  2 line infrared motion sensor with intelligent movement direction determination and personnel counting;  low power dissipation design with rf output power over 4watt;  support single gate standalone or multiple gate synchronized work mode;  configuration various alarm modes;  support easafi security surveillance;  support rs232rs485 and tcpip interface;  support remote configuration and management;  support further development and customization;  support plug-in camera, large screen display television to realize control and management in a more intuitive way. Rr-ch-td6960 is designed upon advanced panel-based concept. Each panel is an integrated system and comprises omni-directional antenna array, high rf power reader, controller, infrared motion sensor unit, power splitter, multiplexer, power supply and communication interface etc. Each panel can operate in standalone mode and a pair of panels constructs a gate device. Multiple panels (up to 8 panels) can work in synchronized mode to realize a multiple gate device. Other accessories include ac power c

We are offering hf gate device. General description royalray hf gate device “rr-ch-ircon-es+eas(clear)” are designed for high performance gate management applications. The series support fast tag anti-collision and readwrite operations (include eas function of nxp tag). Equipped with mainauxiliary gate antenna, 4 line infrared motion detection sensor, control board and standard rs232, rs485 serial communication ports and rj45 (tcpip) network port, the series are top choice for open mass flow rfid applications, such as: conference attendance, access control, library entrance control, process control, etc. Features  self-intellectual property;  support isoiec15693, nxp epc, nxp uid, hf epc protocol tags;  advanced anti-collision algorithm, high identification rate;  built-in txrx antenna and gate width up to 120cm*;  built-in 4 line infrared motion detection sensor;  low power dissipation design with rf power over 4w;  the storage capacity of gate is 30000* messages;  configuration various alarm modes;  support nxp taglabel eas function;  support rs232, rs485 and rj45 (tcpip) network interface;  support plug-in camera, large screen display television to realize control and management in a more intuitive way.

We are offering hf gate device. General description royalray hf gate device “rr-ch-ircon-es+eas (crystal)” are designed for high performance gate management applications. The series support fast tag anti-collision and readwrite operations (include eas function of nxp tag). Equipped with mainauxiliary gate antenna, 4 line infrared motion detection sensor, control board and standard rs232, rs485 serial communication ports and rj45 (tcpip) network port, the series are top choice for open mass flow rfid applications, such as: conference attendance, access control, library entrance control, process control, etc. Features  self-intellectual property;  support isoiec15693, nxp epc, nxp uid, hf epc protocol tags;  advanced anti-collision algorithm, high identification rate;  built-in txrx antenna and gate width up to 120cm*;  built-in 4 line infrared motion detection sensor;  low power dissipation design with rf power over 4w;  the storage capacity of gate is 30000* messages;  configuration various alarm modes;  support nxp taglabel eas function;  support rs232, rs485 and rj45 (tcpip) network interface;  support plug-in camera, large screen display television to realize control and management in a more intuitive way.

We are offering uhf gate device. General description royalray “rru-ch-ad2000” is high performance epc c1gen2 (18000-6c), iso18000-6b protocol uhf tag gate device. Designed upon fully self-intellectual property, it supports fast tag anti-collision operation with high identification rate. It can be directly connected to host, controller and other relative equipments. It can be widely applied in many rfid application systems such as logistics, open conference attendance system, open access control and industrial production process control features  self-intellectual property;  support uhf epc g2 (iso18000-6c) , iso18000-6b protocol tags;  860~868mhz 902~928mhz frequency band (frequency customization optional);  fhss or fix frequency transmission; support rssi (optional);  rf output power up to 30dbm (adjustable);  built-in 3 line infrared motion sensor with intelligent movement direction determination and personnel counting;  advanced anti-collision algorithm, high identification rate;  low power dissipation with built-in buzzer and led indicator;  support nxp taglabel eas and afi security surveillance;  support rs232, rs485 and rj45(tcpip) network interface;  support controller-gate coordinate work mode or independent work mode;  support further development and customization;  high reliability design, provide high performance reader for choice ;  support plug-in camera, large screen display television to realize control and management in a more intuitive way.

We are offering royalray gate. Royalray “rr-ch-td6960c” is a high performance hf 3d gate device. Designed upon fully self-intellectual property, it supports fast tag anti-collision operation with high identification rate, 2 line infrared motion sensor with intelligent personnel movement direction determination and counting, easafi security surveillance, multiple gate synchronization, rs232485 and tcpip interface, remote configuration and management. It is an ideal choice for various hf rfid application systems such as library anti-theft, open access control, conference attendance, process control and logistics etc. Features  self-intellectual property;  support mainstream iso15693 protocol tag (ti, philips, st, infineon, fujitsu, em…) omni-directional operation;  advanced anti-collision algorithm, high identification rate;  typical gate width up to 90cm*;  2 line infrared motion sensor with intelligent movement direction determination and personnel counting;  low power dissipation design with rf output power over 4watt;  support single gate standalone or multiple gate synchronized work mode;  configuration various alarm modes;  support easafi security surveillance;  support rs232rs485 and tcpip interface;  support remote configuration and management;  support further development and customization;  support plug-in camera, large screen display television to realize control and management in a more intuitive way. Components rr-ch-td6960c is designed upon advanced panel-based concept. Each panel is an integrated system and comprises omni-directional antenna array, high rf power reader, controller, infrared motion sensor unit, power splitter, multiplexer, power supply and communication interface etc. Each panel can operate in standalone mode and a pair of panels constructs a gate device. Multiple panels (up to 8 panels) can work in synchronized mode to realize a multiple gate device. Other accessor
