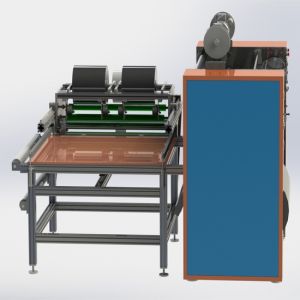

We are offering Machine Model:UC-SP250 Machine speed: 250mmin(it’s not only a design speed, machine can keep working on this speed) Machine size: 2000*2300*1700mm Machine main steel sheet thickness: 30mm Machine Weight: 1600kgs Unwind: Shaftless clamp fixing system for Jumbo roll Max Jumbo width: 1050mm (other width on request) Jumbo outer diameter: 600mm Jumbo core diameter: 6 inch (other diameter on request) Max Jumbo weight: 200 kgs Electronically Jumbo leftright side adjustment Servo drive system, automatic unwind tension control Lights for ribbon quality monitoring Rewind: Two rewind positions, Turret each position Max rewind diameter: 125mm Rewind width: 25mm-1010mm(smaller width on request) Two servo driver system for winding positions, automatic tension control. Pneumatic driver pressing roller for ribbon winding 5pcs 1 inch air expanding shaft Option: 5pcs 12 inch air expanding shaft. Slitting system: Magnetic blade fixture, 30pcs per machine Pneumatic driver blade holder shaft. Leader and trailer table: Semi-auto leader and trailer table Waste free leader and trailer station, saved 0.8 m ribbon each time when doing the packaging. Waste edge rewinder: Two units waste edge rewinder to collect the waste edge each side. Waste edge manual tension control. Manual adjust the waste edge rewinder leftright position. Electronic parts and power supply: Touch screen 4 units Sanyo servo motor Siemens PLC Power: 7Kw Electric: Single phase 220V 50HZ Air supply: 0.6-0.8 Mpa

We are offering UC-M330A Application: Our mini ttr slitter and rewinder is used for slitting and rewinding width under 330mm master roll, a good tool to repair your old stock. You can use it rewind ink inside to ink outside or ink outside to ink inside. Specification: 1.Max unwind width:330mm 2.Max unwind diameter:120mm 3.Unwind shaft:1 inch and 12inch air shaft(each 1pc) 4.Rewind shaft:1 inch and 12inch air shaft(each 2pcs) 5.Rewind width:25-330mm 6.Speed:0-150mmin 7.Two waste edge rewinder 8.Tension control: Manual 9.Blade: Razor with fixture 10.High precision meter counter 11.Power: single phase 220V 50HZ
