Multimode operation HSUPA/HSDPA/UMTS/EDGE/GPRS/GSM Twins-band HSPA/UMTS 1900/2100 MHz Quad-band EDGE/GPRS/GSM 850/900/1800/1900 MHz Hardware Platform Qualcomm 6290 HSUPA uplink up to 2.0 Mbps HSDPA downlink up to 7.2 Mbps EDGE data up to 237 Kbps DL and 118Kbps UL, 3GPP Release4, class 12 GPRS data up to 85.6 Kbps DL and 42.8 Kbps UL -Call termination and Origination -Standard RJ-11 (FXS) to telephone or voip gateway & PABX -Radio Bases Changing Automaticly to simulate movement -Provide accurate anti-polarity signal, Precise reverse polarity -Caller ID -Callback Function -Support DTMF -Support 2nd Stage Dialing -Can dial number including * #. -Can set dial speed, quck dial and slow dial.(dial delay time) -Support CLIR (calling line identity restriction) -Forbid incoming call -Set IP number before the number -Set the number can not be dialed -Set rapid reaction when detecting busy signal -Lock network -Can set auto dial till connect call

We offer voip gateway.

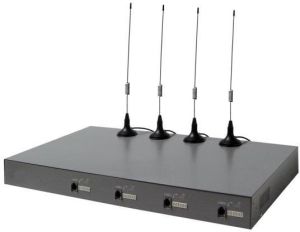

We are offering 4 ports gsm 1900mhz fwt description of function 1) standard rj-11 of fxo/fxs to telephone or voip gateway & pabx & pstn 2) dtmf detector in rj-11 3) precise reverse polarity 4) caller id (dtmf, one ring) to telephone or voip gateway & pabx 5) single-handed power switch 6) led indicating hook on/off, talking, signal intensity, power on/off 7) strong signals with high gain antenna 8) add prefixed ip number to dail 9) second dial tone 10)base station rotation optional function: bar incoming calls lock sim card lock mobile service provider connect to voip gateway for voip termination connect to pbx system connect to public-phone system.

We are offering 4 Ports Gsm900/1800/1900mhz Fwt. Description of Function 1) standard RJ-11 of FXO/FXS to telephone or voip gateway & PABX & PSTN 2) DTMF detector in RJ-11 3) Precise reverse polarity 4) Caller id (DTMF, ONE RING) to telephone or voip gateway & PABX 5) Single-handed power switch 6) LED indicating Hook On/Off, Talking, signal intensity, Power On/Off 7) Strong signals with high gain antenna 8) Add prefixed IP number to dail 9) Second dial tone 10)Base station rotation Optional Function: bar incoming calls lock sim card Write ESN for no mobile UIM card country lock mobile service provider Connect to VoIP Gateway for voip termination Connect to PBX system Connect to Public-phone system.

We offer voip gateway.

GSM 850MHz 900MHz 1800MHz 1900MHz -standard RJ-11 (FXS) to telephone or voip gateway & PABX -Provide accurate anti-polarity signal Precise reverse polarity -Caller ID -Callback Function -Support DTMF -Support 2nd Stage Dialing -Can dial number including*# -Support CLIR (calling line identity restriction) -Forbid incoming call -Set IP number before the number -Set the number can not be dialed -Lock network -Can set auto dial till connect call Simple to install and easy to maintain Steady module & reliable design ensures good performance Strong signals with high gain antenna No noise & Clear voice Suitable for wide voltage range & Low power consumption Suitable for all kinds of weather & environment Offer keypad command sets to difine functions Best quality, Best price. MOQ:1 unit. Small orders accepted Warranty: 1 year Prompt delivery Quality Approvals International Approvals OEM accepted Msn:szrunsunsale03@hotmail.com Tel:8618666400923 Msn:szrunsunsale03@hotmail.com Mail:szrunsun@yahoo.cn Email:szrunsun@yahoo.cn

Mainly for voip call termination fwt have standard fxs(rj11) interface can connect to many kinds of voip gateway such as quintum gateway;cisco gateway;newrock gateway;asterisk; ip pbx;pbx and so on.. - gsm 850mhz 900mhz 1800mhz 1900mhz -standard rj-11 (fxs) to telephone or voip gateway & pabx -provide accurate anti-polarity signal precise reverse polarity -caller id -callback function -support dtmf -support 2nd stage dialing -can dial number including*# -support clir (calling line identity restriction) -forbid incoming call -set ip number before the number -set the number can not be dialed -lock network -can set auto dial till connect call simple to install and easy to maintain steady module & reliable design ensures good performance strong signals with high gain antenna no noise & clear voice suitable for wide voltage range & low power consumption suitable for all kinds of weather & environment offer keypad command sets to difine functions

FXO/FXS Port. Clear Voice & Work Steady. Insert gsm 850/900/1800/1900MHz sim card（quad-band frequency） Description of Function 1) Connect to telephone & voip gateway & PABX & PSTN 2) Support DTMF 3) Precise reverse polarity 4) Caller id (DTMF, ONE RING) 5) LED indicating Hook On/Off, Talking, signal intensity, Power On/Off 6) Strong signals with high gain antenna Optional Function: Bar incoming calls Lock sim card Auto update imei number Set auto-answer incoming call Setting dial-up delay time -------------------------------------------------------------------------------- Connect to VoIP Gateway for voip termination Connect to PBX system Connect to Public-phone system

We are offering 8 port fxs voip gateway. functions and features: connect pbx, gsm/cdma fwt to the ip core network, ; work with service platform to provide various telephone supplementary services; support sip and mgcp protocols; support fxo/fxs interfaces; support static ip address configuration or dynamically obtain an ip address through dhcp and pppoe; support g.711, g.729a, g.723.1, gsm, ilbc; support echo cancellation; support digitmap; support intercom; support full-capacity concurrent calls; support t.30/t.38 fax mode; support multiple local and remote maintenance & management modes such as web, telnet, auto-provision, and tr069 clinet;. support several encryption methods; support call progress tones for various countries and regions; support fxo second stage dialing or voice prompt; dtmf digits transmit: rfc2833, info(sip) network: pppoe, dhcp, dns, ddns, nat/stun, 802.1p, tfip, telnet etc. protocols: sip (rfc3261, rfc3262, rfc3311, rfc3323, rfc3325).
