Shenzhen Tongli Machinery Technical Ltd.

Guangdong, China

• MOQ 1 Set(s)

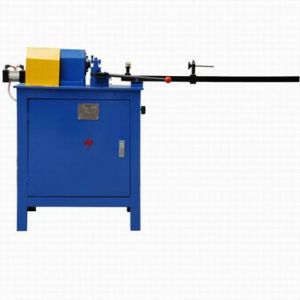

Used to cut copper, iron, aluminum and stainless steel tubes manually. Functions: 1. Pneumatic clamping, automatic cutting. 2. Element rotates, automatic stop when loading finished. 3. Burr-free ends on the tubes, high efficiency, easy operation. Main technical parameters: 1. Power supply: 3phase 380V, 50Hz (can be custom-made) 2. Rated power: 0.8KW 3. Air supply: 5-7kg/cm2 4. Tube diameter: ￠6-￠16mm 5. Efficiency: 8000pcs-10000pcs/8h6 6. Packing size (L*W*H):750*800*1150(mm) 7. Gross weight: 170kg

• MOQ 1 Set(s)

Fill mgo powder inside of empty tube. Mainly used for tube length within 2000mm. functions: plc control, human-computer interface. Vibration frequency can be adjusted. Powder filling density above 2.17g/cm3. Almost zero mgo loss. Tube diameter: below ￠16mm. Indicate how to clear fault automatically. 12, 18, 24, 36 positions are available filling speed: 250-350mm/min min. Tube diameter: ￠5.5mm main technical parameters: power supply: single phase 220v, 50hz rated power: 1.5kw air supply: 5-7kg/cm2 efficiency: 6500pcs/8h (tube length 250mm) it can fill 24pcs or 36pcs tubes at a time (below ￠10mm) packing size (l*w*h):3300*1050*1050(mm) (tube length 1meter) 4500*1050*1050 (mm) (tube length 1.5meters) 5800*1050*1050 (mm) (tube length 2meters) gross weight: 650kg

• MOQ 1 Set(s)

TL-113 Spot annealing machine Used anneal heating element and make it soft for bending. Functions: 1. Heating the heating elements surface by low voltage and high-current 2. Can set the annealing time and temperature 3. Pneumatic clamping, safe and convenient. 5. Flexible design of copper collet Main technical parameters: 1. Power supply: 3phase 380V, 50Hz (can be custom-made) 2. Air supply: 5-7 kg/cm2 3. Rated power: 30KW 4. Tube diameter: ￠6mm-￠20mm

• MOQ 1 Set(s)

TL-101 Tube rolling machine Used to shrink the heating elements diameter and compact MgO powder.. Functions: Machine frame: pig iron casting. Two types of motor: non-uniform speed and uniform speed. Two kinds of rollers: high speed steel and tungsten carbide roller. Characteristics: small size, low noise and convenient adjustments. Applicable tube: Copper, iron, aluminum, stainless steel, etc. Main technical parameters: Tube diameter after shrinking: ￠5.2mm-￠19.0mm The Max. diameter before shrinking: ￠21mm The Min. length of tube:110mm Speed: 18meters/min.

• MOQ 1 Set(s)

Tl-124semiautomatic polishing machine used to polish the surface of straight heating elements or empty tubes and make it bright. functions: tube diameter can be adjusted, easy to operate use import polishing wheel 3m. Low noise, high quality speed can be adjusted main technical parameters: power supply: 3phase 380v 50hz (can be custom-made) rated power: 1.7kw tube diameter: ￠5-￠20mm packing size (l*w*h): 840*840*1200 (mm) gross weight: 325kg

• MOQ 1 Set(s)

Used to wind resistance wire into coils. It can wind both single and double wire. Functions: The shaft speed controlled by DELTA brand inverter The machine will produce coils with very consistent resistance values When lack of wire or wire is broken, the machine will stop automatically. It also can count the output automatically. Wire with small diameter is usually cut by electromagnetic while wire with large diameter is cut by pneumatic. This machine with small size, easy operation and no operator required. Single and double plastic wheel are available. Main technical parameters: Power supply: Single phase 220V 50Hz Rated power: 500W Shaft speed:0-2134rpm Plastic wheel speed: 0-74rpm Accuracy:±1% Coil ID (mandrel diameter):0.75mm-12.7mm Wire diameter:0.10mm-1.0mm
